PSP 300xc Speakers Replacement

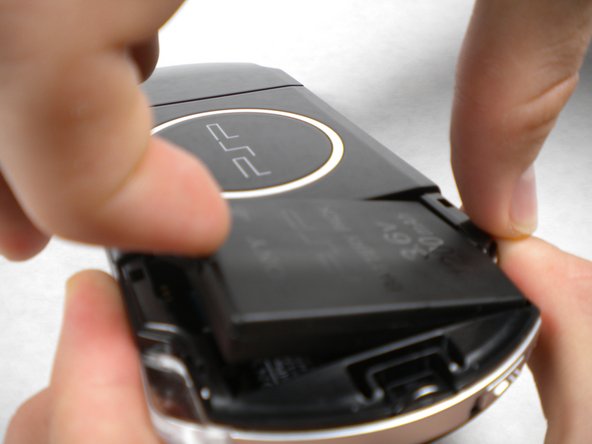

Press the button securing the battery door to the PSP 300xc, and lift the battery door off.

Lift the battery out of the PSP.

Use a spudger or your fingernail to remove the warranty sticker stuck to the inside of the battery tray

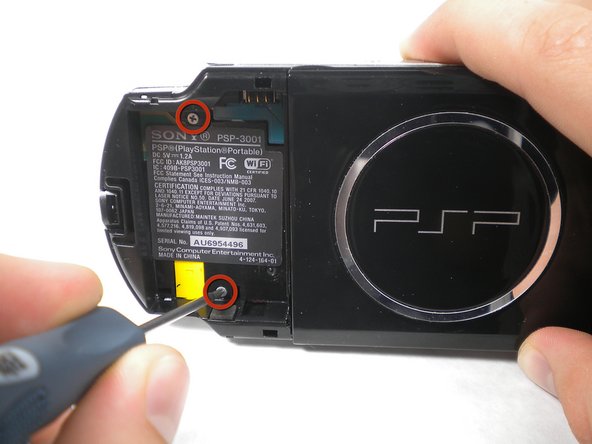

Remove four Phillips screws from the back of the PSP.

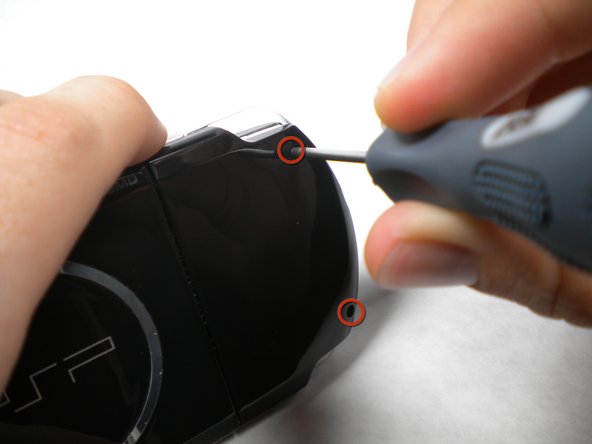

Remove two Phillips screws from the top of the PSP.

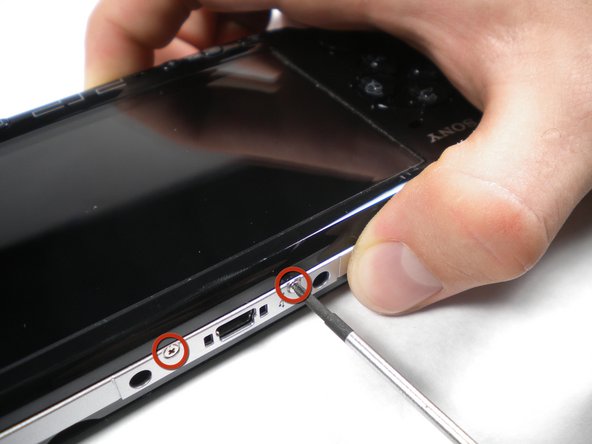

Remove a single screw from the bottom edge of the PSP.

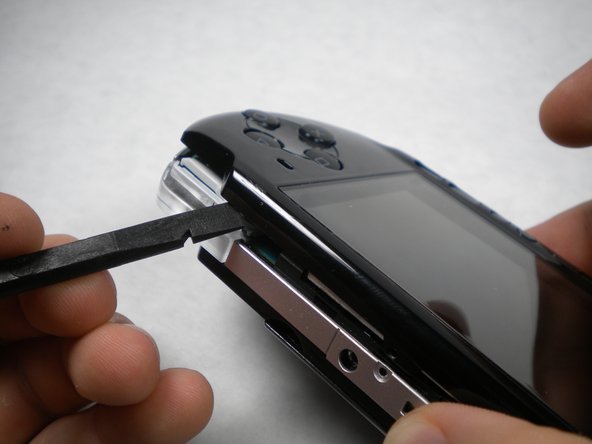

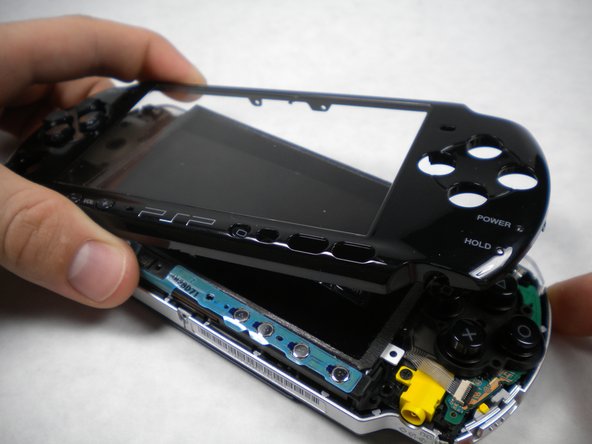

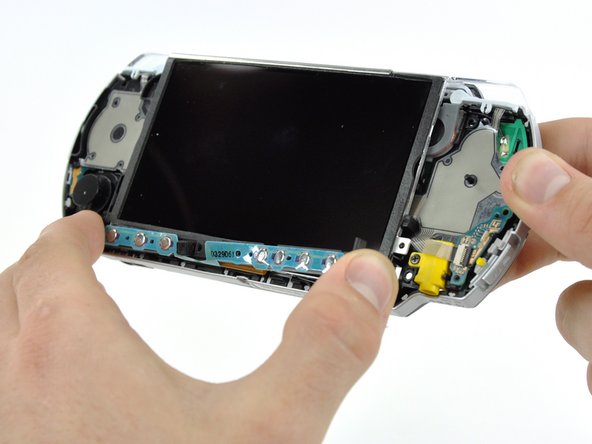

Insert a spudger between the front case and PSP, and slide the spudger along the perimeter of the front case to remove it.

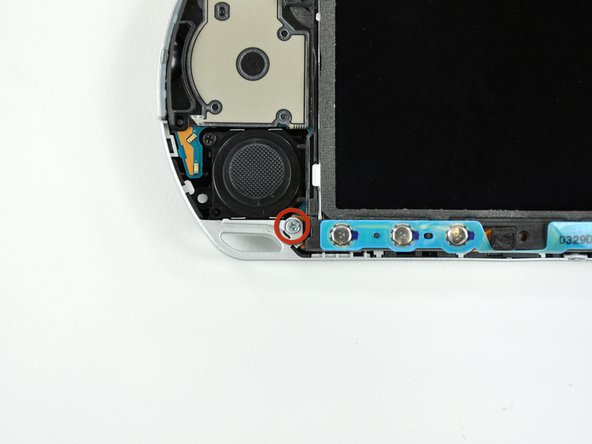

Remove a single Phillips screw securing the home bar to the PSP 300xc.

Push the home bar to the right about 1cm to release a tab, and begin to lift the right end of the home bar slightly.

Insert a spudger under the LCD, beside the black plastic tab.

Push the LCD to the left and pry up to release the left edge of the LCD from under the plastic tab.

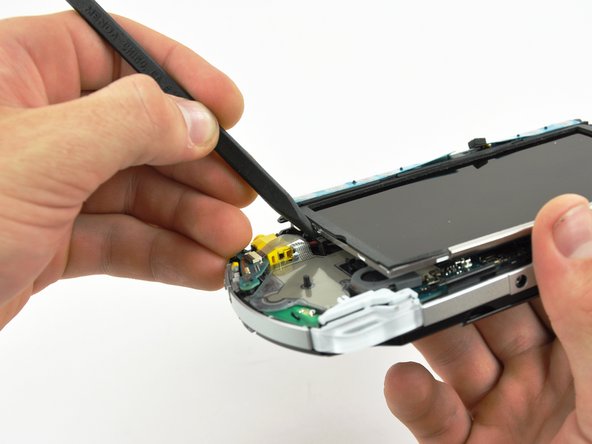

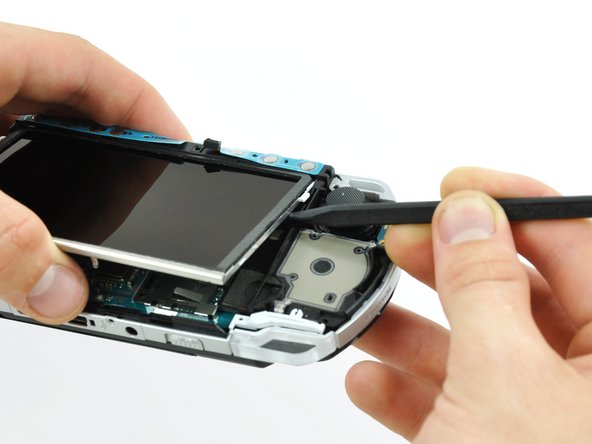

Insert a spudger under the LCD, beside the black plastic tab.

Push the LCD to the right and pry up to release the right edge of the LCD from under the plastic tab.

Rotate the LCD away from the PSP to reveal the LCD and home bar ribbon cables.

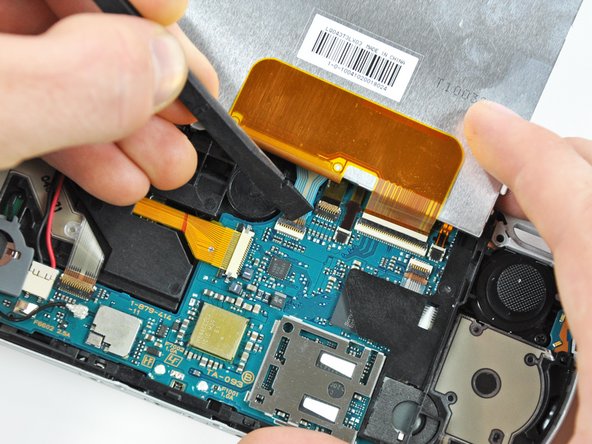

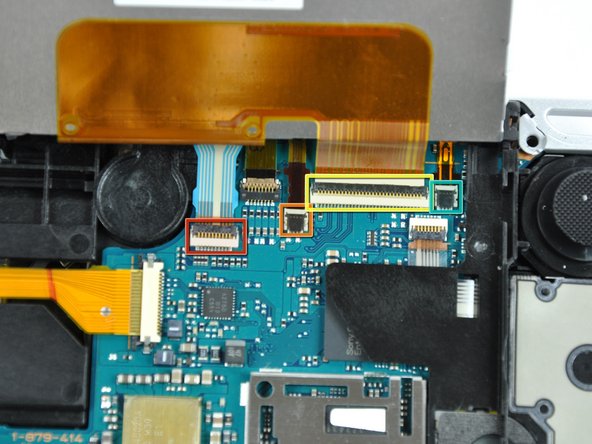

Use your fingernail or the edge of a plastic opening tool to flip up the retaining flap on the following four ZIF connectors:

Home bar cable

Microphone cable

LCD display data cable

Touchscreen cable

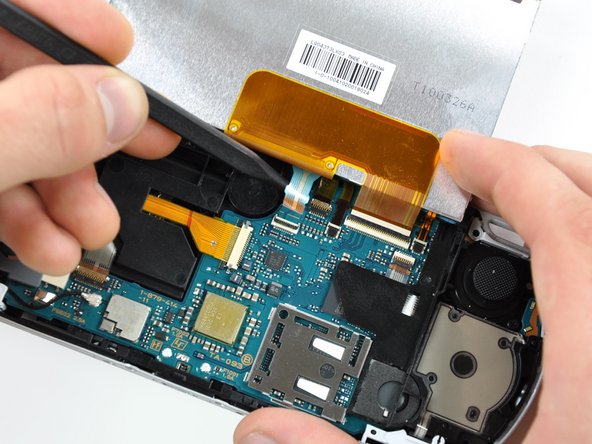

After flipping up the locking tabs on all four connectors, use your fingers or a spudger to gently pull the cables straight out of the connectors.

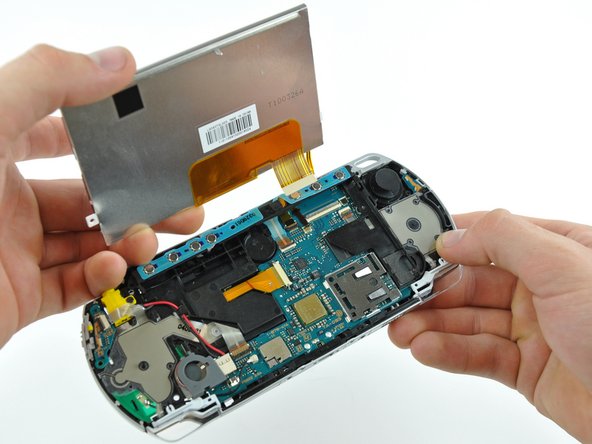

Remove the LCD from the PSP 300xc.

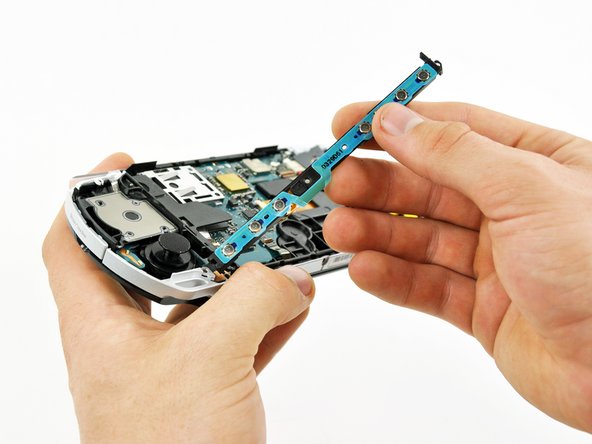

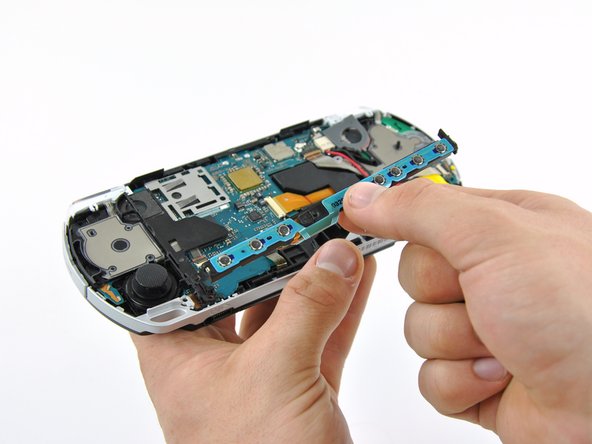

Lift the home bar up as high as it will go, but not so high that the wires disconnect.

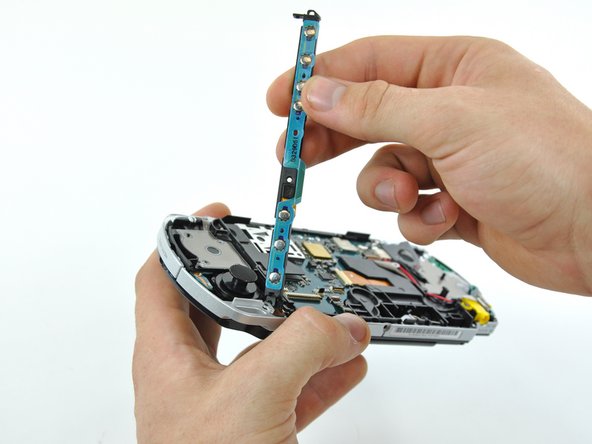

Twist the home bar counter clockwise while carefully lifting it further. The left edge has to lift over the black plastic frame to allow it to rotate.

The home bar should now lift out of the PSP 300xc.

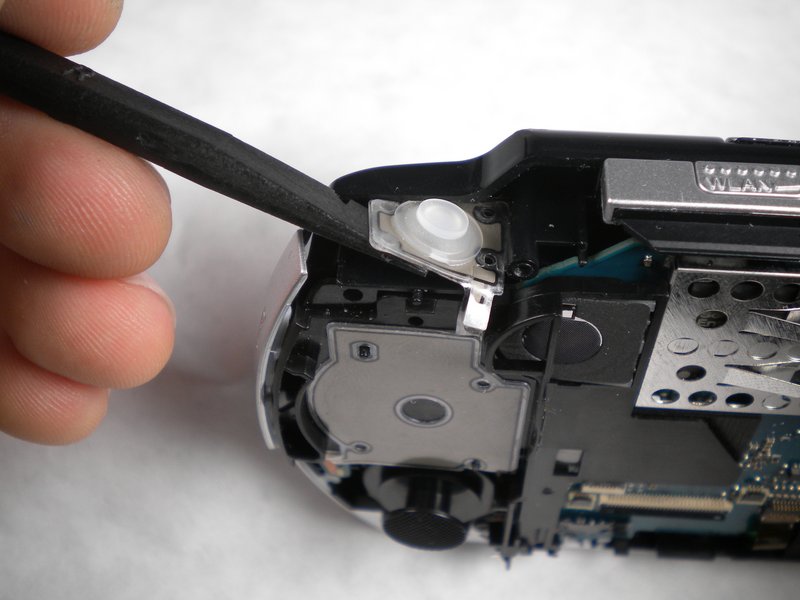

Using the flat end of a spudger, peel the left trigger contact pad up from the case.

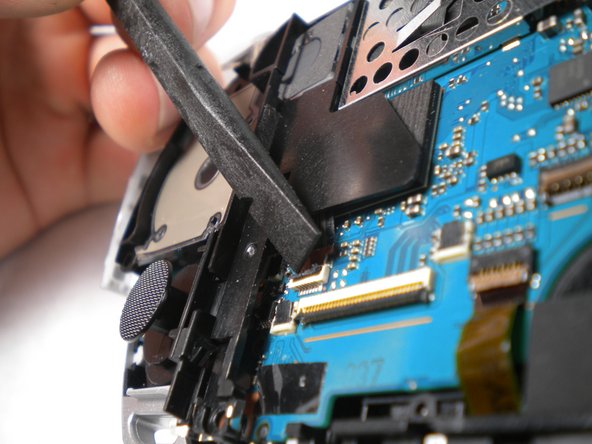

Using a fingernail or spudger, flip up the retaining bracket on the d-pad and 'L' trigger ribbon cable.

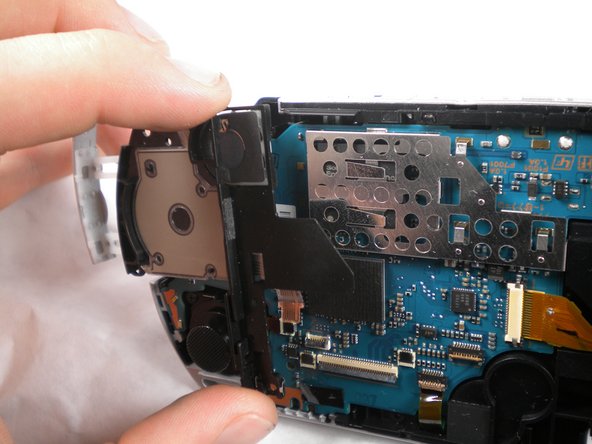

Lift the black plastic bracket along with the d-pad contact pad, disconnecting the ribbon cable as you lift.

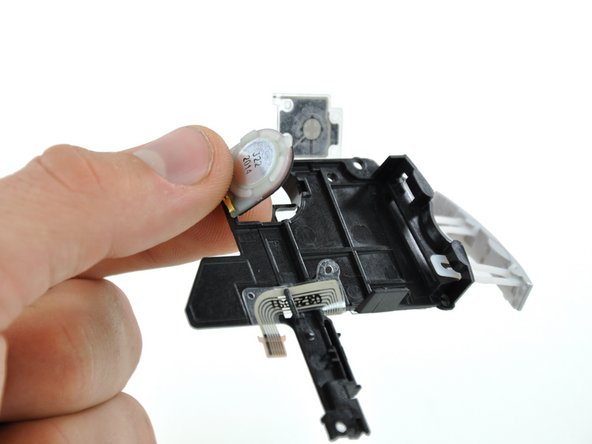

Pop the left speaker out from the bottom of the black plastic bracket.

Set the left speaker aside.

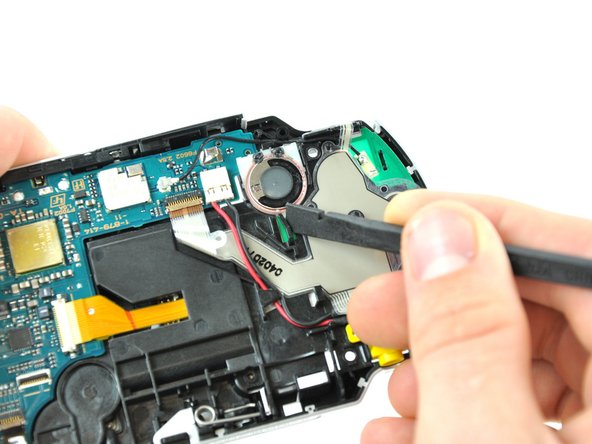

Push the black tab holding the right speaker down to the left.

Remove the speaker.
