PSP Go Analog Joystick Replacement

Step 1 PSP Go Analog Joystick Replacement



• Unscrew the four Phillips screws on the back of the PSP Go.
• Rotate the PSP so you can see the top of the device.
• Unscrew the two Phillips screws next to the volume buttons.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 2



• Use a plastic opening tool around the perimeter of the back cover to loosen it on all sides.

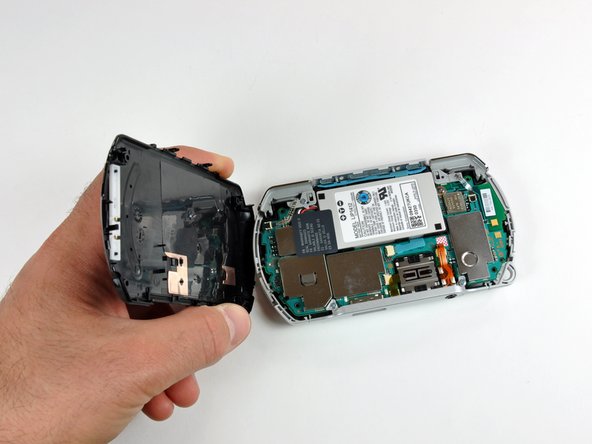

• Open the back cover by gently lifting the right side, and rotating it to the left side (as if you were opening a book).
• Be careful not to rotate the back cover from the bottom, as you will break the plastic screw holes on top of the device.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 3

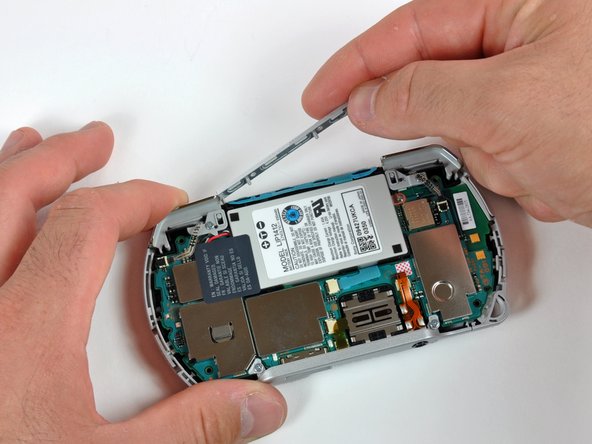

• Pull the top cover upwards gently from its housing.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 4

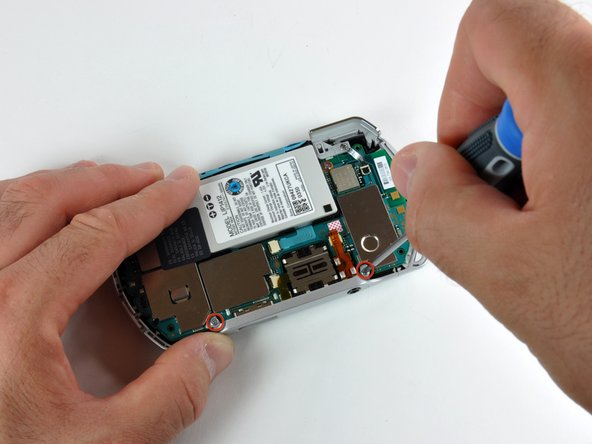

• Remove the two Phillips screws holding the bottom plate.

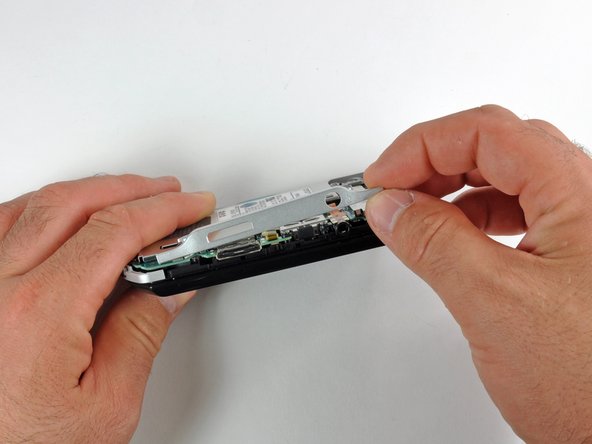

• Gently lift the bottom plate away from the device.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 5

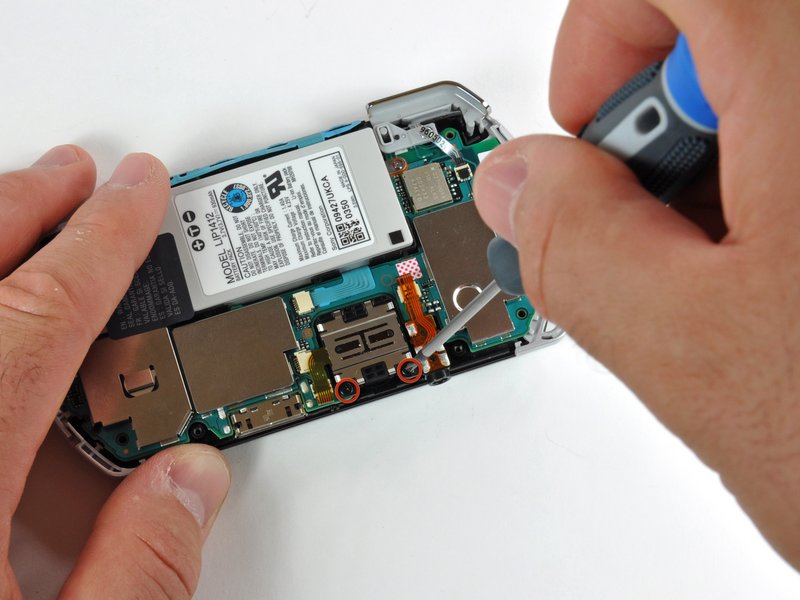

• Use a #00 Phillips screwdriver to remove both screws holding the analog joystick in place.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 6

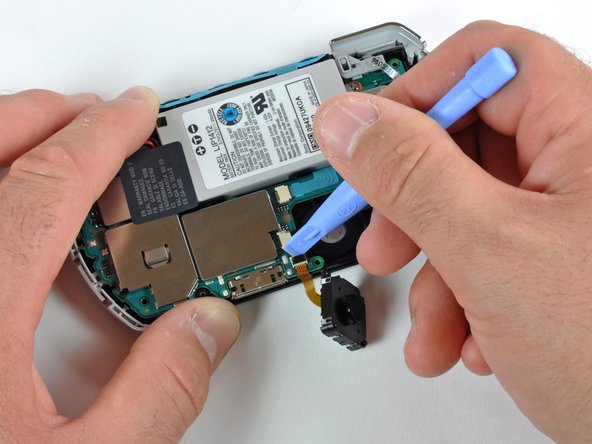

• Use a plastic opening tool to gently flip up the analog joystick's cable connector.

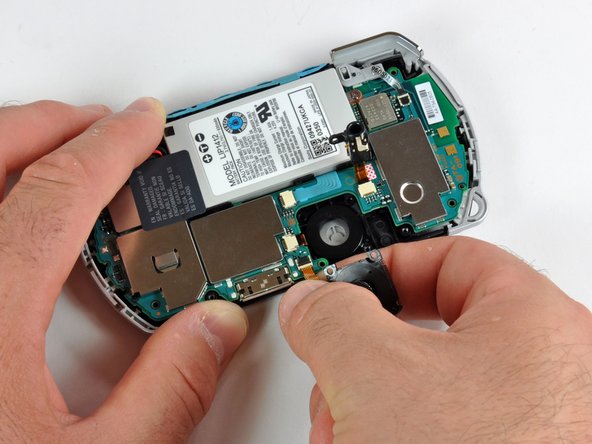

• Use your fingers or tweezers to gently pull out the analog joystick cable from its connector.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
