Panasonic Lumix DMC-FX01 Front Casing Replacement

Introduction

Use this guide to replace the front casing of your Panasonic Lumix DMC-FX01.

What you need

  1. Panasonic Lumix DMC-FX01 Front Casing Replacement, Panasonic Lumix DMC-FX01 Front Casing Replacement: step 1, image 1 of 1

    • Locate the memory card and battery card latch on the bottom of the camera.

    • Slide the latch to the open position.

  2. Panasonic Lumix DMC-FX01 Front Casing Replacement: step 2, image 1 of 1

    • Open the battery latch, and slide the battery release lever to the right.

  3. Panasonic Lumix DMC-FX01 Front Casing Replacement: step 3, image 1 of 1

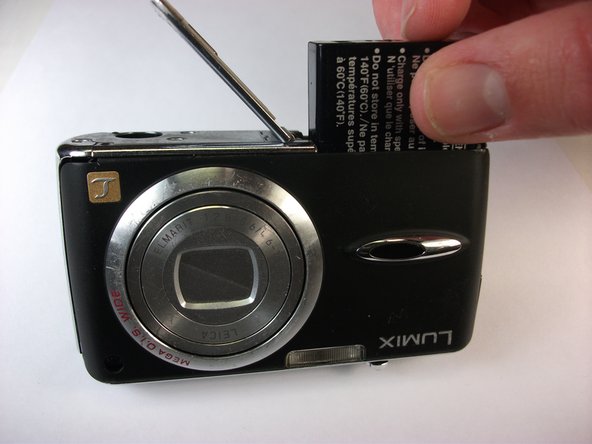

    • Remove the battery from the camera.

  4. Panasonic Lumix DMC-FX01 Front Casing Replacement: step 4, image 1 of 1

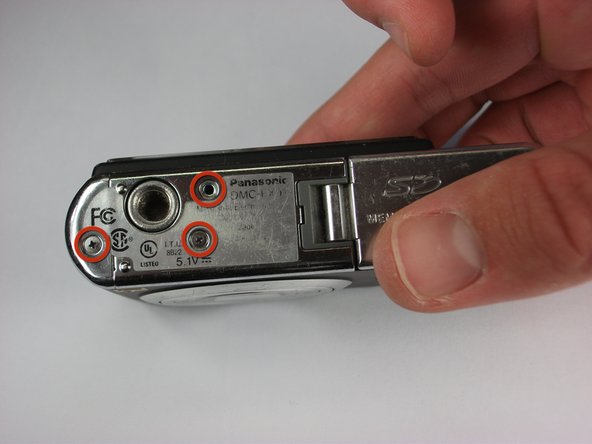

    • Using a size #00 Phillips screwdriver, remove the three 4.58 mm screws on the bottom of the camera.

    • Use this screwdriver for all screws in the device.

  5. Panasonic Lumix DMC-FX01 Front Casing Replacement: step 5, image 1 of 1

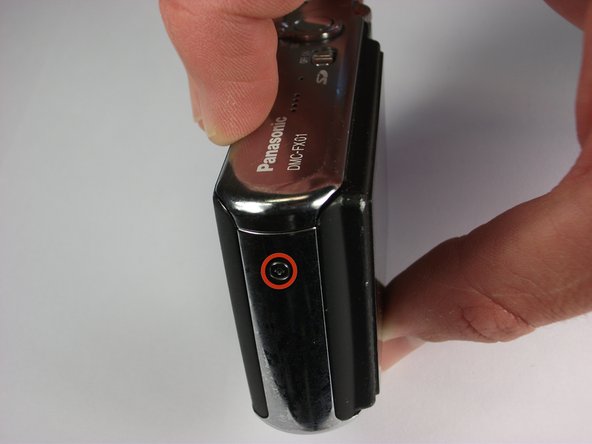

    • Remove the 3.15 mm screw on the left side of the camera.

  7. Panasonic Lumix DMC-FX01 Front Casing Replacement: step 6, image 1 of 2 Panasonic Lumix DMC-FX01 Front Casing Replacement: step 6, image 2 of 2

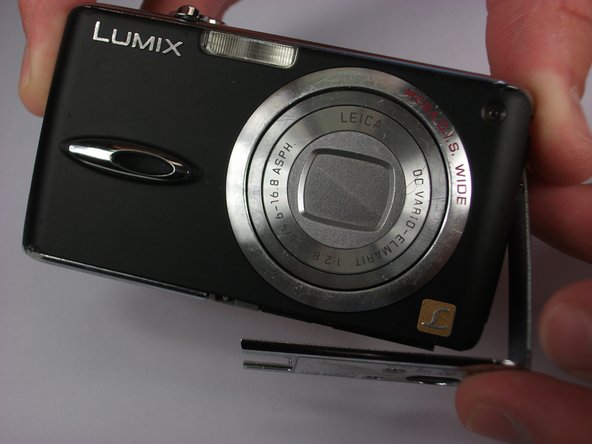

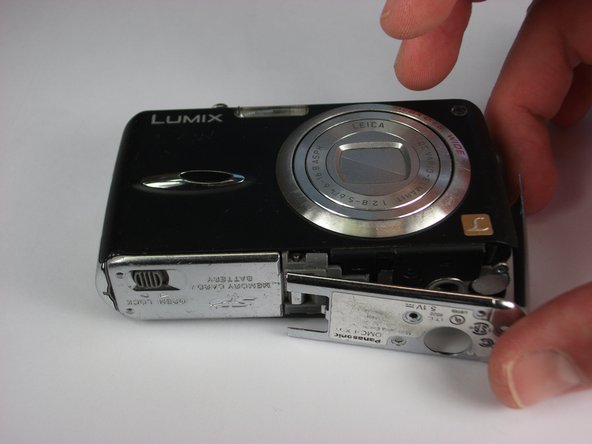

    • Remove the left side casing.

  8. Panasonic Lumix DMC-FX01 Front Casing Replacement: step 7, image 1 of 1

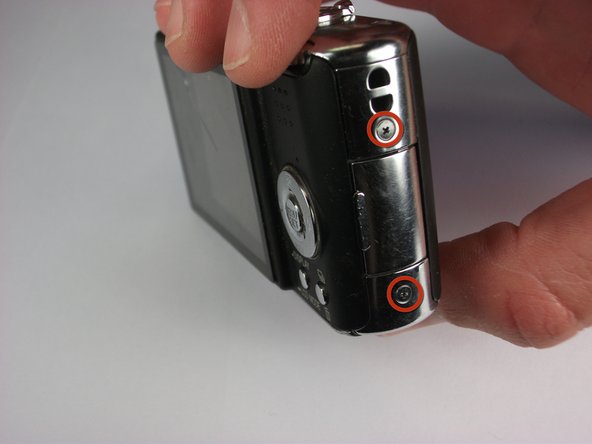

    • Remove the two 3.15 mm screws on the right side of the camera.

  9. Panasonic Lumix DMC-FX01 Front Casing Replacement: step 8, image 1 of 1

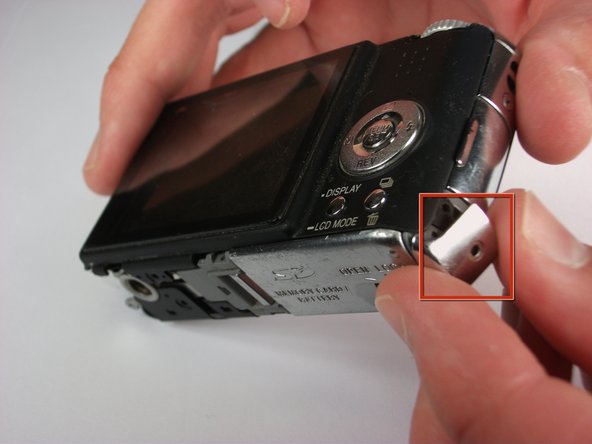

    • Remove the bottom right panel.

  10. Panasonic Lumix DMC-FX01 Front Casing Replacement: step 9, image 1 of 2 Panasonic Lumix DMC-FX01 Front Casing Replacement: step 9, image 2 of 2

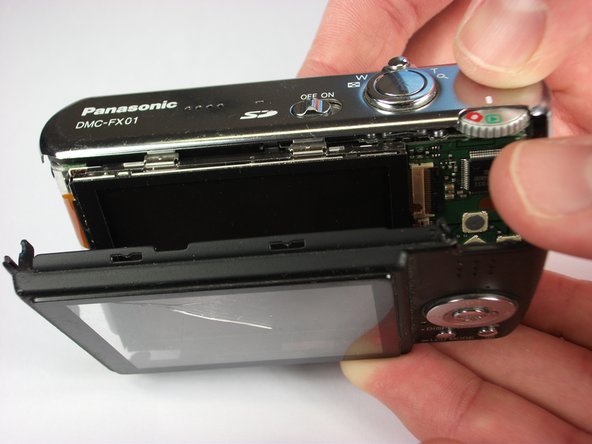

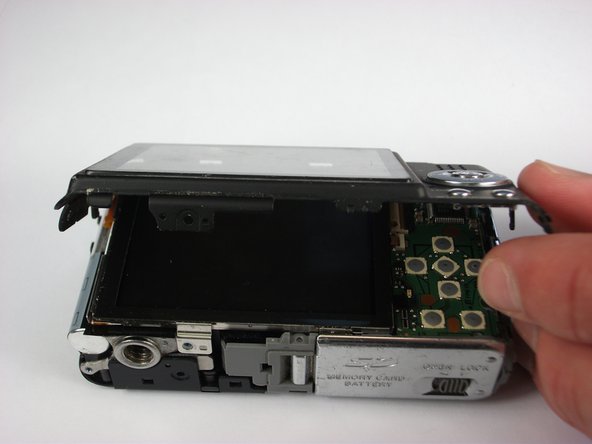

    • Gently remove the back casing.

    • Start at the bottom and carefully pry towards the top to get this piece free.

  11. Panasonic Lumix DMC-FX01 Front Casing Replacement: step 10, image 1 of 1

    • Gently lift up the LCD screen.

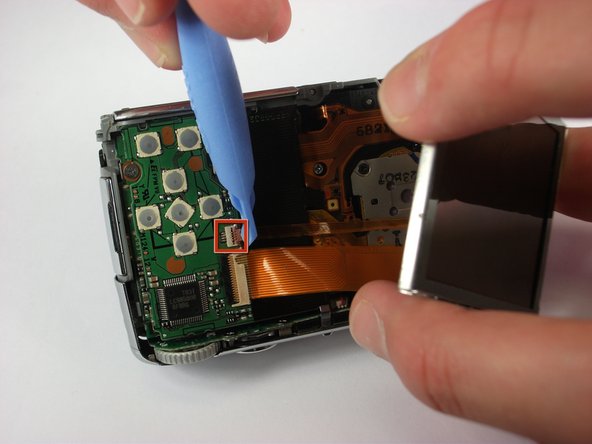

    • Using a plastic prying tool, flip up the latch that holds the thin ribbon in place.

    • It should fall out on its own or with a gentle tug.

  12. Panasonic Lumix DMC-FX01 Front Casing Replacement: step 11, image 1 of 1

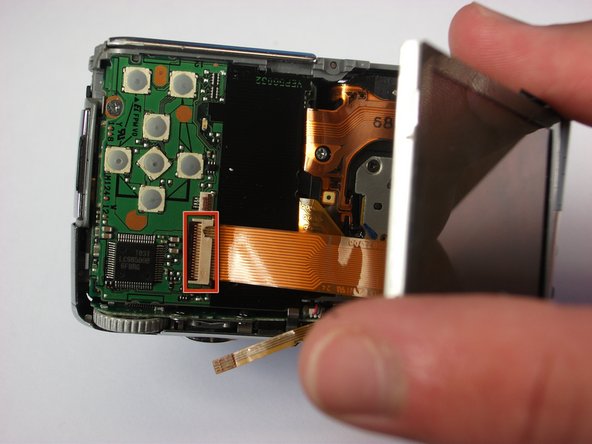

    • Gently tug the thicker ribbon to remove it from its housing.

  13. Panasonic Lumix DMC-FX01 Front Casing Replacement: step 12, image 1 of 2 Panasonic Lumix DMC-FX01 Front Casing Replacement: step 12, image 2 of 2

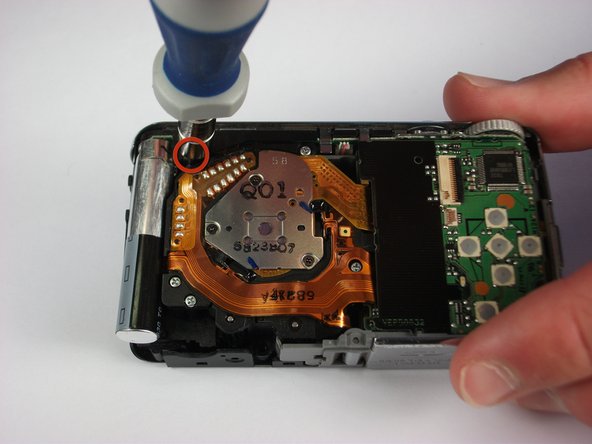

    • Remove the two black 5.35 mm screws that hold in the front faceplate.

    • There may be a third screw the the right of the lens assembly.

  14. Panasonic Lumix DMC-FX01 Front Casing Replacement: step 13, image 1 of 3 Panasonic Lumix DMC-FX01 Front Casing Replacement: step 13, image 2 of 3 Panasonic Lumix DMC-FX01 Front Casing Replacement: step 13, image 3 of 3

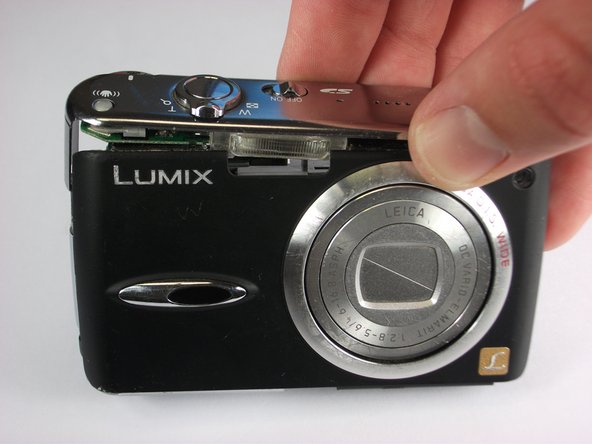

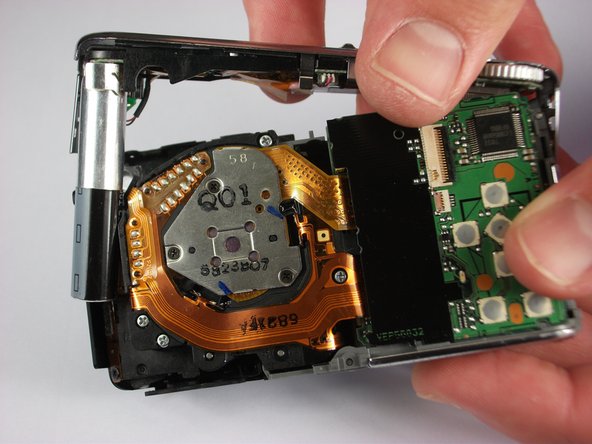

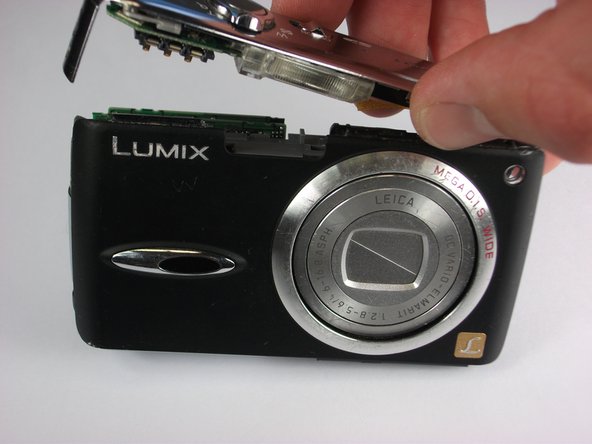

    • Carefully remove the upper assembly, which houses the buttons and the flash battery.

  15. Panasonic Lumix DMC-FX01 Front Casing Replacement: step 14, image 1 of 1

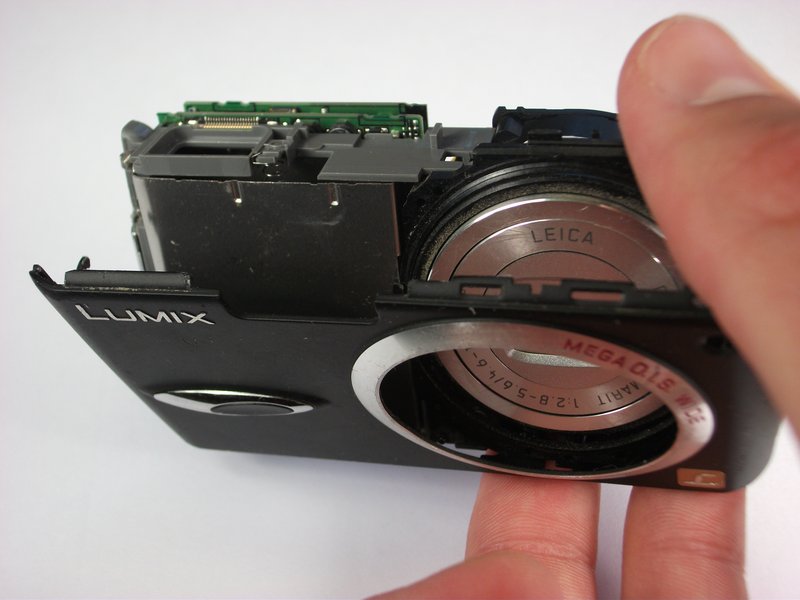

    • Carefully remove the front casing after verifying that the thin plastic around the lens is not still attached.

Conclusion

To reassemble your device, follow these instructions in reverse order.
