Panasonic Toughbook CF-29 Back Cover Replacement

Introduction

This guide provides the steps to remove the back cover. This process is necessary to access many of the components inside.

What you need

  1. Panasonic Toughbook CF-29 Back Cover Replacement, Panasonic Toughbook CF-29 Back Cover Replacement: step 1, image 1 of 1

    • Locate the bay door for the battery on the left side of the laptop.

  2. Panasonic Toughbook CF-29 Back Cover Replacement: step 2, image 1 of 2 Panasonic Toughbook CF-29 Back Cover Replacement: step 2, image 2 of 2

    • Slide the latch to the right and then down to unlock it.

    • Pull out the battery.

  3. Panasonic Toughbook CF-29 Back Cover Replacement: step 3, image 1 of 1

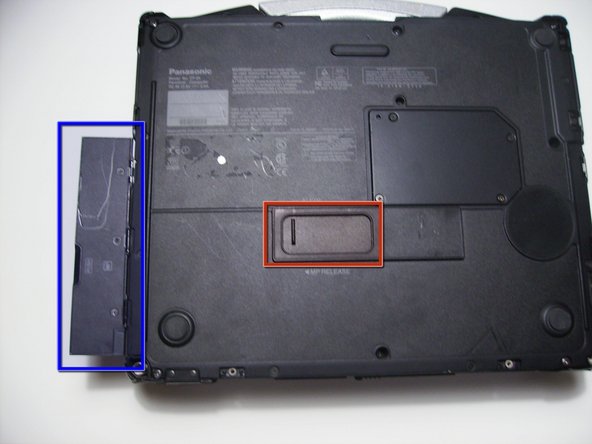

    • Flip the device upside down with the handle facing away from you.

    • Open the optical drive bay by sliding its latch to the right.

    • Locate optical drive release mechanism on the bottom of the laptop.

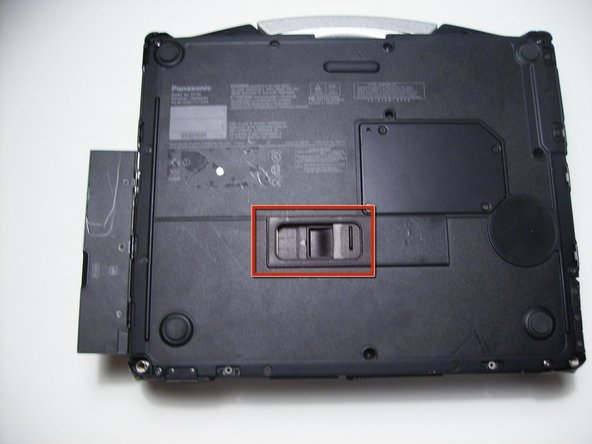

  4. Panasonic Toughbook CF-29 Back Cover Replacement: step 4, image 1 of 1

    • Slide the latch cover to the right.

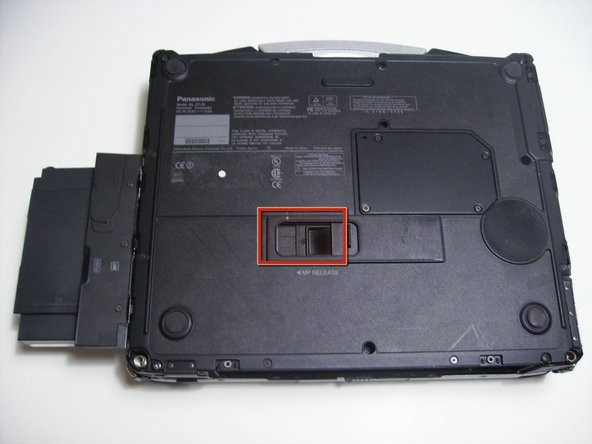

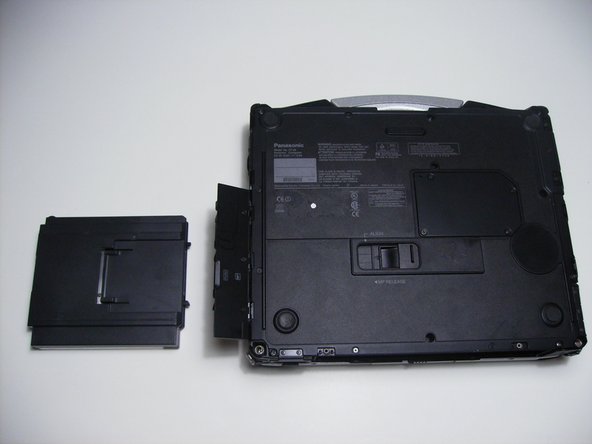

  6. Panasonic Toughbook CF-29 Back Cover Replacement: step 5, image 1 of 2 Panasonic Toughbook CF-29 Back Cover Replacement: step 5, image 2 of 2

    • Push the exposed switch to the left to eject the optical drive.

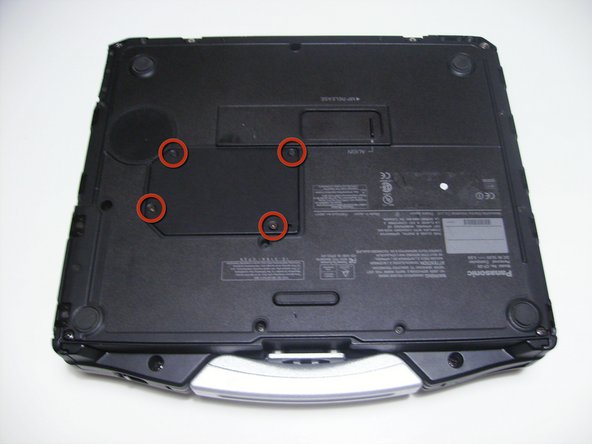

  7. Panasonic Toughbook CF-29 Back Cover Replacement: step 6, image 1 of 1

    • Begin by turning the laptop upside down with the handle towards you.

    • Use a Phillips size 0 screwdriver to remove the 4 screws holding down the ram cover.

  8. Panasonic Toughbook CF-29 Back Cover Replacement: step 7, image 1 of 1

    • Remove the panel and set it aside.

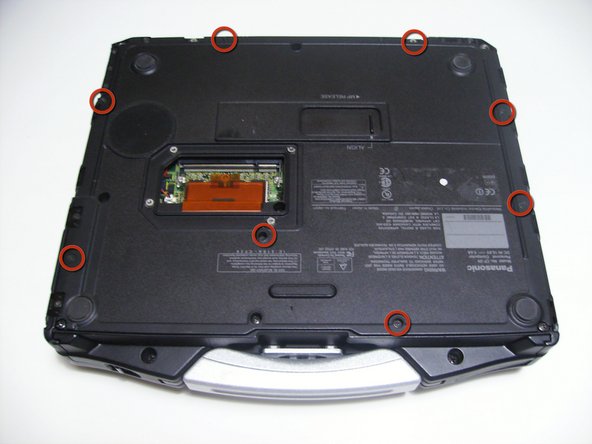

    • Use a Phillips size 0 screwdriver to remove these 8 small screws.

  9. Panasonic Toughbook CF-29 Back Cover Replacement: step 8, image 1 of 1

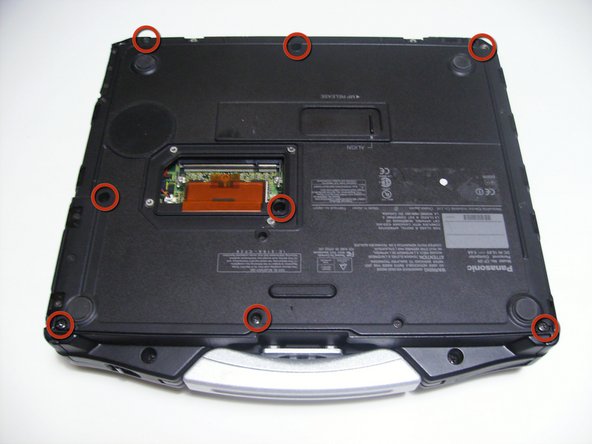

    • Use a Phillips size 1 screwdriver to remove the remaining 8 screws.

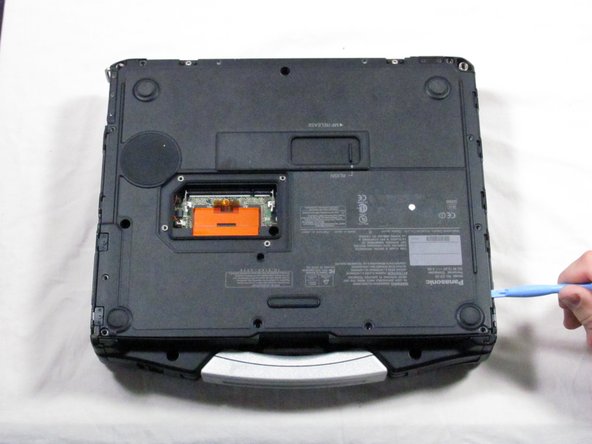

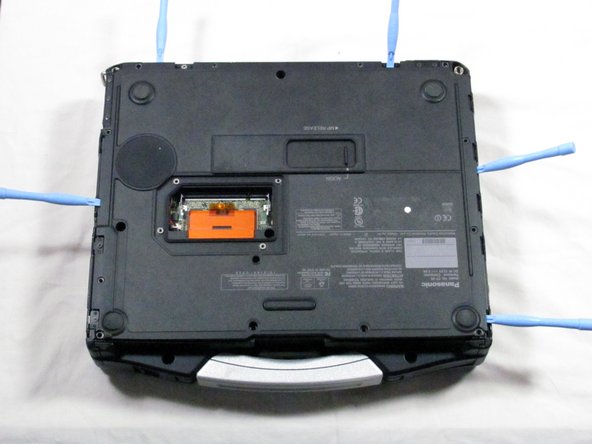

  10. Panasonic Toughbook CF-29 Back Cover Replacement: step 9, image 1 of 2 Panasonic Toughbook CF-29 Back Cover Replacement: step 9, image 2 of 2

    • Use a plastic opening tool to release, but NOT remove, the back cover because it is sealed with adhesive.

  11. Panasonic Toughbook CF-29 Back Cover Replacement: step 10, image 1 of 1

    • Be careful when lifting the cover as you may damage some connections.

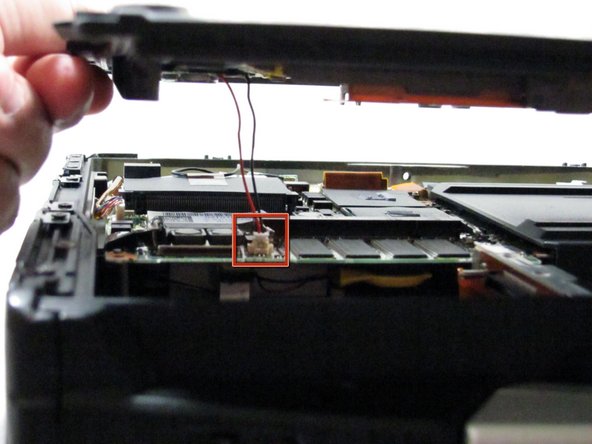

    • Slowly lift the cover so that you can disconnect the red and white wires connecting the speaker to the sound card.

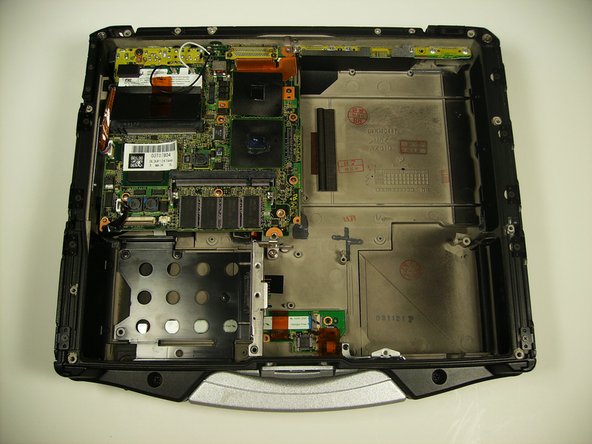

  12. Panasonic Toughbook CF-29 Back Cover Replacement: step 11, image 1 of 1

    • Now the back cover should be off and you can access the inside of the casing.

Conclusion

To reassemble your device, follow these instructions in reverse order.
