Panasonic Toughbook CF-29 Hard Drive Replacement

Introduction

This guide will show you how to safely remove the hard drive from your laptop.

What you need

    1. Panasonic Toughbook CF-29 Hard Drive Replacement, Panasonic Toughbook CF-29 Hard Drive Replacement: step 1, image 1 of 1

      • Locate the bay door for the battery on the left side of the laptop.

      Add Comment

    2. Panasonic Toughbook CF-29 Hard Drive Replacement: step 2, image 1 of 2 Panasonic Toughbook CF-29 Hard Drive Replacement: step 2, image 2 of 2

      • Slide the latch to the right and then down to unlock it.

      • Pull out the battery.

      Add Comment

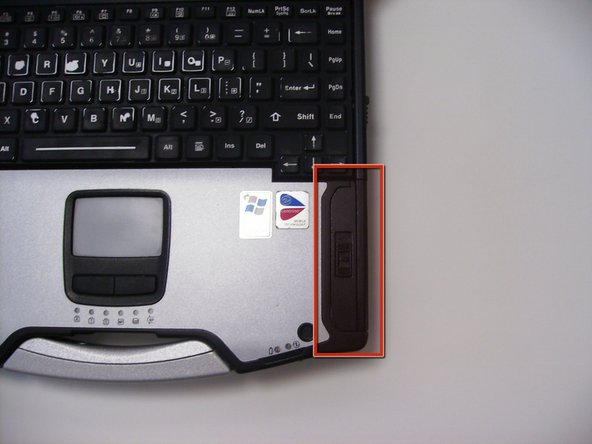

    4. Panasonic Toughbook CF-29 Hard Drive Replacement: step 3, image 1 of 1

      • Locate the door for the hard drive on the right side of the laptop

      Add Comment

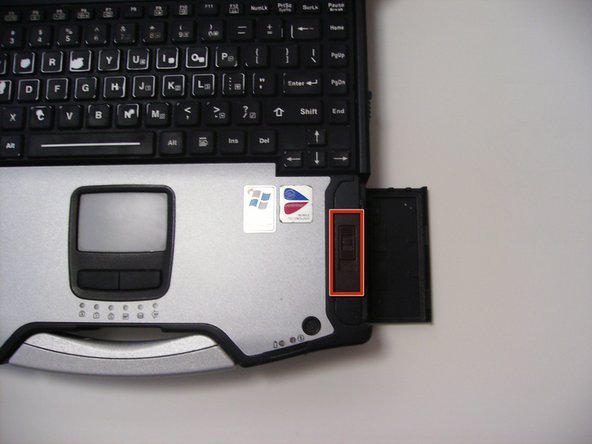

    5. Panasonic Toughbook CF-29 Hard Drive Replacement: step 4, image 1 of 2 Panasonic Toughbook CF-29 Hard Drive Replacement: step 4, image 2 of 2

      • Push and slide the latch up to open the hard drive door.

      • Pull out the hard drive.

      Add Comment

Conclusion

To reassemble your device, follow these instructions in reverse order.
