Panasonic Toughbook CF-29 Motherboard Replacement

Introduction

This guide will tell you how to gain access to and remove the motherboard.

What you need

  1. Panasonic Toughbook CF-29 Motherboard Replacement, Panasonic Toughbook CF-29 Motherboard Replacement: step 1, image 1 of 1

    • Locate the bay door for the battery on the left side of the laptop.

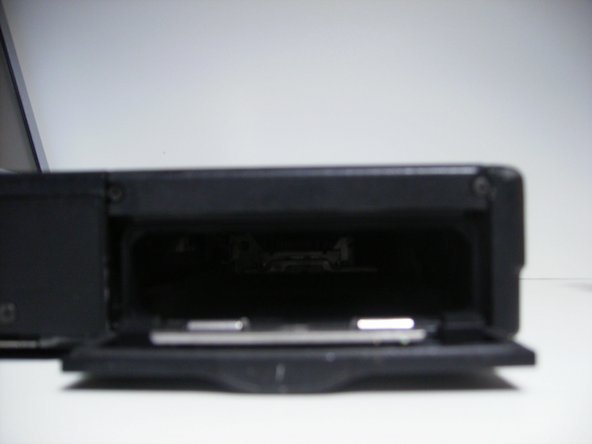

  2. Panasonic Toughbook CF-29 Motherboard Replacement: step 2, image 1 of 2 Panasonic Toughbook CF-29 Motherboard Replacement: step 2, image 2 of 2

    • Slide the latch to the right and then down to unlock it.

    • Pull out the battery.

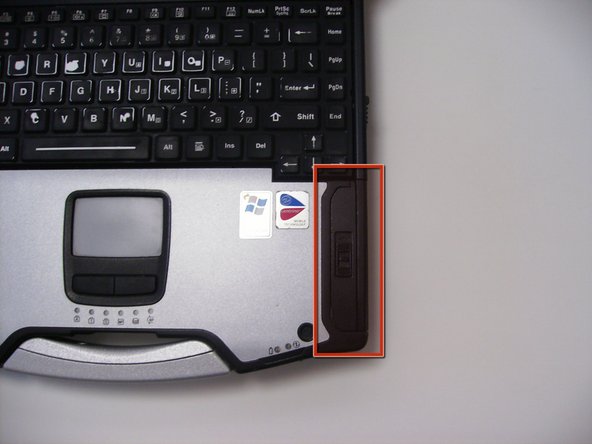

  3. Panasonic Toughbook CF-29 Motherboard Replacement: step 3, image 1 of 1

    • Locate the door for the hard drive on the right side of the laptop

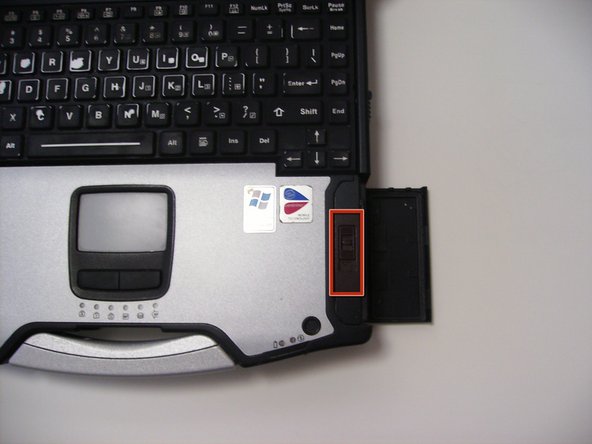

  4. Panasonic Toughbook CF-29 Motherboard Replacement: step 4, image 1 of 2 Panasonic Toughbook CF-29 Motherboard Replacement: step 4, image 2 of 2

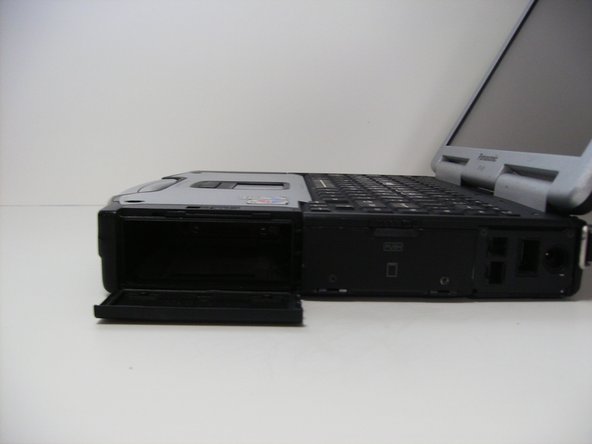

    • Push and slide the latch up to open the hard drive door.

    • Pull out the hard drive.

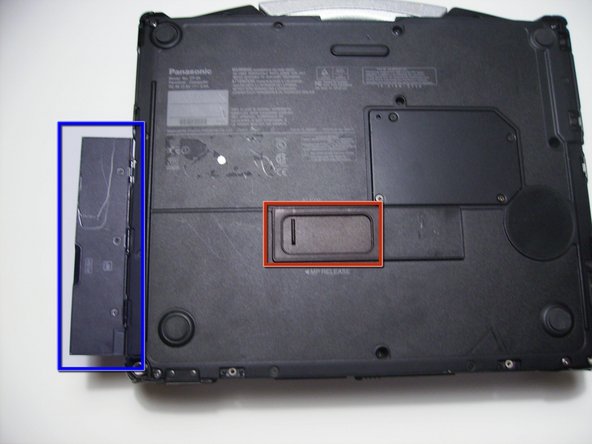

  5. Panasonic Toughbook CF-29 Motherboard Replacement: step 5, image 1 of 1

    • Flip the device upside down with the handle facing away from you.

    • Open the optical drive bay by sliding its latch to the right.

    • Locate optical drive release mechanism on the bottom of the laptop.

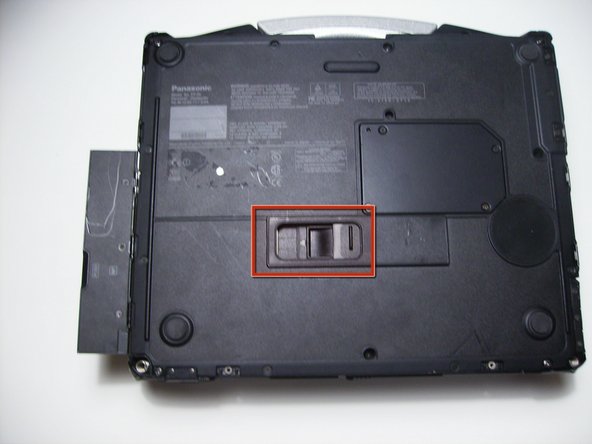

  6. Panasonic Toughbook CF-29 Motherboard Replacement: step 6, image 1 of 1

    • Slide the latch cover to the right.

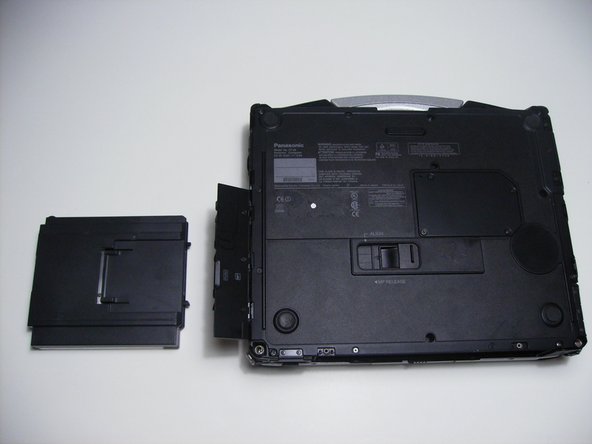

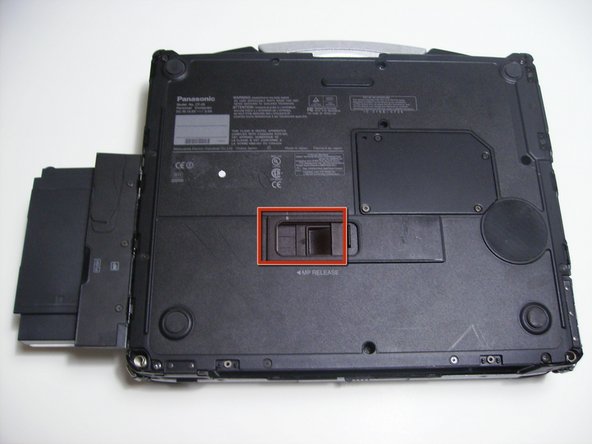

  7. Panasonic Toughbook CF-29 Motherboard Replacement: step 7, image 1 of 2 Panasonic Toughbook CF-29 Motherboard Replacement: step 7, image 2 of 2

    • Push the exposed switch to the left to eject the optical drive.

  8. Panasonic Toughbook CF-29 Motherboard Replacement: step 8, image 1 of 1

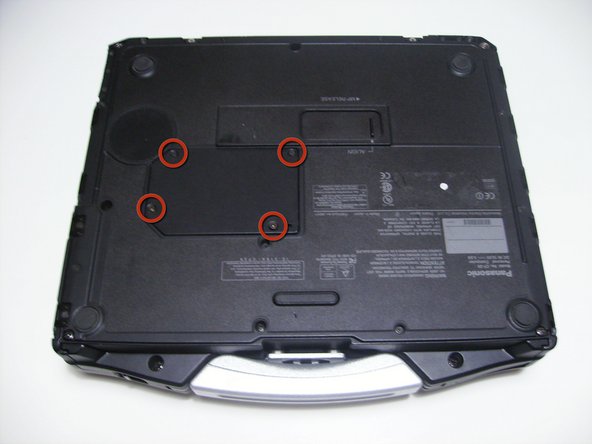

    • Begin by turning the laptop upside down with the handle towards you.

    • Use a Phillips size 0 screwdriver to remove the 4 screws holding down the ram cover.

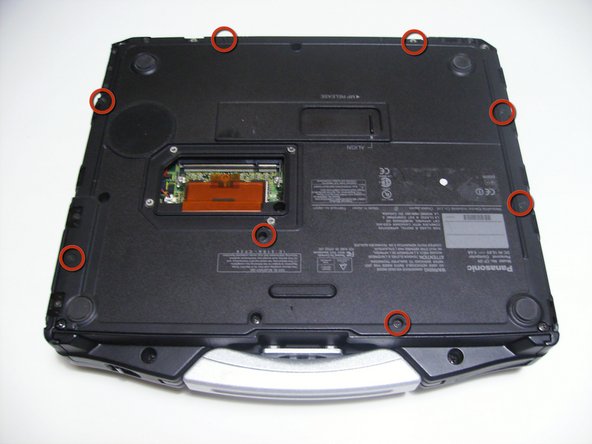

  10. Panasonic Toughbook CF-29 Motherboard Replacement: step 9, image 1 of 1

    • Remove the panel and set it aside.

    • Use a Phillips size 0 screwdriver to remove these 8 small screws.

  11. Panasonic Toughbook CF-29 Motherboard Replacement: step 10, image 1 of 1

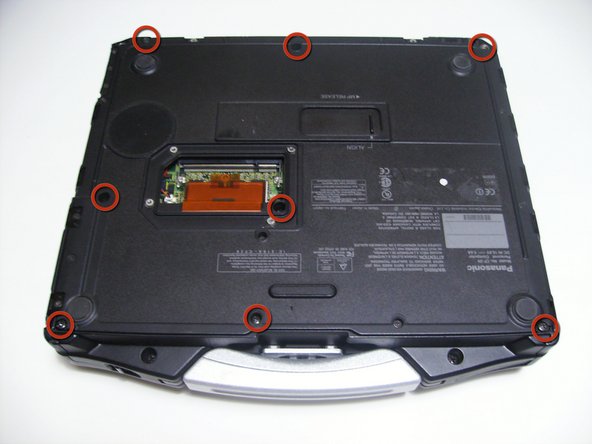

    • Use a Phillips size 1 screwdriver to remove the remaining 8 screws.

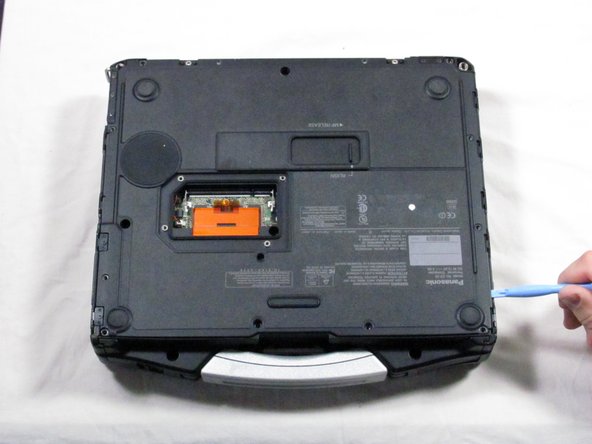

  12. Panasonic Toughbook CF-29 Motherboard Replacement: step 11, image 1 of 2 Panasonic Toughbook CF-29 Motherboard Replacement: step 11, image 2 of 2

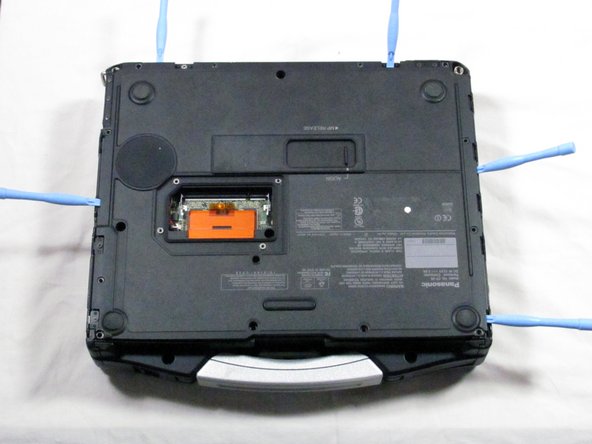

    • Use a plastic opening tool to release, but NOT remove, the back cover because it is sealed with adhesive.

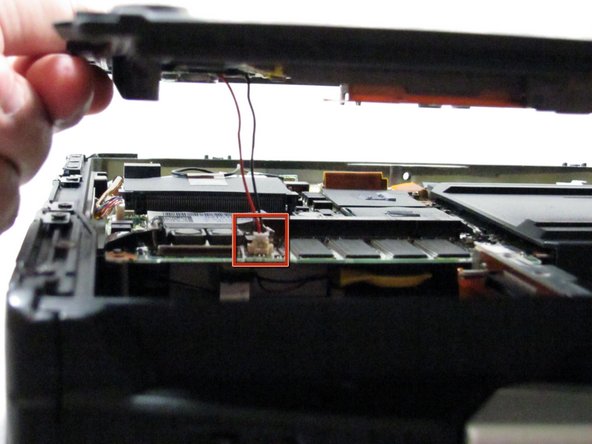

  13. Panasonic Toughbook CF-29 Motherboard Replacement: step 12, image 1 of 1

    • Be careful when lifting the cover as you may damage some connections.

    • Slowly lift the cover so that you can disconnect the red and white wires connecting the speaker to the sound card.

  14. Panasonic Toughbook CF-29 Motherboard Replacement: step 13, image 1 of 1

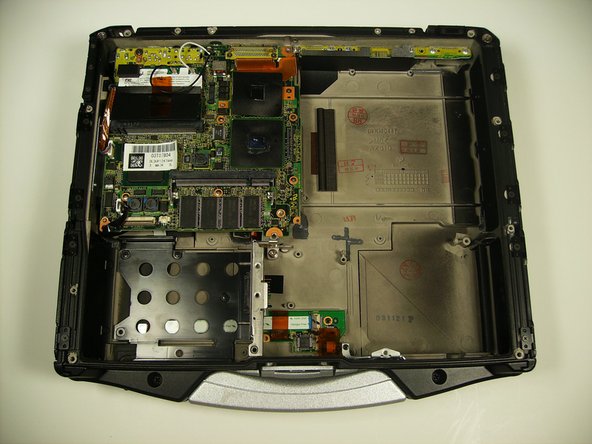

    • Now the back cover should be off and you can access the inside of the casing.

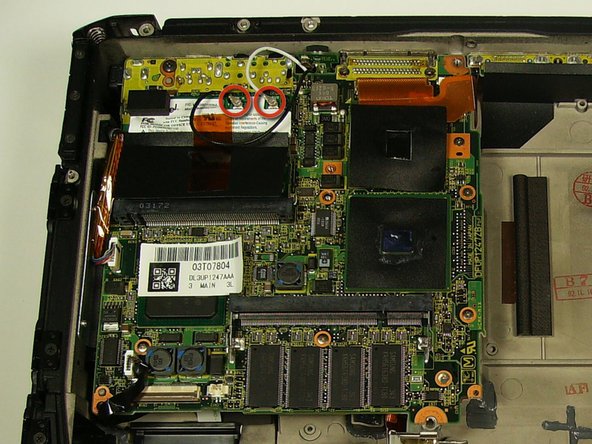

  15. Panasonic Toughbook CF-29 Motherboard Replacement: step 14, image 1 of 1

    • Remove the black and white wires attached to the wireless card by simply pulling up.

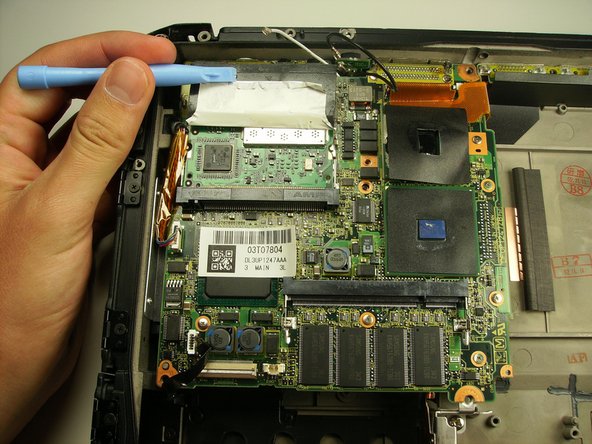

  16. Panasonic Toughbook CF-29 Motherboard Replacement: step 15, image 1 of 1

    • Peel back the black cover to expose the clips holding in the wireless card.

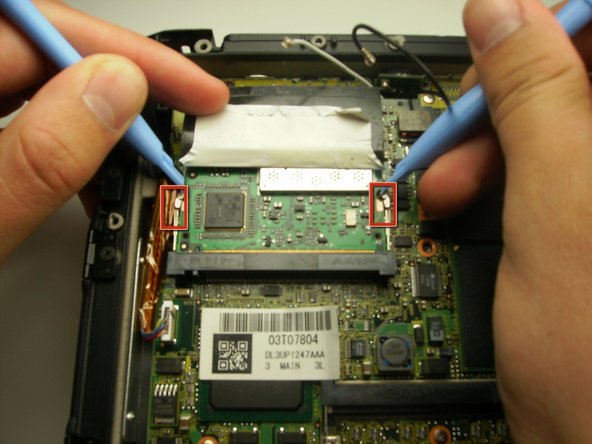

  17. Panasonic Toughbook CF-29 Motherboard Replacement: step 16, image 1 of 1

    • Using a pair of plastic opening tools, push the two metal tabs away from the card.

  18. Panasonic Toughbook CF-29 Motherboard Replacement: step 17, image 1 of 2 Panasonic Toughbook CF-29 Motherboard Replacement: step 17, image 2 of 2

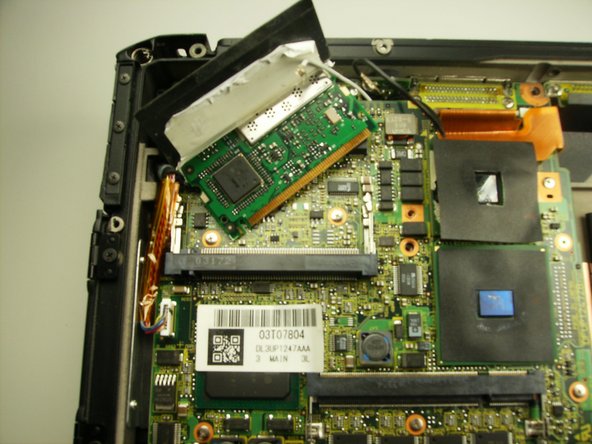

    • The wireless card should now easily disengage from the motherboard.

    • Pull the card horizontally away from you to remove it from its housing.

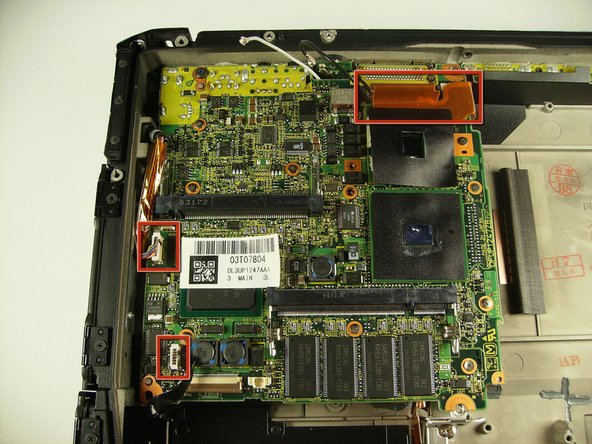

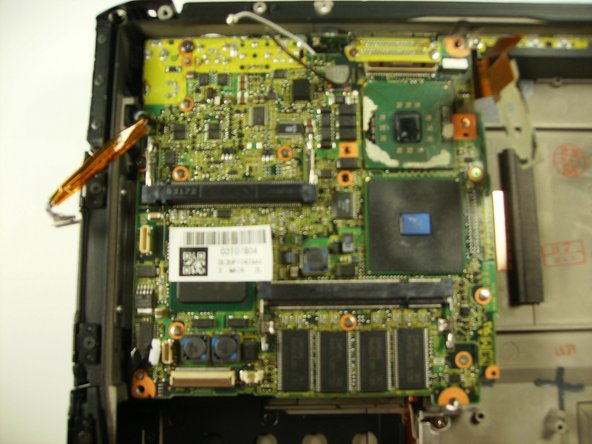

  19. Panasonic Toughbook CF-29 Motherboard Replacement: step 18, image 1 of 2 Panasonic Toughbook CF-29 Motherboard Replacement: step 18, image 2 of 2

    • Unplug 3 cables

    • Lift up on brown tab to release cable

    • Pull cable up and out

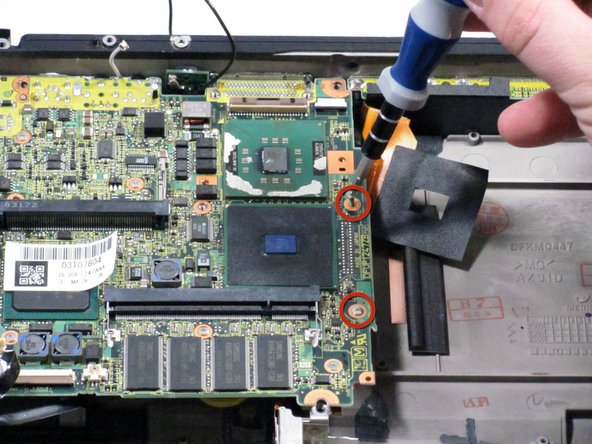

  20. Panasonic Toughbook CF-29 Motherboard Replacement: step 19, image 1 of 2 Panasonic Toughbook CF-29 Motherboard Replacement: step 19, image 2 of 2

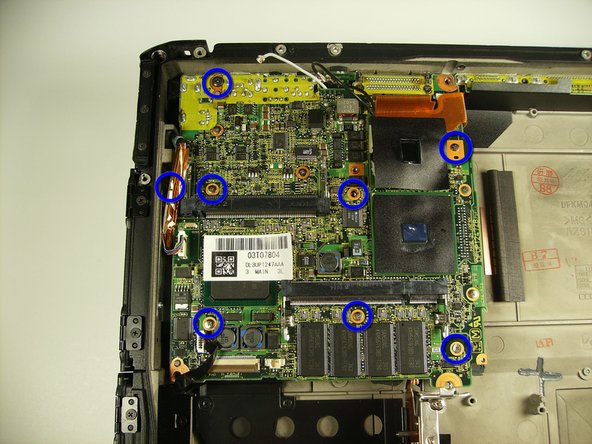

    • Remove 2 long screws indicated with red circles

    • Remove the remaining screws indicated in blue

  21. Panasonic Toughbook CF-29 Motherboard Replacement: step 20, image 1 of 1

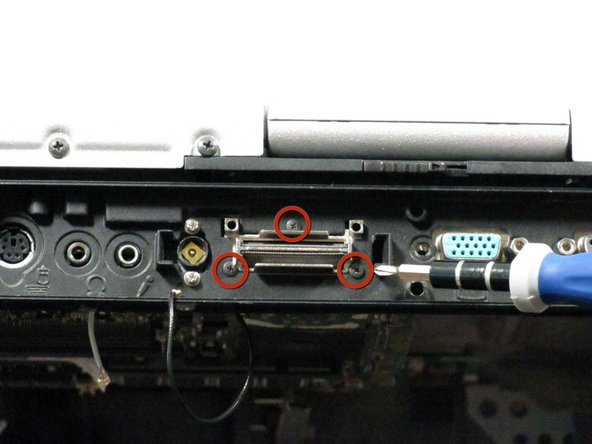

    • On the back of the unit, unscrew the three screws surrounding the serial port.

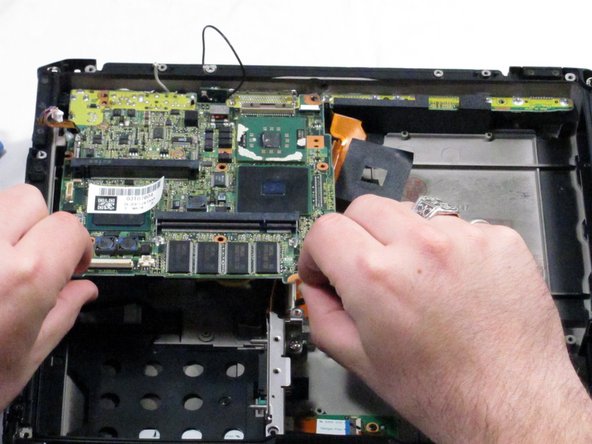

  22. Panasonic Toughbook CF-29 Motherboard Replacement: step 21, image 1 of 1

    • Lift the motherboard as shown, pull towards you and then up.

    • Do not yet try to fully remove the motherboard or you may destroy the connections

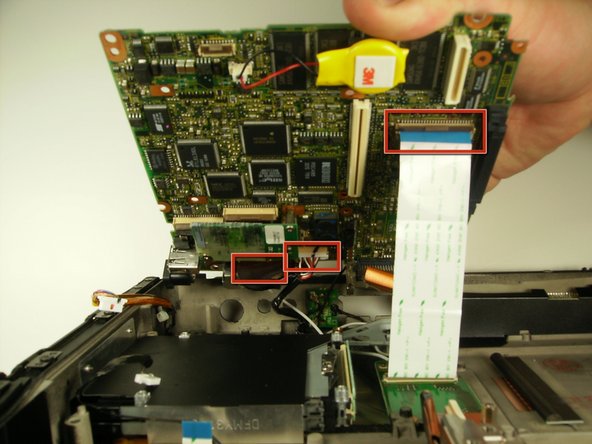

  23. Panasonic Toughbook CF-29 Motherboard Replacement: step 22, image 1 of 1

    • Detach the white ribbon cable, the white cluster connector, and the ribbon cable right next to the cluster

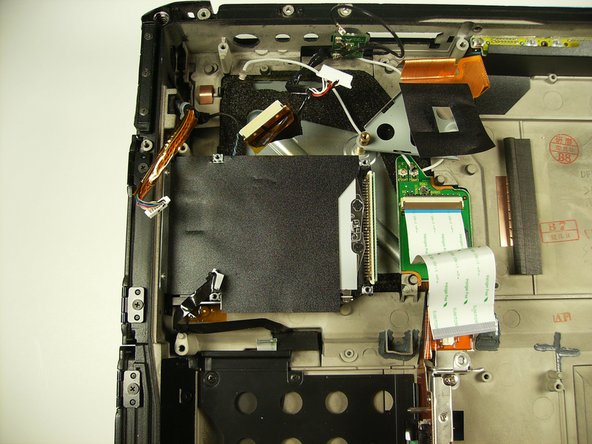

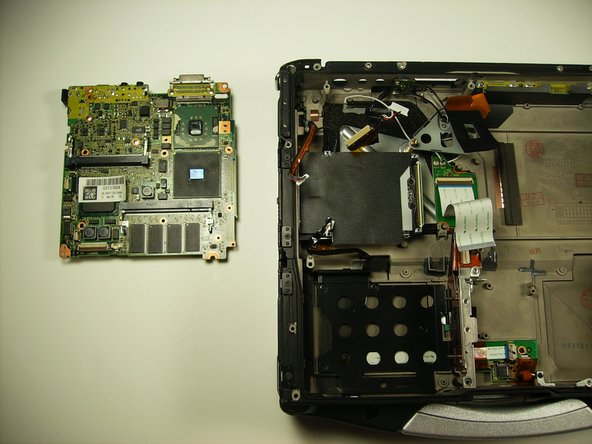

  24. Panasonic Toughbook CF-29 Motherboard Replacement: step 23, image 1 of 2 Panasonic Toughbook CF-29 Motherboard Replacement: step 23, image 2 of 2

    • Remove the board.

Conclusion

To reassemble your device, follow these instructions in reverse order.
