Introduction
Use this guide to replace your PlayStation 3's Blu-ray disc drive. Replacing a defective Blu-ray drive with a replacement requires swapping the Blu-ray drive board from the old drive onto the replacement.
What you need
-
-

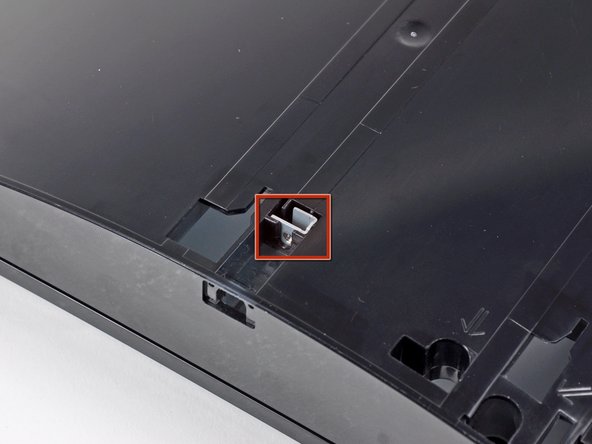

Use the tip of a spudger to remove the black rubber screw cover from the side of the PS3.
-
-
-

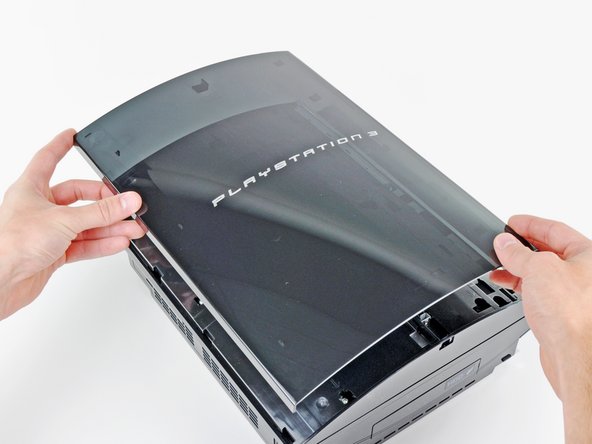

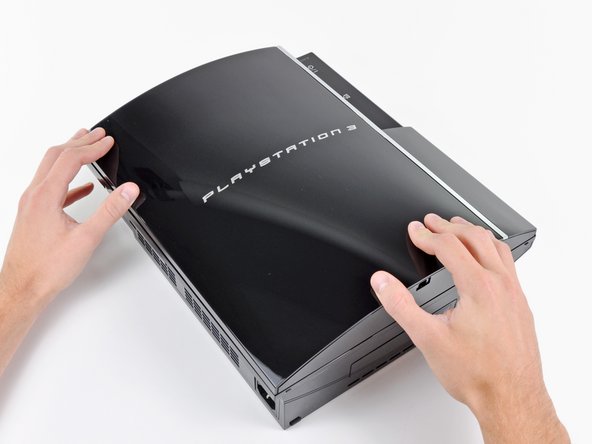

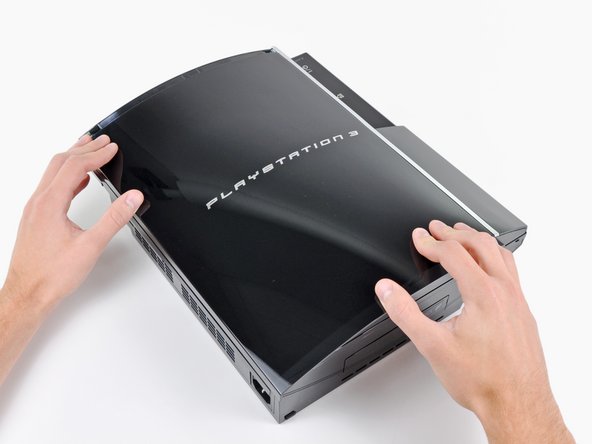

Lift the top cover from its rear edge and rotate it toward the front of the PS3.
-

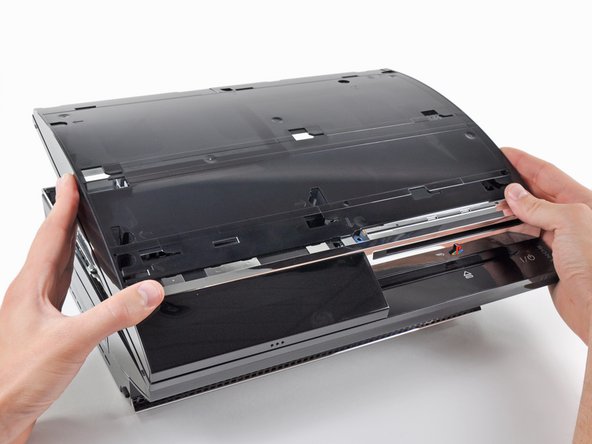

Remove the top cover.
-
-
-

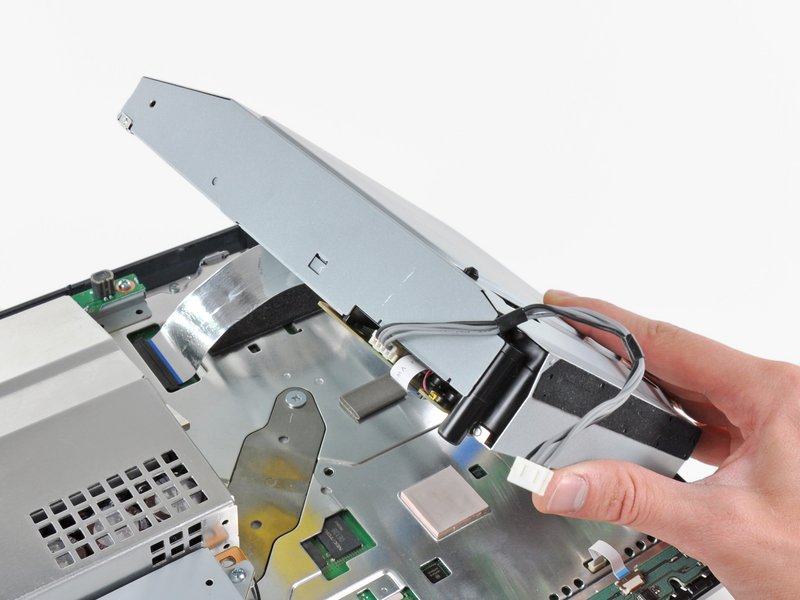

Lift the Blu-ray drive from the edge nearest the power supply and rotate it away from the chassis enough to access its ribbon cable.
-
-
-

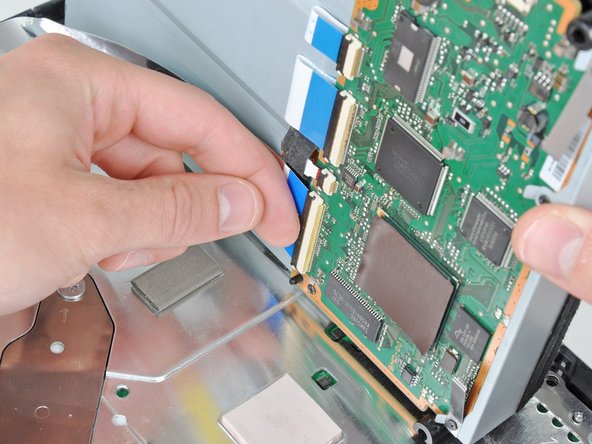

Use your fingernail to flip up the retaining flap on the Blu-ray ribbon cable socket.
-

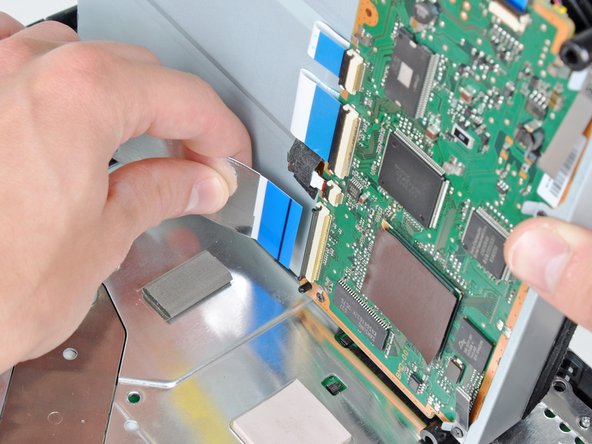

Pull the ribbon cable out of its socket.
-

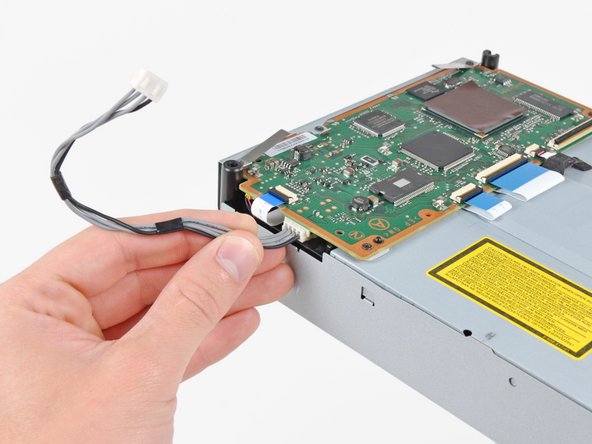

Remove the Blu-ray drive from the PS3.
-
To reassemble your device, follow these instructions in reverse order.
