PlayStation 3 Lower Case Replacement

Introduction

Use this guide to replace your PlayStation 3's black plastic lower case.

What you need

  1. PlayStation 3 Lower Case Replacement, PlayStation 3 Lower Case Replacement: step 1, image 1 of 2 PlayStation 3 Lower Case Replacement, PlayStation 3 Lower Case Replacement: step 1, image 2 of 2

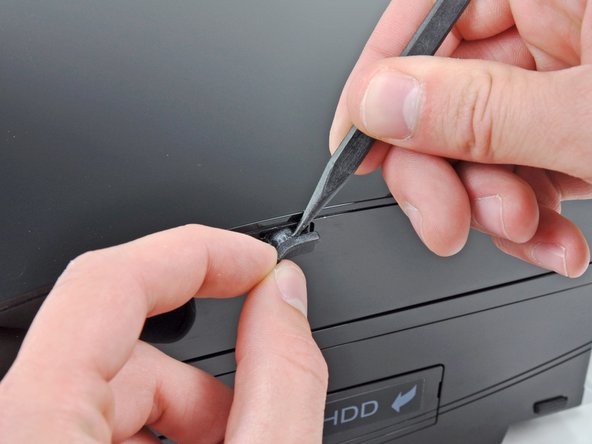

    • Use the tip of a spudger to remove the black rubber screw cover from the side of the PS3.

    • The screw cover may be underneath a warranty sticker. This sticker will change appearance, and show "VOID" after it has been removed.

  2. PlayStation 3 Lower Case Replacement: step 2, image 1 of 1

    • Remove the single 8.5 mm T10 Security Torx screw from the smart plate.

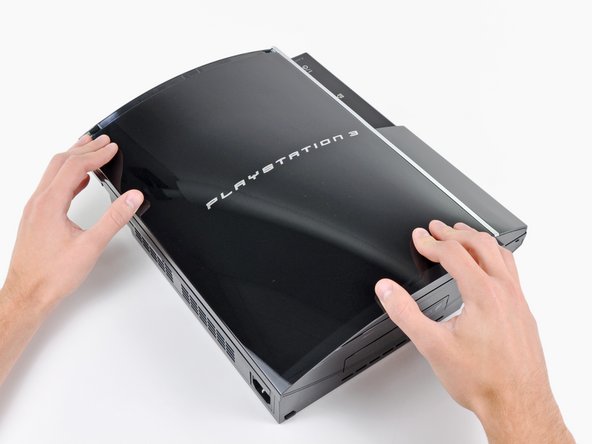

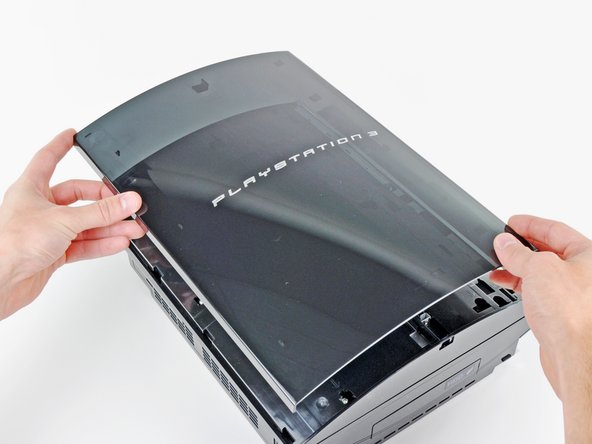

  3. PlayStation 3 Lower Case Replacement: step 3, image 1 of 3 PlayStation 3 Lower Case Replacement: step 3, image 2 of 3 PlayStation 3 Lower Case Replacement: step 3, image 3 of 3

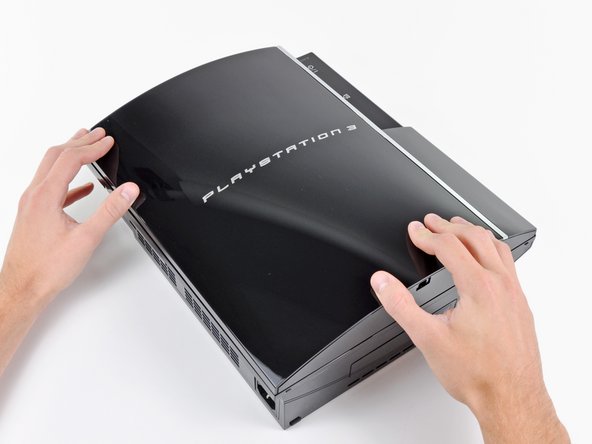

    • Pull the smart plate toward the hard drive bay, then lift it off the body of the PS3.

  4. PlayStation 3 Lower Case Replacement: step 4, image 1 of 1

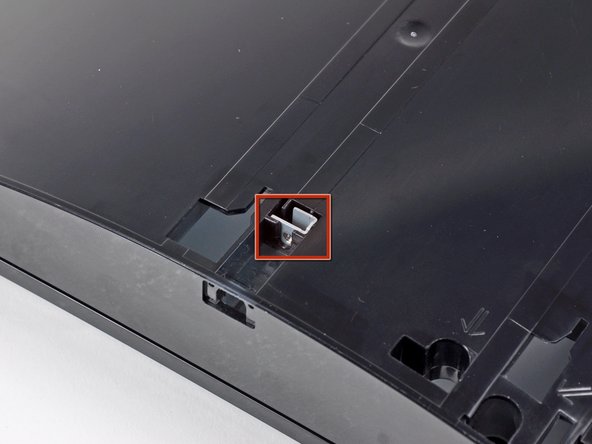

    • Be sure to keep track of the small metal bracket loosely held in the top cover, if equipped.

  5. PlayStation 3 Lower Case Replacement: step 5, image 1 of 1

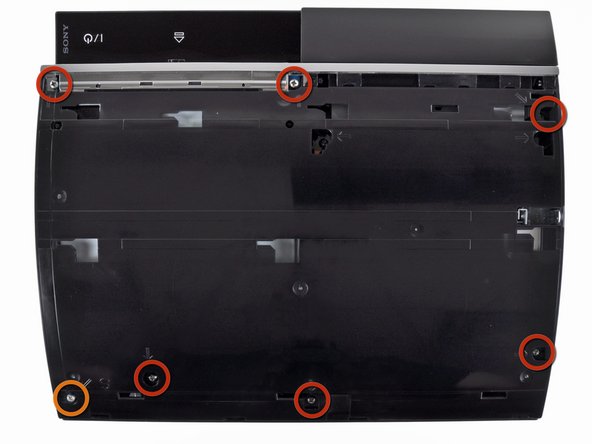

    • Remove the following seven screws:

    • Six 52 mm Phillips screws

    • One 30 mm Phillips screw

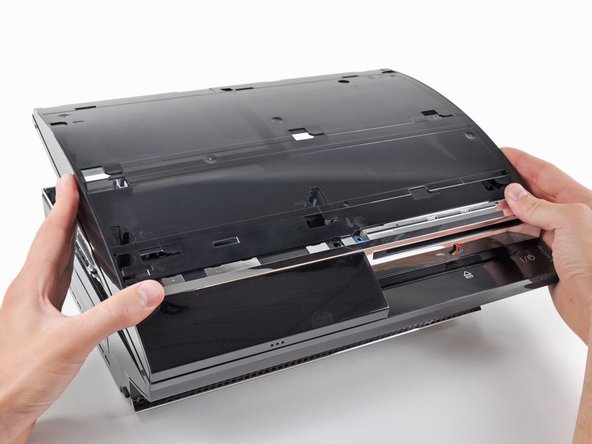

  6. PlayStation 3 Lower Case Replacement: step 6, image 1 of 1

    • Lift the top cover from its rear edge and rotate it toward the front of the PS3.

    • Remove the top cover.

  8. PlayStation 3 Lower Case Replacement: step 7, image 1 of 1

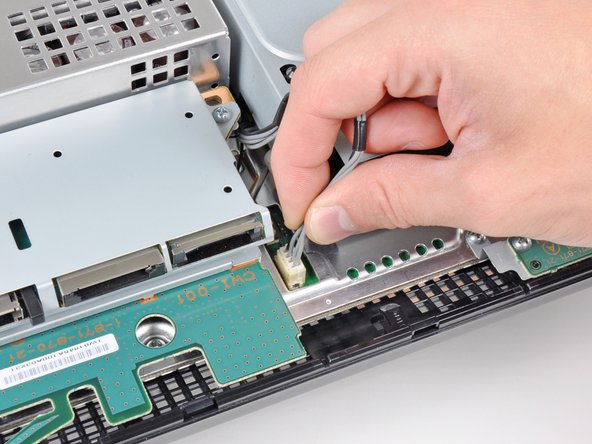

    • Disconnect the Blu-ray power cable from the motherboard.

    • Pull the connector straight up and out of its socket.

  9. PlayStation 3 Lower Case Replacement: step 8, image 1 of 1

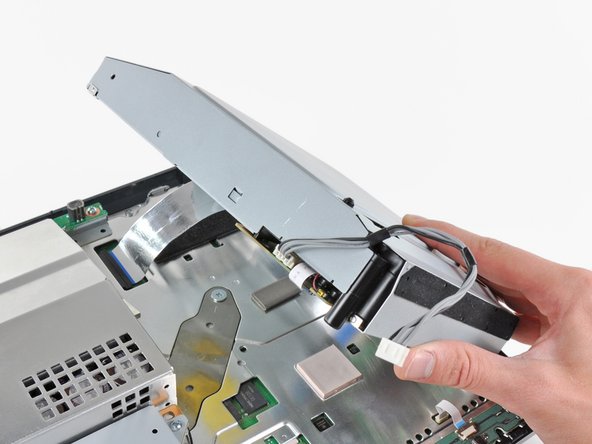

    • Lift the Blu-ray drive from the edge nearest the power supply and rotate it away from the chassis enough to access its ribbon cable.

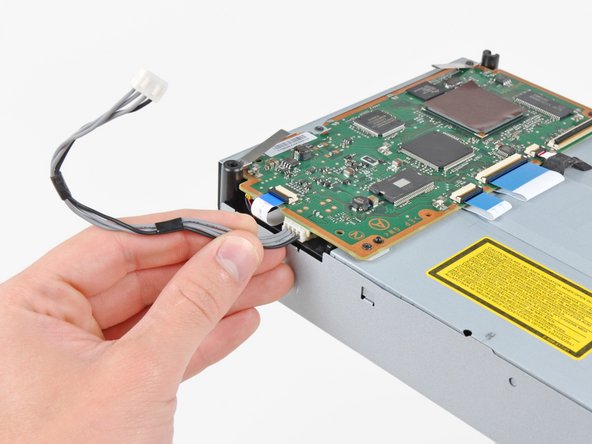

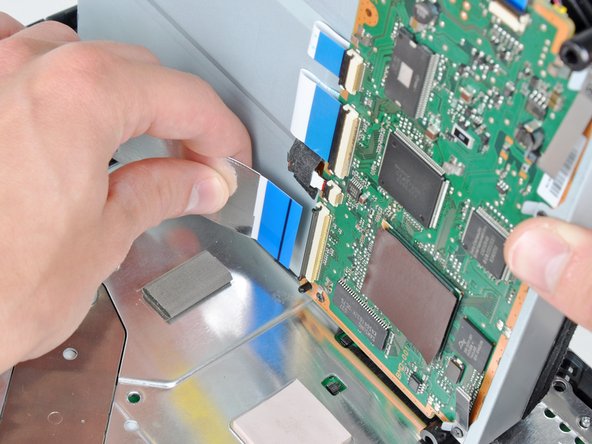

  10. PlayStation 3 Lower Case Replacement: step 9, image 1 of 3 PlayStation 3 Lower Case Replacement: step 9, image 2 of 3 PlayStation 3 Lower Case Replacement: step 9, image 3 of 3

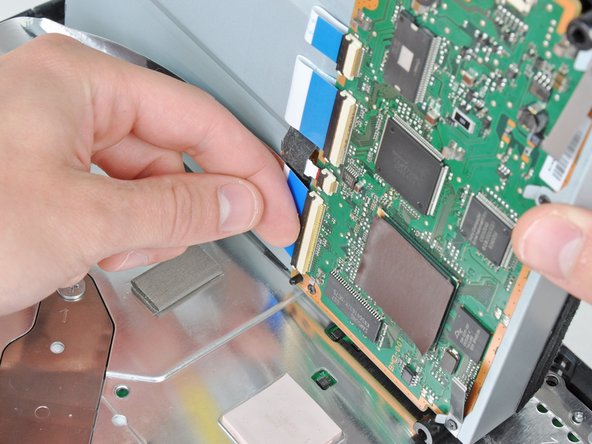

    • Use your fingernail to flip up the retaining flap on the Blu-ray ribbon cable socket.

    • Be sure you are prying up on the retaining flap, not the socket itself.

    • Pull the ribbon cable out of its socket.

    • Remove the Blu-ray drive from the PS3.

    • If replacing the Blu-ray drive, transfer the power cable to your new drive.

  11. PlayStation 3 Lower Case Replacement: step 10, image 1 of 1

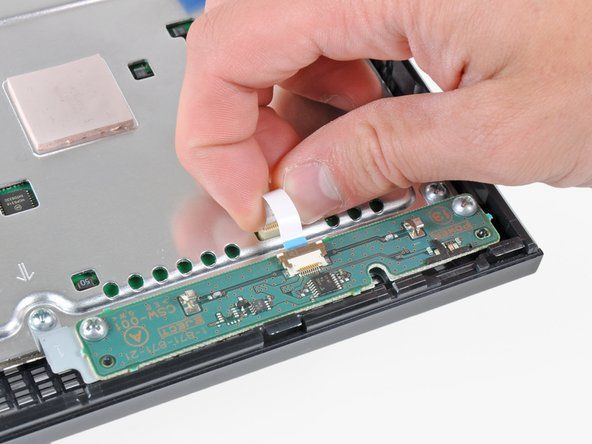

    • Pull the control board ribbon cable straight up and out of its socket on the motherboard.

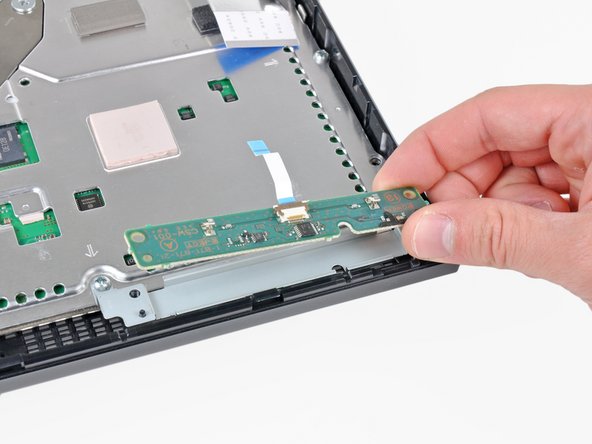

  12. PlayStation 3 Lower Case Replacement: step 11, image 1 of 2 PlayStation 3 Lower Case Replacement: step 11, image 2 of 2

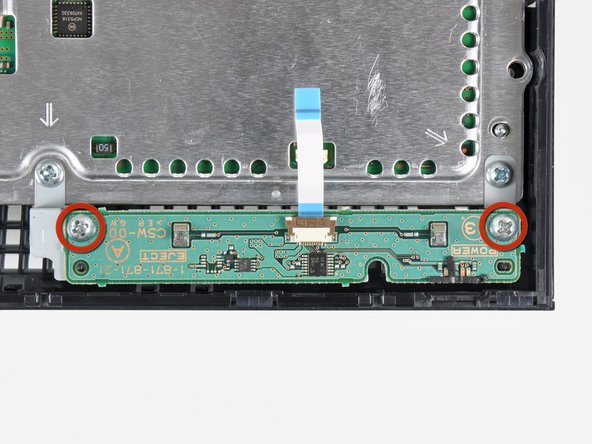

    • Remove the two 12 mm Phillips screws securing the control board to the lower case.

    • Remove the control board and its attached cable from the PS3.

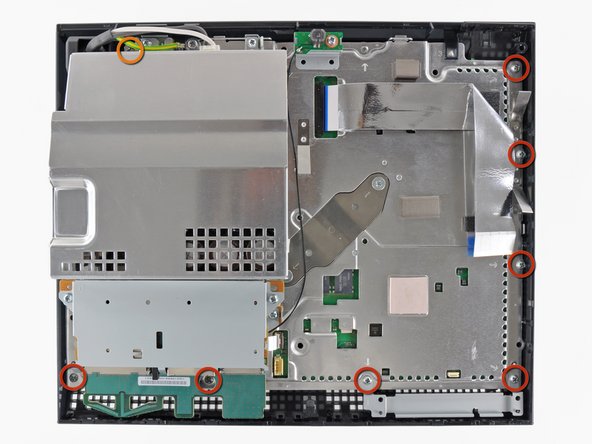

  13. PlayStation 3 Lower Case Replacement: step 12, image 1 of 1

    • Remove the following eight screws securing the motherboard assembly to the lower case:

    • Seven 12 mm Phillips screws (ph2)

    • One 30 mm Phillips screw

  14. PlayStation 3 Lower Case Replacement: step 13, image 1 of 1

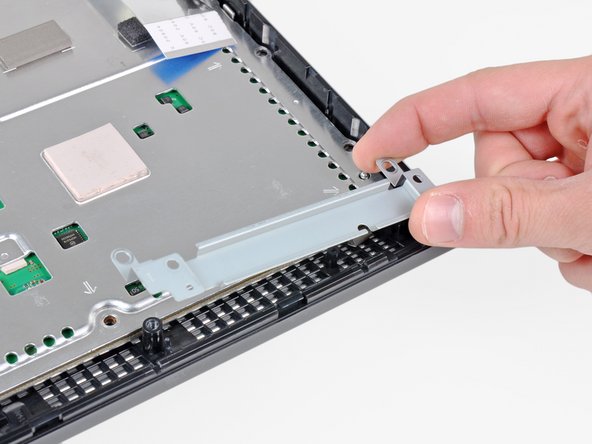

    • Remove the control board bracket.

  15. PlayStation 3 Lower Case Replacement: step 14, image 1 of 2 PlayStation 3 Lower Case Replacement: step 14, image 2 of 2

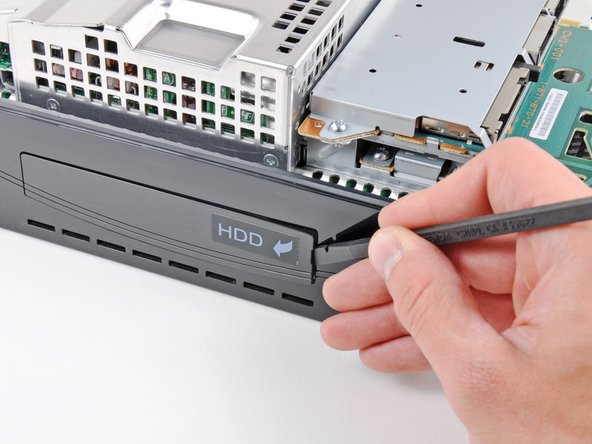

    • Use the flat end of a spudger to pry the hard drive bay cover away from the lower case.

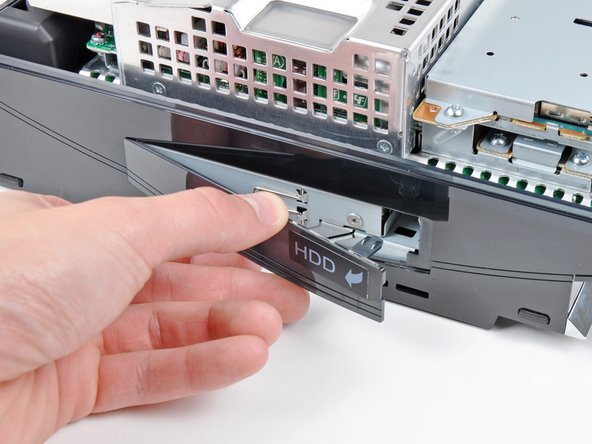

    • Remove the hard drive bay cover.

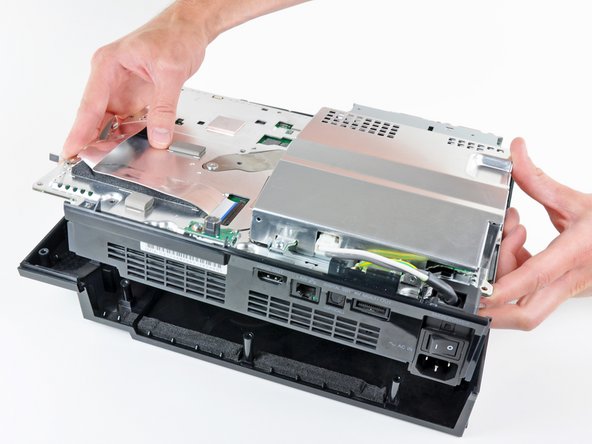

  16. PlayStation 3 Lower Case Replacement: step 15, image 1 of 1

    • Lift the motherboard assembly out of the lower case.

  17. PlayStation 3 Lower Case Replacement: step 16, image 1 of 1

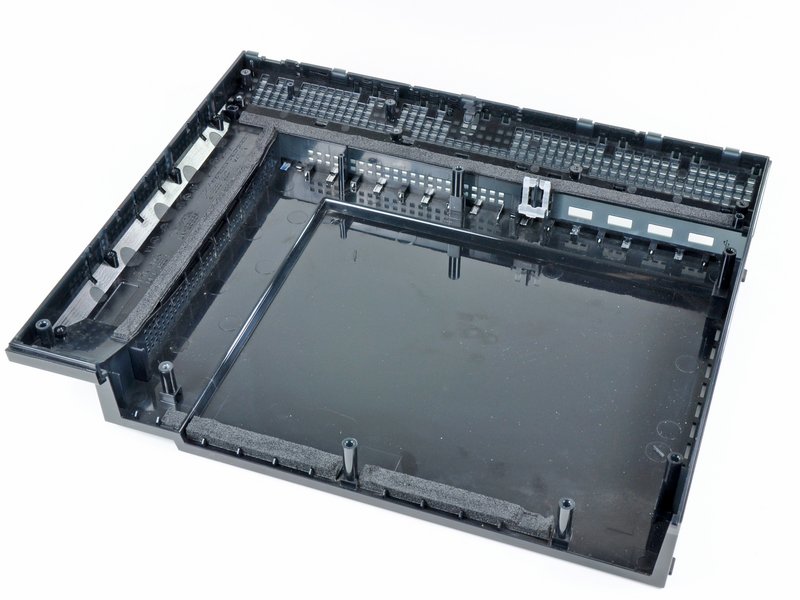

    • Lower case remains.

Conclusion

To reassemble your device, follow these instructions in reverse order.
