Introduction
Use this guide to replace your PlayStation 3's memory card reader board.
What you need
-
-

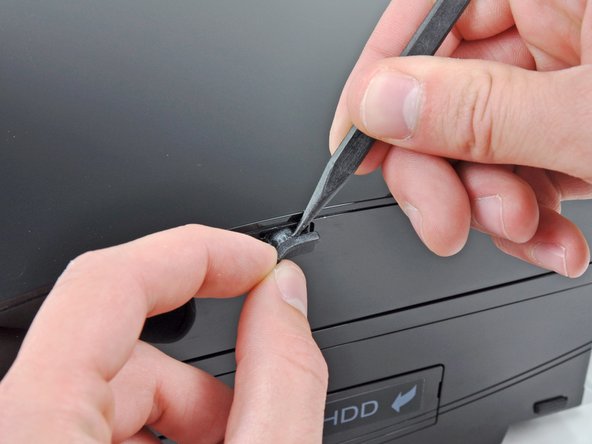

Use the tip of a spudger to remove the black rubber screw cover from the side of the PS3.
-
-
-

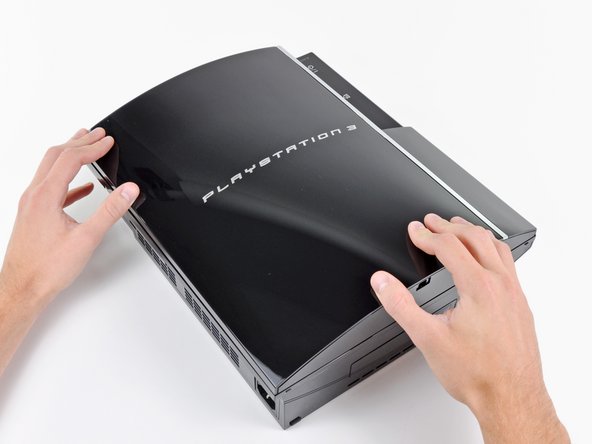

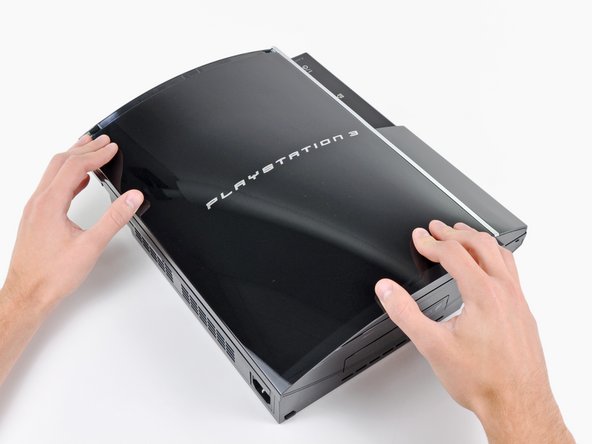

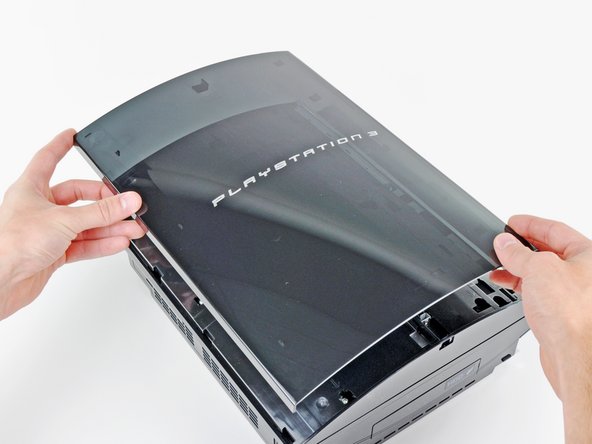

Lift the top cover from its rear edge and rotate it toward the front of the PS3.
-

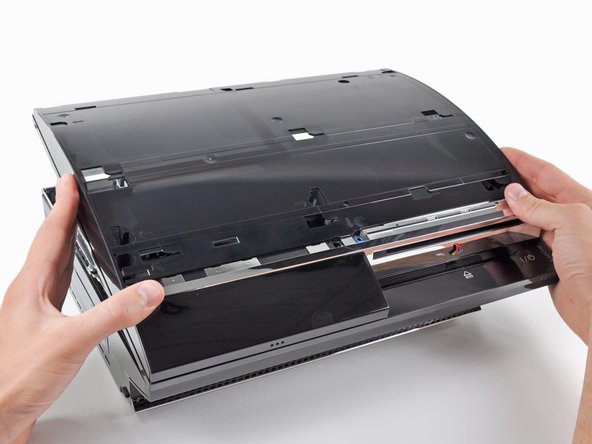

Remove the top cover.
-
-
-

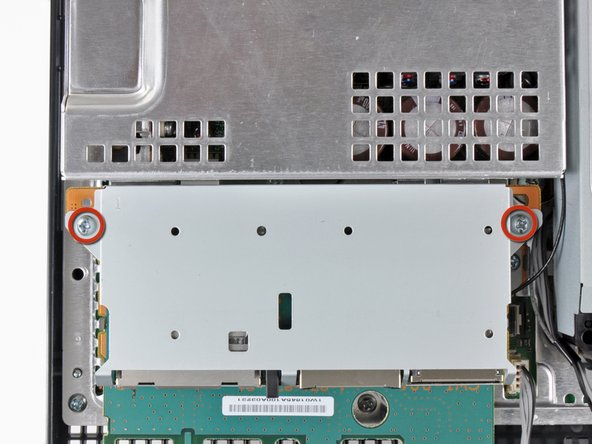

Lift the memory card reader out of the PS3 enough to access its cable.
-

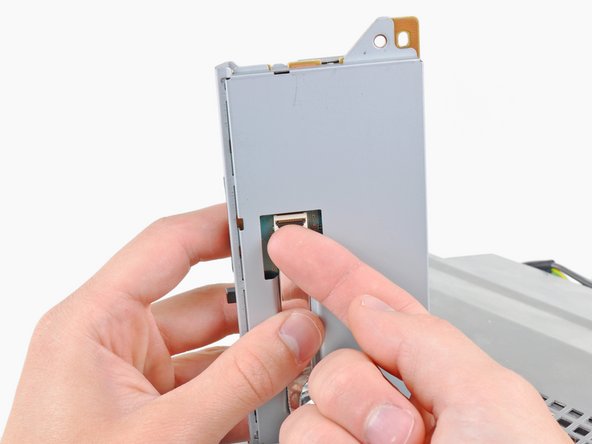

Flip up the retaining flap on the memory card reader ribbon cable socket.
-

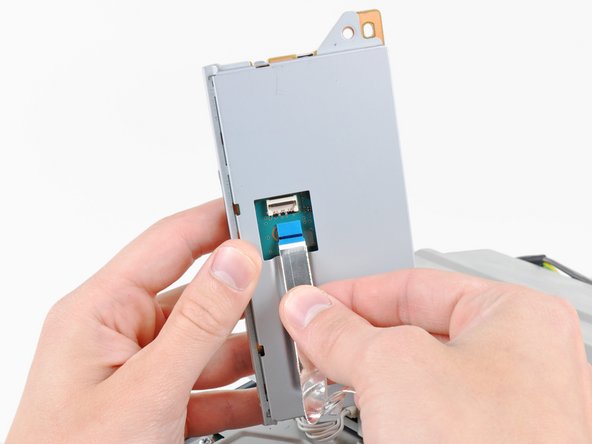

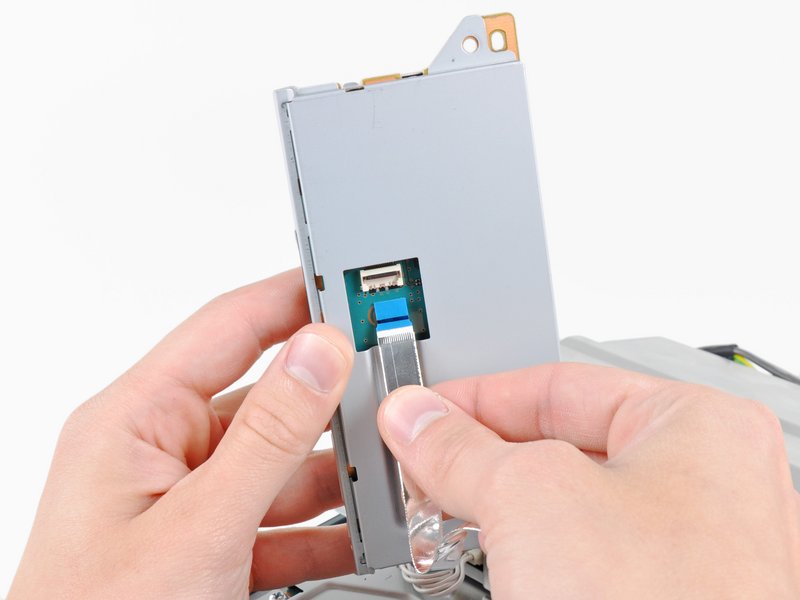

Pull the ribbon cable out of its socket.
-
Remove the memory card reader from the PS3.
-
Almost done!
To reassemble your device, follow these instructions in reverse order.
Conclusion
To reassemble your device, follow these instructions in reverse order.
