Introduction

Go to step 1 ↓

Dismantling and Recycling Centre (DRZ)

Katharina Lenz, Vienna / Austria

Health & Safety

Dismantling doesn't include any harmful steps. Nonetheless workers should wear personal protection equipment like gloves, goggles, apron and robust shoes.

Note: This is a general guide for most power drills. As the construction can differ, the dismantling steps mentioned below can vary in their order. However, the described steps show what parts the removal should focus on.

What you need

Tools

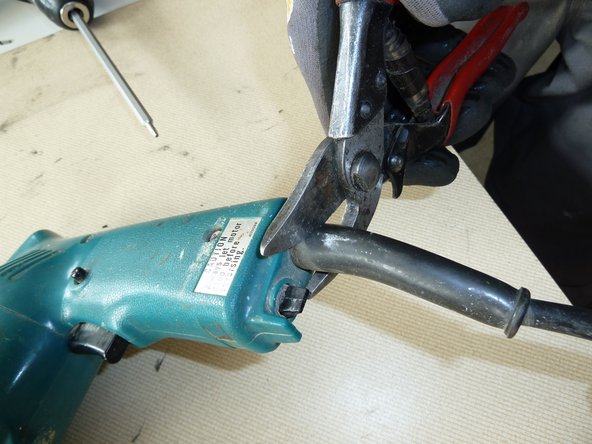

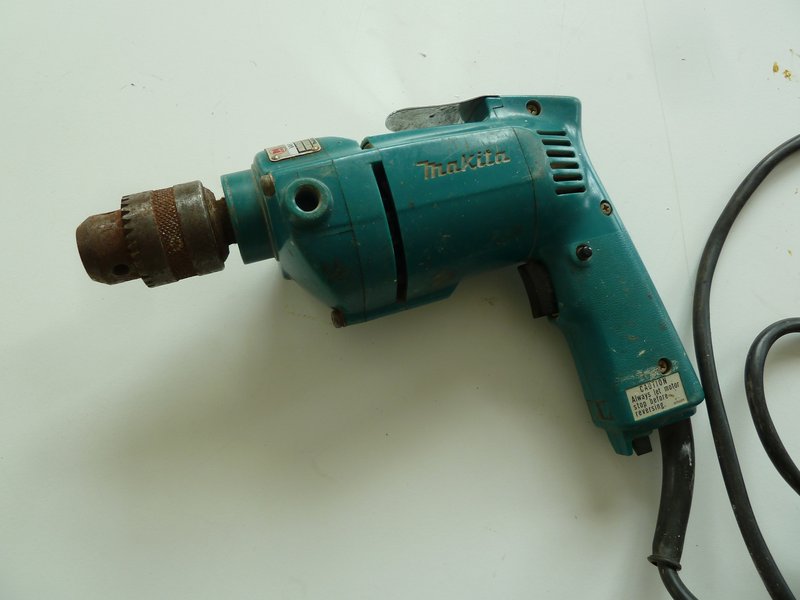

1. Step 1 Power Drill
  Cut off the power cable.
  Add Comment

  1024

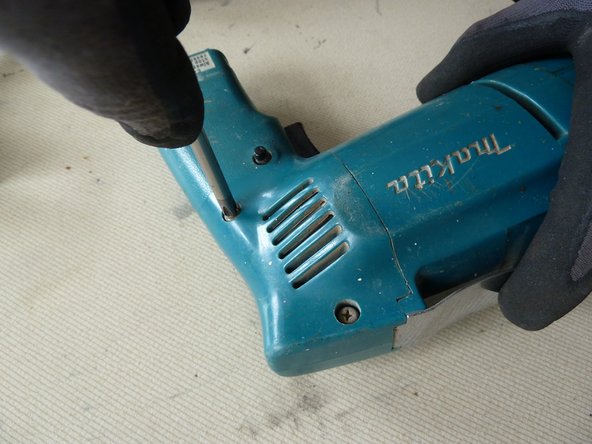

2. Step 2
  Unscrew and pry open the case.
  Add Comment

  1024

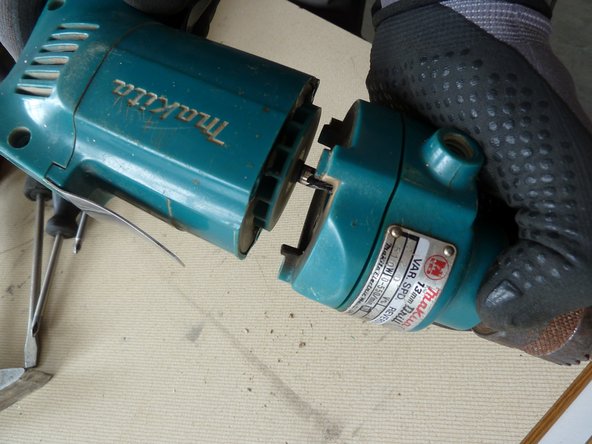

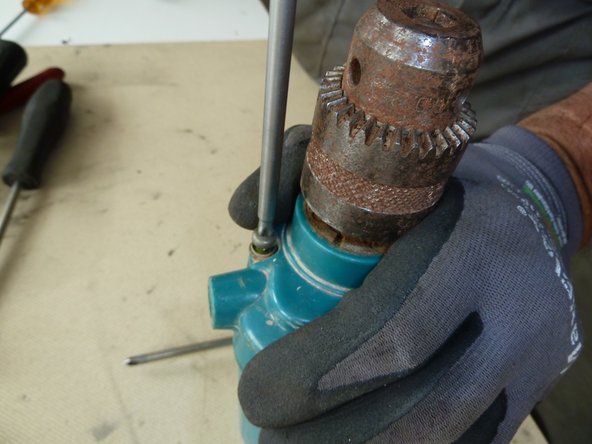

3. Step 3
  Unscrew the motor and take it off.
  Add Comment

  1024
4. Step 4

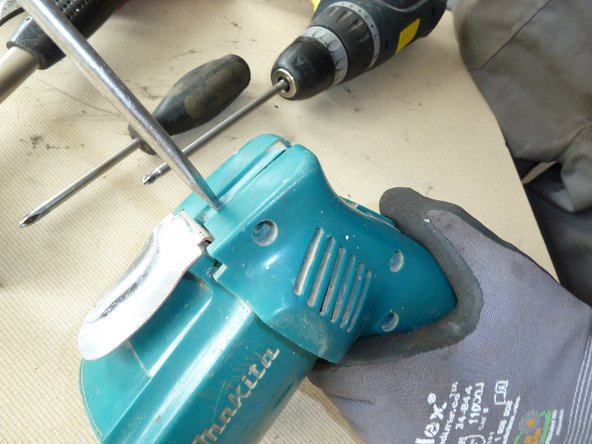

  Pry open the case.

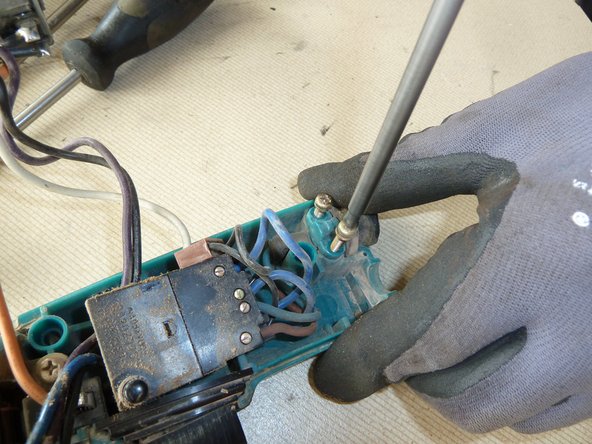

  Unscrew the cable.
  Add Comment

  1024

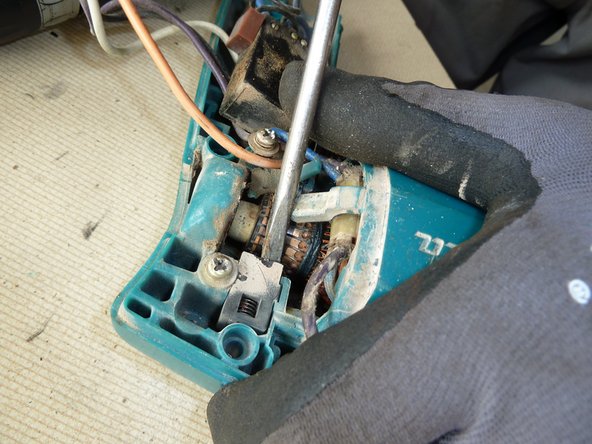

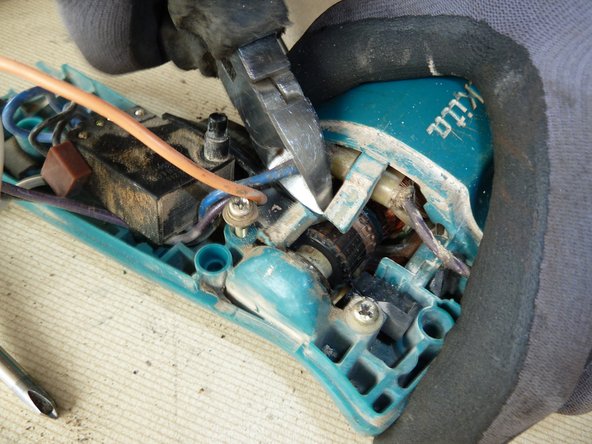

6. Step 5
  Unscrew and remove the coal brush.

  Cut the cables.
  Add Comment

  1024

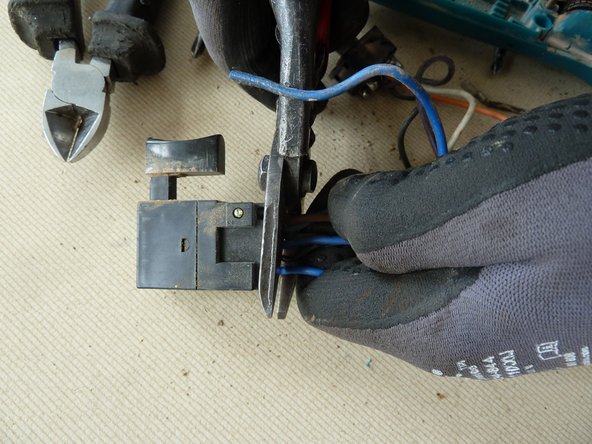

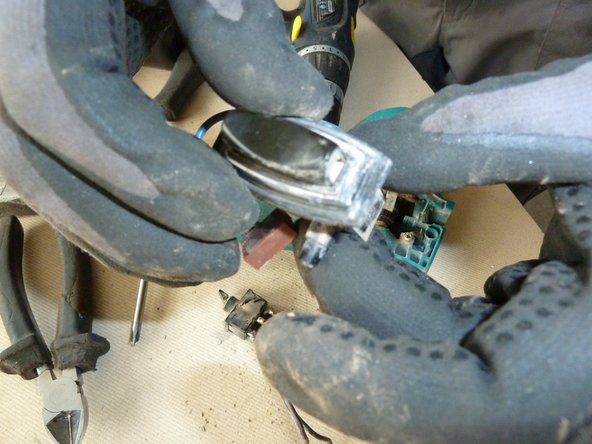

7. Step 6
  Remove the switch and cut its cables.
  Add Comment

  1024

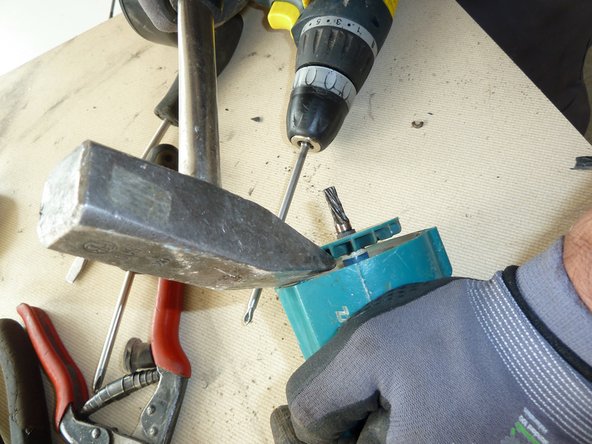

8. Step 7

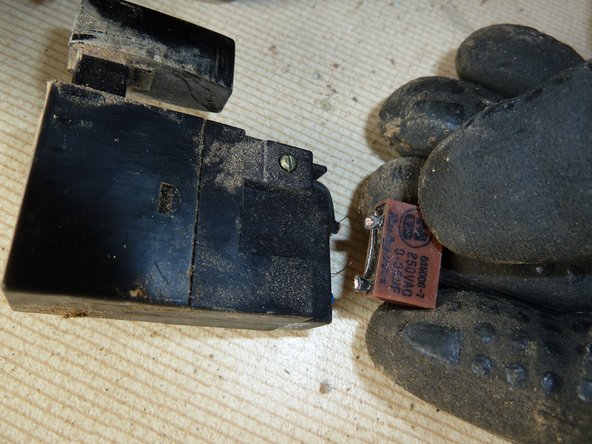

  Remove the capacitor.

  Hammer off the gear.
  Add Comment

  1024
9. Step 8

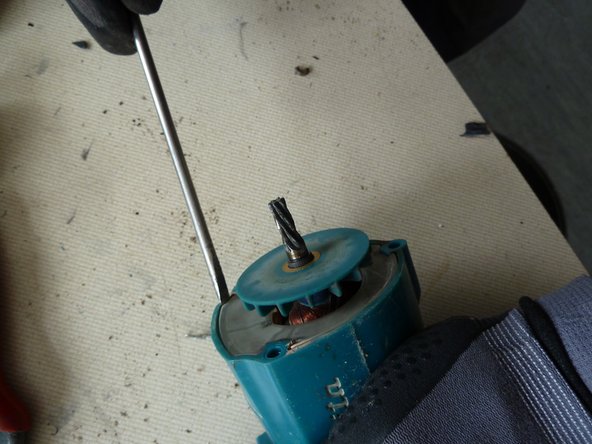

  Open the motor case.

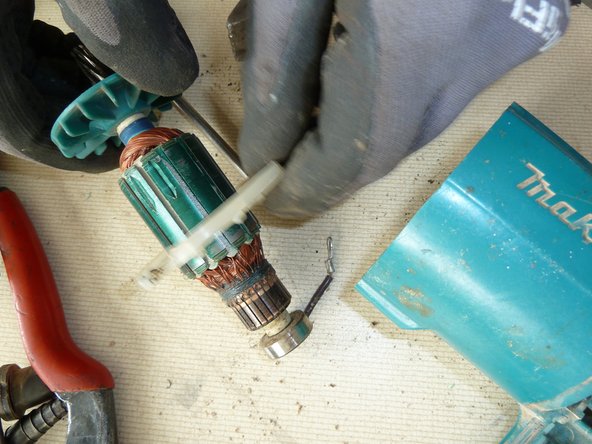

  Open the rotor.
  Add Comment

  1024

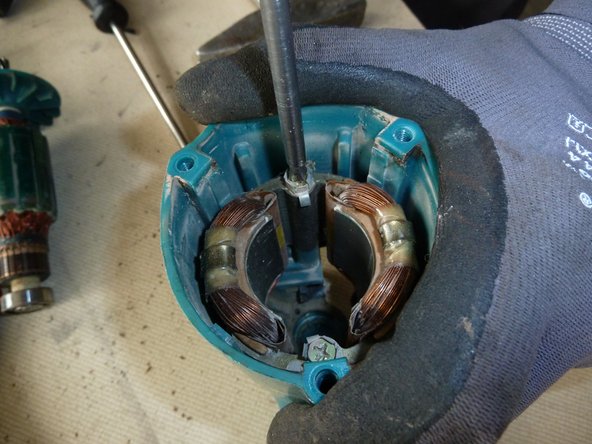

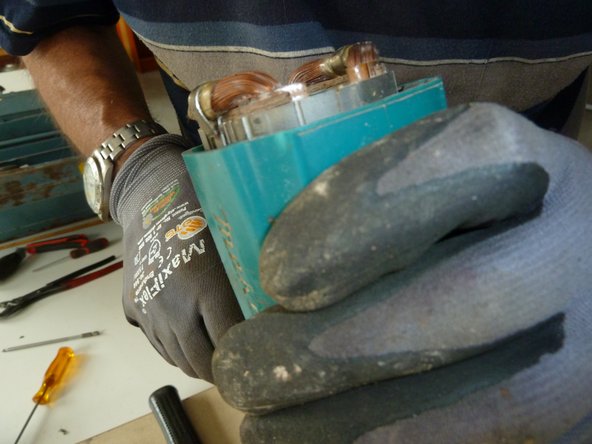

11. Step 9

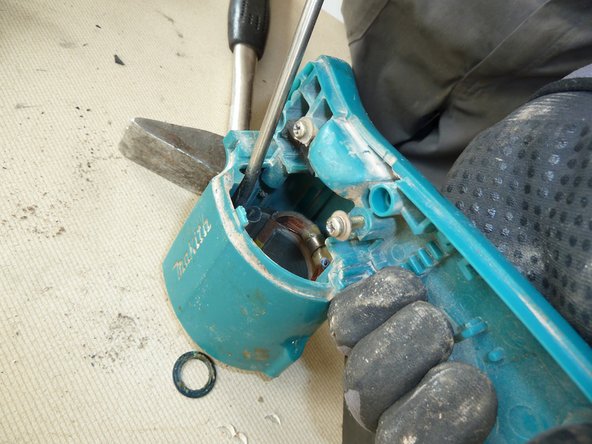

  Unscrew the stator.

  Remove the motor.
  Add Comment

  1024

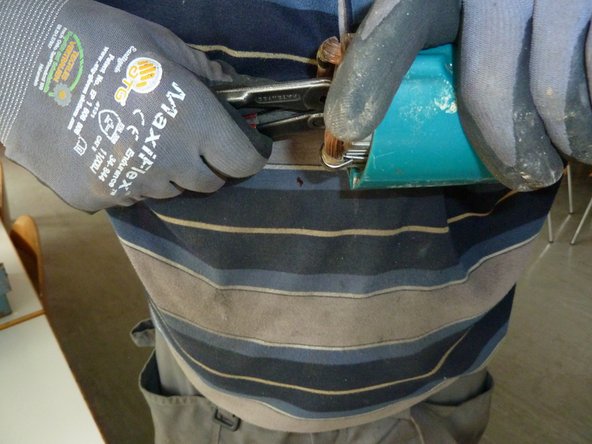

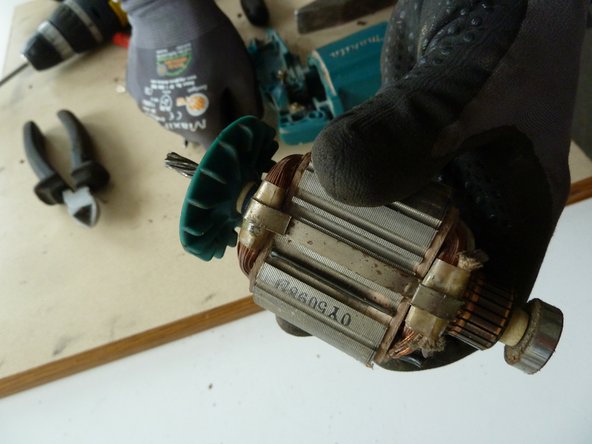

12. Step 10

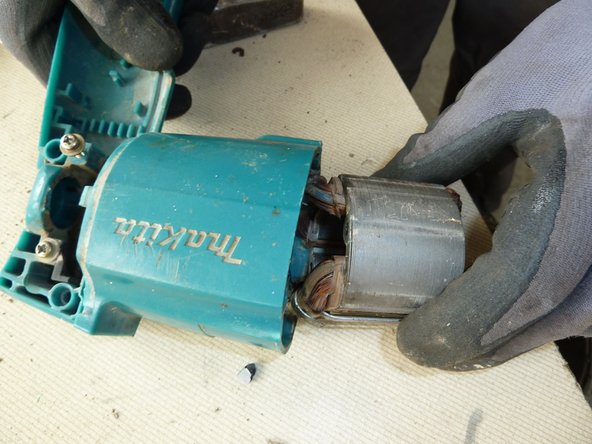

  Remove the motor.
  Add Comment

  1024
13. Step 11

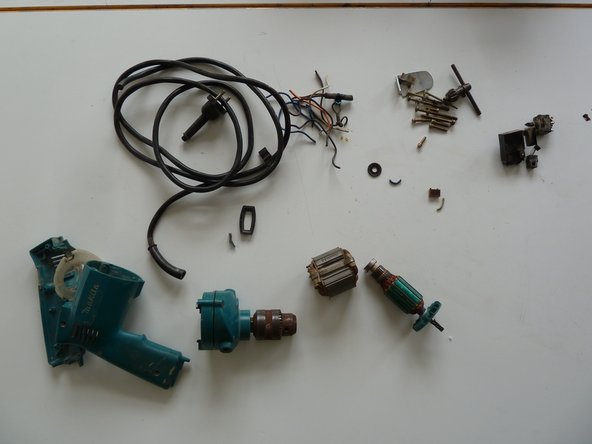

  Separate the remaining materials according to their type and go on with the appropriate data sheet (e.g. aluminium, ferrous metals, plastic, further PWBs, etc.).

  Make sure the plastic parts are completely free of metal pieces.
