Power Mac G4 Cube Modem Replacement

Introduction

Installing Modem involves removing the outer case and video card before installation.

What you need

  1. Power Mac G4 Cube Modem Replacement, Power Mac G4 Cube Modem Replacement: step 1, image 1 of 3 Power Mac G4 Cube Modem Replacement, Power Mac G4 Cube Modem Replacement: step 1, image 2 of 3 Power Mac G4 Cube Modem Replacement, Power Mac G4 Cube Modem Replacement: step 1, image 3 of 3

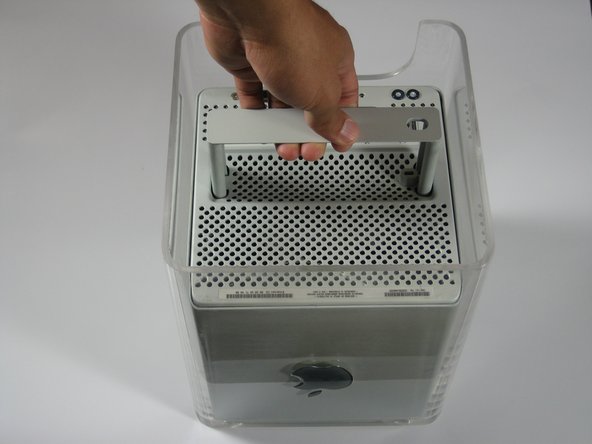

    • Release the back handle of the PowerMac. Slowly pull out the cube by holding the end of the handle. Watch for any parts that may become entangled with the outer case.

    • Push back the handle after you have taken the core out of the case.

    Add Comment

  2. Power Mac G4 Cube Modem Replacement: step 2, image 1 of 2 Power Mac G4 Cube Modem Replacement: step 2, image 2 of 2

    • Place the cube upside down and remove the four T10 Torx screws on the front plate. Then remove the two screws on each side.

    Add Comment

  3. Power Mac G4 Cube Modem Replacement: step 3, image 1 of 1

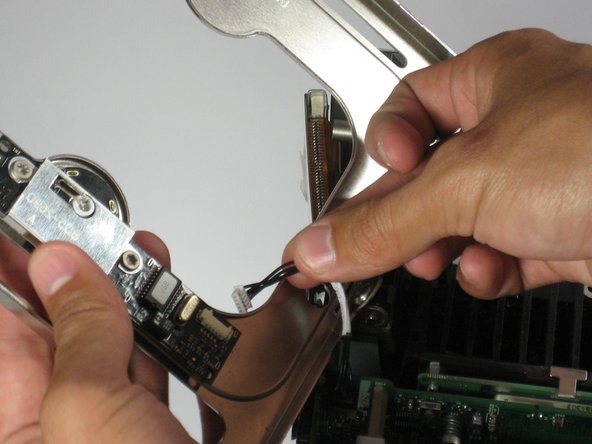

    • Slowly lift the plate off the cube and disconnect the power cord.

    Add Comment

  4. Power Mac G4 Cube Modem Replacement: step 4, image 1 of 1

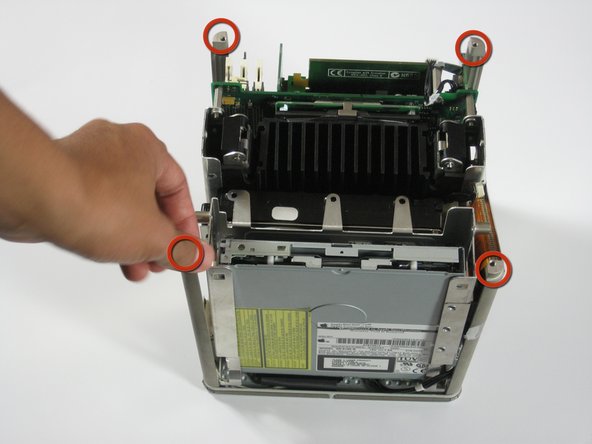

    • Remove the four pillars from each corner.

    • The pillars should come out fairly easily.

    Add Comment

  6. Power Mac G4 Cube Modem Replacement: step 5, image 1 of 1

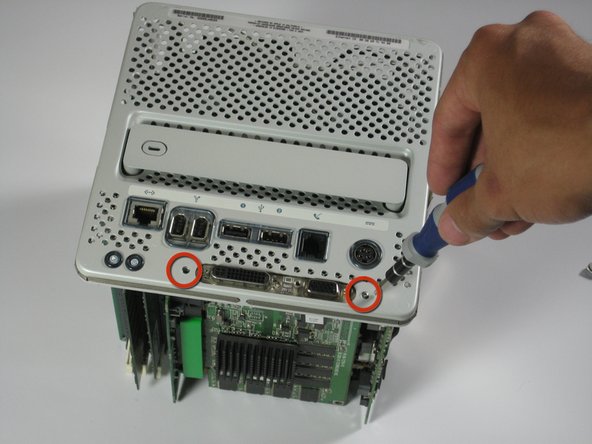

    • Remove the screws on the back of the VGA port.

    Add Comment

  7. Power Mac G4 Cube Modem Replacement: step 6, image 1 of 1

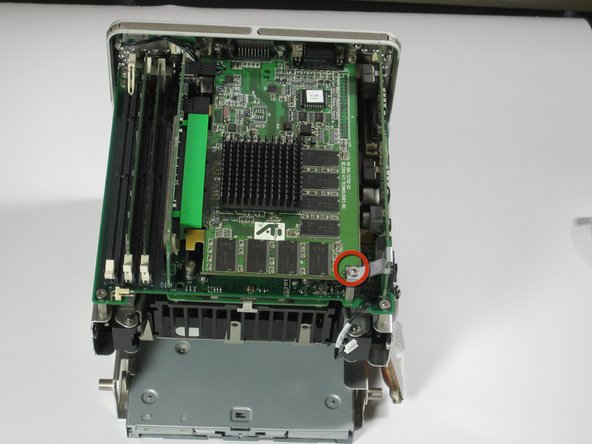

    • Remove the screw attaching the video card to the logic board.

    Add Comment

  8. Power Mac G4 Cube Modem Replacement: step 7, image 1 of 2 Power Mac G4 Cube Modem Replacement: step 7, image 2 of 2

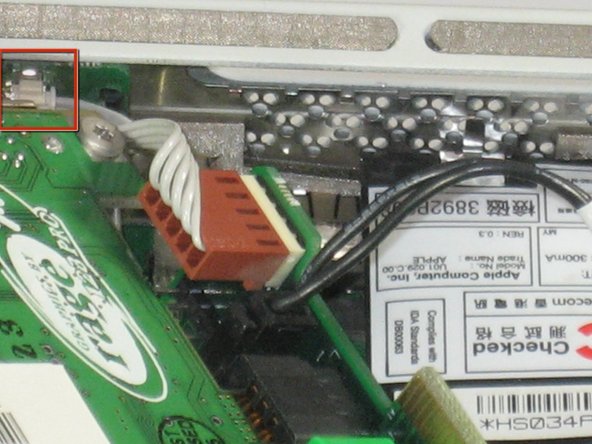

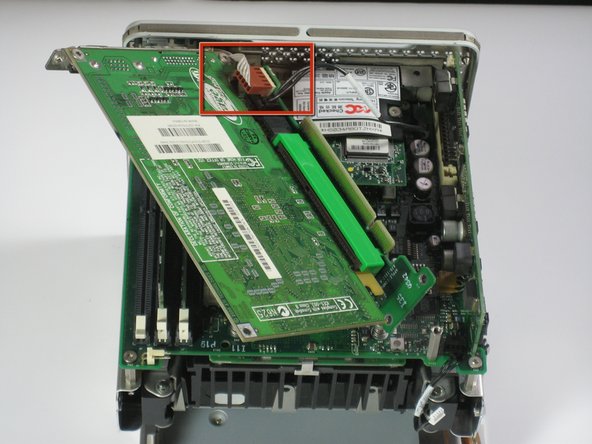

    • Remove power cord from the video card.

    Add Comment

  9. Power Mac G4 Cube Modem Replacement: step 8, image 1 of 1

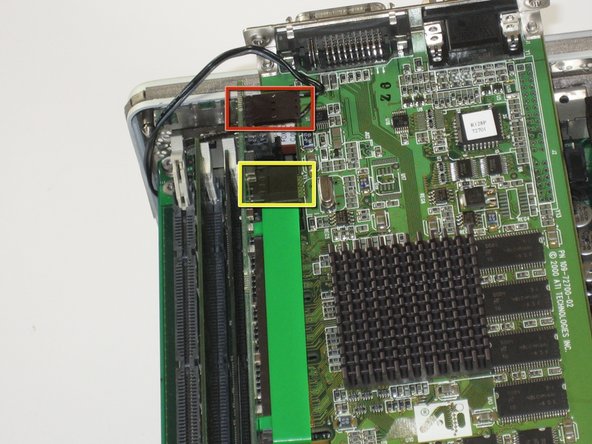

    • Remove the power cord.

    • Remove the connector.

    • Remove the video card from the logic board.

    Add Comment

  10. Power Mac G4 Cube Modem Replacement: step 9, image 1 of 1

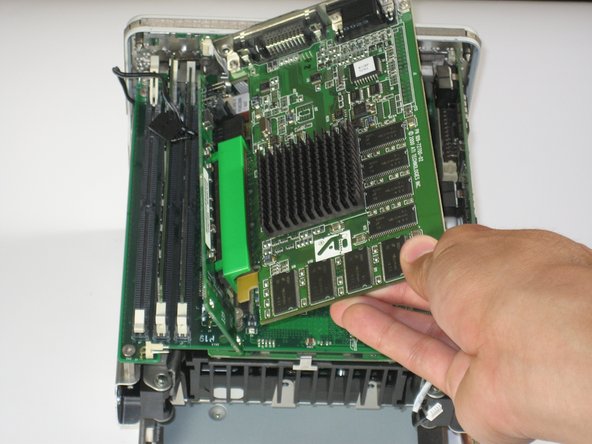

    • Carefully lift the video card from the logic board.

    • The video card should come out easily.

    Add Comment

  11. Power Mac G4 Cube Modem Replacement: step 10, image 1 of 2 Power Mac G4 Cube Modem Replacement: step 10, image 2 of 2

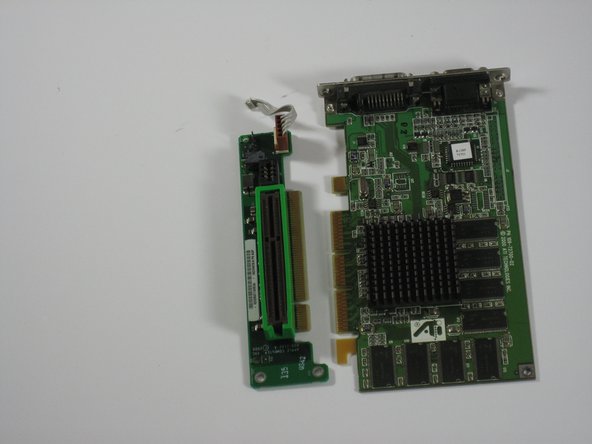

    • Separate the video card from the adapter.

    Add Comment

  12. Power Mac G4 Cube Modem Replacement: step 11, image 1 of 1

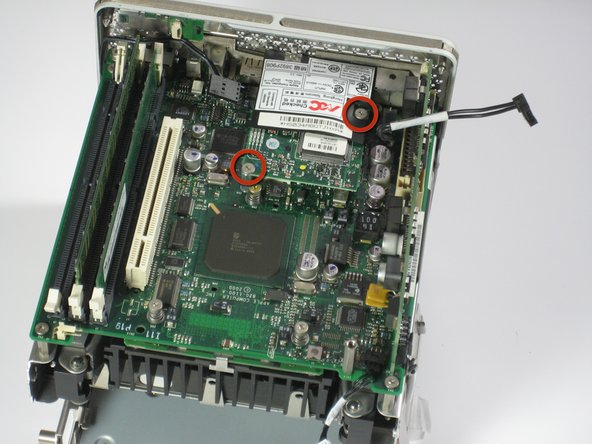

    • Remove the two screws from the modem.

    Add Comment

  13. Power Mac G4 Cube Modem Replacement: step 12, image 1 of 1

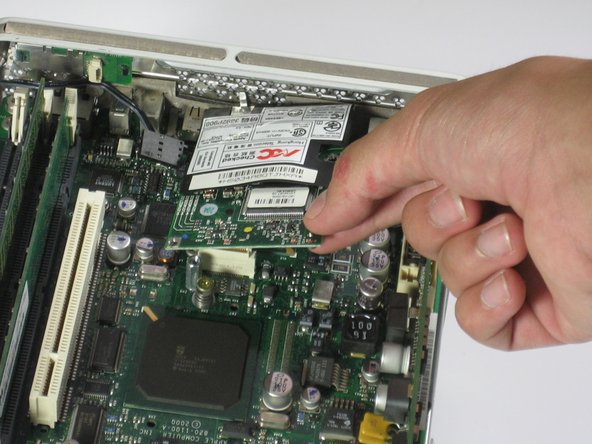

    • Lift modem from the Logic Board.

    • The modem should come out easily.

    Add Comment

Conclusion

To reassemble your device, follow these instructions in reverse order.
