Power Mac G4 Cube Video Card Replacement

Step 1 Power Mac G4 Cube Video Card Replacement

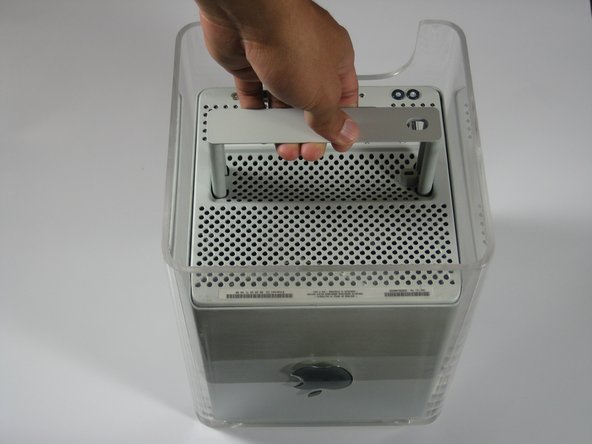

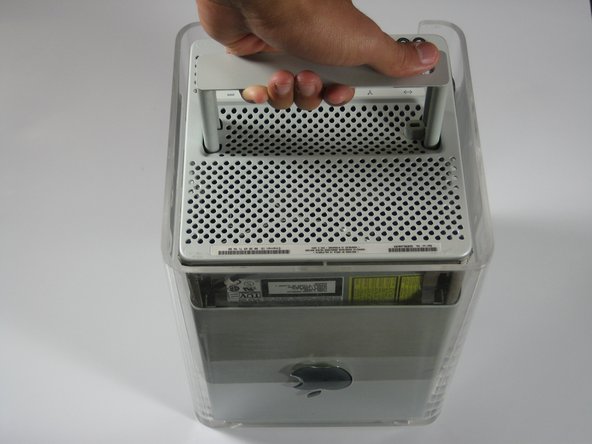

• Release the back handle of the PowerMac. Slowly pull out the cube by holding the end of the handle. Watch for any parts that may become entangled with the outer case.
• Push back the handle after you have taken the core out of the case.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 2

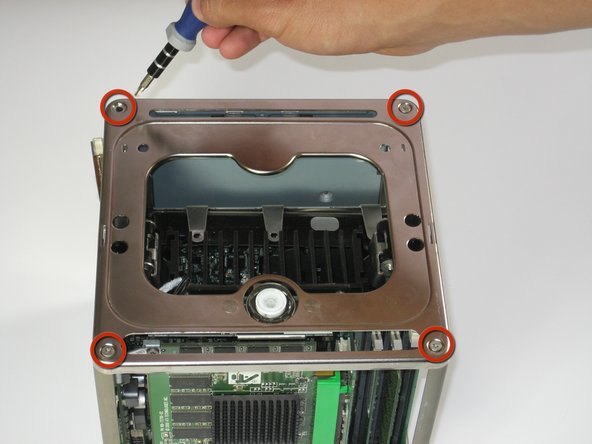

• Place the cube upside down and remove the four T10 Torx screws on the front plate. Then remove the two screws on each side.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 3

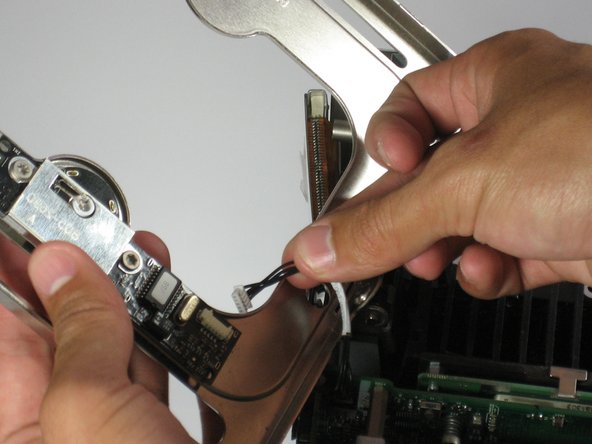

• Slowly lift the plate off the cube and disconnect the power cord.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 4

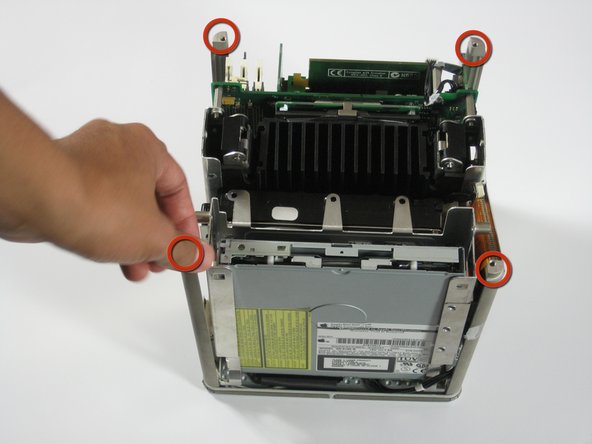

• Remove the four pillars from each corner.
• The pillars should come out fairly easily.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 5
• Remove the screws on the back of the VGA port.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 6

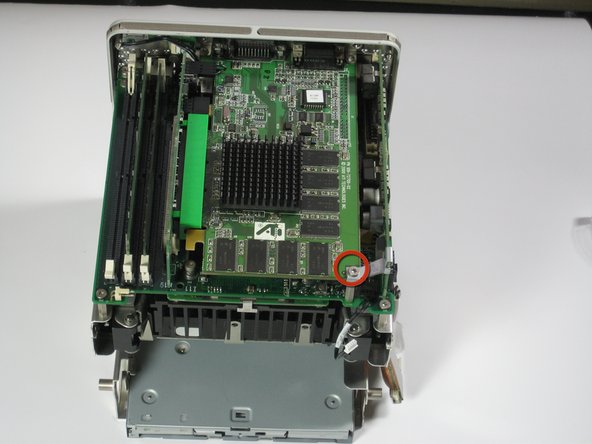

• Remove the screw attaching the video card to the logic board.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 7

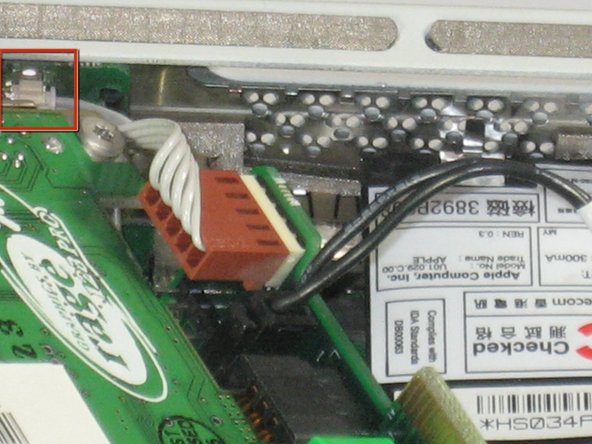

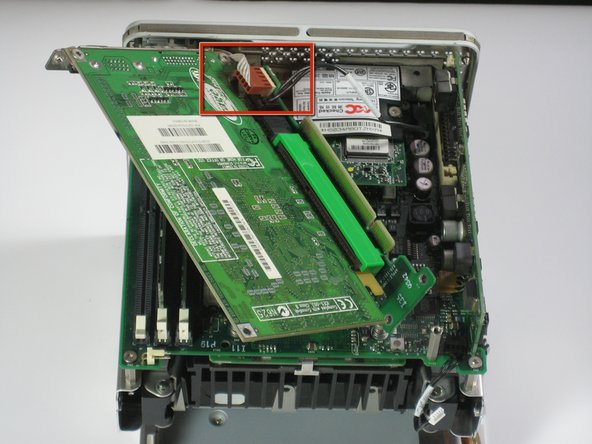

• Remove power cord from the video card.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 8

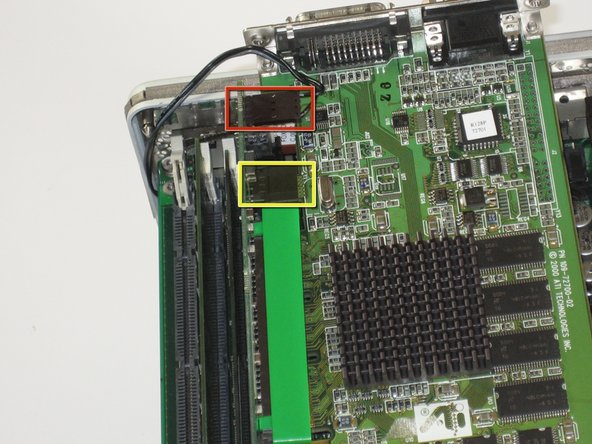

• Remove the power cord.
• Remove the connector.
• Remove the video card from the logic board.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 9

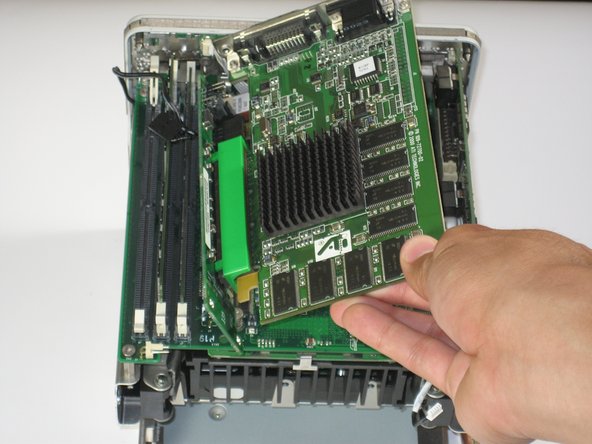

• Carefully lift the video card from the logic board.
• The video card should come out easily.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 10

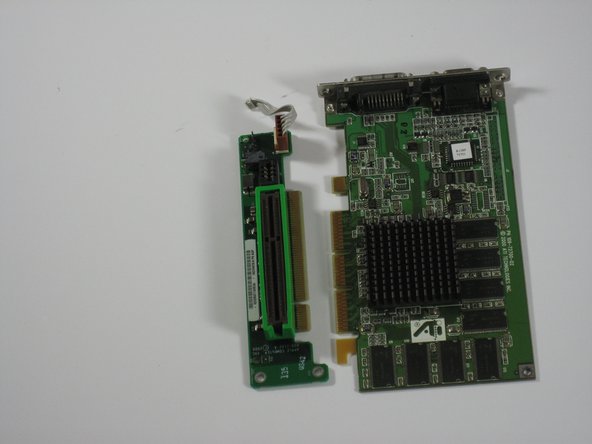

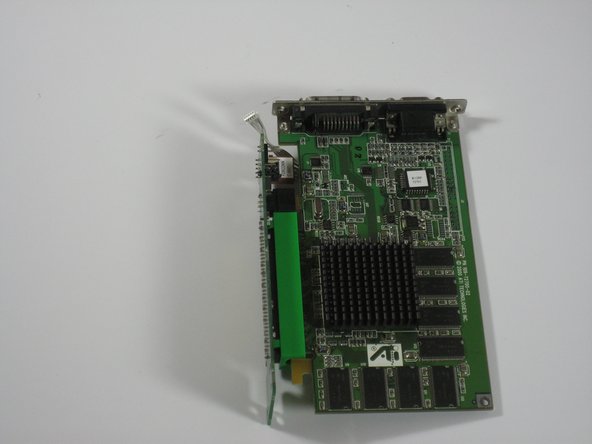

• Separate the video card from the adapter.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
