Step 1 Power Mac G4 M5183 Hard Drive Replacement



• Pull on outer latch.
• Lower door until it is level with your work surface.
• Before working on the computer make sure it is not plugged into a power supply, then touch a metal object. This discharges static electricity, which could damage the computer.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 2

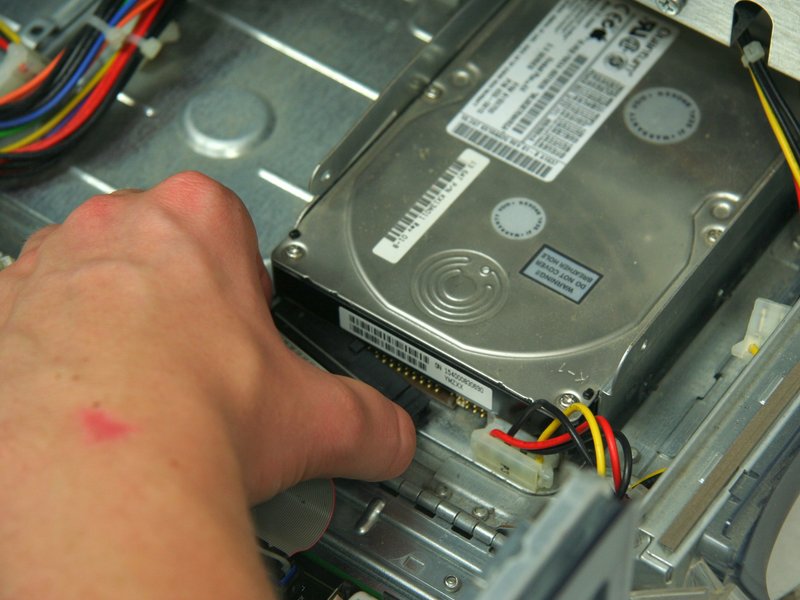

• Remove the ribbon cable and power cable from the Hard Drive.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 3

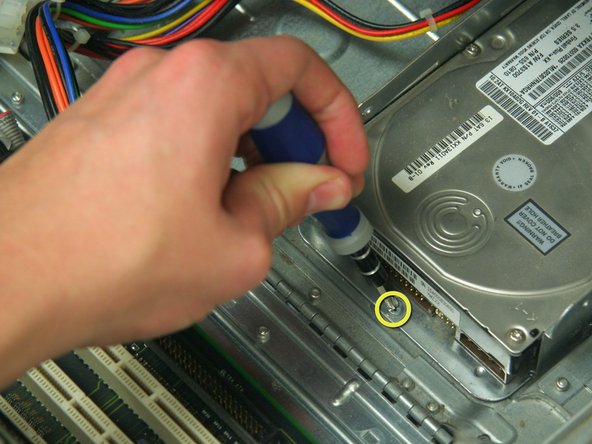

• Remove the screw which holds the Hard Drive tray in place.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 4

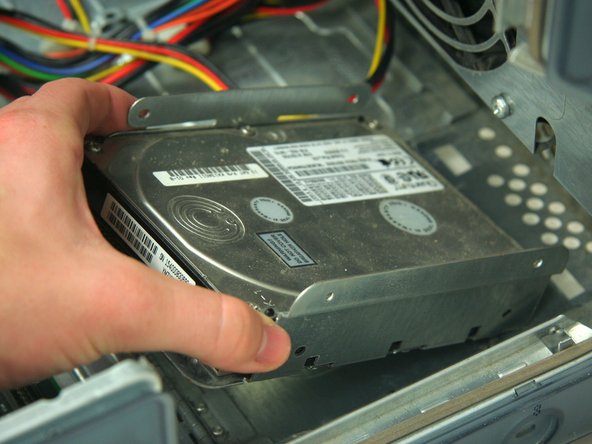

• Slide the Hard Drive tray out of the computer.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 5

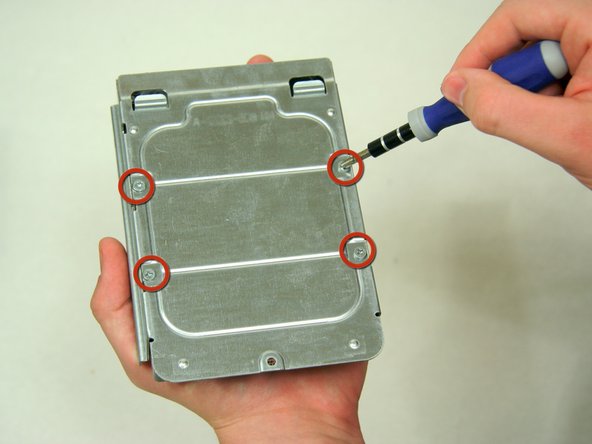

• To remove the Hard Drive from the tray, unscrew the 4 screws on the bottom of the tray.
