Step 1 Power Mac G4 M5183 Heat Sink Replacement



• Pull on outer latch.
• Lower door until it is level with your work surface.
• Before working on the computer make sure it is not plugged into a power supply, then touch a metal object. This discharges static electricity, which could damage the computer.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 2



• Use the spudger to pry the clips horizontally off of the heat sink.
• Fully remove the clips by lifting upwards.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 3

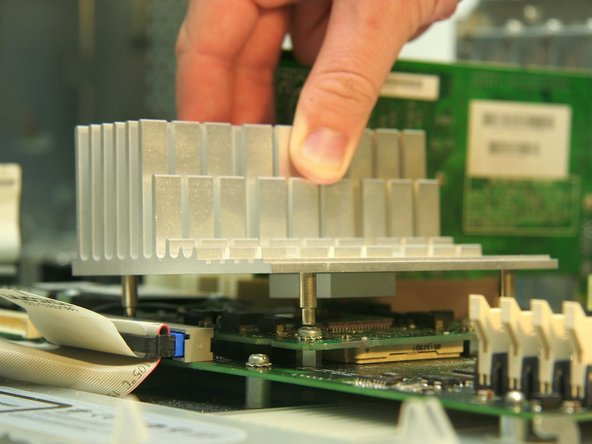

• Remove the heat sink by pulling upwards, off of the logic board.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
