Introduction

This guide will help you in disassembling the power supply from your PowerMac.

What you need

1. Step 1 Power Mac G4 M5183 Power Supply Replacement
  Pull on outer latch.

  Lower door until it is level with your work surface.

  Before working on the computer make sure it is not plugged into a power supply, then touch a metal object. This discharges static electricity, which could damage the computer.
  Add Comment

  1024
2. Step 2

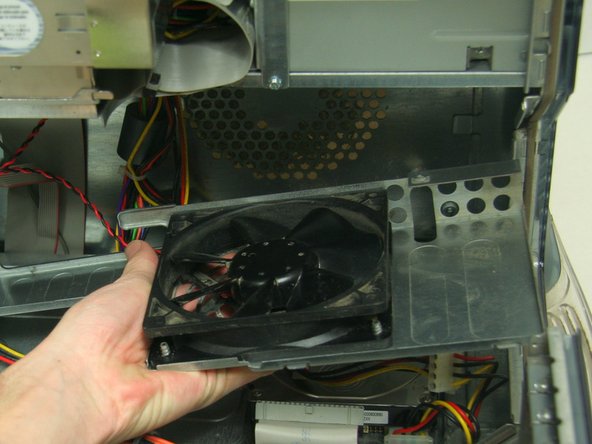

  Remove the screw from each of the two niches on lower part of fan using the Phillips #1 screwdriver.

  The fan housing will still be connected to the computer by a power cable which will be removed in the next step.
  Add Comment

  1024
3. Step 3

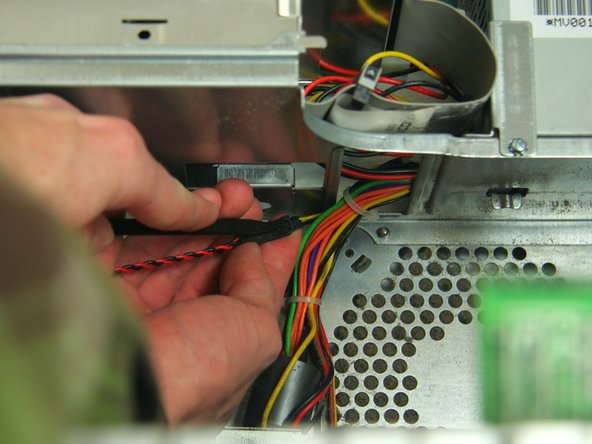

  Remove the power cable from the fan and detach bracing.
  Add Comment

  1024
5. Step 4
  Removing the faceplate.

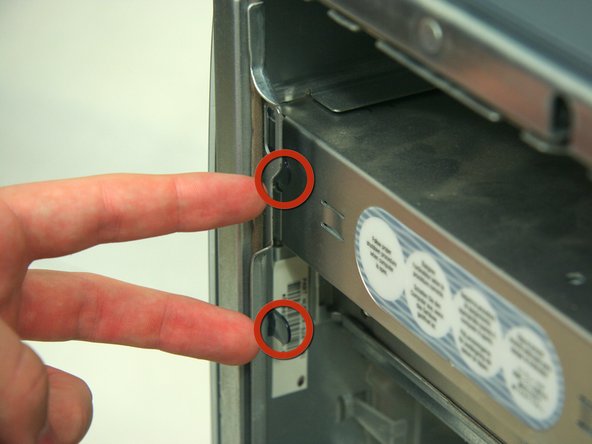

  On the inside of the case, find the two plastic tabs.

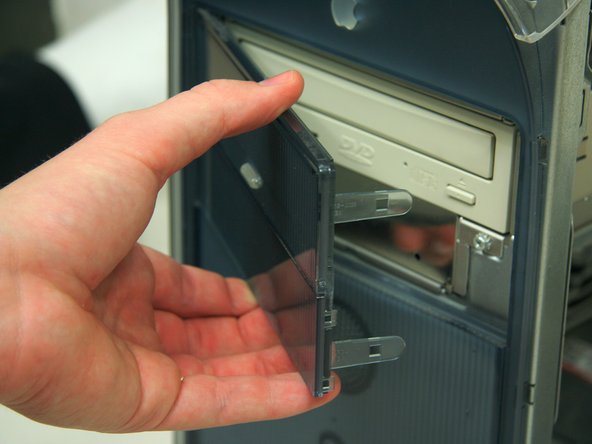

  While depressing the tabs, remove the faceplate by pulling and rotating outward.
  Add Comment

  1024
6. Step 5

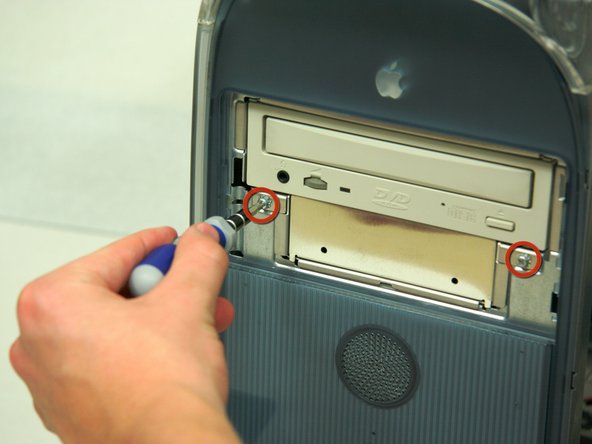

  Remove the two screws on the front of the drive with the Phillips #1 screwdriver.
  Add Comment

  1024
7. Step 6

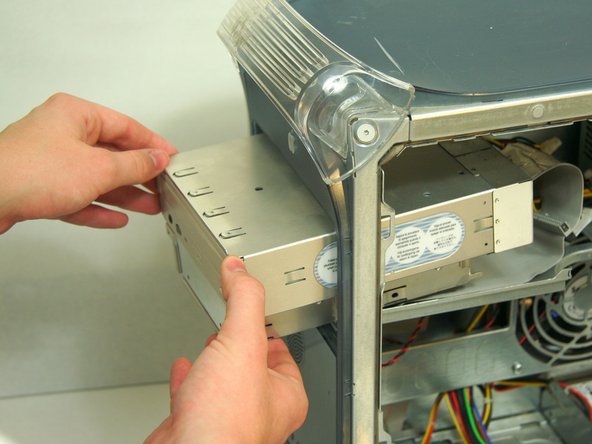

  Pull the drive out to allow access to the power and ribbon cables. Do not fully remove.

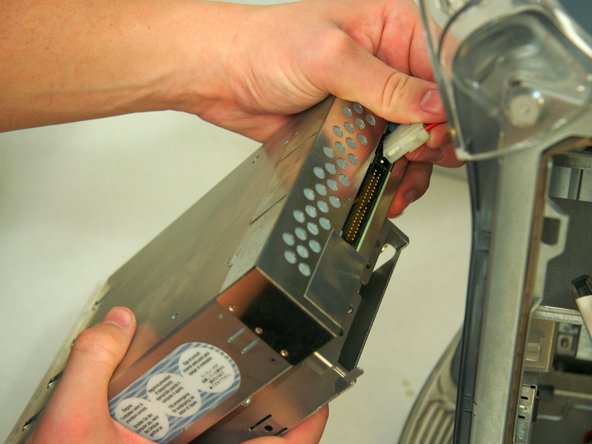

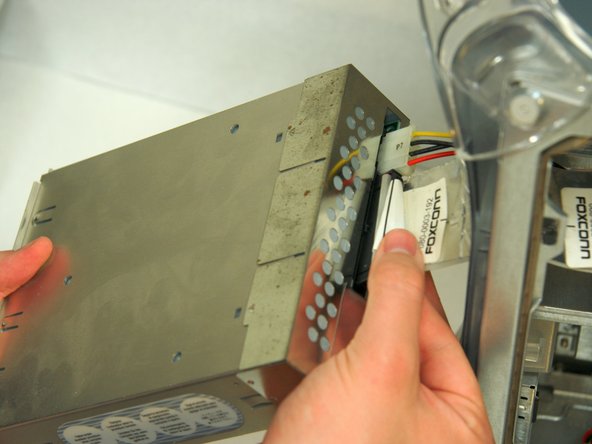

  Remove both the power and ribbon cable.
  Add Comment

  1024
8. Step 7

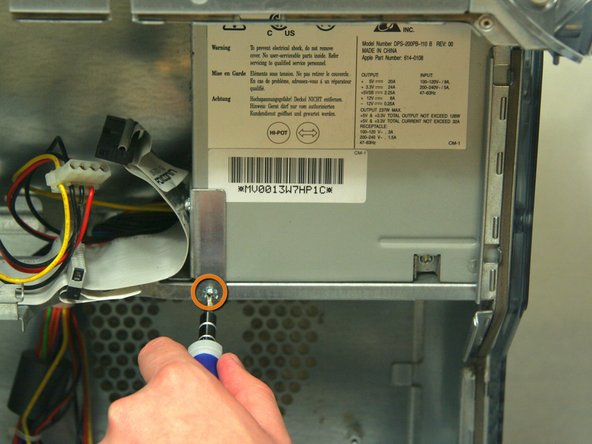

  Remove the 3 hex screws on the back of the case.

  Remove the single screw on the side of the power supply casing with the Phillips #1 screwdriver.
  Add Comment

  1024
9. Step 8
  Remove power cable from the logic board.

  Remove power cable from hard drive.

  Pull the power supply out and towards yourself.
  Add Comment

  1024
