Power Mac G4 MDD PCI Cards Replacement

Introduction

The Power Mac G4 MDD has four full-legnth 66Mhz PCI Slots, The MDD Works with Mac cards, and some PC cards as well.

What you need

  1. Power Mac G4 MDD PCI Cards Replacement, Power Mac G4 MDD PCI Cards Replacement: step 1, image 1 of 2 Power Mac G4 MDD PCI Cards Replacement, Power Mac G4 MDD PCI Cards Replacement: step 1, image 2 of 2

    • The Power Mac G4 MDD: the last, and the fastest G4-based Mac. This computer boasted up to a Dual 1.42GHz PowerPC G4 CPU (though I have a single 1.25GHz).

    • Six USB ports.

    • Four FireWire ports.

    • Assorted SCSI (SCSI50/SCSI68)

    • Assorted Audio

    • Video (ADC & DVI)

    • Networking (RJ-45 Ethernet/56k Modem)

    • Some later model MDD's (such as the dual 1.42GHz) Have a FireWire 800 Port Here:

  2. Power Mac G4 MDD PCI Cards Replacement: step 2, image 1 of 3 Power Mac G4 MDD PCI Cards Replacement: step 2, image 2 of 3 Power Mac G4 MDD PCI Cards Replacement: step 2, image 3 of 3

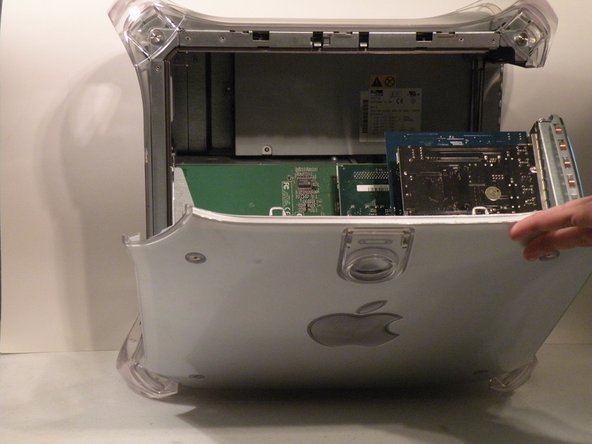

    • Pull on the side lever and lower the side of the case.

  3. Power Mac G4 MDD PCI Cards Replacement: step 3, image 1 of 3 Power Mac G4 MDD PCI Cards Replacement: step 3, image 2 of 3 Power Mac G4 MDD PCI Cards Replacement: step 3, image 3 of 3

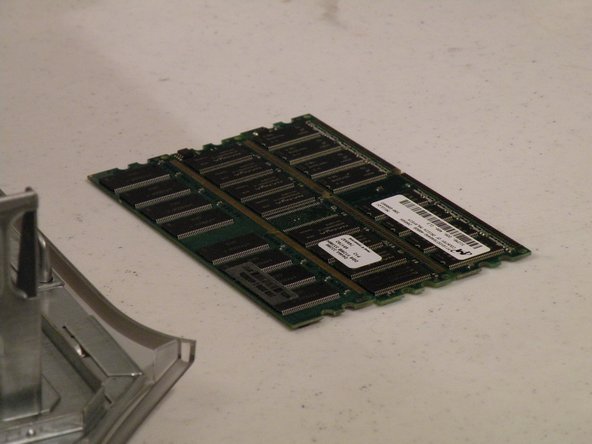

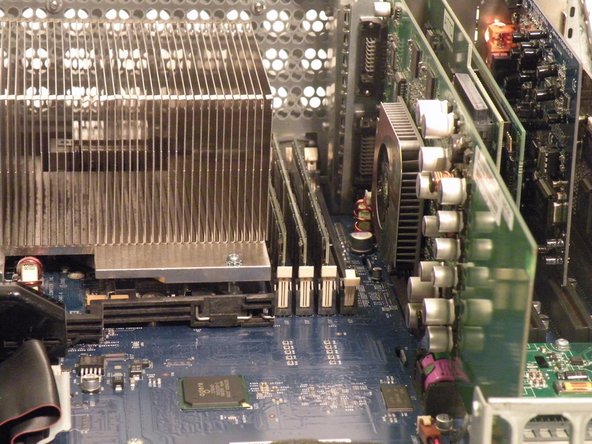

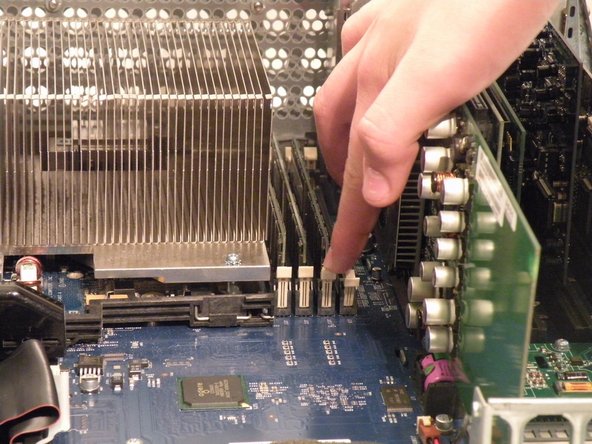

    • The ram is between the graphics card, and the CPU, and removal is simple. Push the tabs down on both sides, this will free the ram, then lift it out.

    • The MDD Uses A Maximum of 2GB PC2700 DDR,(512MB X4) and had 4 slots for ram.

  5. Power Mac G4 MDD PCI Cards Replacement: step 4, image 1 of 1

    • The Power Mac G4 MDD uses a Mac-Compatible AGP Graphics card with ADC, And DVI or VGA.

    • My mac has a NVIDIA GeForce4 Titanium with 128MB of video ram, this was an excessively large card, for some reason.

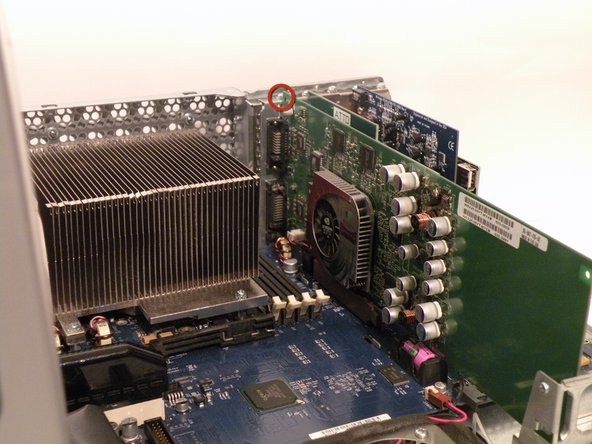

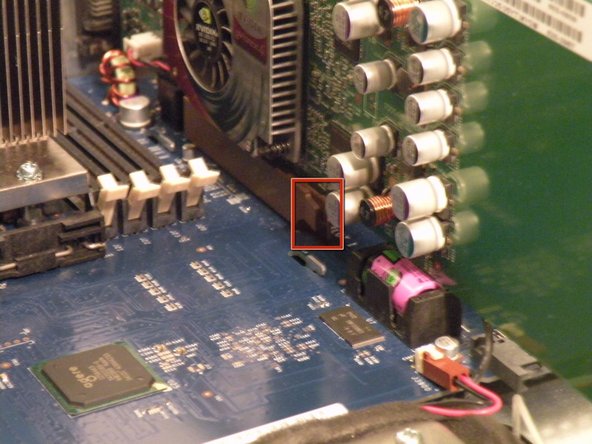

    • Start by removing this Phillips screw.

  6. Power Mac G4 MDD PCI Cards Replacement: step 5, image 1 of 3 Power Mac G4 MDD PCI Cards Replacement: step 5, image 2 of 3 Power Mac G4 MDD PCI Cards Replacement: step 5, image 3 of 3

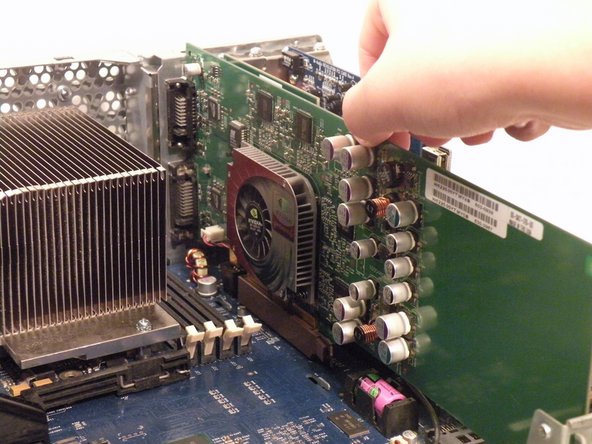

    • Using a flathead screwdriver, spudger, or your finger pull this tab towards you, and lift the card out.

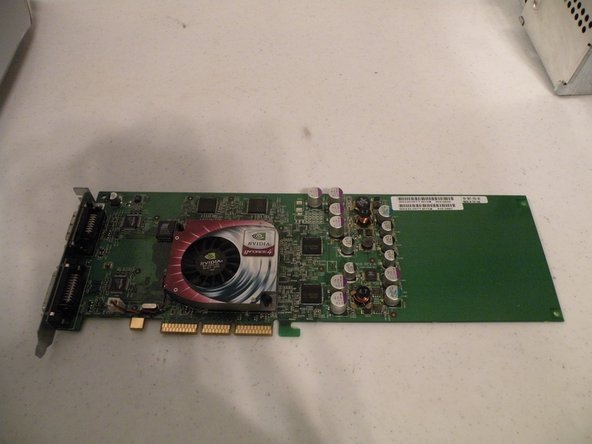

    • The "excessively large" NVIDIA GeForce4 Titanium 128MB. This was one of the most powerful cards on the market when this computer was released, now, there are flashed cards such as the Radeon 9700 Mac, but this is the most powerful AGP ADC supporting card, great for gaming, Photoshop, and other 3D intensive applications.

  7. Power Mac G4 MDD PCI Cards Replacement: step 6, image 1 of 2 Power Mac G4 MDD PCI Cards Replacement: step 6, image 2 of 2

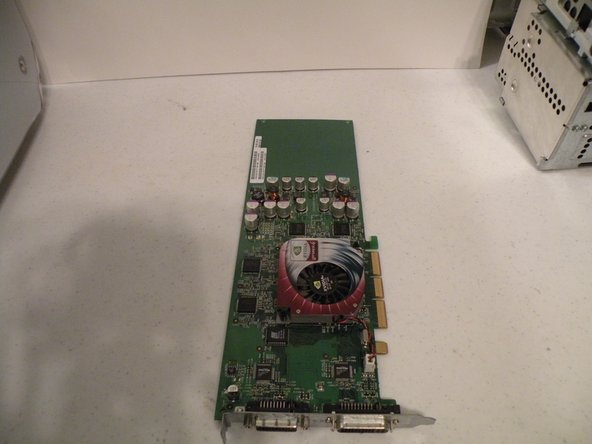

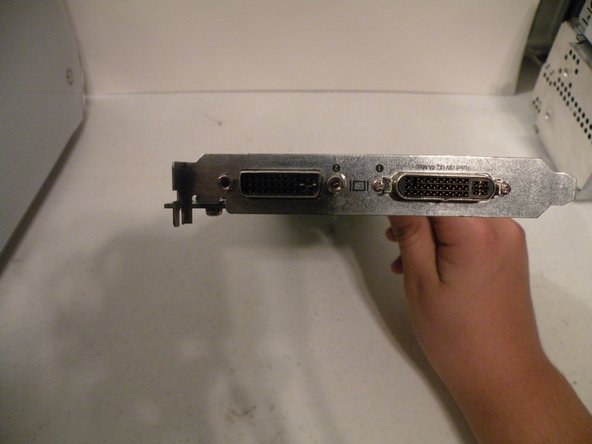

    • The DVI And ADC Ports.

  8. Power Mac G4 MDD PCI Cards Replacement: step 7, image 1 of 2 Power Mac G4 MDD PCI Cards Replacement: step 7, image 2 of 2

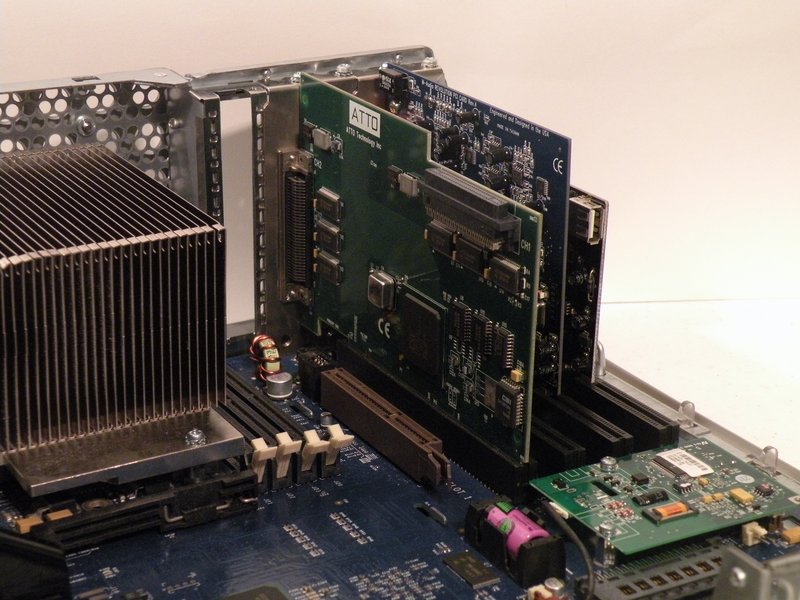

    • The Power Mac G4 MDD Supports four PCI Cards, allowing for SCSI, sound, wireless networking (only AirPort compatible clones) USB, FireWire, etc. The PCI slots do not, however support PCI graphics.

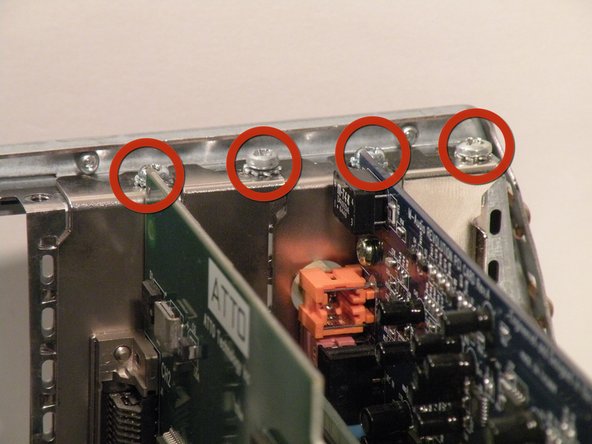

    • Remove the screws for any occupied PCI bays.

  9. Power Mac G4 MDD PCI Cards Replacement: step 8, image 1 of 1

    • Once the screws are removed, pull each card straight up and out of the computer one at a time.

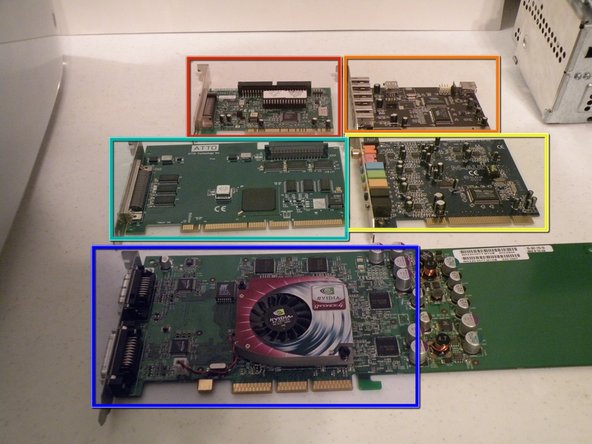

    • The Cards:

    • Adaptec SCSI 50-Pin

    • Adaptec SCSI 68-Pin

    • USB/FireWire Expander

    • M-Audio HD Sound Card

    • NVIDIA GeForce4 Titanium (Mac Edition) DVI & ADC

Conclusion

To reassemble your device, follow these instructions in reverse order.
