Time Required: No estimate
Difficulty: Easy
Power Mac G4 MDD RAM Replacement

Introduction

Go to step 1 ↓

The Power Mac G4 MDD Supports 2GB 333Mhz PC2700 DDR (4X512MB Optimal). It Has four slots on the motherboard.

    1. Power Mac G4 MDD RAM Replacement, Power Mac G4 MDD RAM Replacement: step 1, image 1 of 2 Power Mac G4 MDD RAM Replacement, Power Mac G4 MDD RAM Replacement: step 1, image 2 of 2

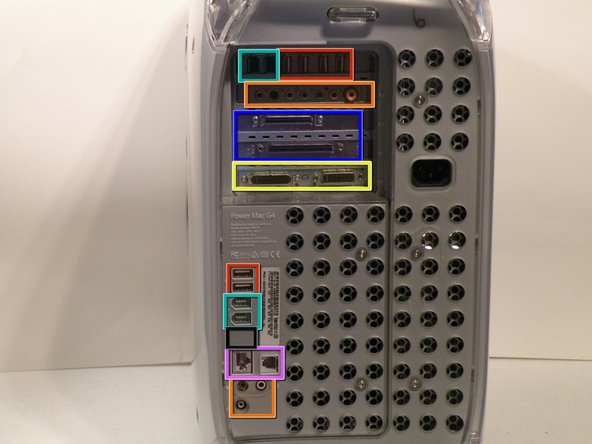

      • The Power Mac G4 MDD: the last, and the fastest G4-based Mac. This computer boasted up to a Dual 1.42GHz PowerPC G4 CPU (though I have a single 1.25GHz).

      • Six USB ports.

      • Four FireWire ports.

      • Assorted SCSI (SCSI50/SCSI68)

      • Assorted Audio

      • Video (ADC & DVI)

      • Networking (RJ-45 Ethernet/56k Modem)

      • Some later model MDD's (such as the dual 1.42GHz) Have a FireWire 800 Port Here:

      Add Comment

    2. Power Mac G4 MDD RAM Replacement: step 2, image 1 of 3 Power Mac G4 MDD RAM Replacement: step 2, image 2 of 3 Power Mac G4 MDD RAM Replacement: step 2, image 3 of 3

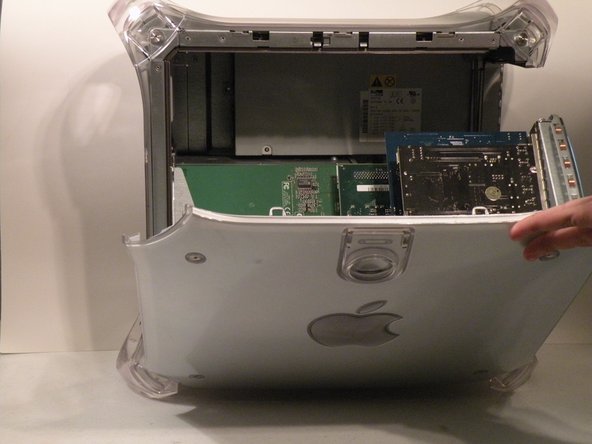

      • Pull on the side lever and lower the side of the case.

      Add Comment

    3. Power Mac G4 MDD RAM Replacement: step 3, image 1 of 3 Power Mac G4 MDD RAM Replacement: step 3, image 2 of 3 Power Mac G4 MDD RAM Replacement: step 3, image 3 of 3

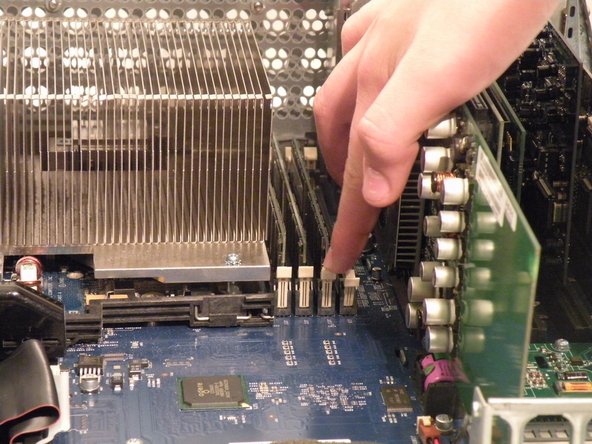

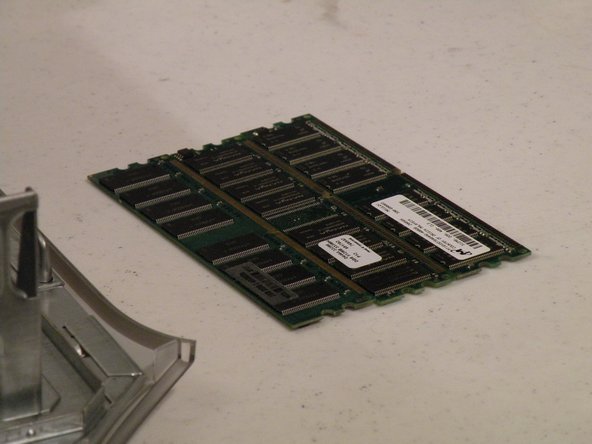

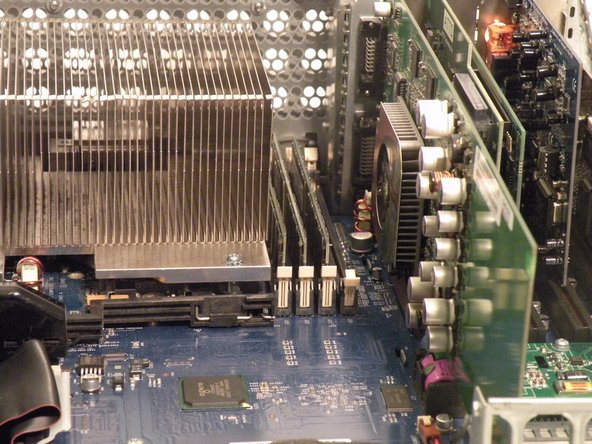

      • The ram is between the graphics card, and the CPU, and removal is simple. Push the tabs down on both sides, this will free the ram, then lift it out.

      • The MDD Uses A Maximum of 2GB PC2700 DDR,(512MB X4) and had 4 slots for ram.

      Add Comment

Conclusion

To reassemble your device, follow these instructions in reverse order.
