Power Mac G4 Quicksilver Hard Drive Replacement

Introduction

This is meant to be a private prereq guide.

What you need

  1. Power Mac G4 Quicksilver Hard Drive Replacement, Power Mac G4 Quicksilver Hard Drive Replacement: step 1, image 1 of 1

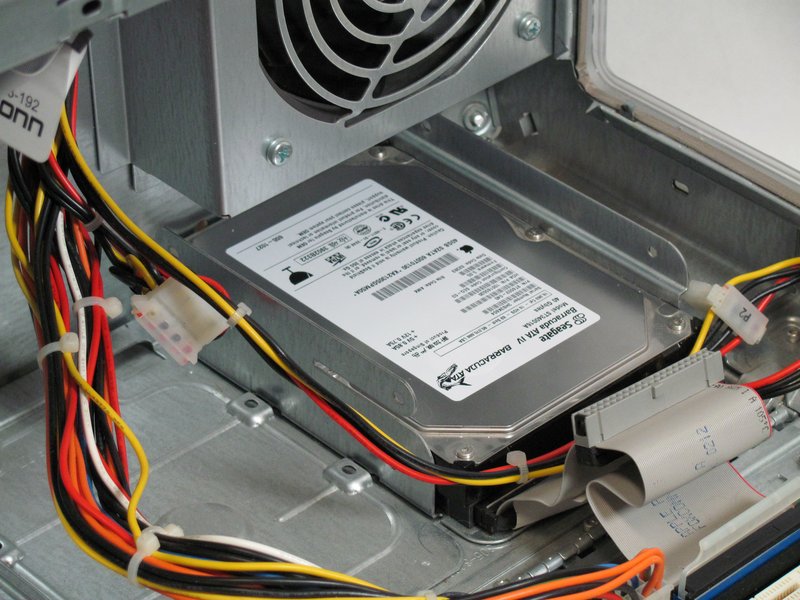

    • The hard drive is located in the back right corner of the case.

  2. Power Mac G4 Quicksilver Hard Drive Replacement: step 2, image 1 of 1

    • Remove the flat ribbon cable by pulling with substantial force.

  4. Power Mac G4 Quicksilver Hard Drive Replacement: step 3, image 1 of 1

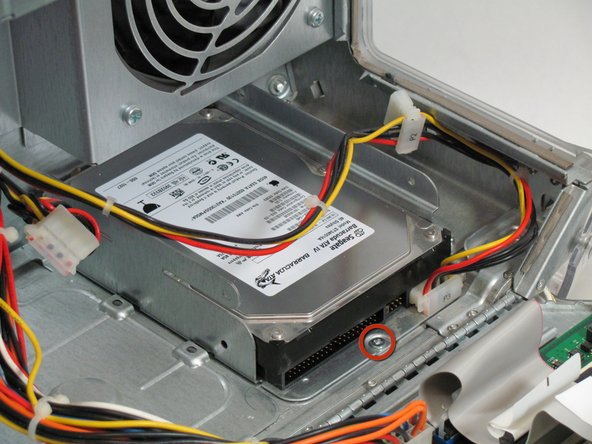

    • Remove the screw holding the hard drive to the computer.

  5. Power Mac G4 Quicksilver Hard Drive Replacement: step 4, image 1 of 1

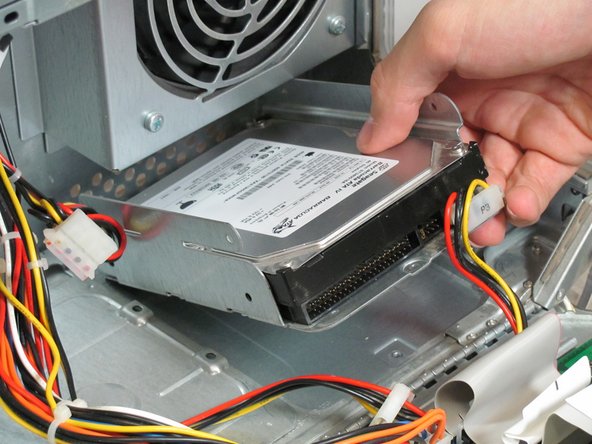

    • Pull the drive up and out of the computer.

  6. Power Mac G4 Quicksilver Hard Drive Replacement: step 5, image 1 of 1

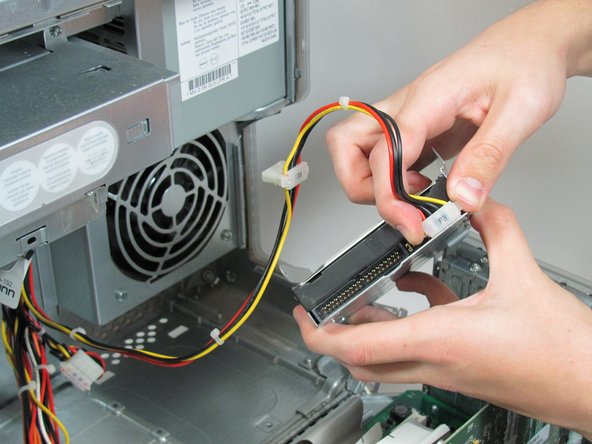

    • Remove the multicolored cable by grasping the plastic connector on either side and pulling with substantial force.

Conclusion

To reassemble your device, follow these instructions in reverse order.
