Step 1 Power Mac G5 Front Fan Assembly Replacement

• To avoid electrocution, shut down the computer. Do not open the computer or attempt to install any items inside it while the computer is on.
• To avoid being shocked, wait at least 10 minutes to allow the computer's internal components to cool.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 2

• Remove all the cables, including the power cables before opening the unit.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 3

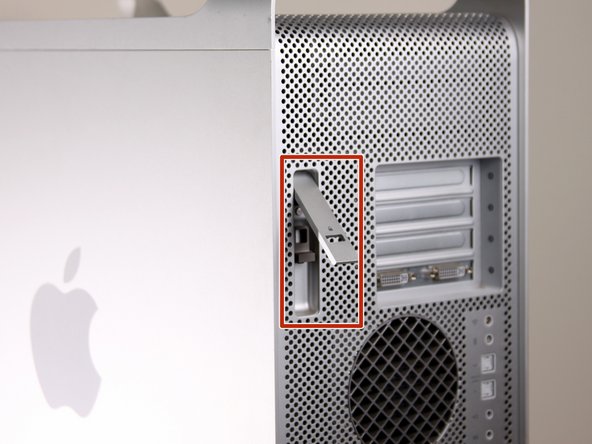

• Lift the tab to unlock the side panel.

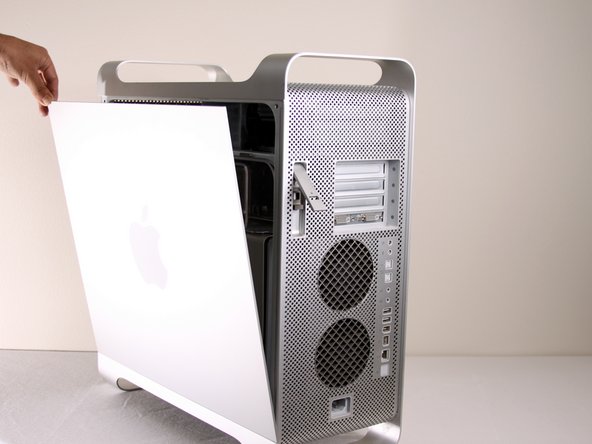

• The panel should fall out. If the panel does not fall out by itself pull a little from the edges.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 4

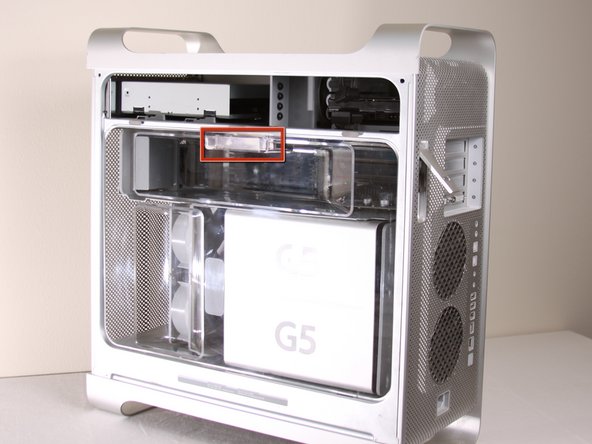

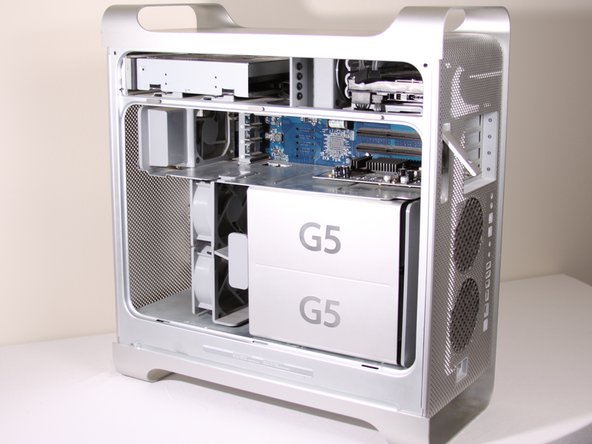

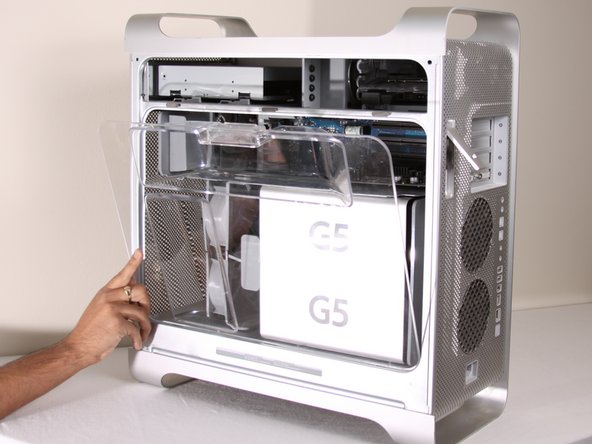

• Remove the air deflector (the clear plastic cover) by pulling on the handle.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 5

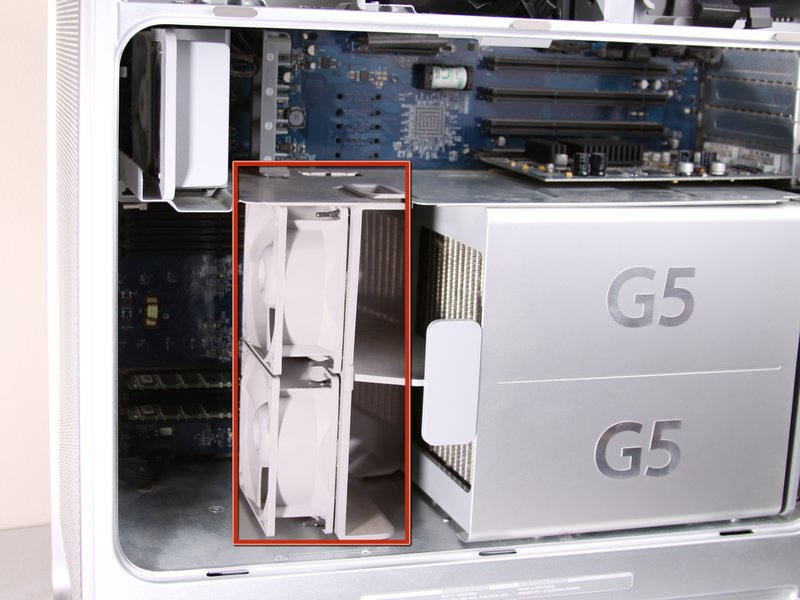

• Locate the front fan assembly.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 6

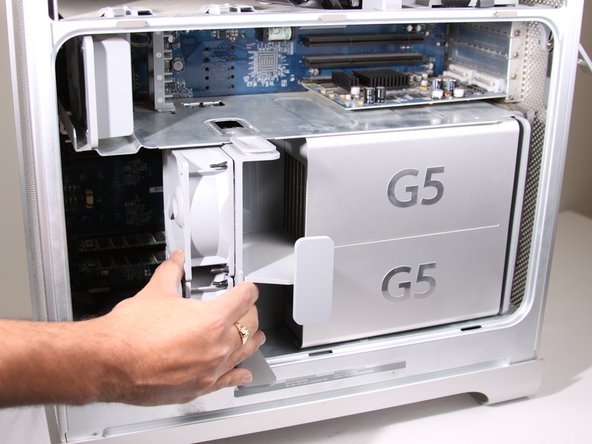

• Pull the fan assembly out; it should slide out easily.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
