Power Mac G5 Graphics Card Replacement

Step 1 Power Mac G5 Graphics Card Replacement

• To avoid electrocution, shut down the computer. Do not open the computer or attempt to install any items inside it while the computer is on.
• To avoid being shocked, wait at least 10 minutes to allow the computer's internal components to cool.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 2

• Remove all the cables, including the power cables before opening the unit.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 3

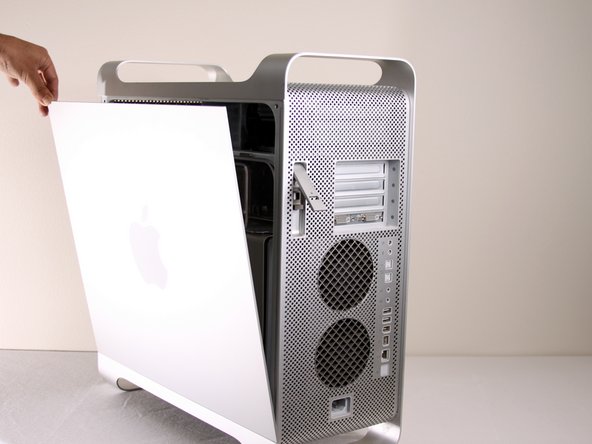

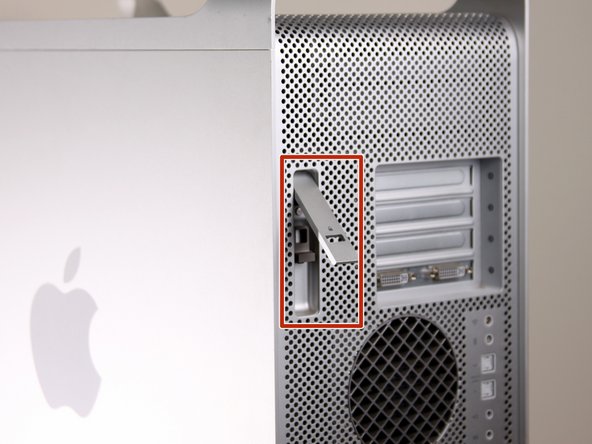

• Lift the tab to unlock the side panel.
• The panel should fall out. If the panel does not fall out by itself pull a little from the edges.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 4

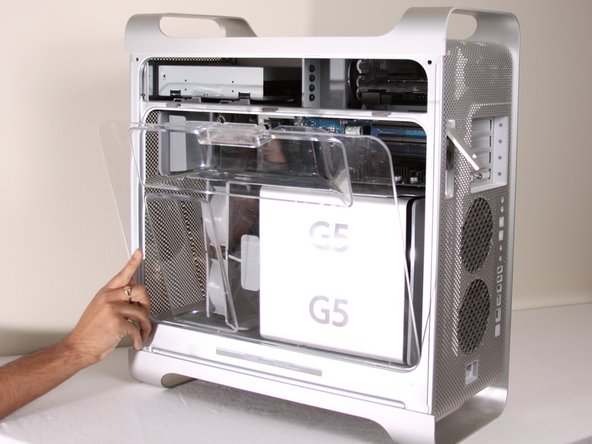

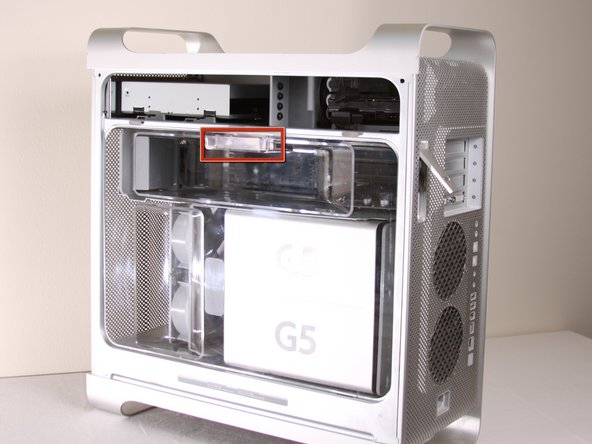

• Remove the air deflector (the clear plastic cover) by pulling on the handle.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 5

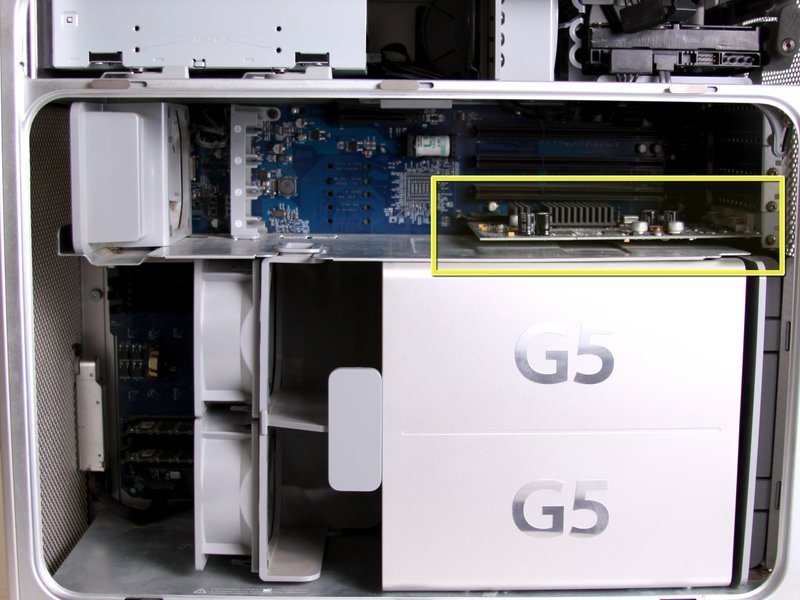

• Locate the graphics card in the desktop.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 6

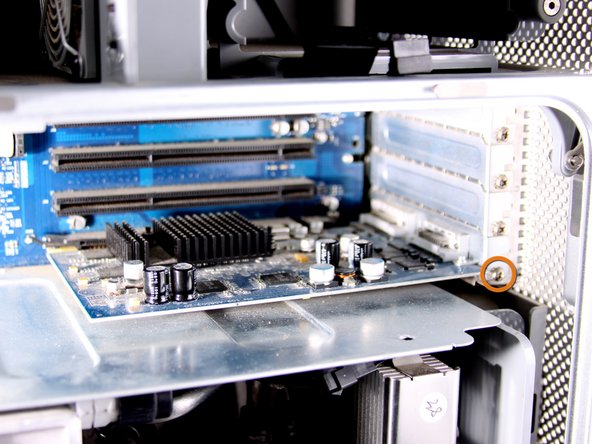

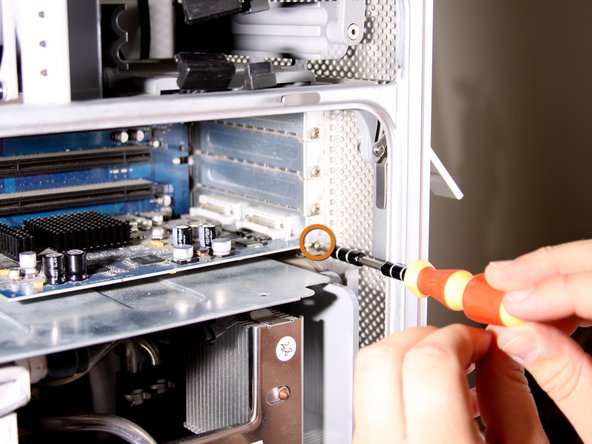

• Using a Phillips # 1 screw driver, unscrew the screw right next to the graphics card.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 7

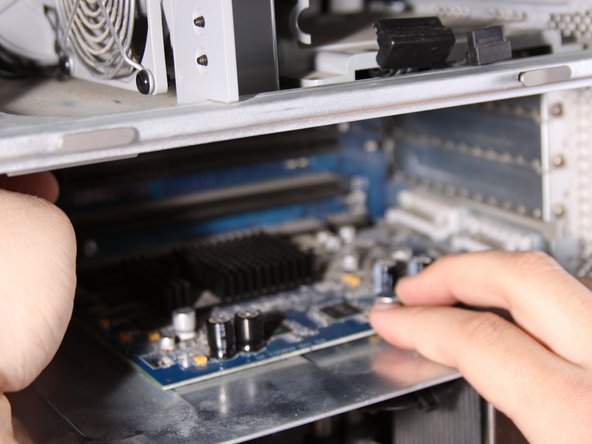

• Last thing to do is to gently shake the card out of it's slot by pulling it straight out. (If the card does not come out easily, don't force it. You need to release a latch on the logic board behind the AGP connector while pulling out the video card.)
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
