Introduction

Go to step 1 ↓

Dismantling and Recycling Centre (DRZ)

Katharina Lenz, Vienna / Austria

Health & Safety

Dismantling doesn't include any harmful steps. Nonetheless workers should wear personal protection equipment like gloves, goggles, apron and robust shoes.

Note: This is a general guide for most power screwdrivers (with exchangable battery pack). As the construction can differ, the dismantling steps mentioned below can vary in their order. However, the described steps show what parts the removal should focus on.

What you need

Tools

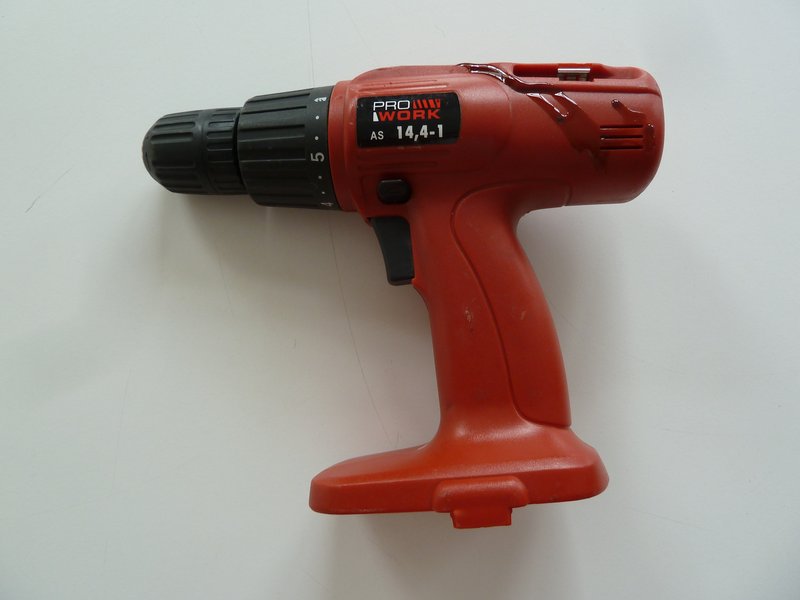

1. Step 1 Power Screwdriver (with exchangeable battery pack)
  Remove the battery pack.

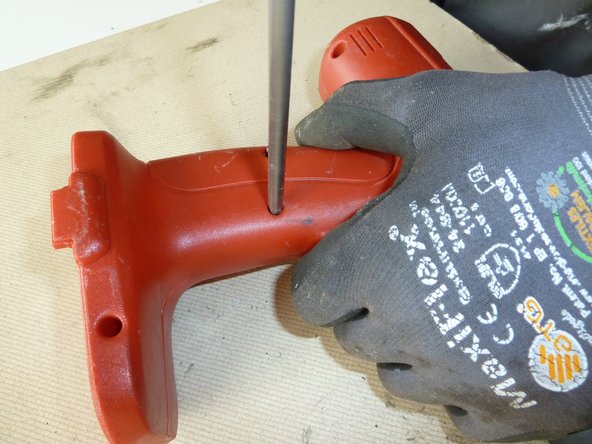

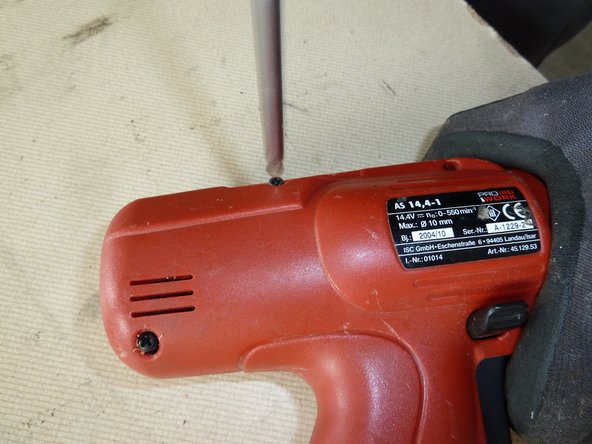

  Unscrew the case.
  Add Comment

  1024
2. Step 2
  Open the case.
  Add Comment

  1024
4. Step 3

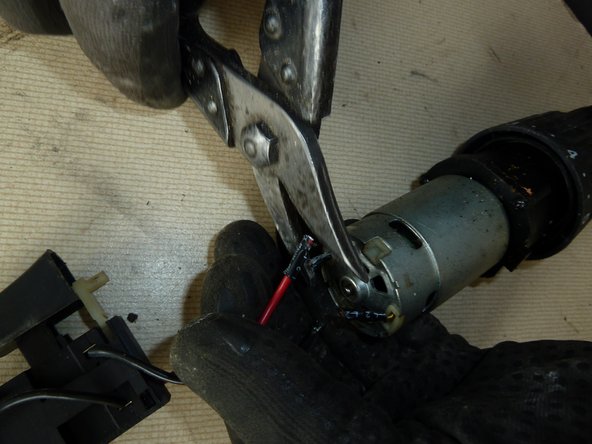

  Cut the wires.

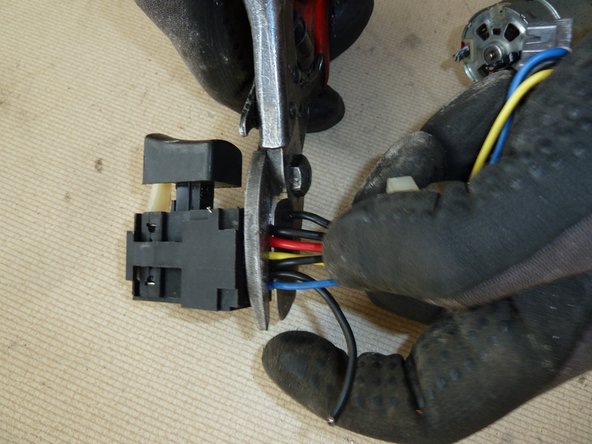

  Remove the switch.

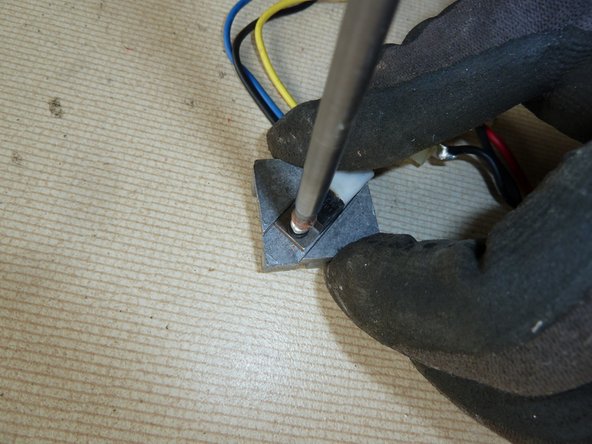

  Unscrew the switch.
  Add Comment

  1024
5. Step 4

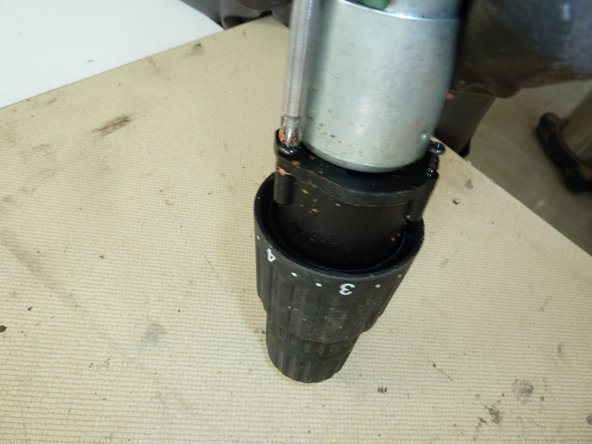

  Unscrew the motor.

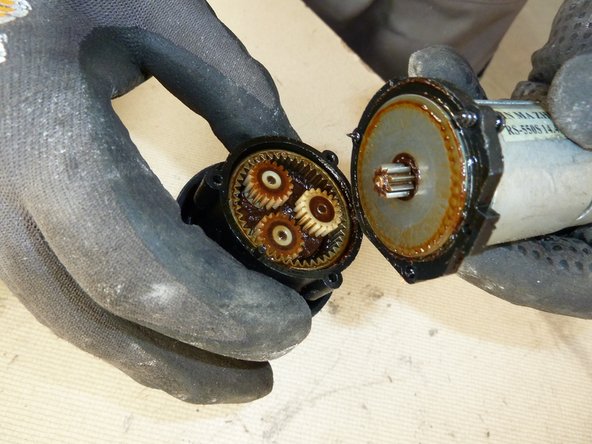

  Open the motor.

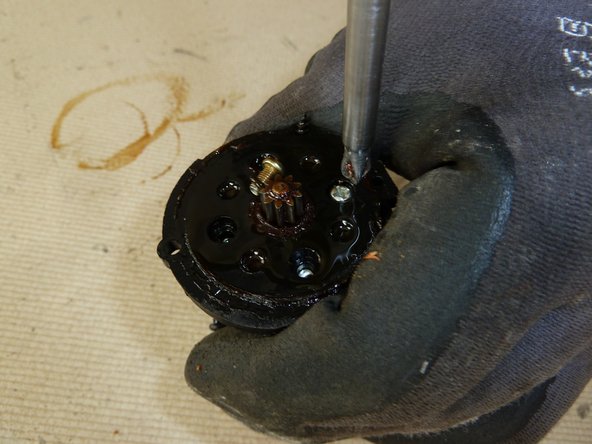

  Unscrew the motor case.
  Add Comment

  1024
7. Step 5
  Separate the remaining materials according to their type and go on with the appropriate data sheet (e.g. aluminium, ferrous metals, plastic, further PWBs, etc.).

  Make sure the plastic parts are completely free of metal pieces.
