Introduction

Go to step 1

Dismantling and Recycling Centre (DRZ)

Katharina Lenz, Vienna / Austria

Health & Safety

Dismantling doesn't include any harmful steps. Nonetheless workers should wear personal protection equipment like gloves, goggles, apron and robust shoes.

Note: This is a general guide for most power screwdrivers (with inbuilt battery pack). As the construction can differ, the dismantling steps mentioned below can vary in their order. However, the described steps show what parts the removal should focus on.

What you need

Tools

•
  Several screwdrivers (T1)
•
  Flathead Screwdriver (T2)
•
  Side cutter (T4)
•
  Hammer (T3)
•
  Industrial scale (T9)
•
  Power Screw Driver (T8)

Show more…

Step 1 Power Screwdriver (with inbuilt battery pack)




• Unscrew the case.
• If you can't open it already, hammer open the bottom of the handle
• Open the case.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 2

• Remove the batteries.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

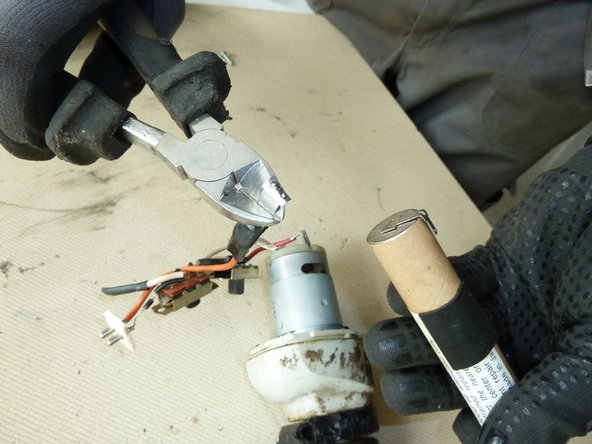

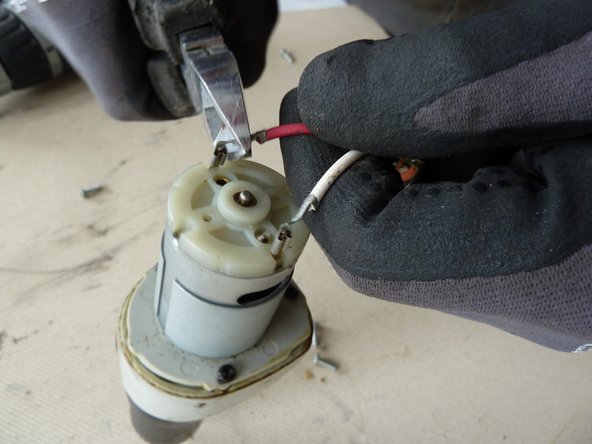

Step 3
• Cut the wires.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

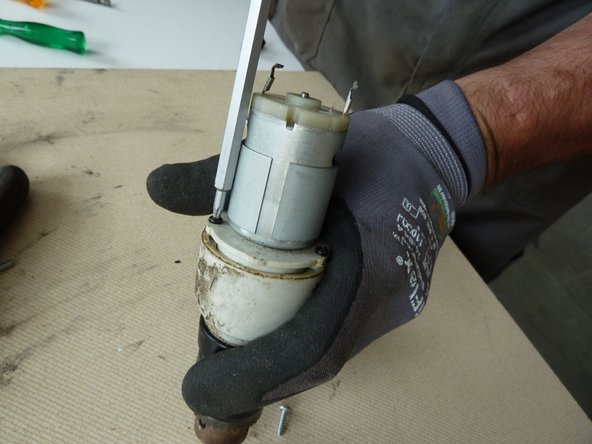

Step 4
• Unscrew the motor.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

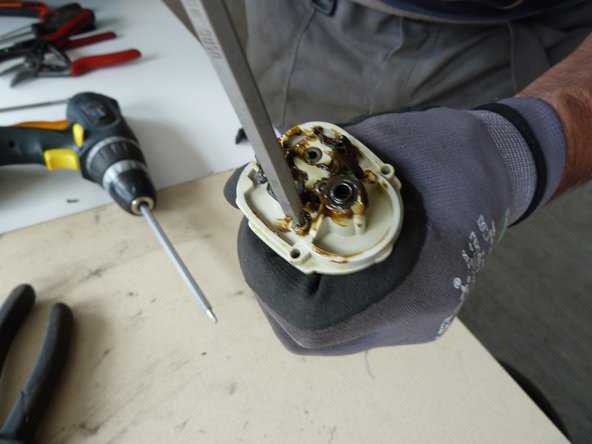

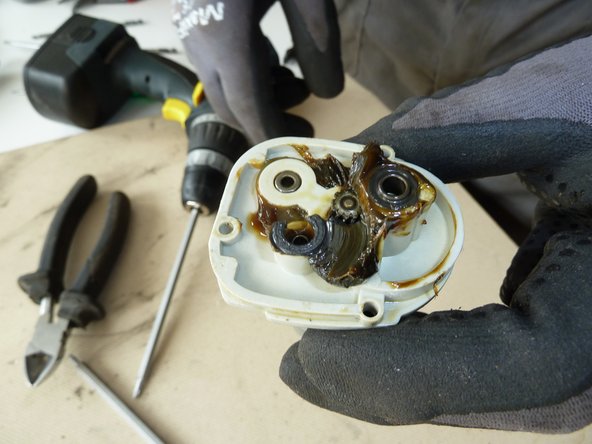

Step 5
• Unscrew and remove the motor.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

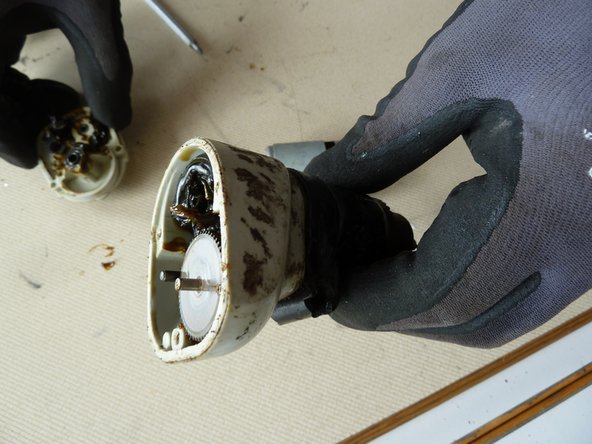

Step 6
• Open the drive.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

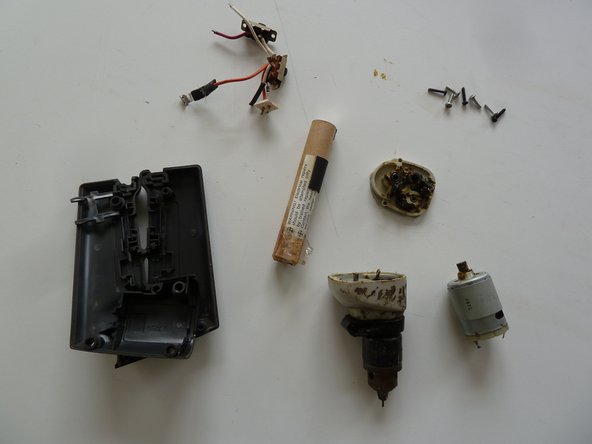

Step 7
• Separate the remaining materials according to their type and go on with the appropriate data sheet (e.g. aluminium, ferrous metals, plastic, further PWBs, etc.).
• Make sure the plastic parts are completely free of metal pieces.
