Introduction

If your display is broken or damaged you will need to replace the entire display.

What you need

1. Step 1 PowerBook 3400 M3553 Display Replacement
  Close the screen and turn the PowerBook over. Orient the computer so the text of the label is right side up.
  Add Comment

  1024
2. Step 2
  Press and hold the button on the left of the front side and slide the battery out.
  Add Comment

  1024
3. Step 3

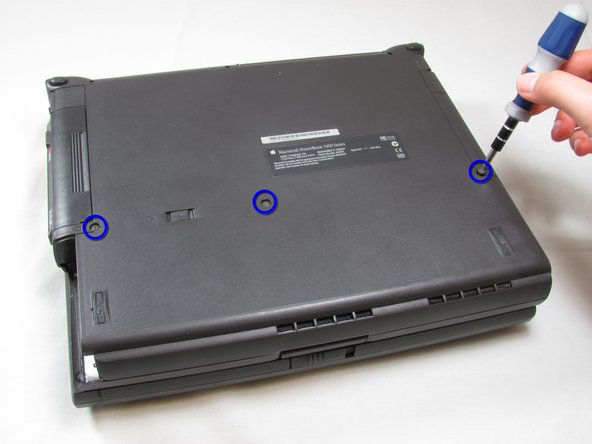

  With a T8 torx screwdriver, remove the three 24mm torx screws along the middle of the back panel.
  Add Comment

  1024
4. Step 4

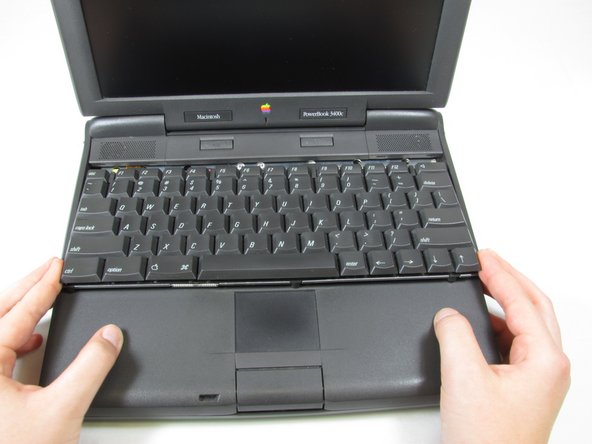

  Turn the computer over and open the display. You should see that the keyboard is loose.

  Before attempting to remove the keyboard, note that a ribbon cable connects the keyboard to the logic board. Improper removal may damage your keyboard.

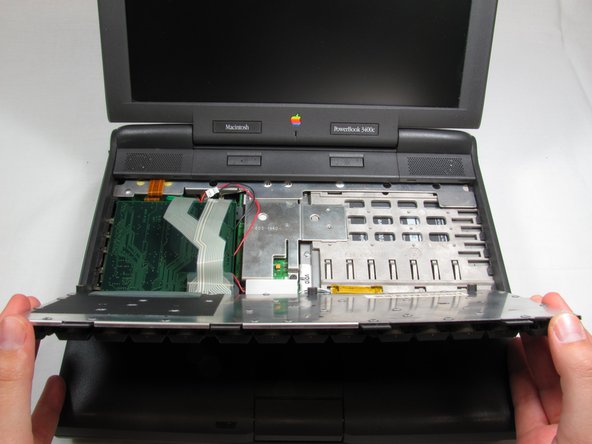

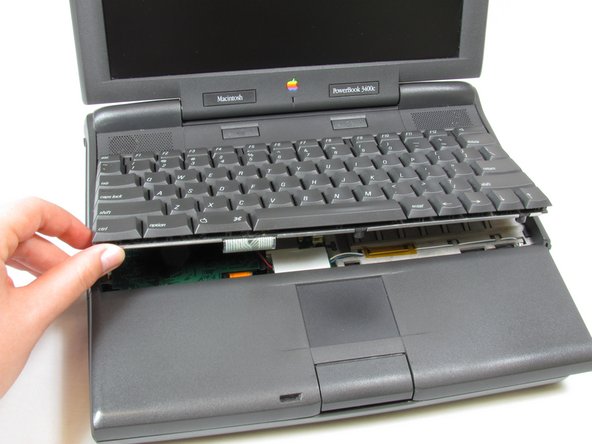

  Carefully lift the front of the keyboard up slightly and then slide the keyboard towards yourself.

  Then carefully lift the top half of the keyboard and rotate it towards yourself.
  Add Comment

  1024
5. Step 5

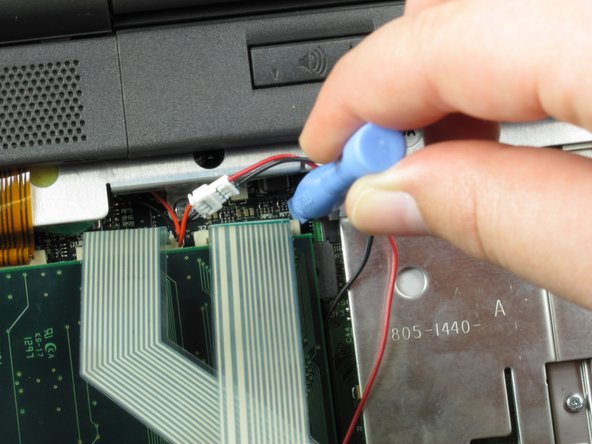

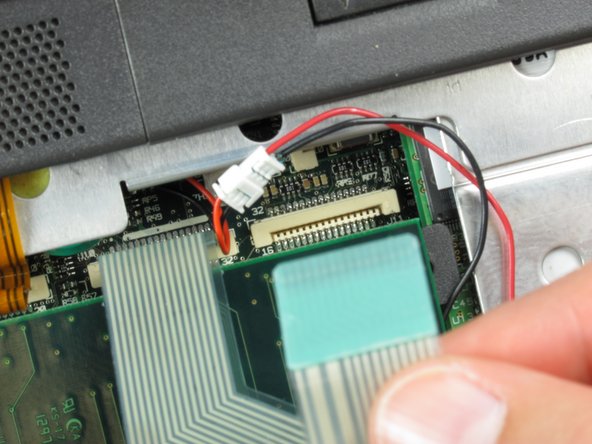

  Loosen the ribbon cables connecting the keyboard to the computer by using a plastic opening tool to lift the tabs on either side of the cable port.

  Gently remove the ribbons from its tabs
  Add Comment

  1024
7. Step 6

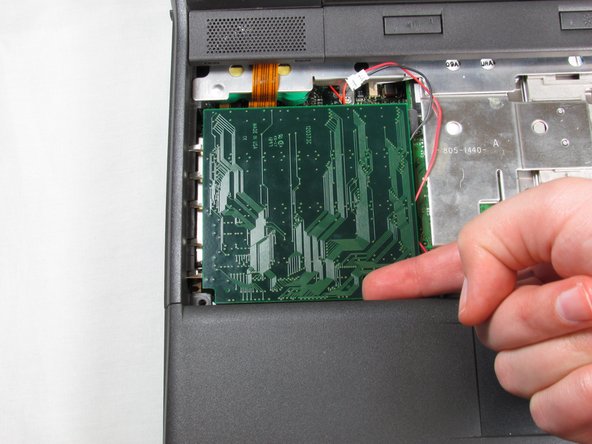

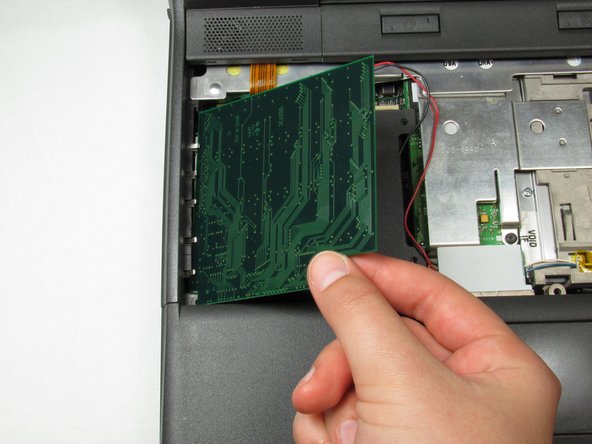

  Gently wiggle the RAM card to loosen the connection until it pulls free.
  Add Comment

  1024
8. Step 7

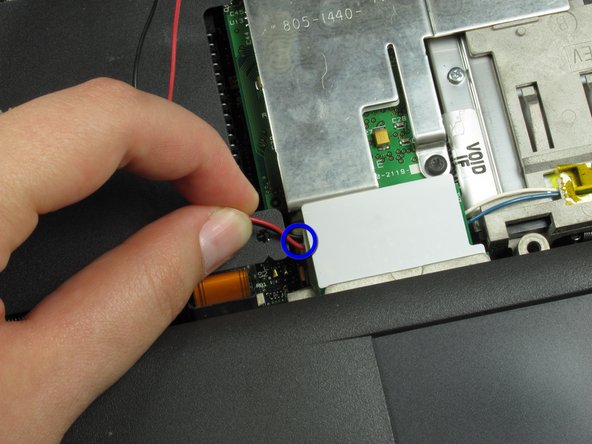

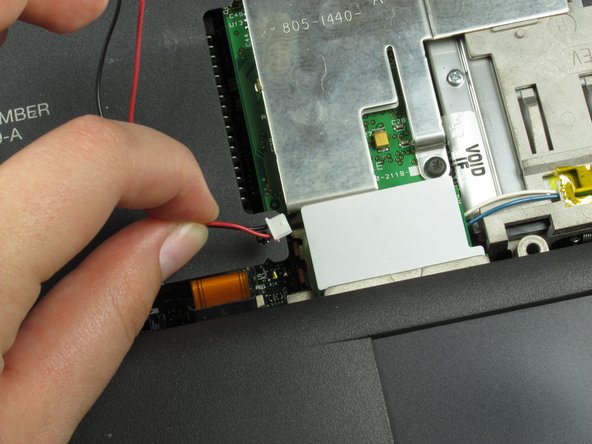

  Disconnect the wires from the port.
  Add Comment

  1024
9. Step 8

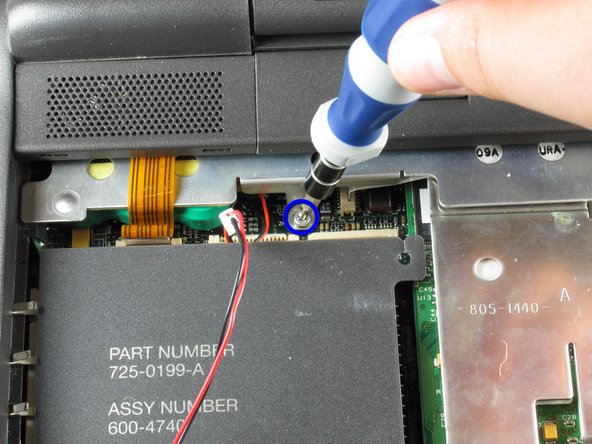

  Remove the 7mm screw connecting the speaker panel to the computer.
  Add Comment

  1024
10. Step 9

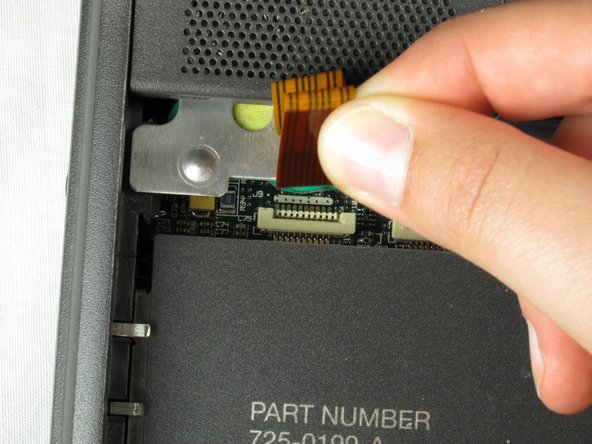

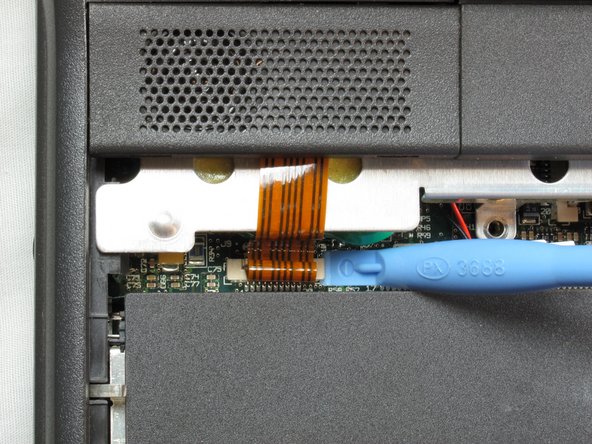

  To detach the speaker panel's ribbon cable, use a plastic opening tool to lift the tabs on both sides of the cable port.

  Once loose, pull the ribbon cable free.
  Add Comment

  1024
11. Step 10

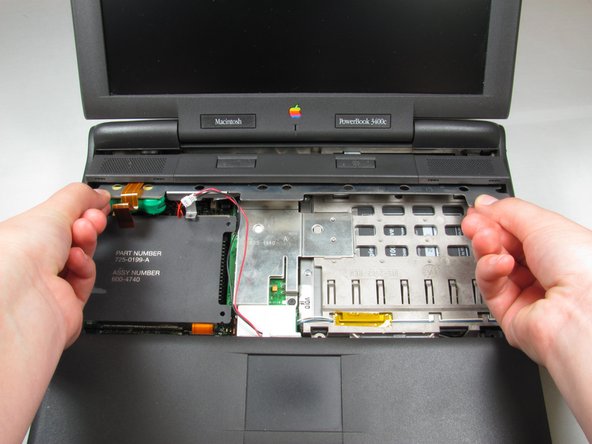

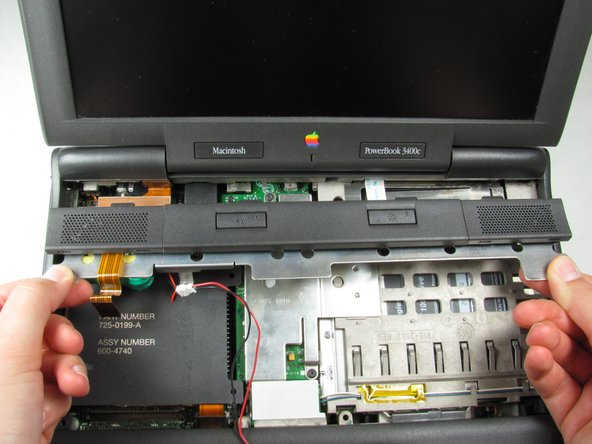

  Lift the lighting/audio panel from it's bottom corners and pull the panel towards yourself.
  Add Comment

  1024
12. Step 11

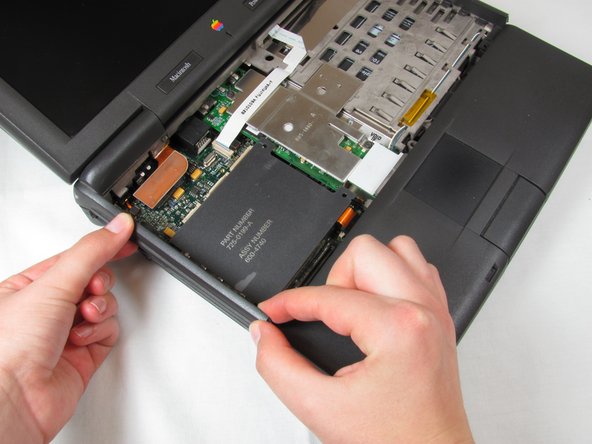

  Remove the panels on either side by gently but firmly pulling up on them with both hands.
  Add Comment

  1024
13. Step 12

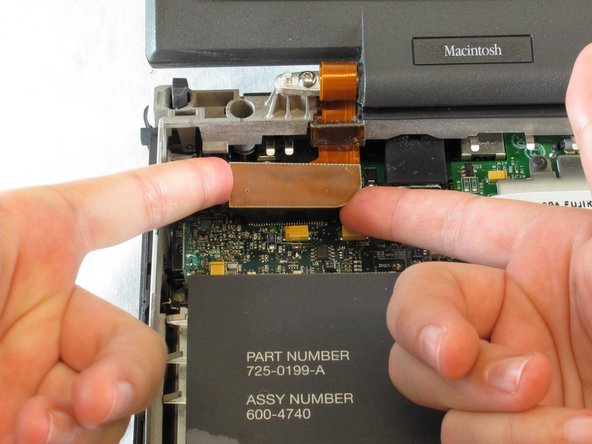

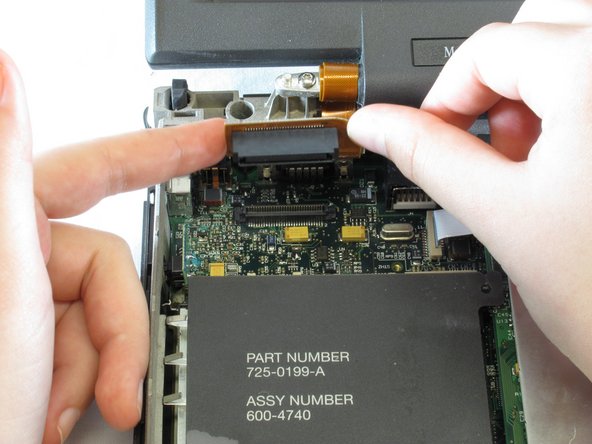

  Gently pull up on the ribbon cable connection that connects the screen to the logic board.
  Add Comment

  1024
14. Step 13
  The two T8 13 mm torx screws hold the display screen in place. Be sure to remove the screws while supporting the screen or else it will fall.

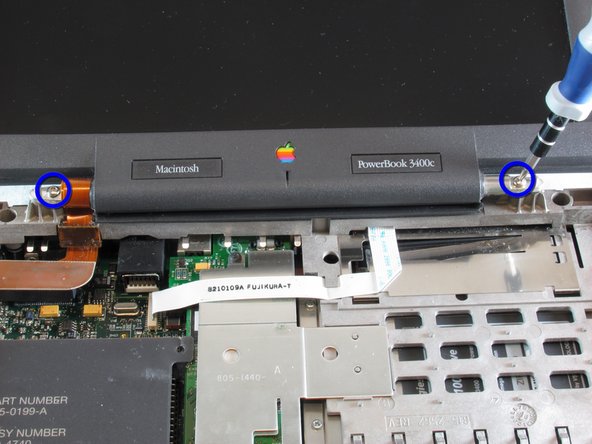

  Remove the two T8 13 mm long torx screws on either side of the display, located under the side panels.

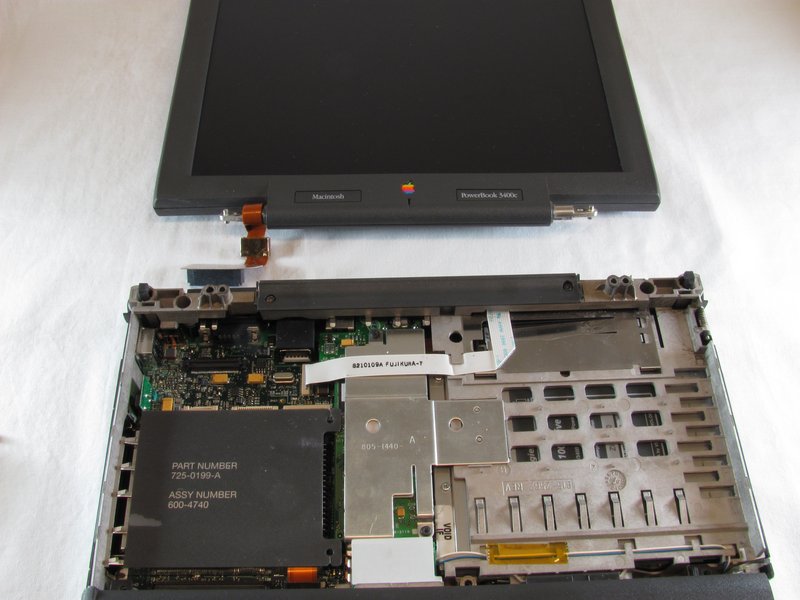

  Gently pull the display free of the computer.
  Add Comment

  1024

Conclusion

To replace the display, follow these instructions in reverse order.
