PowerBook 3400 M3553 Floppy Disk Drive Replacement

Introduction

You can easily remove the floppy drive in order to repair or upgrade it.

  1. PowerBook 3400 M3553 Floppy Disk Drive Replacement, PowerBook 3400 M3553 Floppy Disk Drive Replacement: step 1, image 1 of 1

    • Close the screen and turn the PowerBook over. Orient the computer so the text of the label is right side up.

    Add Comment

  3. PowerBook 3400 M3553 Floppy Disk Drive Replacement: step 2, image 1 of 2 PowerBook 3400 M3553 Floppy Disk Drive Replacement: step 2, image 2 of 2

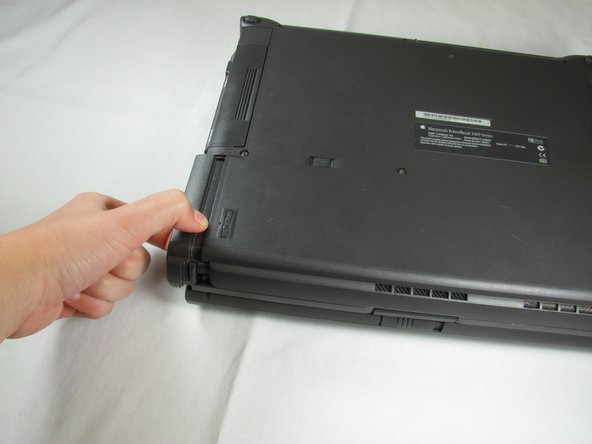

    • Press and hold the button on the left of the front side and slide the battery out.

    Add Comment

  4. PowerBook 3400 M3553 Floppy Disk Drive Replacement: step 3, image 1 of 2 PowerBook 3400 M3553 Floppy Disk Drive Replacement: step 3, image 2 of 2

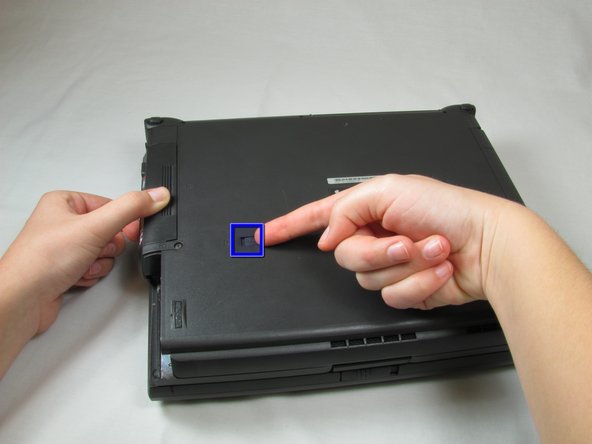

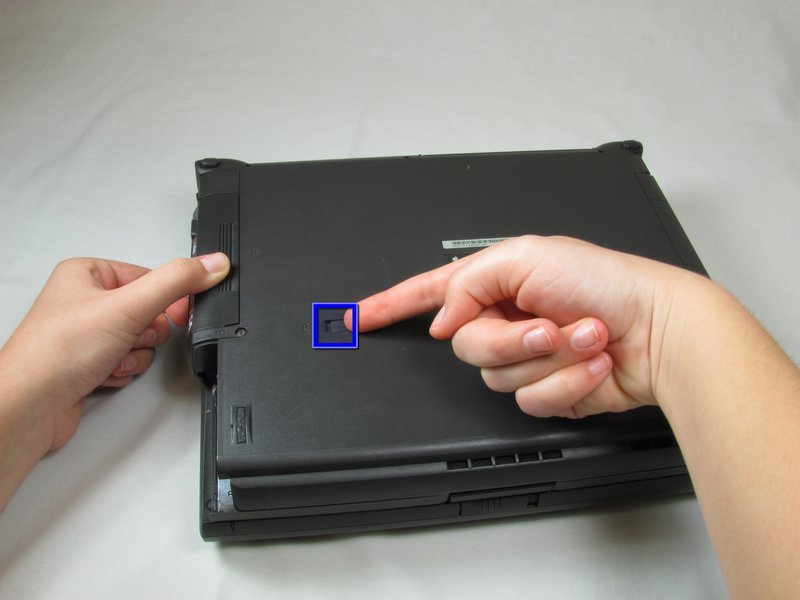

    • First, slide the switch on the back of the computer to the left.

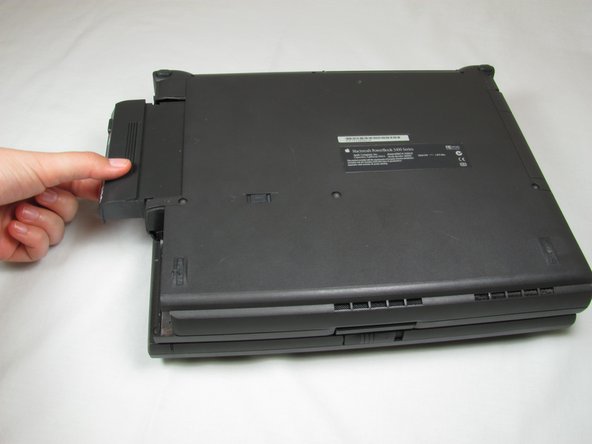

    • Then pull the floppy drive out of the computer.

    Add Comment

Conclusion

To reassemble your device, follow these instructions in reverse order.
