Introduction
Go to step 1 ↓Install an original Airport 802.11b card internally.
What you need
Parts
Tools
-
-
-
Locate the battery release tab on the underside of the G4.
-

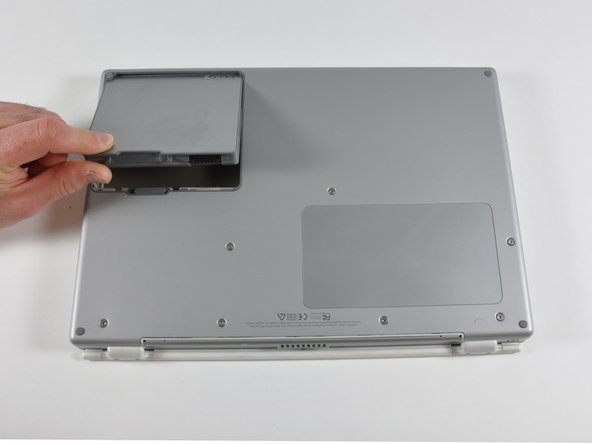

Slide the battery release tab to the left and lift the battery out of the computer.
-
-
-
Remove the seven T8 Torx screws from the lower case.
-
Using your thumbs, slide the lower case toward the front of the computer.
-
The lower case may stick in the front on a tab just above the center of the optical drive. Be careful as you work the case off, or you may break the thin strip of plastic just above the drive.
-
Lift the lower case off.
-
-
-

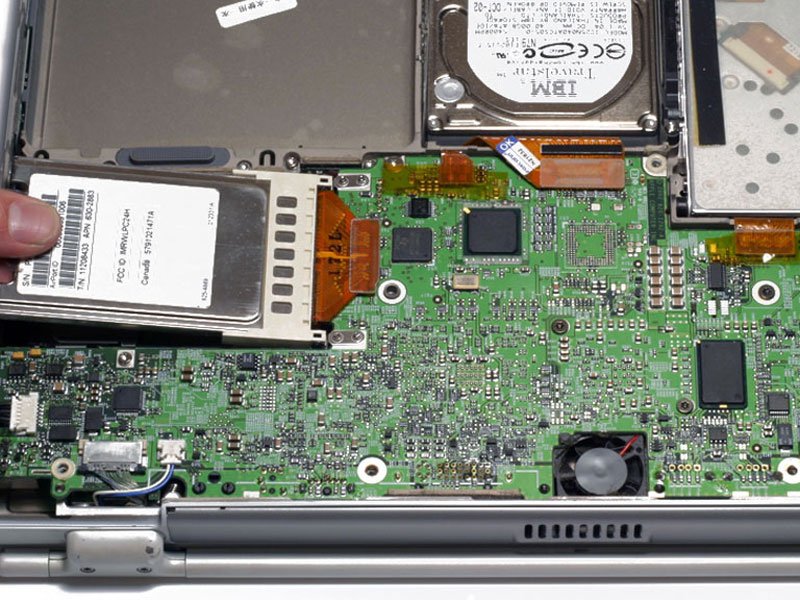

Firmly grasp the plastic tab attached to the Airport card and pull up and to the left.
-
Disconnect the antenna cable from the left side of the Airport card.
-
-
To reassemble your device, follow these instructions in reverse order.
