PowerMac G4 M5183 Graphics Card Removal

Introduction

Removing the graphics card.

What you need

    1. PowerMac G4 M5183 Graphics Card Removal, PowerMac G4 M5183 Graphics Card Removal: step 1, image 1 of 2 PowerMac G4 M5183 Graphics Card Removal, PowerMac G4 M5183 Graphics Card Removal: step 1, image 2 of 2

      • Pull on outer latch.

      • Lower door until it is level with your work surface.

      • Before working on the computer make sure it is not plugged into a power supply, then touch a metal object. This discharges static electricity, which could damage the computer.

      Add Comment

    3. PowerMac G4 M5183 Graphics Card Removal: step 2, image 1 of 2 PowerMac G4 M5183 Graphics Card Removal: step 2, image 2 of 2

      • Remove the single screw with the Phillips #1 screwdriver.

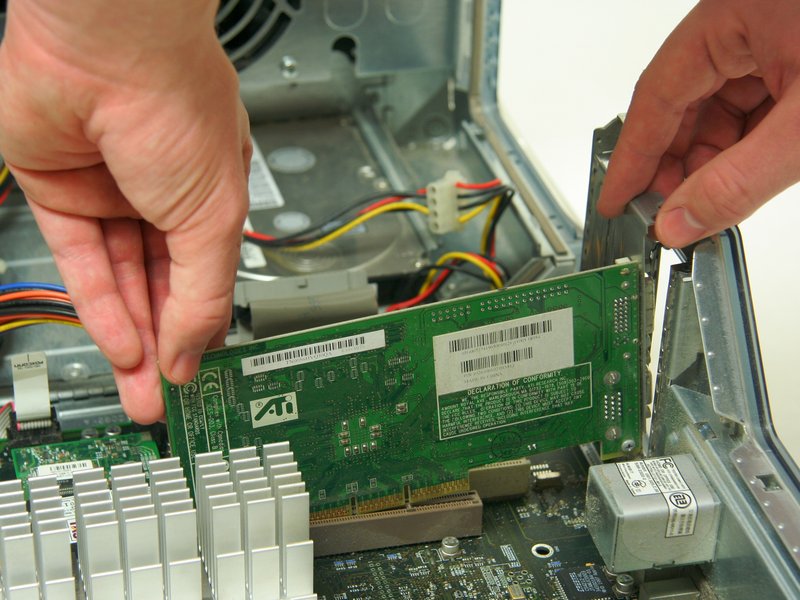

      • Pull the graphics card up and out.

      Add Comment
