Introduction

Go to step 1 ↓

Dismantling and Recycling Centre (DRZ)

Katharina Lenz, Vienna / Austria

Health & Safety

Dismantling doesn't include any harmful steps. Nonetheless workers should wear personal protection equipment like gloves, goggles, apron and robust shoes.

Note: This is a general guide for most radio CD recorders. As the construction can differ, the dismantling steps mentioned below can vary in their order. However, the described steps show what parts the removal should focus on.

What you need

Tools

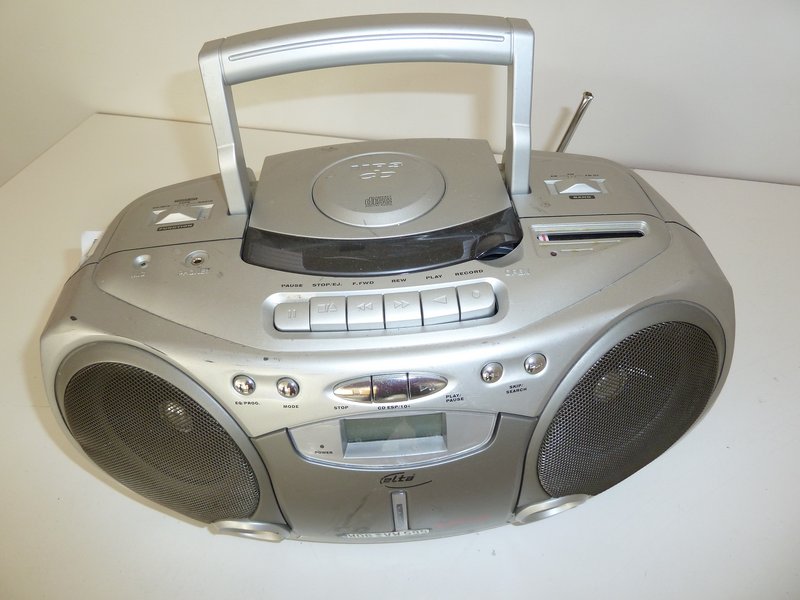

1. Step 1 Radio CD Recorder
  Remove the batteries and the battery cover.
  Add Comment

  1024
2. Step 2
  Remove the antenna.
  Add Comment

  1024

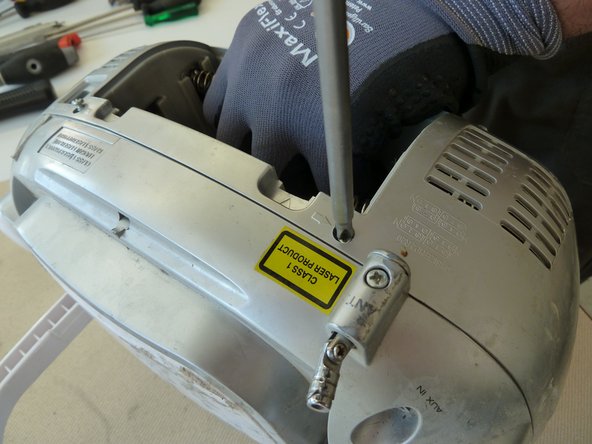

3. Step 3

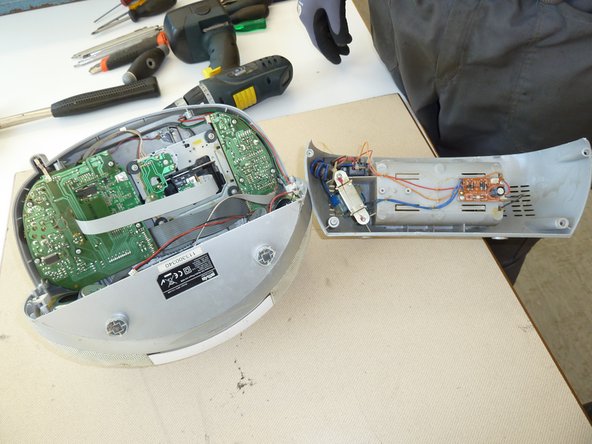

  Remove the screws from the back of the case and take it off.
  Add Comment

  1024

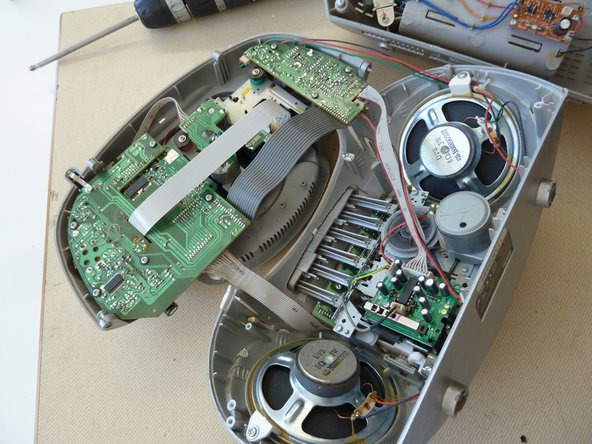

4. Step 4

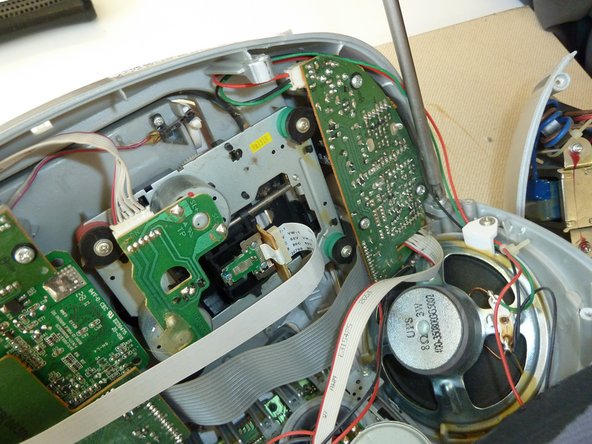

  Remove the remaining screws of the cover.

  Seperate the front from the back cover.
  Add Comment

  1024

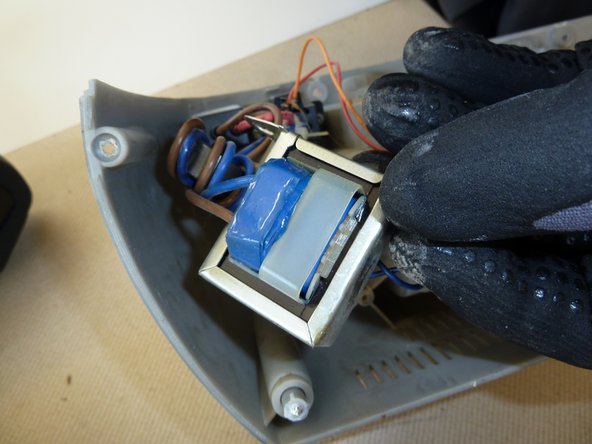

5. Step 5

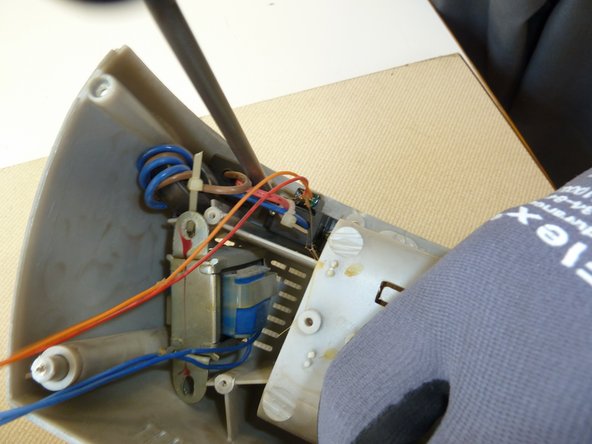

  Remove the screws of the coil.

  Pry out the coil and remove it.
  Add Comment

  1024

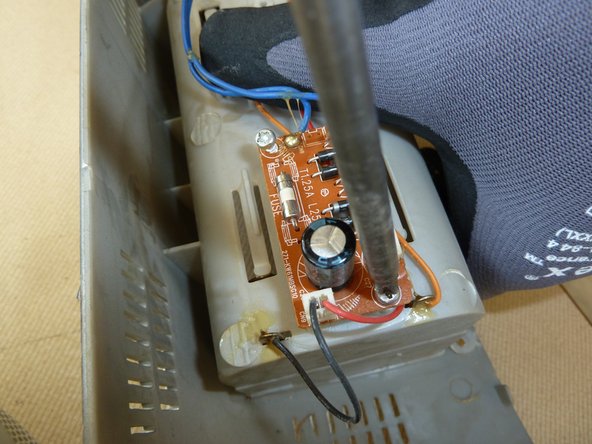

6. Step 6
  Unscrew the PWB.

  Cut the cables running to the PWB.

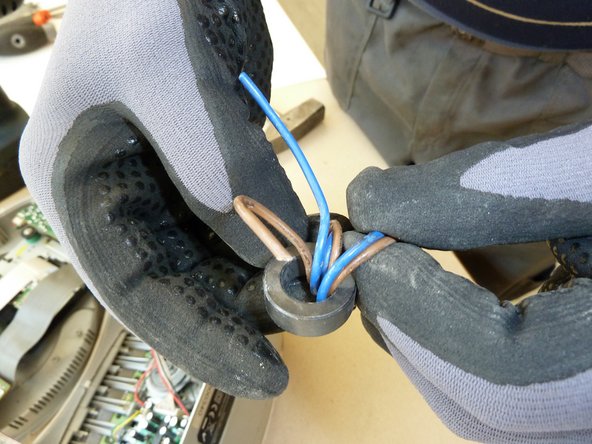

  Remove the cables and the ring around them.
  Add Comment

  1024

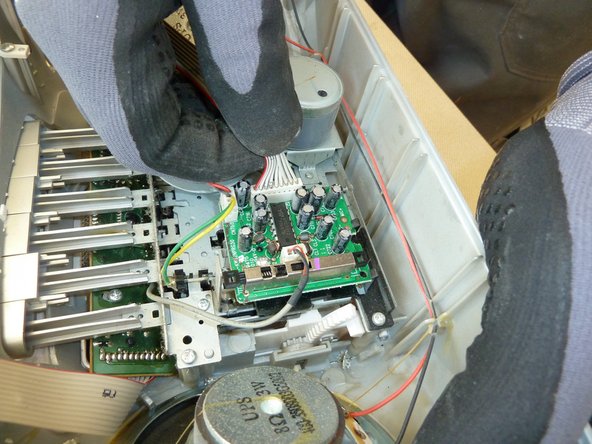

8. Step 7
  Unclip the wires from the PWB.
  Add Comment

  1024

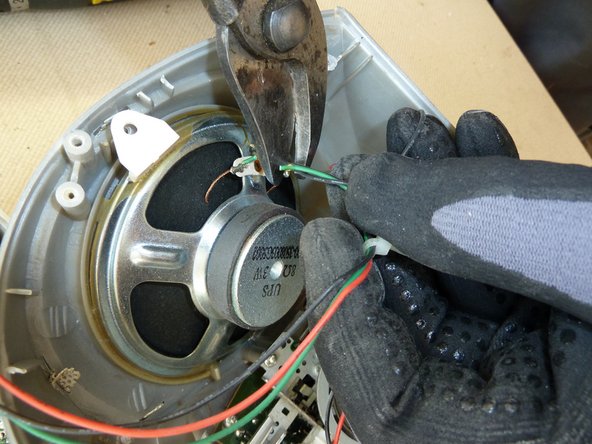

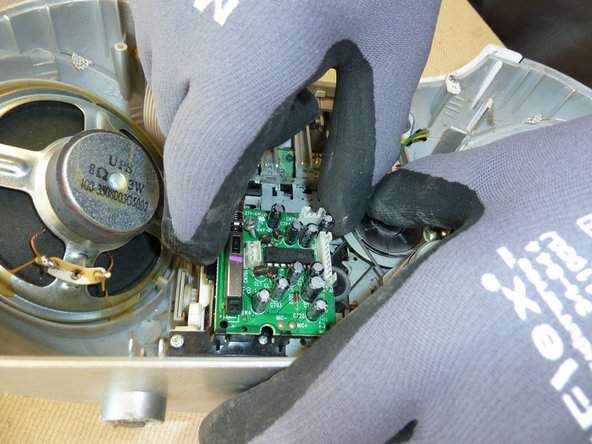

9. Step 8

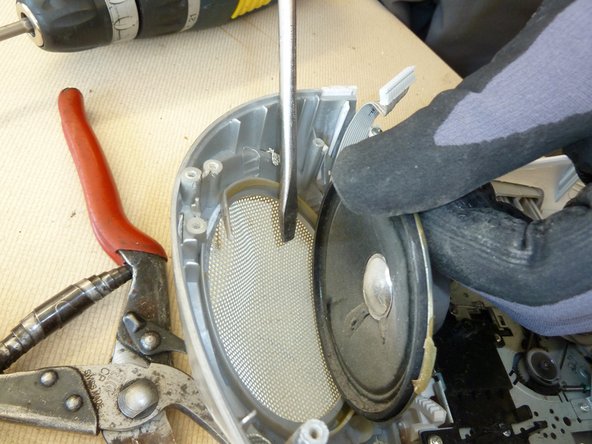

  Cut the wires of the speakers.

  Remove the PWB.

  Pry out the speakers.
  Add Comment

  1024

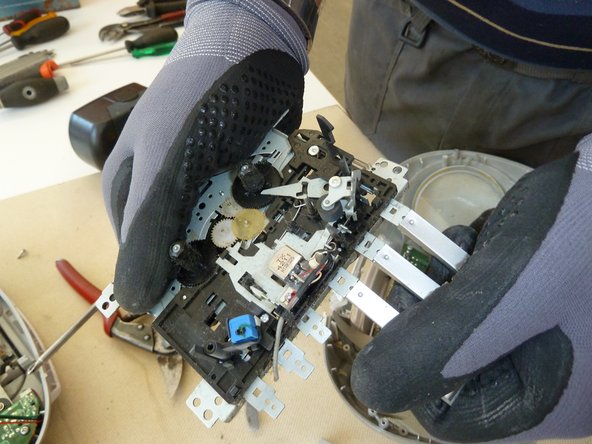

10. Step 9

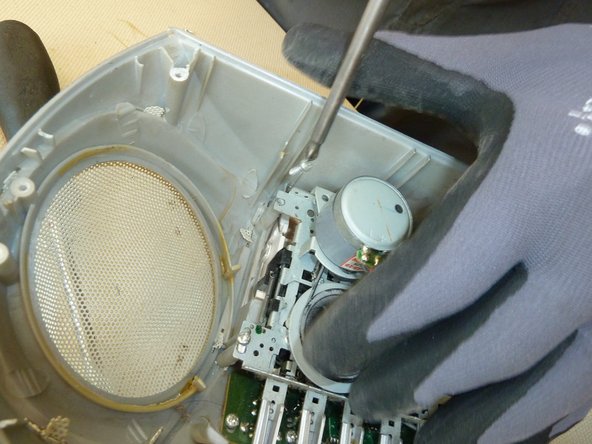

  Remove the screws from the tape device.

  Remove the tape deck controls.
  Add Comment

  1024
11. Step 10
  Unscrew and remove the PWB.
  Add Comment

  1024

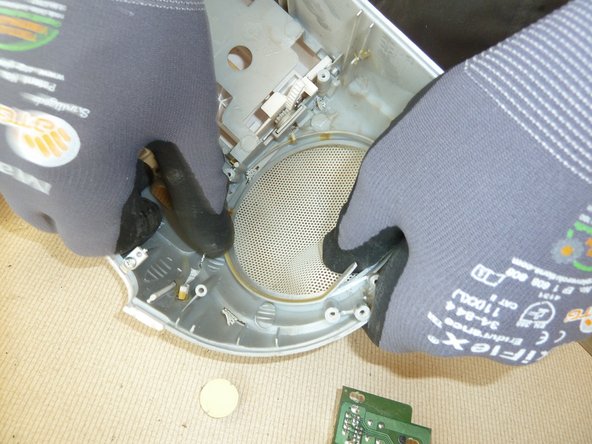

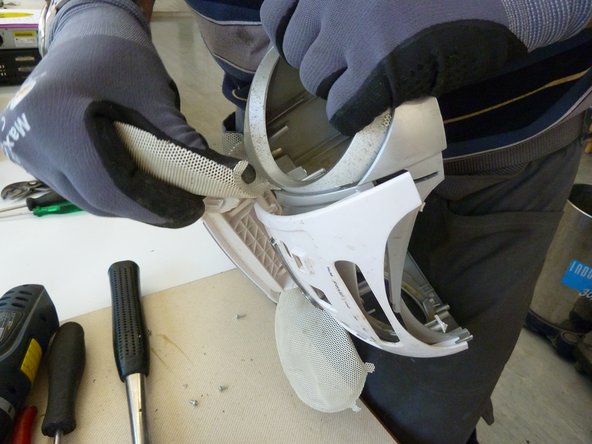

12. Step 11
  Push out the speaker covers and remove them.
  Add Comment

  1024
14. Step 12

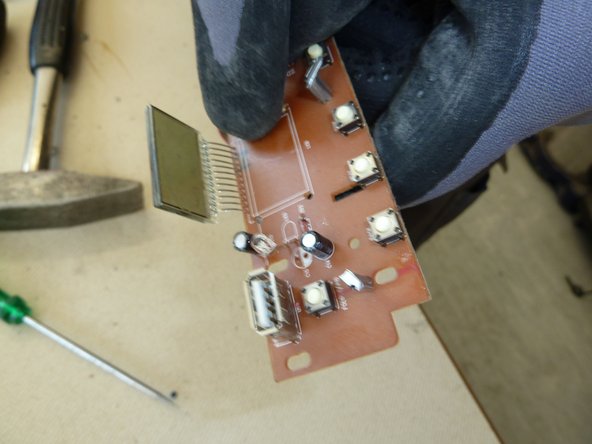

  Cut off the display and remove it.
  Add Comment

  1024

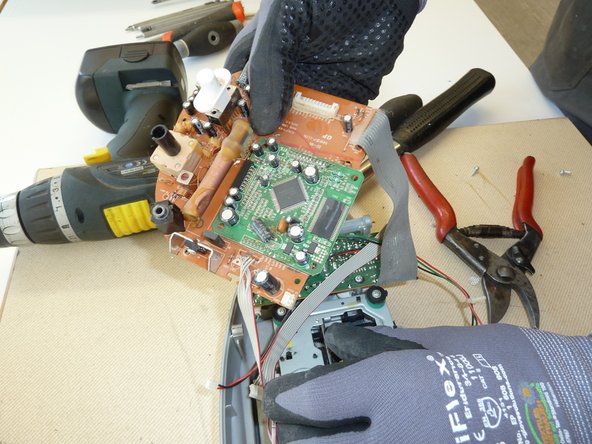

15. Step 13

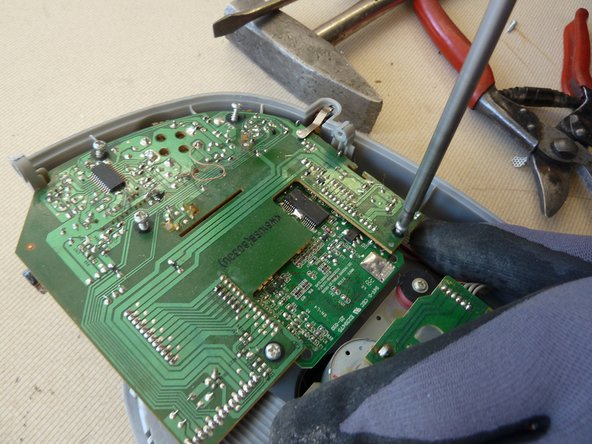

  Unscrew and remove the PWB.
  Add Comment

  1024

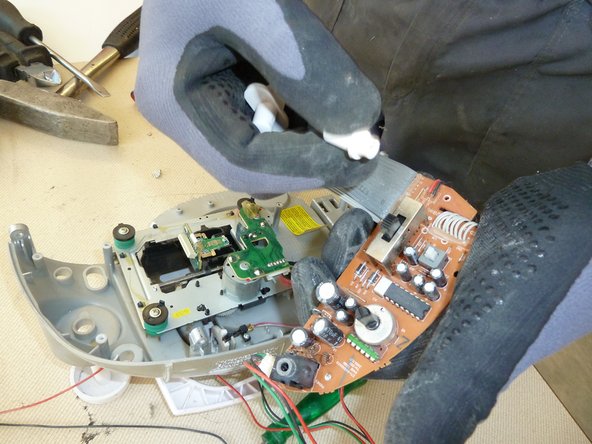

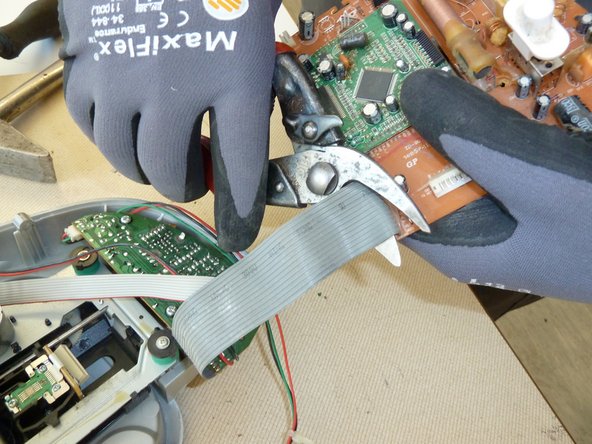

16. Step 14

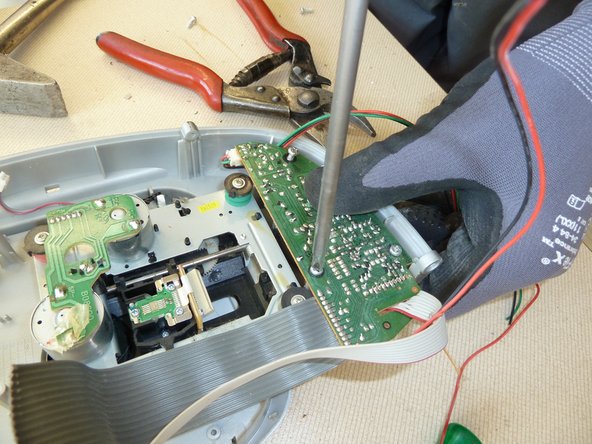

  Cut the wire that connects the larger PWB to the smaller one.

  Unscrew and remove the smaller PWB.
  Add Comment

  1024

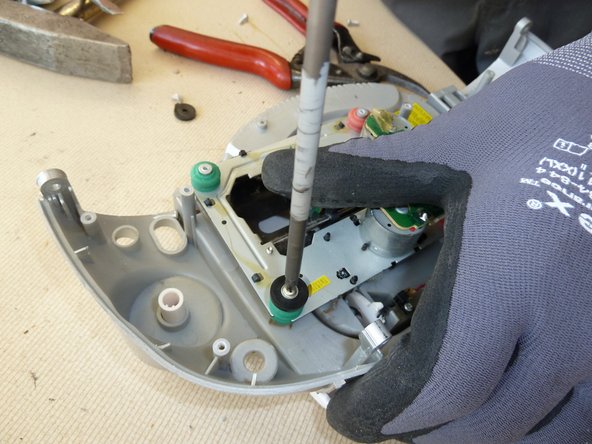

17. Step 15
  Unscrew and remove the tape deck device.
  Add Comment

  1024

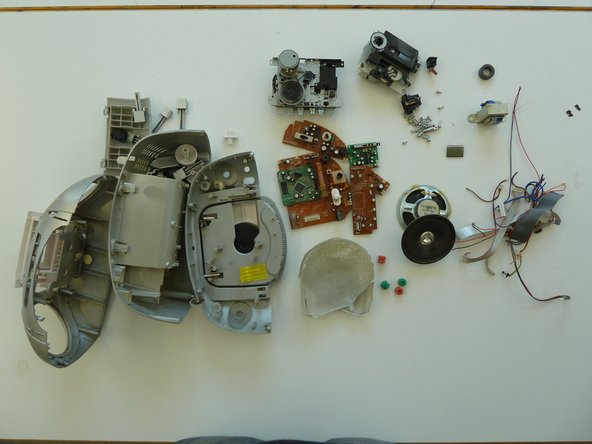

18. Step 16
  Separate the remaining materials according to their type and go on with the appropriate data sheet (e.g. aluminium, ferrous metals, plastic, further PWBs, etc.).
