Remove IBM WorkPad c3 Battery

Step 1 Remove IBM WorkPad c3 Battery

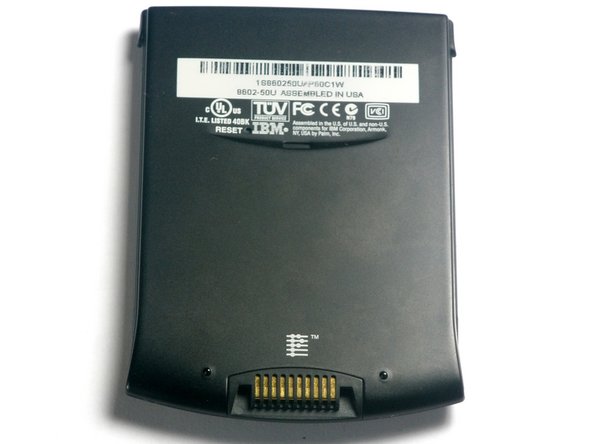

• Turn the device over so that the screen is facing down.
• In the next step the device will be heated, so the screen must be turned over to prevent heat damage to the LCD/Digitizer.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 2

• Using a hair dryer, slowly heat the edges of the WorkPad.
• Spend at least one minute heating each side of the device. This will melt the glue holding the case together, and allow it to be removed.
• Be sure not to touch the device directly after heating as it will be extremely hot. Use a towel or oven mitt to grab it.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 3

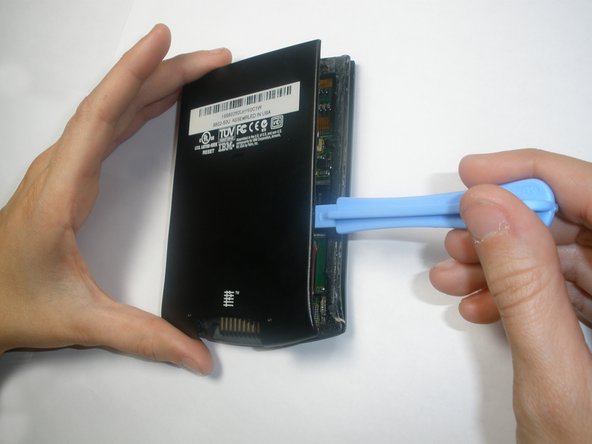

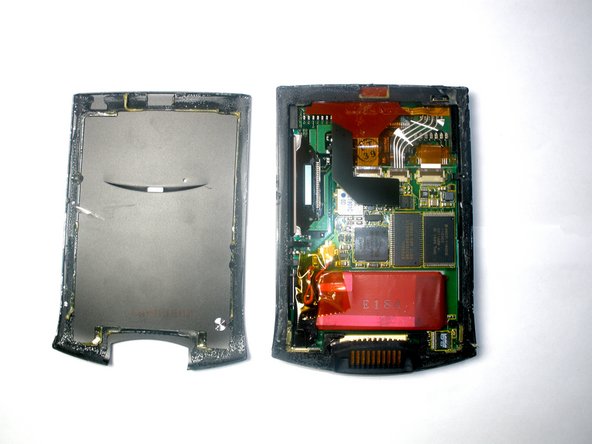

• Use a plastic opening tool to pry the back case from the WorkPad.
• If the rear cover is not coming off very easily, you probably need to reheat the case in order to sufficiently melt the glue.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 4

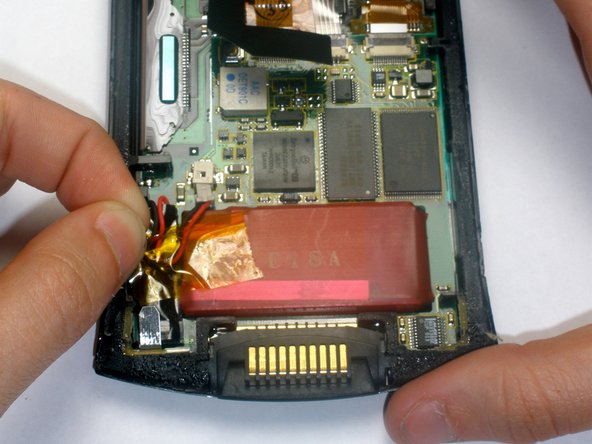

• Remove the yellow tape that is covering the battery connector
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 5

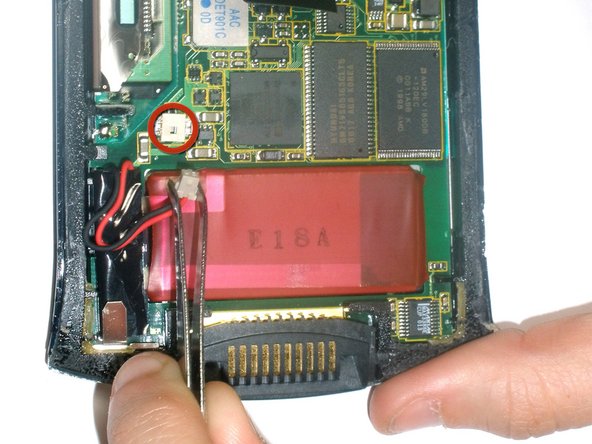

• Using the tweezers, carefully disconnect the battery cable from the port
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 6

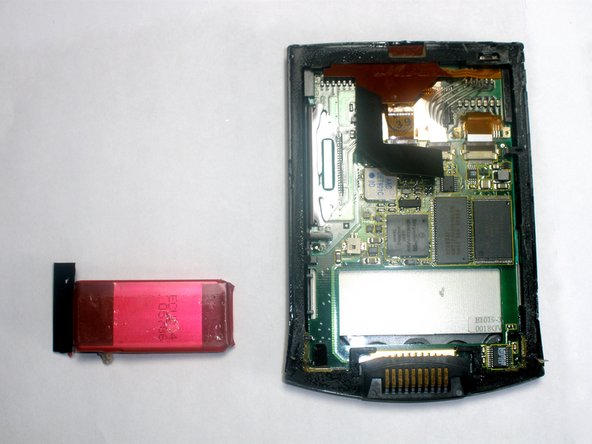

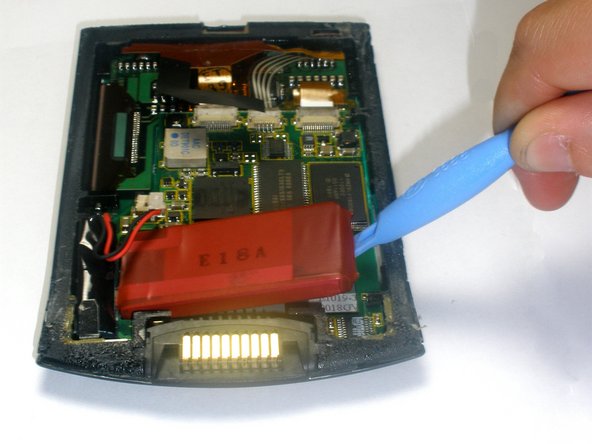

• Using the plastic opening tools, lift the battery out of the case
• The battery is secured with adhesive and it will take some effort to remove
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
