Step 1 Remove PowerMac G4 M5183 Main Fan



• Pull on outer latch.
• Lower door until it is level with your work surface.
• Before working on the computer make sure it is not plugged into a power supply, then touch a metal object. This discharges static electricity, which could damage the computer.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 2

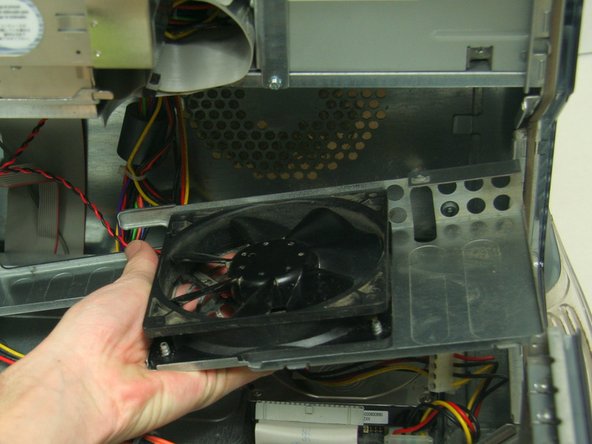

• Remove the screw from each of the two niches on lower part of fan using the Phillips #1 screwdriver.
• The fan housing will still be connected to the computer by a power cable which will be removed in the next step.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 3

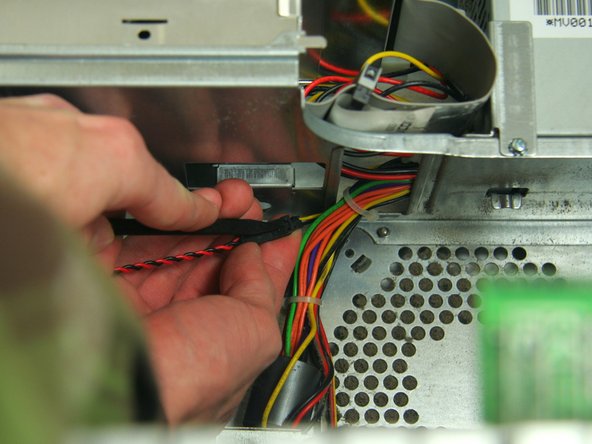

• Remove the power cable from the fan and detach bracing.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
