Introduction

Removing the WiFi cables is essential for further disassembly of the laptop.

What you need

1. Step 1 Removing HP Pavilion zd8000 WiFi Card Cables
  Slide the battery release latch towards you.
  Add Comment

  1024
2. Step 2

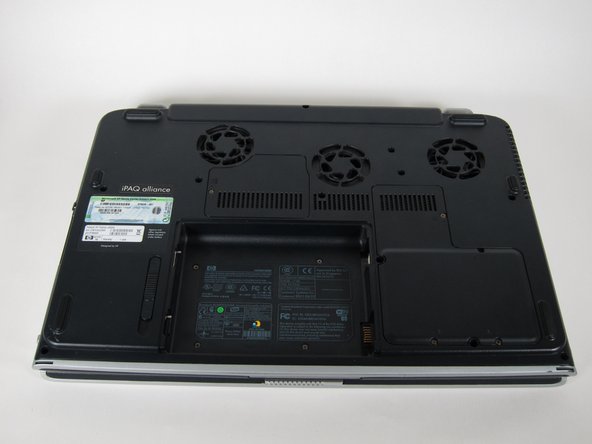

  Pull up on the battery to remove it.
  Add Comment

  1024
4. Step 3

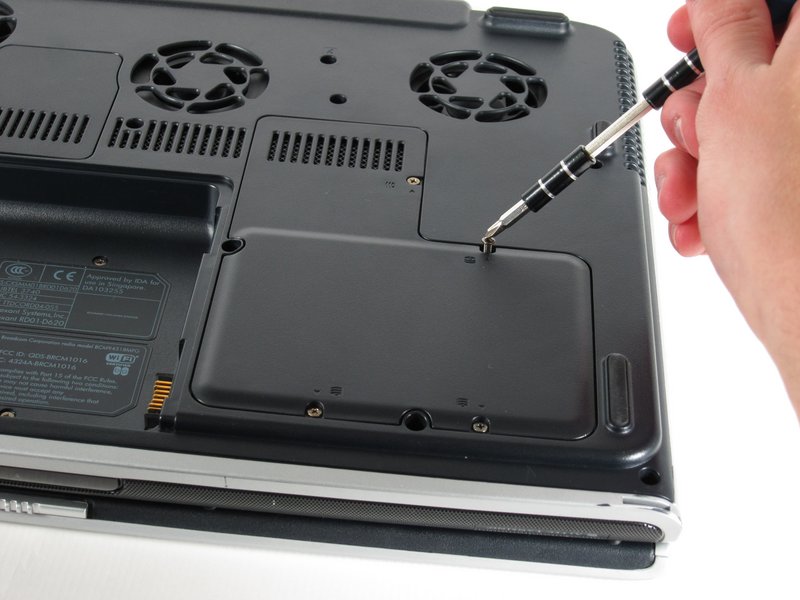

  Unscrew the four 8mm Philips screws marked with an icon resembling a stacks of discs.

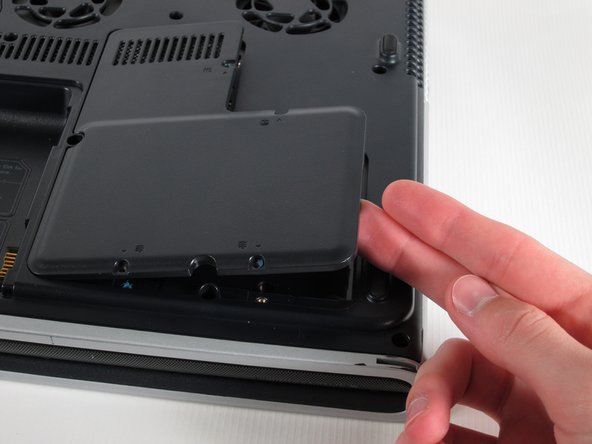

  Lift the cover from the right to remove it.
  Add Comment

  1024
5. Step 4

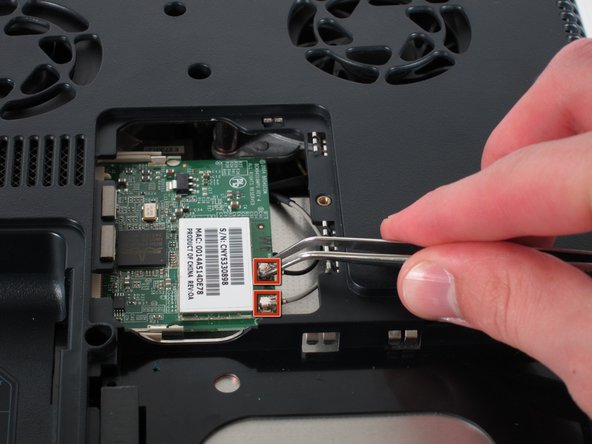

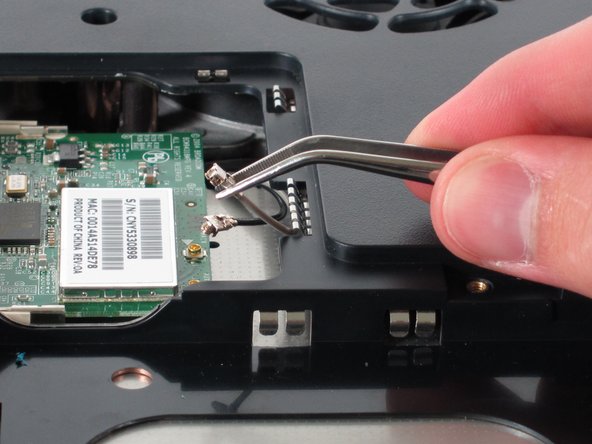

  Use tweezers to detach the grey and black cables connected to the green WiFi card.
  Add Comment

  1024

Conclusion

To reassemble your device, follow these instructions in reverse order.
