  1. Samsung Captivate Camera Assembly Replacement, Samsung Captivate Camera Assembly Replacement: step 1, image 1 of 1
    • Remove the back cover by pressing on the bottom section of the phone and sliding the bottom piece downward.

    • Lift up the back cover.

  2. Samsung Captivate Camera Assembly Replacement: step 2, image 1 of 1
    • Place your finger on the bottom of the battery and lift to remove.

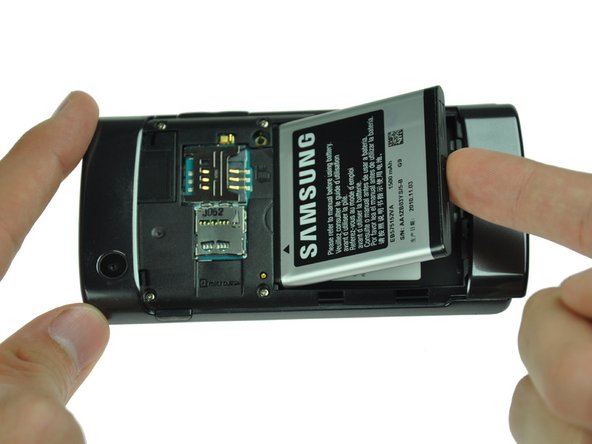

  3. Samsung Captivate Camera Assembly Replacement: step 3, image 1 of 1
    • Replace the old battery with the new one.

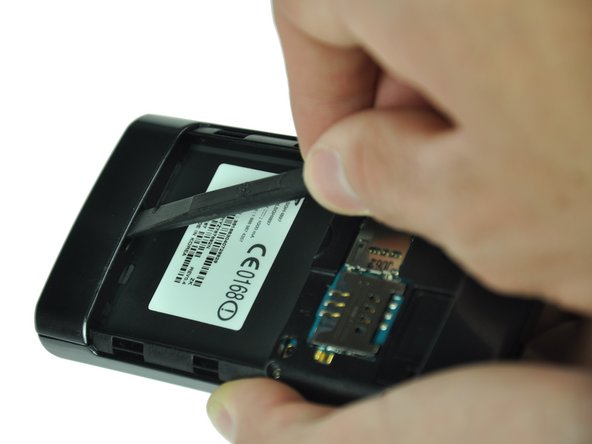

  4. Samsung Captivate Camera Assembly Replacement: step 4, image 1 of 1
    • Insert the spudger underneath the bottom section of the phone.

    • Gently lift and push the spudger to slide the bottom section down to reveal two hidden screws.

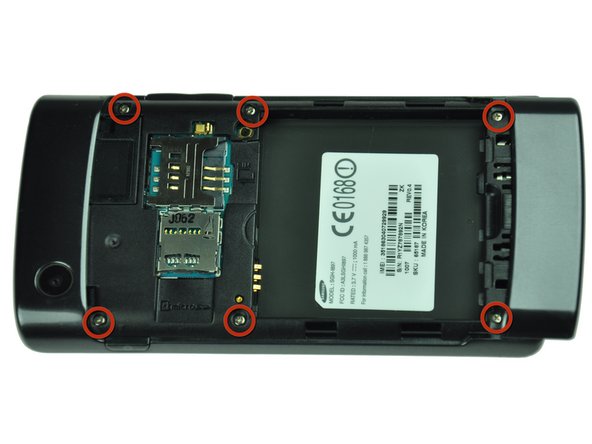

  5. Samsung Captivate Camera Assembly Replacement: step 5, image 1 of 1
    • Remove the six 4.5mm #000 Phillips screws.

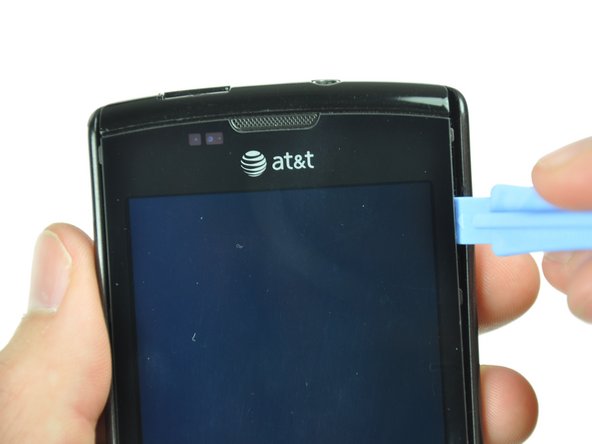

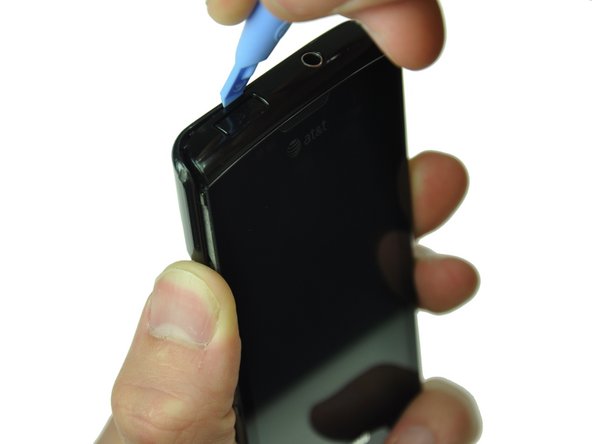

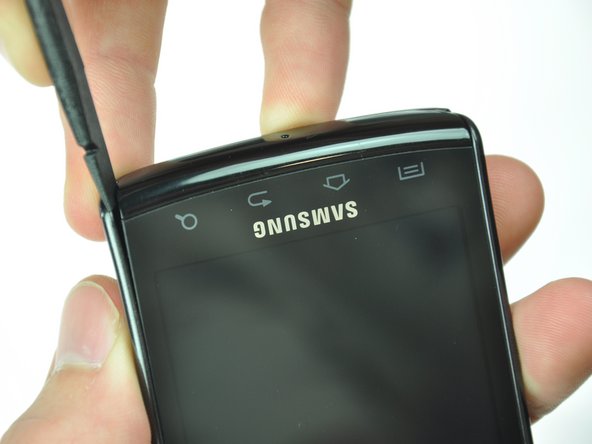

  6. Samsung Captivate Camera Assembly Replacement: step 6, image 1 of 3 Samsung Captivate Camera Assembly Replacement: step 6, image 2 of 3 Samsung Captivate Camera Assembly Replacement: step 6, image 3 of 3
    • Starting at a bottom corner, use the spudger to separate the rear case from the front display.

    • Move the spudger towards the top on both sides. The plastic opening tool is easier to use for this step.

    • Be careful when detaching the top. Free each side, stopping short of the center of the cover. Apply backward pressure on both corners with a finger applying pressure on the center, and slide the whole back cover toward the bottom of the device. Note: forcing the cover can result in cracked plastic.

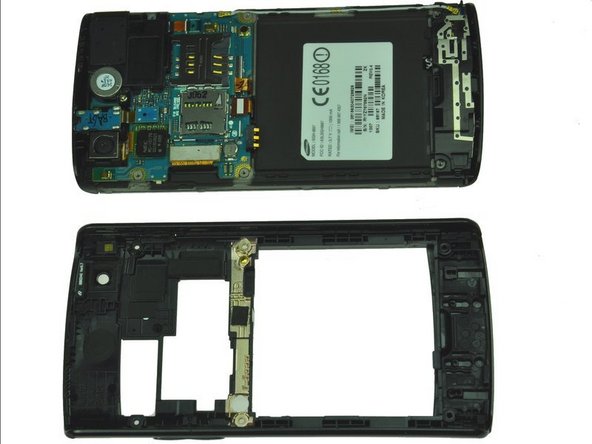

  7. Samsung Captivate Camera Assembly Replacement: step 7, image 1 of 1
    • Separate the rear case from the phone.

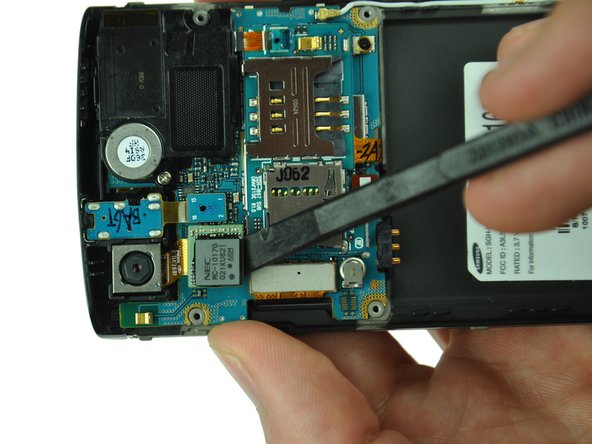

  8. Samsung Captivate Camera Assembly Replacement: step 8, image 1 of 1
    • Use the spudger tool to pry up the chip labeled "NEC." This releases the chip.

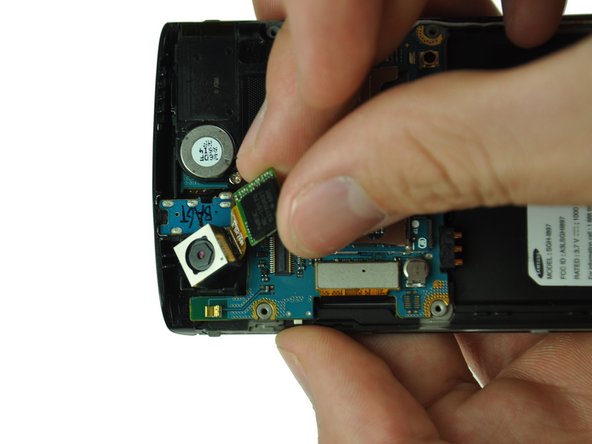

  9. Samsung Captivate Camera Assembly Replacement: step 9, image 1 of 1
    • Gently lift the camera assembly out of the plastic housing.

Conclusion

To reassemble your device, follow these instructions in reverse order.
