Samsung Instinct Camera Replacement

Applying pressure to the back cover, slide the cover forward towards the camera.

Lift the back cover off the phone.

Hold the phone firmly in one hand and lift the battery up by using the notches to grip the battery.

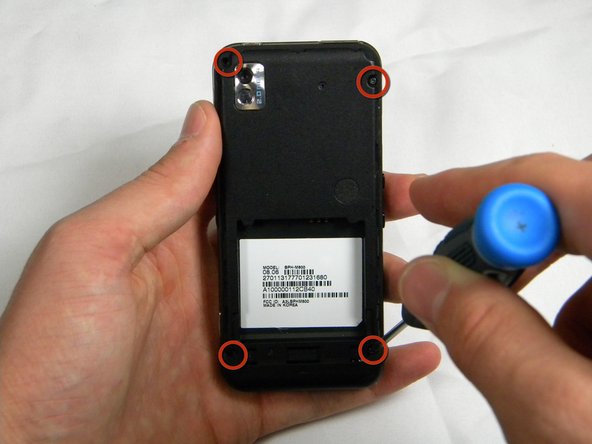

Remove the four 4.45mm screws at the corners of the phone.

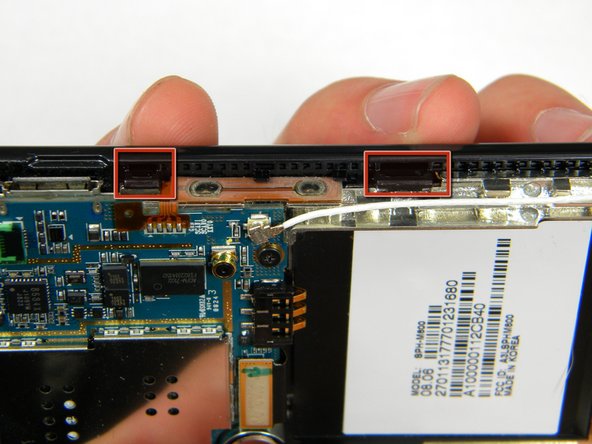

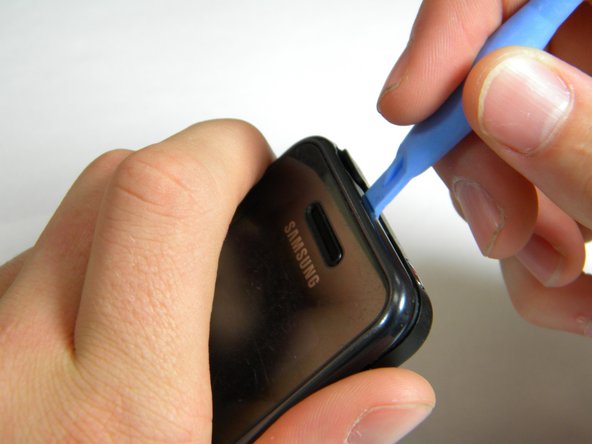

Use the plastic opener tool to unhinge the locks around the edges of the phone.

Lift the casing off of the phone.

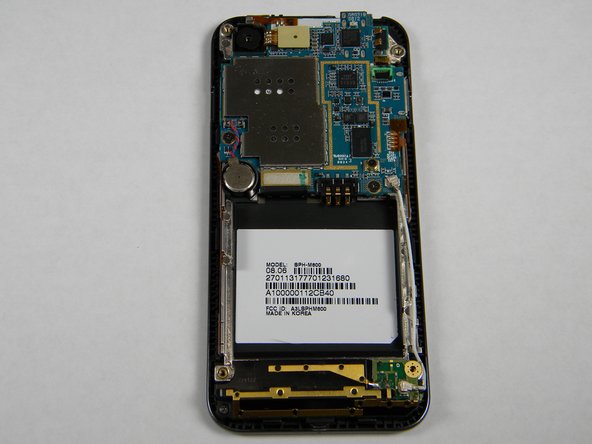

With the screws removed, locate the antenna.

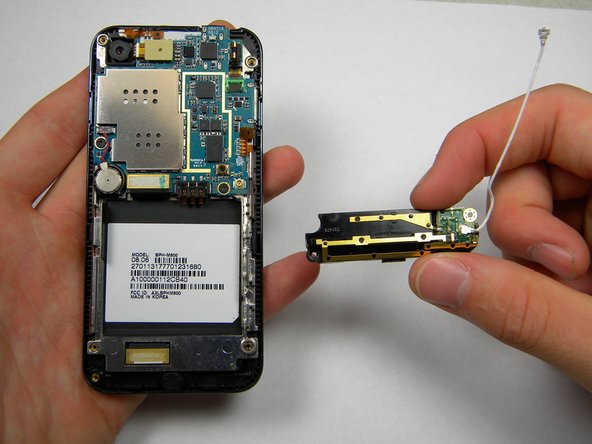

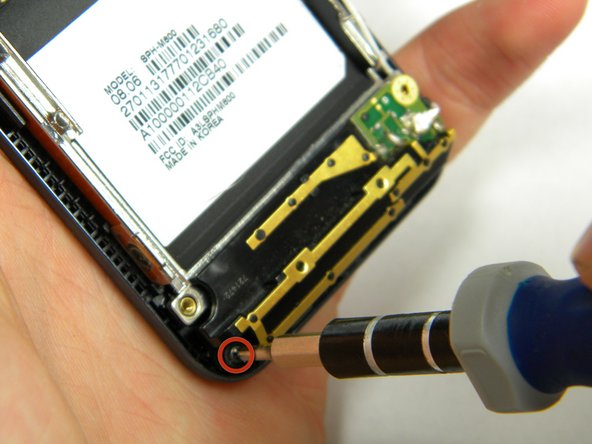

Using a phillips-head screwdriver, remove the 4.50mm screw holding the antenna in place.

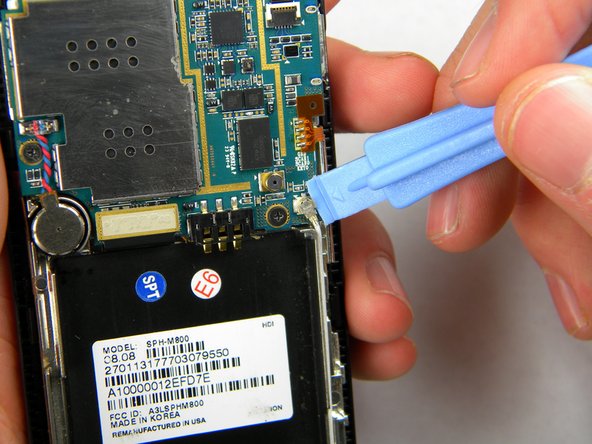

Using the plastic opener tool, squeeze gently on the antenna cable connector and lift to remove the connector from its position.

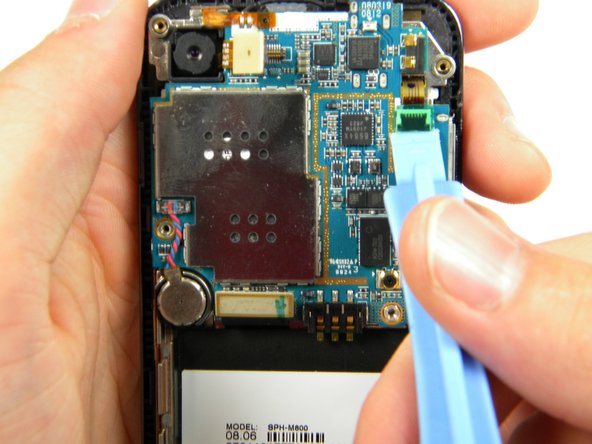

Gently lift up on the antenna and remove it from the back of the device.

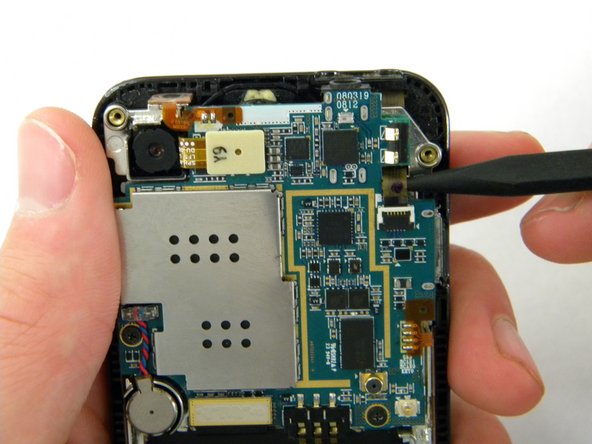

Remove the two 3.50mm screws connecting the motherboard to the case.

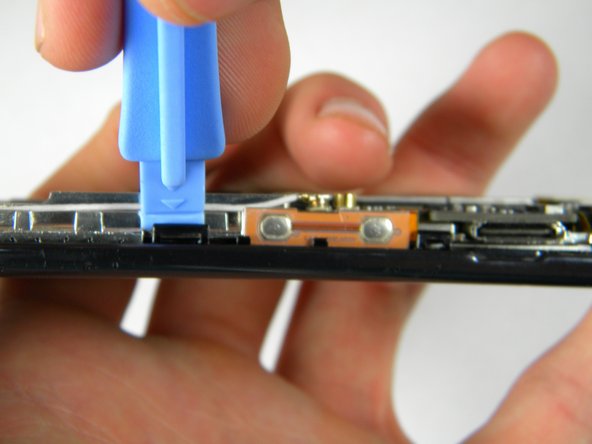

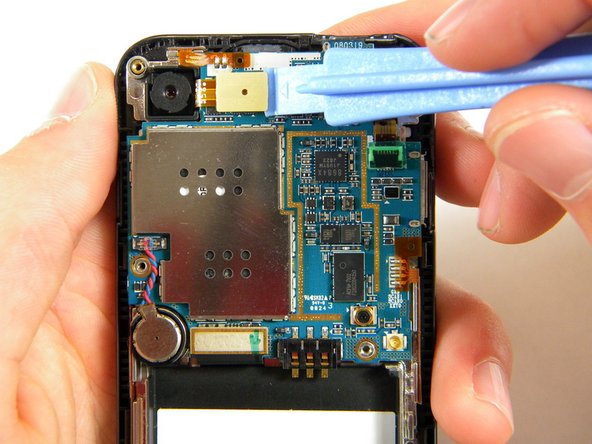

Use the plastic opener tool to detach the three ribbons on the motherboard.

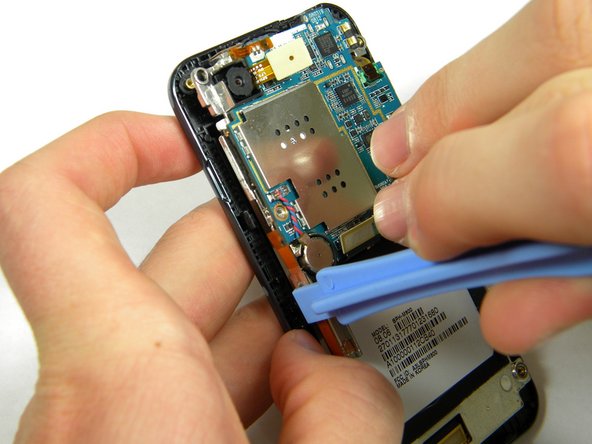

Lift out the top right ribbon from its slot on the motherboard.

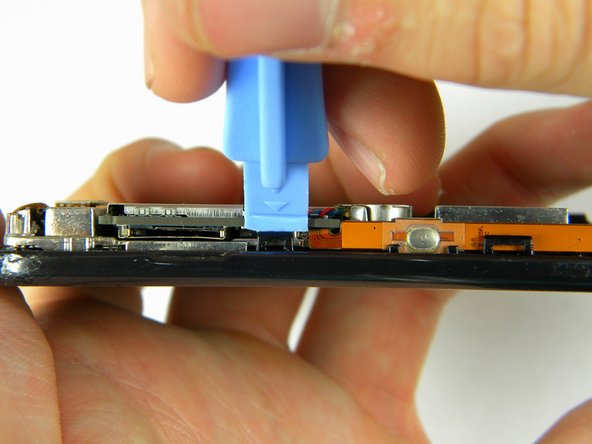

Use the plastic opener tool to unhinge the the locks on the side of the motherboard connecting it to the front casing.

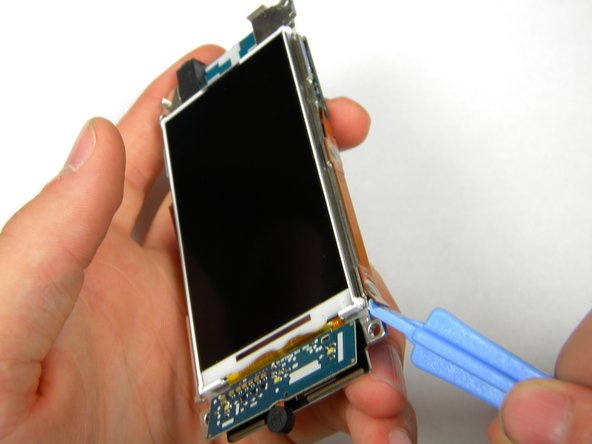

Lift the motherboard away from the front casing.

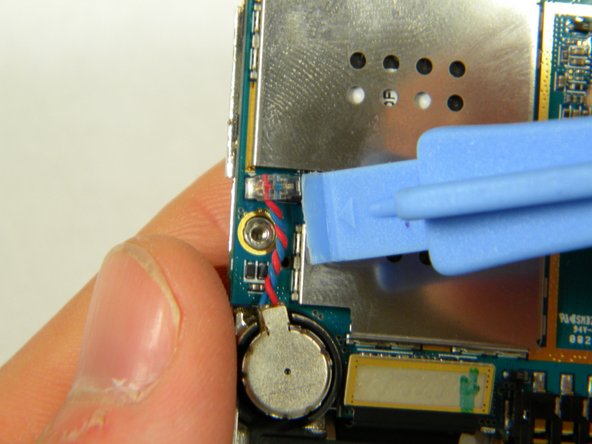

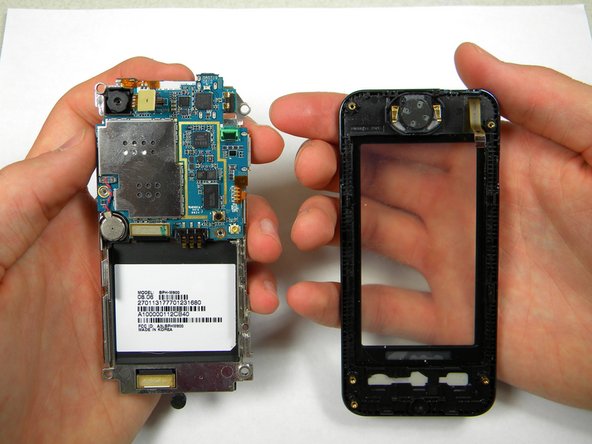

After removing lifting up on the motherboard, the front casing and center frame should be separated as shown.

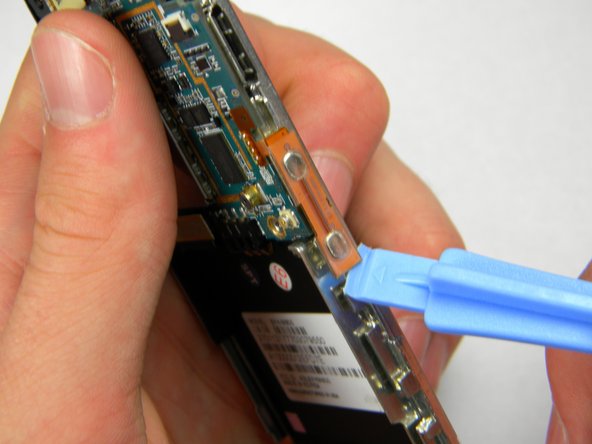

Using the plastic opener tool, gently pry away the side strip control buttons from the metal center frame.

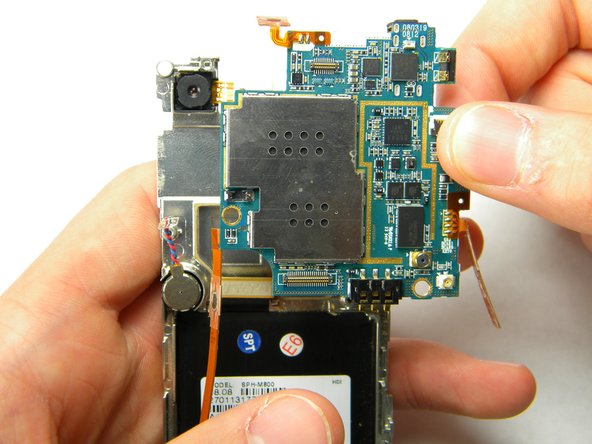

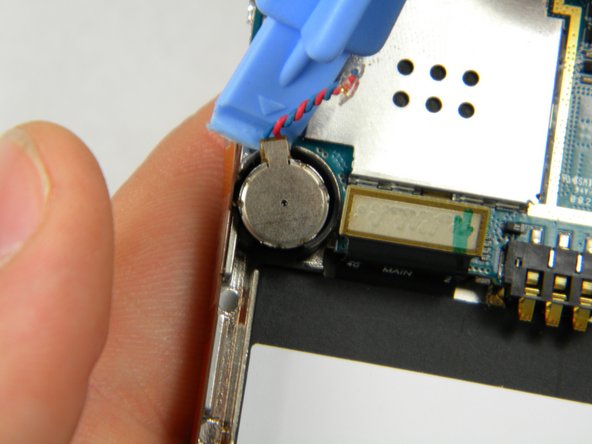

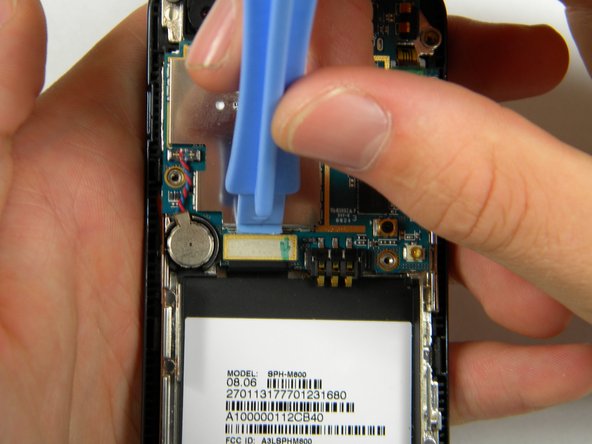

Using the plastic opener tool, pry the speaker connector away from the back of the motherboard.

Using the plastic opener tool, remove the speaker from its setting.

Gently lift the motherboard from the center frame.

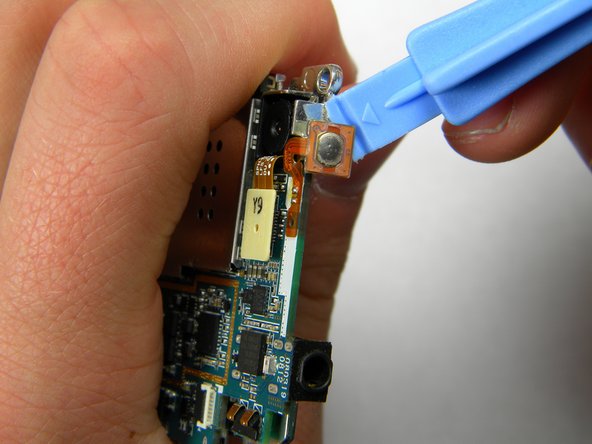

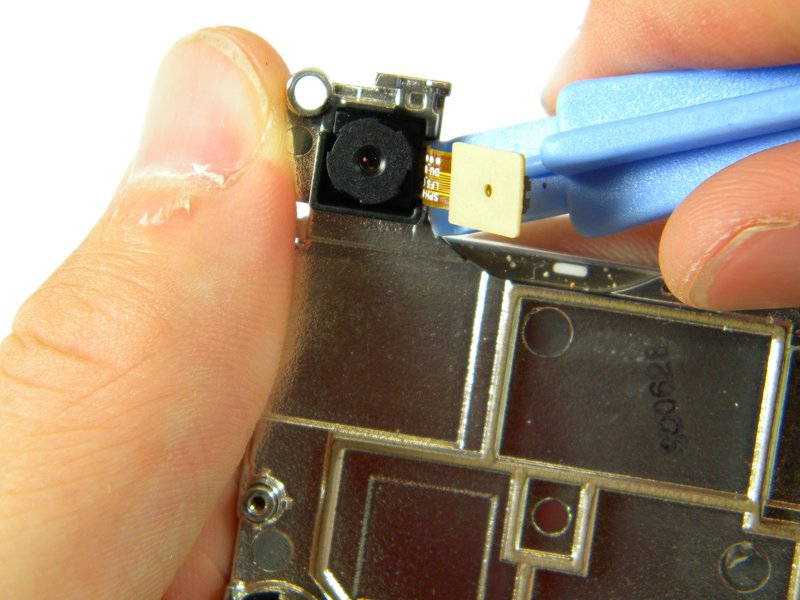

Once the motherboard is removed from the frame, use the pry tool to remove the camera.

Insert the pry bar between the camera and the frame then lift up.

The camera is held in by adhesive so it will require some force to remove.

You have now successfully removed the camera from your Samsung Instinct.
