What you need
-
-
Applying pressure to the back cover, slide the cover forward towards the camera.
-
Lift the back cover off the phone.
-
-
-
Hold the phone firmly in one hand and lift the battery up by using the notches to grip the battery.
-
-
-

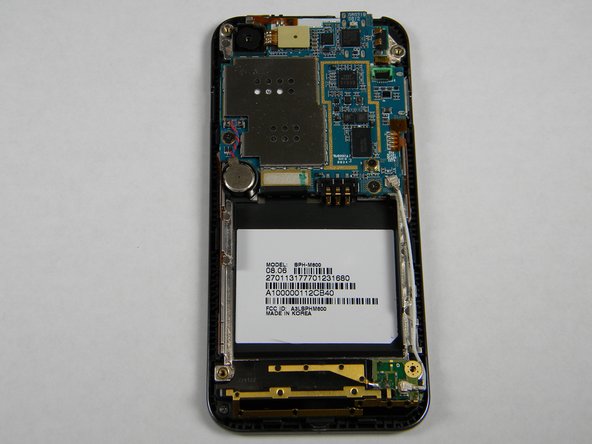

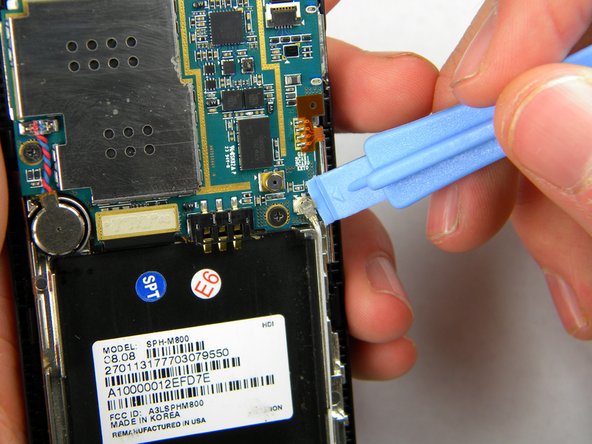

Using the plastic opener tool, squeeze gently on the antenna cable connector and lift to remove the connector from its position.
-
-
-

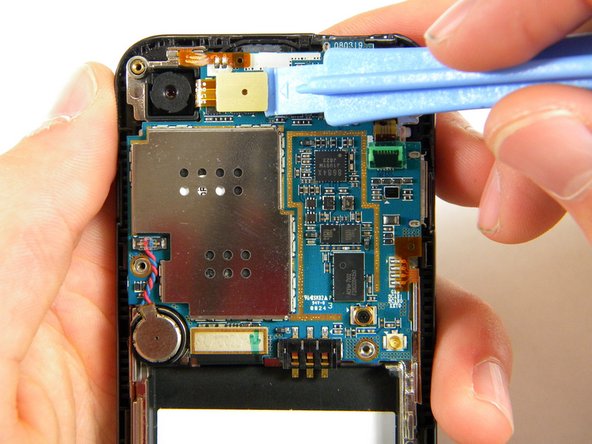

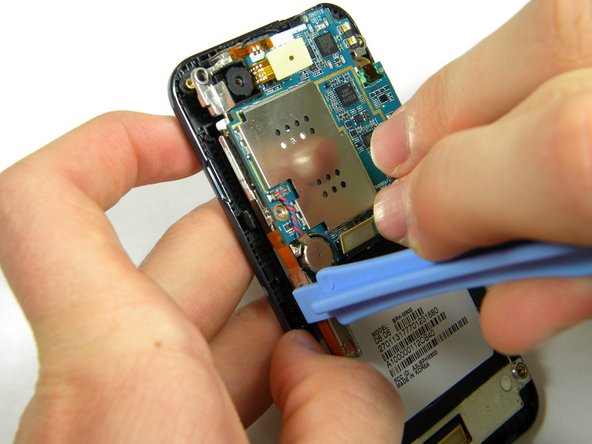

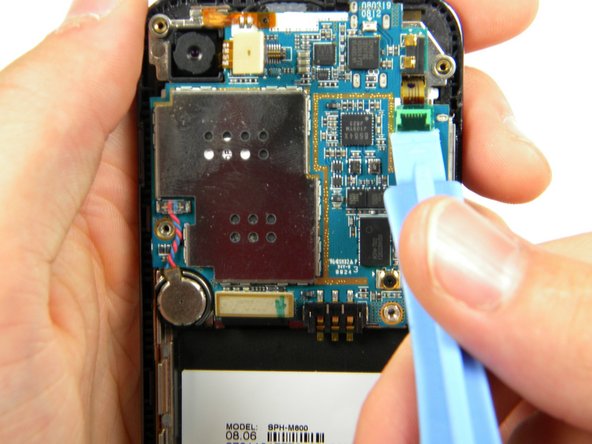

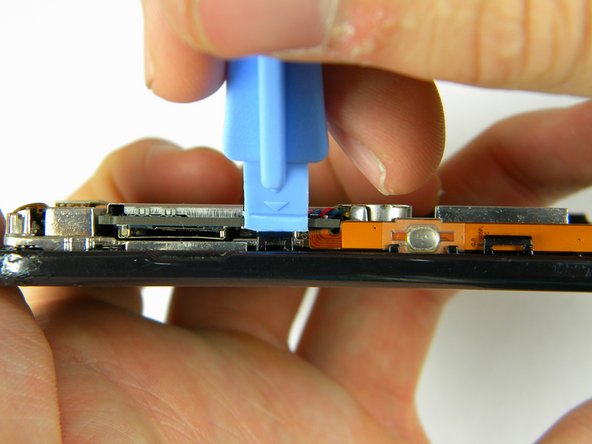

Use the plastic opener tool to unhinge the the locks on the side of the motherboard connecting it to the front casing.
-
-
-

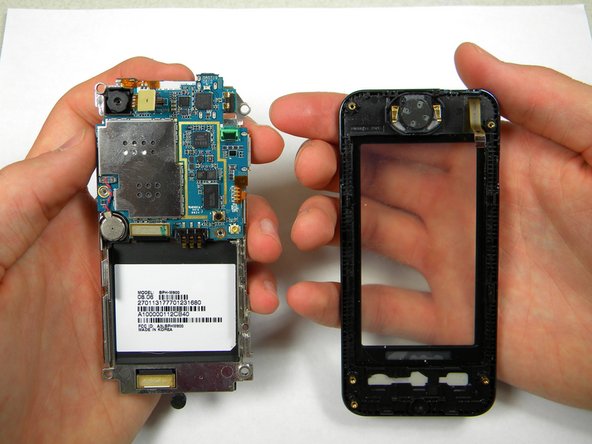

After removing lifting up on the motherboard, the front casing and center frame should be separated as shown.
-
-
-

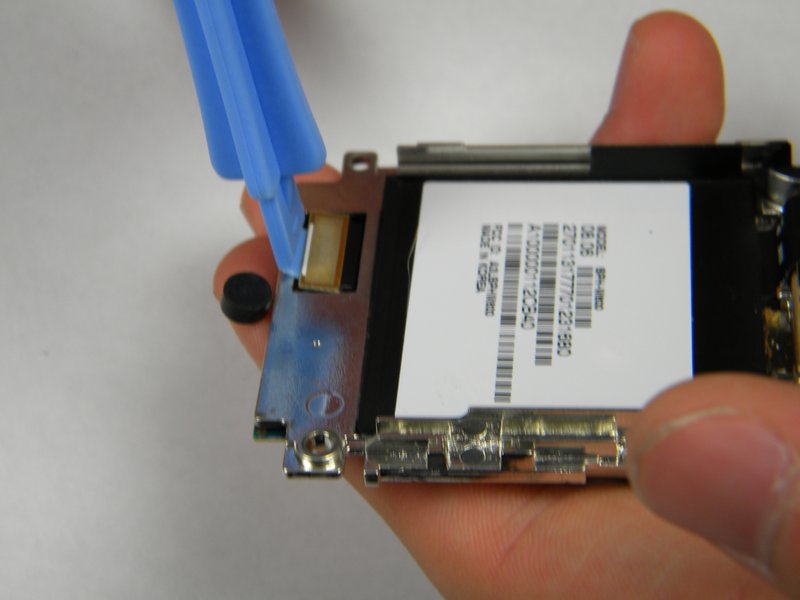

Using the plastic opener tool, detach the ribbon located on the bottom of the phone below the battery compartment.
-
-
-

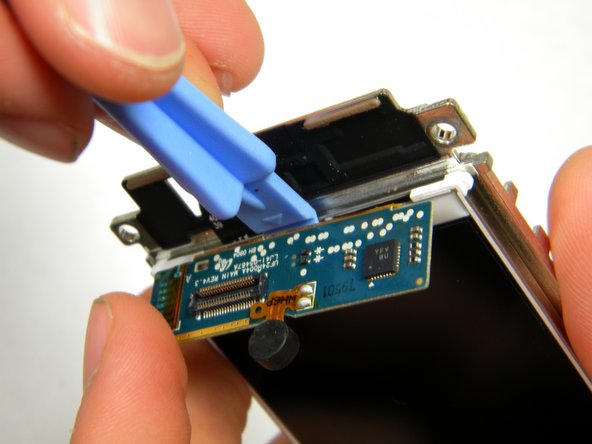

Lift the microchip (located at the bottom of the phone) and insert the plastic opener tool under the screen.
-

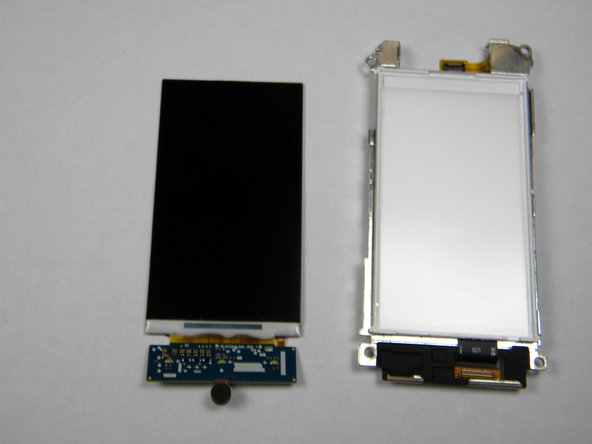

Lift up the screen. The microchip is attached to the screen and will be lifted out with the screen.
-
To reassemble your device, follow these instructions in reverse order.
To reassemble your device, follow these instructions in reverse order.
