Introduction
Use this guide to remove or replace the case.
What you need
-
-
Place your thumb on the right side of the camera over the battery door.
-
Slide the battery door to the right until the door lifts up.
-
-
-
Unscrew 6 Phillips screws using the #00 Phillips screwdriver.
-

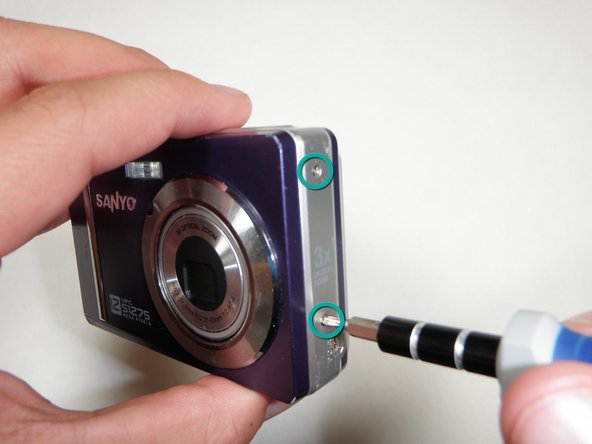

Two screws are on the left side of the camera.
-

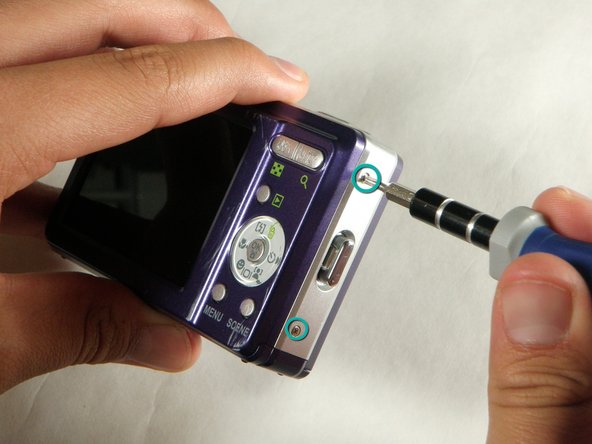

Two screws are on the right side of the camera.
-

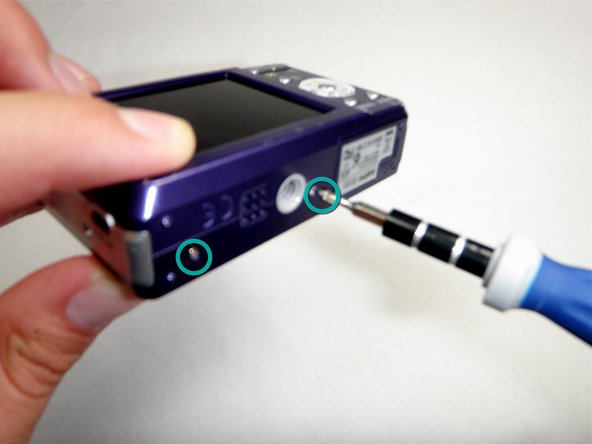

Two screws are on the bottom of the camera.
-
-
-

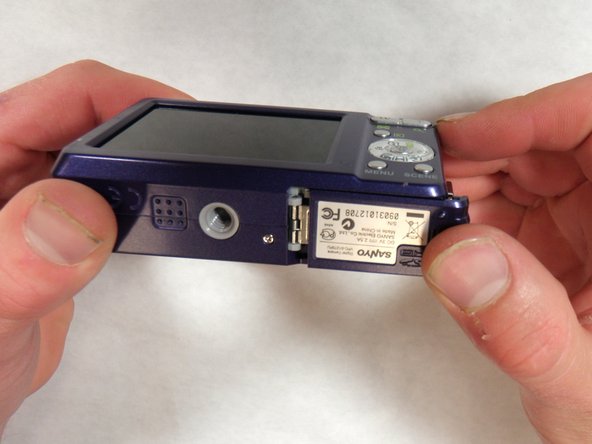

Open battery slot on the bottom of the camera by sliding the door to the right.
-

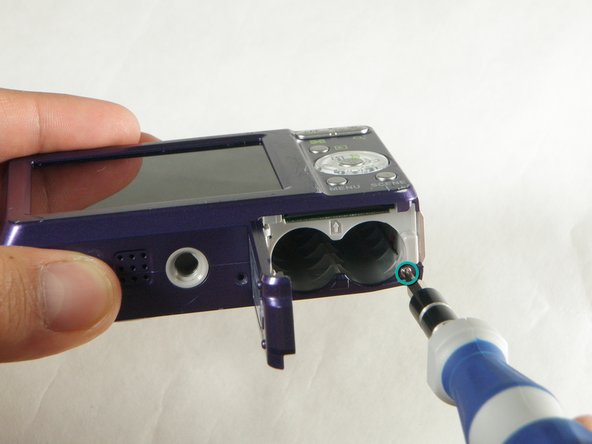

Remove the 4 mm phillips screw on the bottom right using the #00 phillips screwdriver.
-
-
-

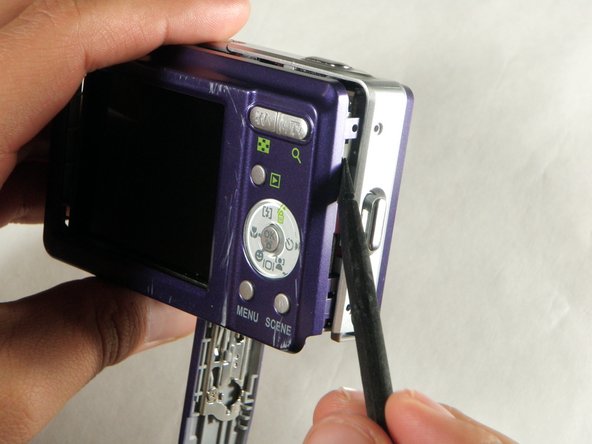

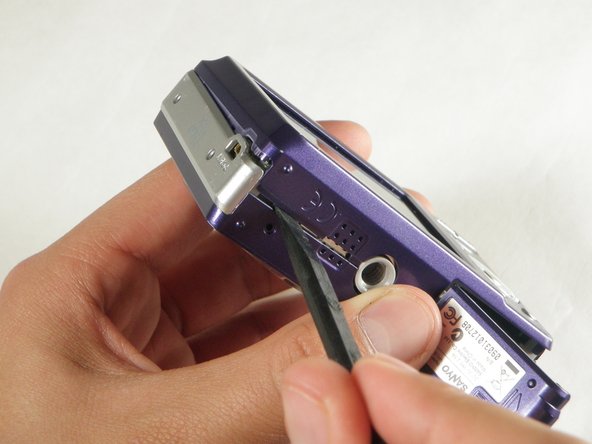

Insert spudger in the seam at the bottom of the camera.
-

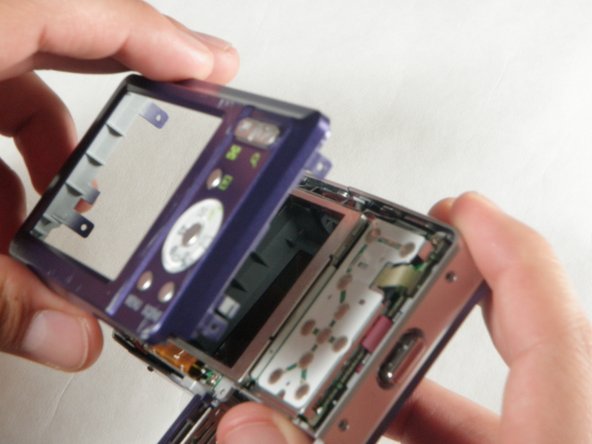

Gently separate the rear case from the front of the camera.
-
-
-

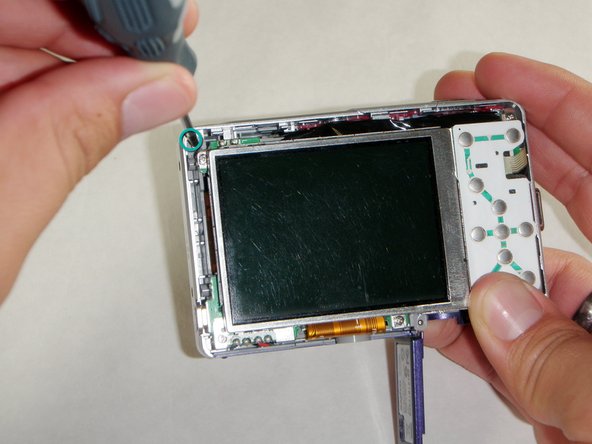

Using the #00 phillips screwdriver remove the screw attached to the front casing in the top left corner. Front case should easily separate.
-
-
-

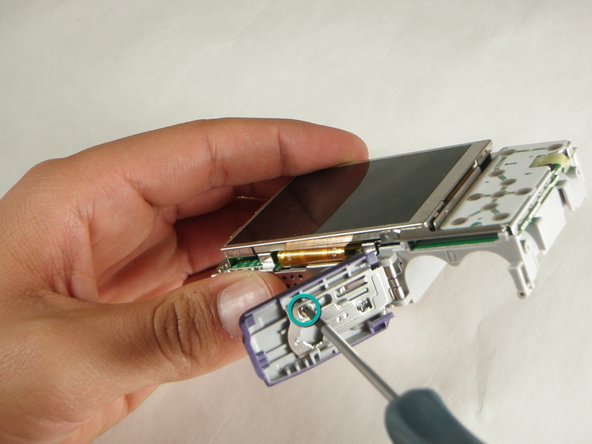

Using the #00 phillips screwdriver remove the screw on the inside of the battery door.
-
Slide the battery door off of the hinge.
-
To reassemble your device, follow these instructions in reverse order.
