This guide helps you to remove and replace the lens unit

What you need

1. Step 1 Sanyo VPC-X1200 shutter assembly replacement
  Remove the five case screws with a Phillips #00 Screwdriver.

  Five 3.5mm Phillips Screws
  Add Comment

  1024
2. Step 2
  Gently lift up the back cover and set aside.
  Add Comment

  1024
3. Step 3

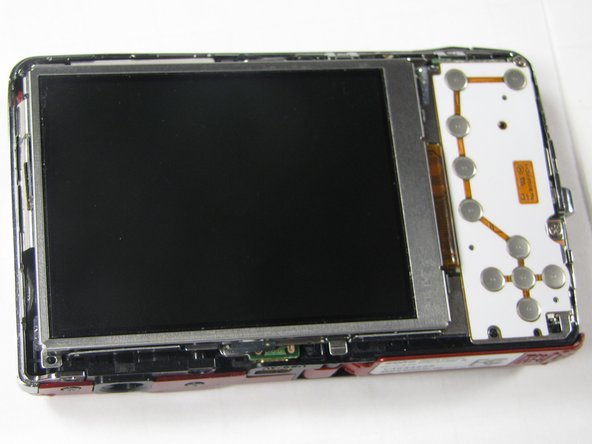

  Gently lift up on the left side of the LCD and slowly pull it to the left side of the camera but do not remove entirely, there is a ribbon connector.

  Be careful not to rip out the ribbon connector.
  Add Comment

  1024
5. Step 4

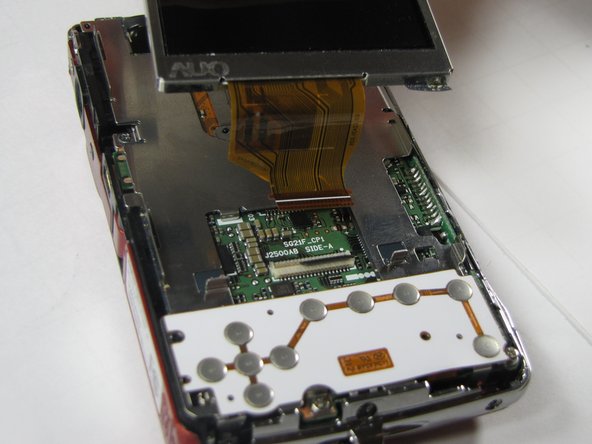

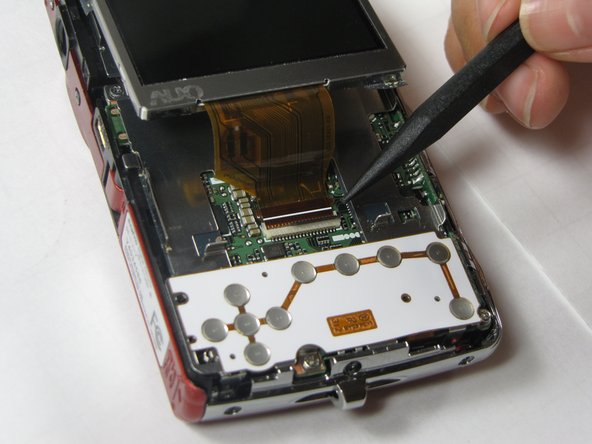

  To clear the ribbon connection underneath the screen, lift up the black ribbon gate with the spudger.

  Gently lift ribbon out of the gate and set screen aside.
  Add Comment

  1024
6. Step 5
  There are five screws of three different sizes which need removal.

  One 4.5mm screw

  Four 3.5mm screws, one on the button side

  One 5.5mm screws
  Add Comment

  1024

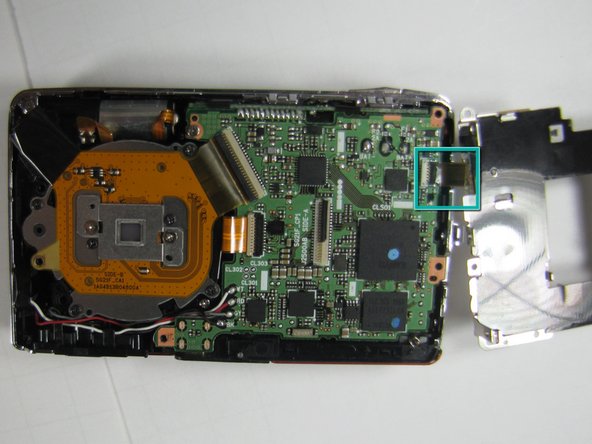

7. Step 6
  Slowly lift metal tray to the right.

  Be careful not to bend the screw tabs or rip out the ribbon cable.

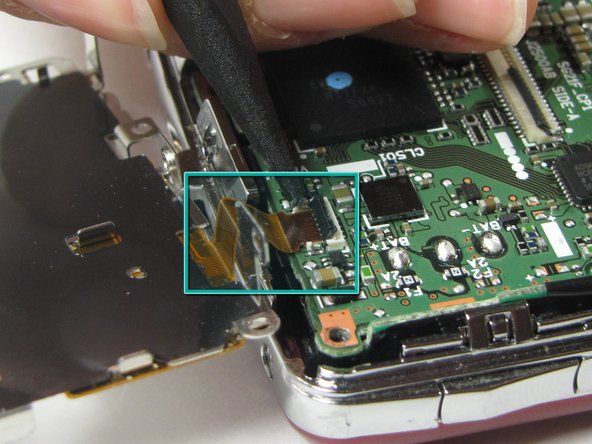

  Remove ribbon cable by using the spudger to lift up the black ribbon gate to release the ribbon
  Add Comment

  1024
8. Step 7

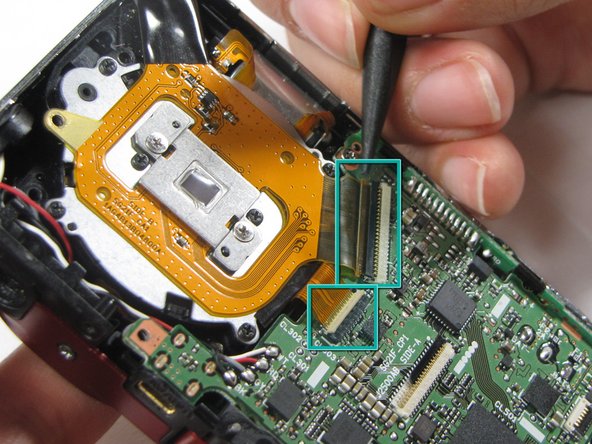

  Disconnect the two ribbon cables from the lens unit by using the spudger to lift the ribbon gates.

  One gate is black and another is white.
  Add Comment

  1024
9. Step 8

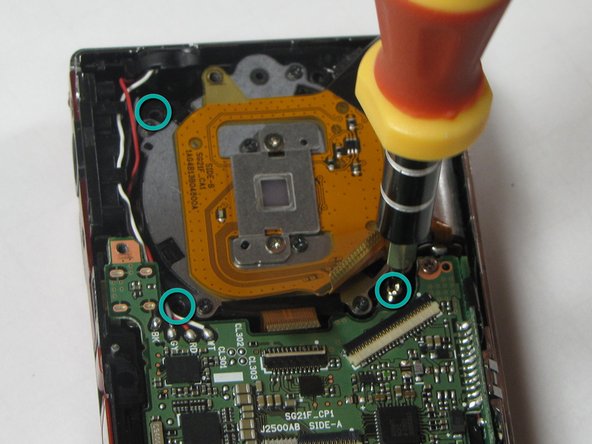

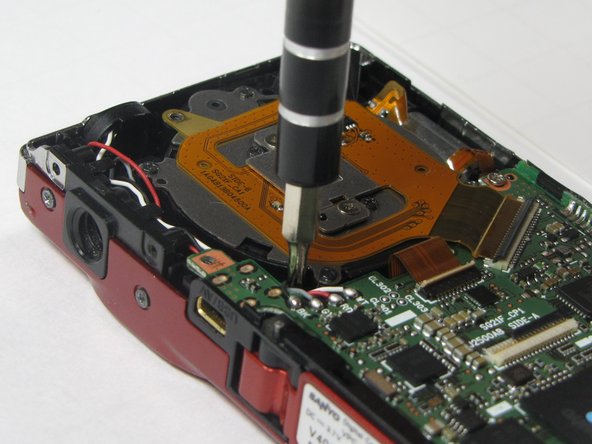

  Remove the three silver screws.

  Three 5.5mm screws
  Add Comment

  1024
10. Step 9

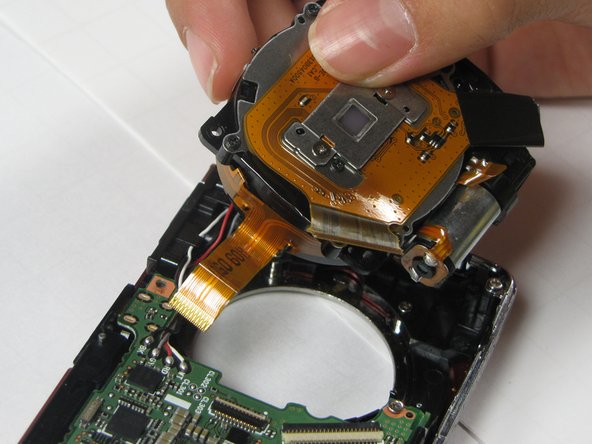

  Lift the lens unit free of the camera. A spudger can be used to separate the lens unit if necessary.
  Add Comment

  1024

Conclusion

To reassemble your device, follow these instructions in reverse order.
