Sega Dreamcast Controller Port Replacement

Introduction

A guide to remove the GD-ROM from the Sega Dreamcast.

What you need

  1. Sega Dreamcast Controller Port Replacement, Sega Dreamcast Controller Port Replacement: step 1, image 1 of 2 Sega Dreamcast Controller Port Replacement, Sega Dreamcast Controller Port Replacement: step 1, image 2 of 2

    • Verify that the console is disconnected from the AC outlet before you begin.

    • Flip the console over on its back.

    • Take note of your model number, in case replacement parts are needed.

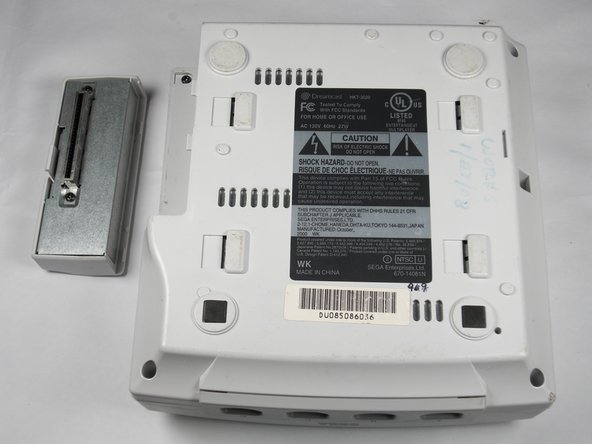

  2. Sega Dreamcast Controller Port Replacement: step 2, image 1 of 3 Sega Dreamcast Controller Port Replacement: step 2, image 2 of 3 Sega Dreamcast Controller Port Replacement: step 2, image 3 of 3

    • Remove the expansion bay by applying pressure to the small clip on the expansion bay while prying it away from the console.

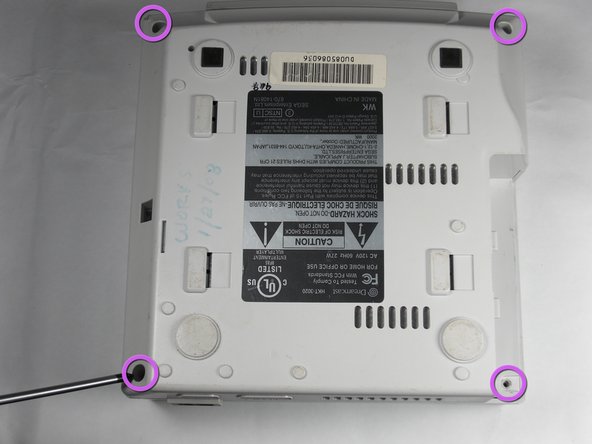

  3. Sega Dreamcast Controller Port Replacement: step 3, image 1 of 1

    • Locate and remove all four black 12mm Phillips #02 screws from the underside of the console.

    • The fourth screw is hidden under the expansion bay if it has not already been removed.

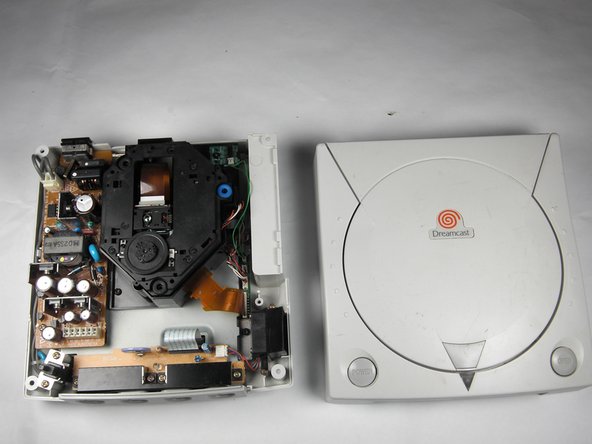

  5. Sega Dreamcast Controller Port Replacement: step 4, image 1 of 1

    • Be careful that the internal components do not topple out.

    • Flip the console topside up.

    • Remove the top cover of the chassis by gently lifting the upper portion of the console.

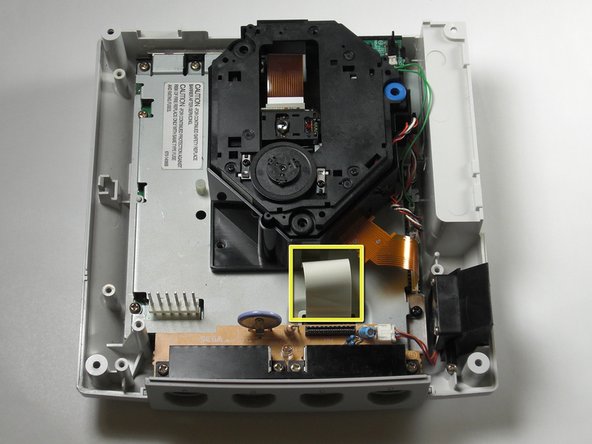

  6. Sega Dreamcast Controller Port Replacement: step 5, image 1 of 2 Sega Dreamcast Controller Port Replacement: step 5, image 2 of 2

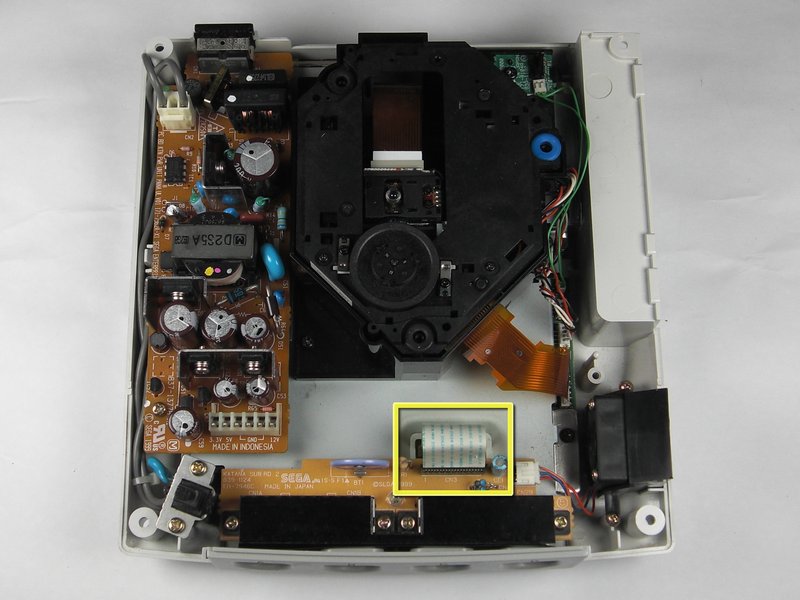

    • Be gentle with the white controller cable as it can be a bit fragile.

    • Disconnect the white controller cable by gently pulling the the cable while wiggling it back and forth until it detaches from the controller board.

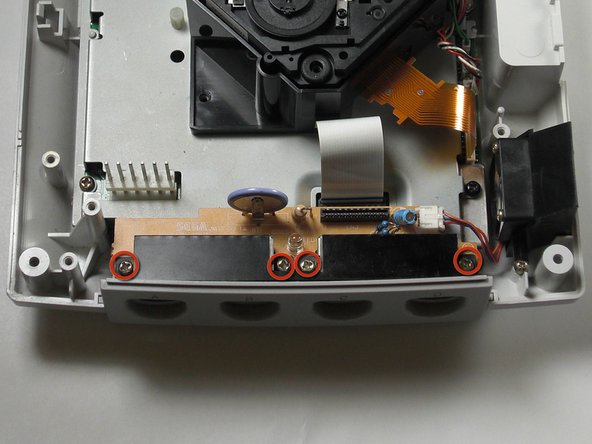

  7. Sega Dreamcast Controller Port Replacement: step 6, image 1 of 2 Sega Dreamcast Controller Port Replacement: step 6, image 2 of 2

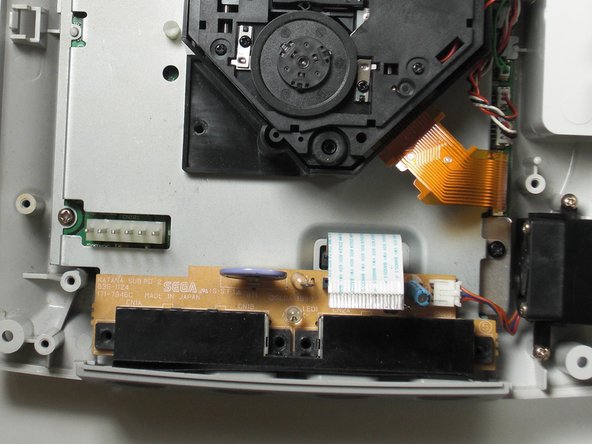

    • Remove the four 14mm Philips #02 located on the controller board.

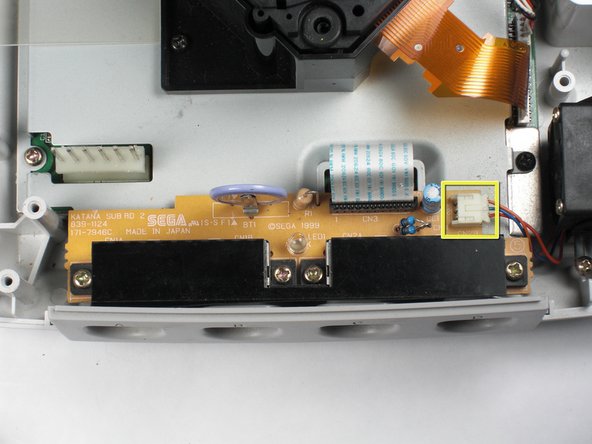

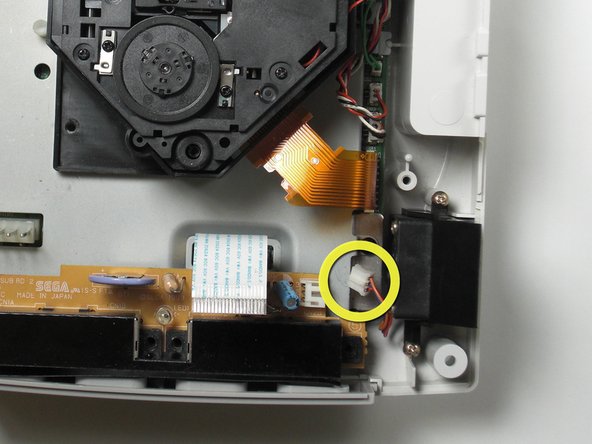

  8. Sega Dreamcast Controller Port Replacement: step 7, image 1 of 2 Sega Dreamcast Controller Port Replacement: step 7, image 2 of 2

    • Disconnect the white fan header from the controller port

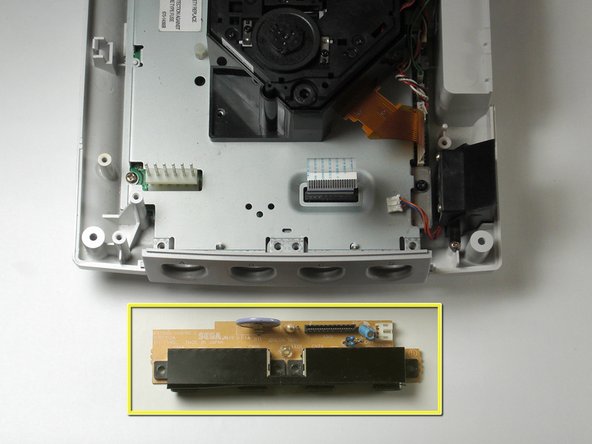

  9. Sega Dreamcast Controller Port Replacement: step 8, image 1 of 2 Sega Dreamcast Controller Port Replacement: step 8, image 2 of 2

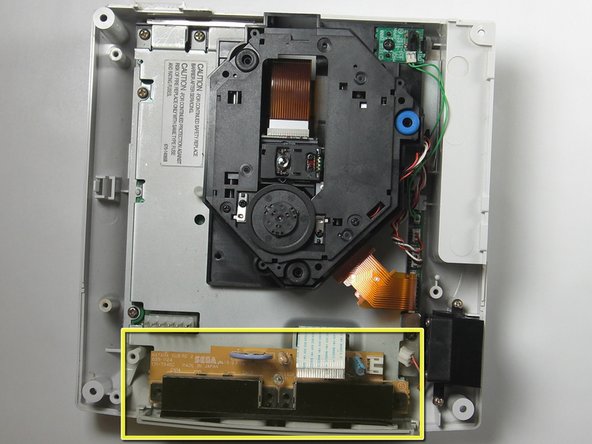

    • Remove the controller board by lifting it up from the controller port.

Conclusion

To reassemble your device, follow these instructions in reverse order.
