Sega Dreamcast Top Cover Replacement

Step 1 Sega Dreamcast Top Cover Replacement



• Verify that the console is disconnected from the AC outlet before you begin.
• Flip the console over on its back.

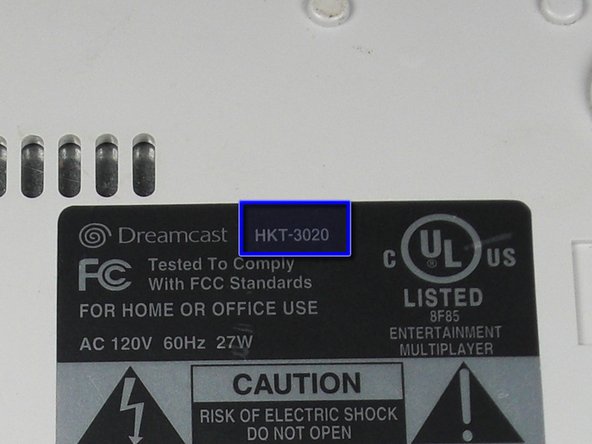

• Take note of your model number, in case replacement parts are needed.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 2




• Remove the expansion bay by applying pressure to the small clip on the expansion bay while prying it away from the console.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 3

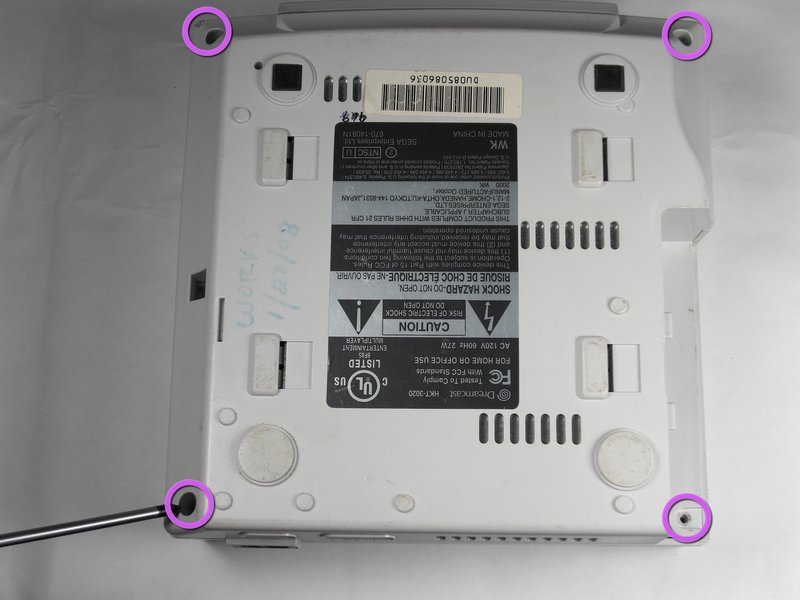

• Locate and remove all four black 12mm Phillips #02 screws from the underside of the console.
• The fourth screw is hidden under the expansion bay if it has not already been removed.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

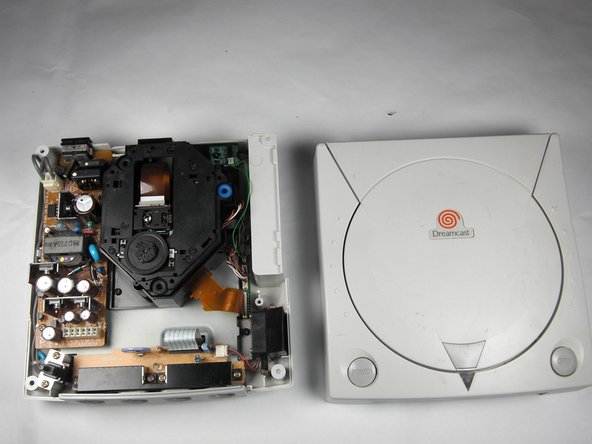

Step 4
• Be careful that the internal components do not topple out.
• Flip the console topside up.
• Remove the top cover of the chassis by gently lifting the upper portion of the console.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
