Introduction

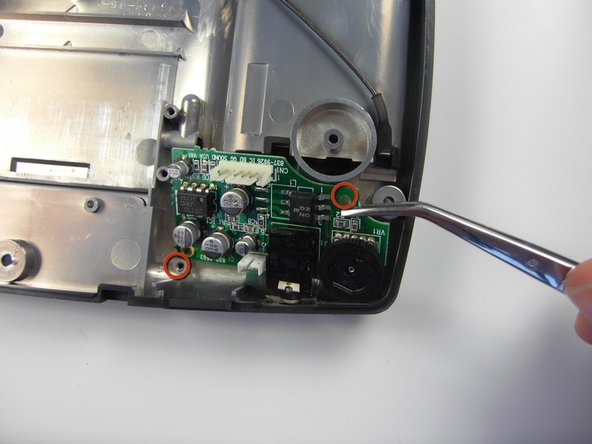

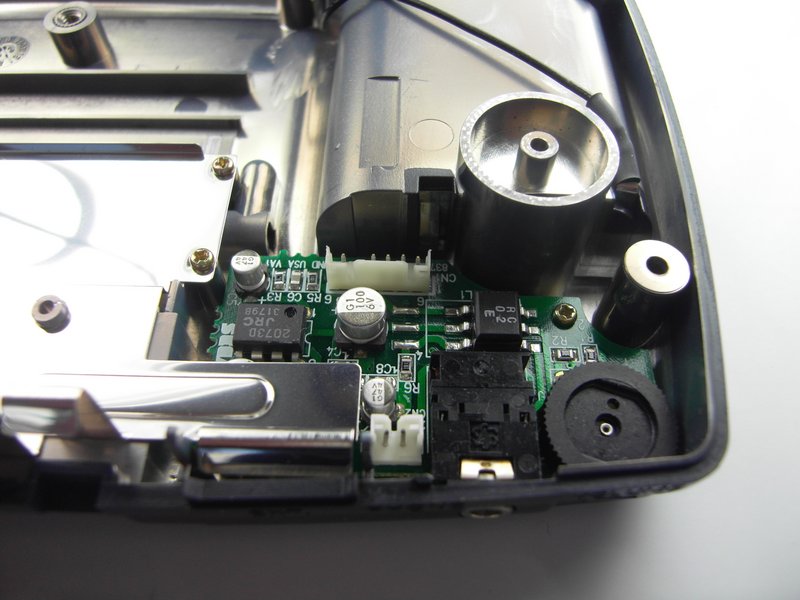

Guide to replace the small logic board that contains the 3.5mm headphone jack as well as the volume wheel.
What you need
-
-

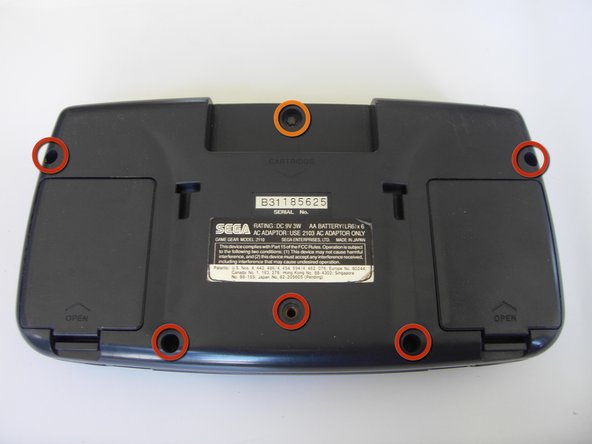

Place your device upside down and locate the two battery compartments.
-
-
-

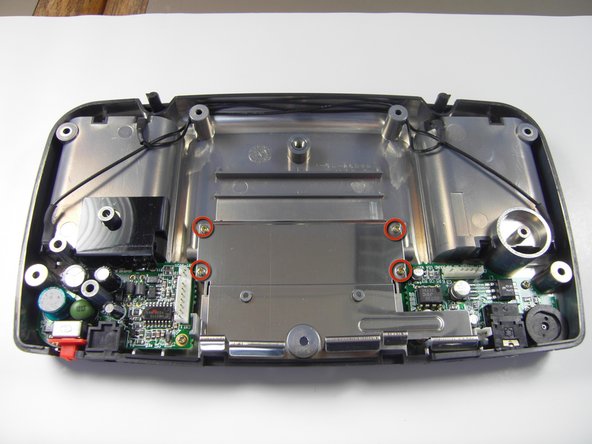

Unscrew all the marked screws with the small Philips head screwdriver.
-

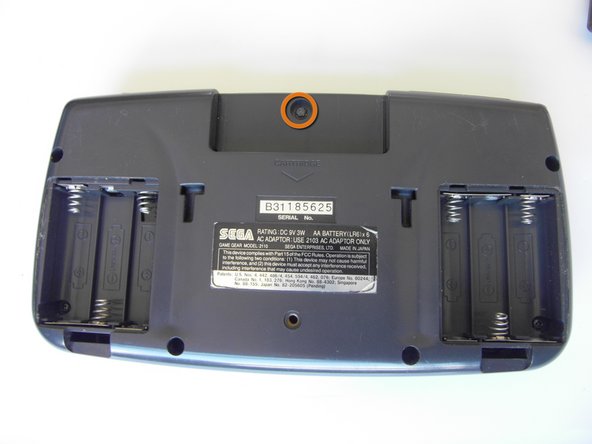

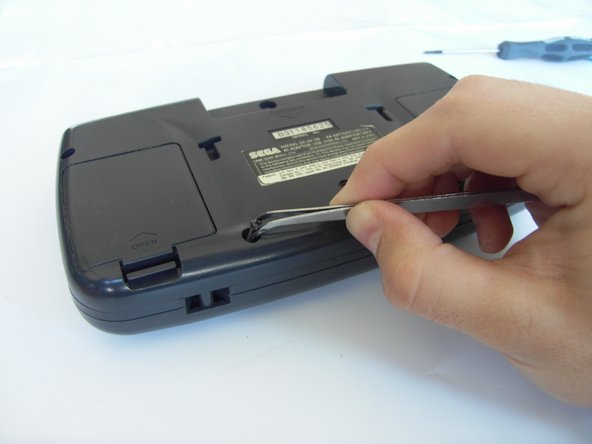

The 4.5mm Gamebit screw requires a bit more turning and patience than the other screws.
-
Almost done!
To reassemble your device, follow these instructions in reverse order.
Conclusion
To reassemble your device, follow these instructions in reverse order.
