Sega Genesis Motherboard Replacement

What you need

  1. Sega Genesis Motherboard Replacement, Sega Genesis Motherboard Replacement: step 1, image 1 of 1

    • Remove the six screws from the underside of the console with a Phillips #1 screwdriver.

  2. Sega Genesis Motherboard Replacement: step 2, image 1 of 1

    • Flip the Sega Genesis upright.

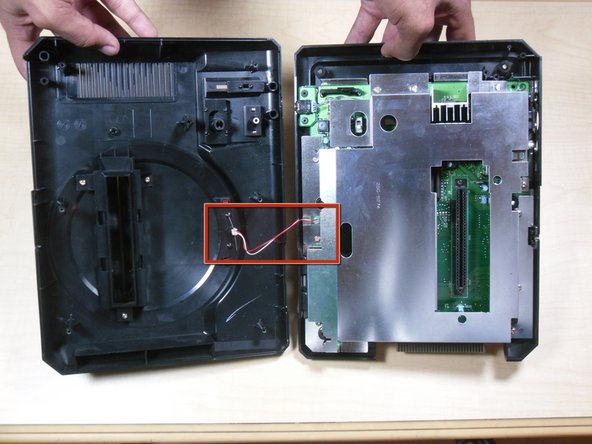

  3. Sega Genesis Motherboard Replacement: step 3, image 1 of 1

    • Gently lift the top casing.

    • Note: the case will be connected to the main board by LED wires.

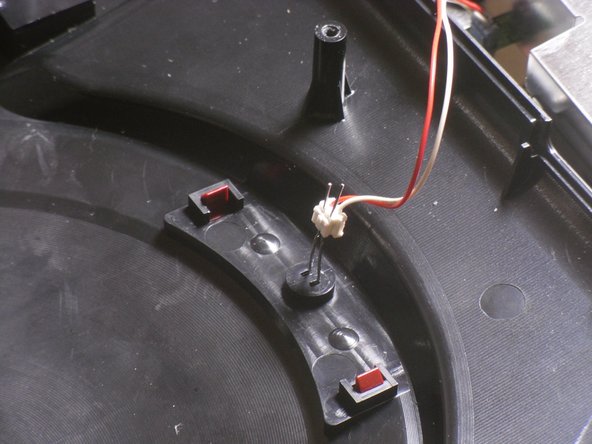

  4. Sega Genesis Motherboard Replacement: step 4, image 1 of 1

    • Bend out the LED leads into vertical positions.

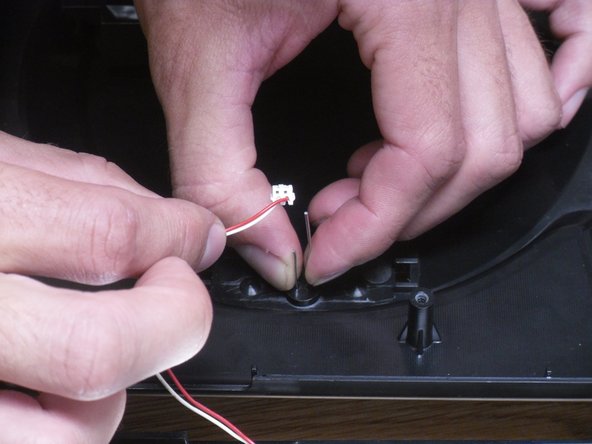

  5. Sega Genesis Motherboard Replacement: step 5, image 1 of 1

    • Slide the LED wire apparatus off the lead pins.

    • Note: observe which color wire corresponds with which length of pin.

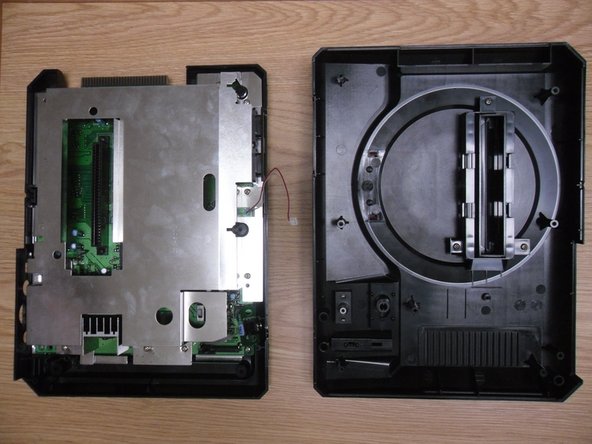

  7. Sega Genesis Motherboard Replacement: step 6, image 1 of 1

    • Separate the main board from the outer case.

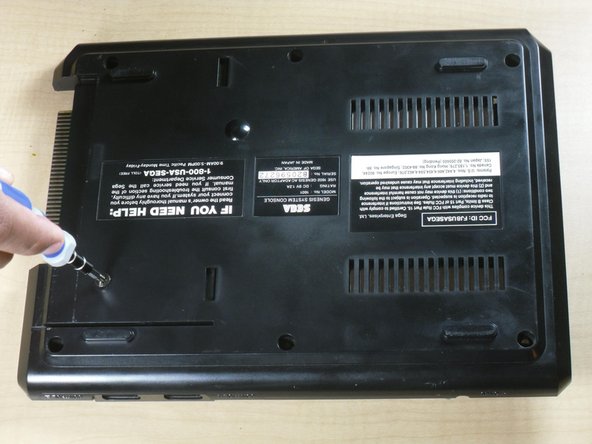

  8. Sega Genesis Motherboard Replacement: step 7, image 1 of 1

    • Remove single black screw from the outside of the bottom cover, using a Philips screwdriver.

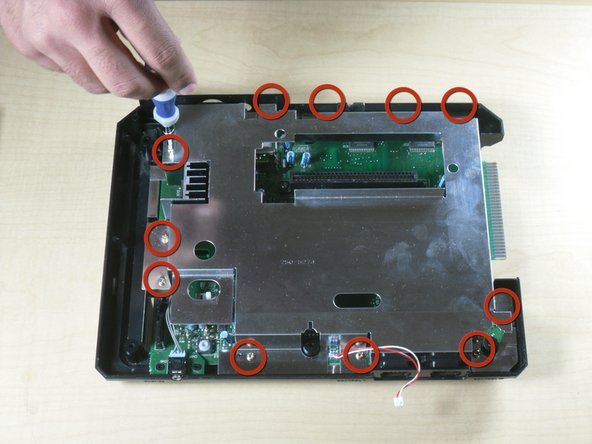

  9. Sega Genesis Motherboard Replacement: step 8, image 1 of 1

    • Using a Philips screwdriver, remove 11 screws securing silver casing.

  10. Sega Genesis Motherboard Replacement: step 9, image 1 of 1

    • Remove silver case.

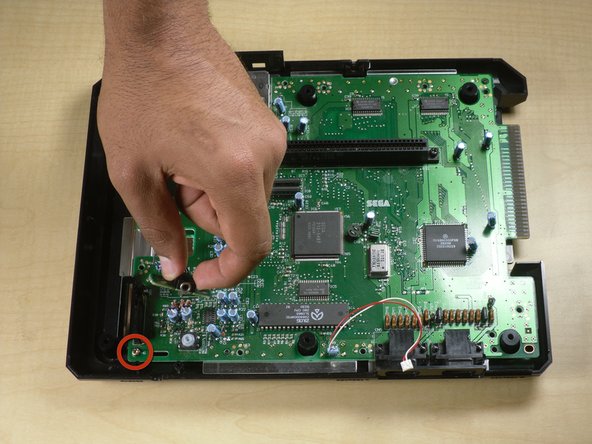

  11. Sega Genesis Motherboard Replacement: step 10, image 1 of 1

    • Remove single golden screw on motherboard using Philips screwdriver.

    • Note: Push headphone jack to the side.

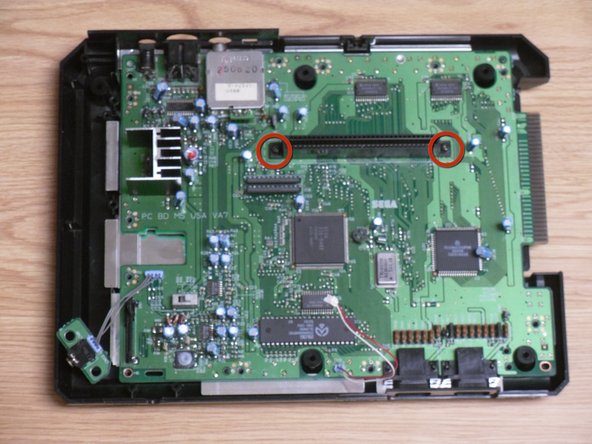

  12. Sega Genesis Motherboard Replacement: step 11, image 1 of 1

    • Remove two black screws on the left and right sides of the cartridge slot.

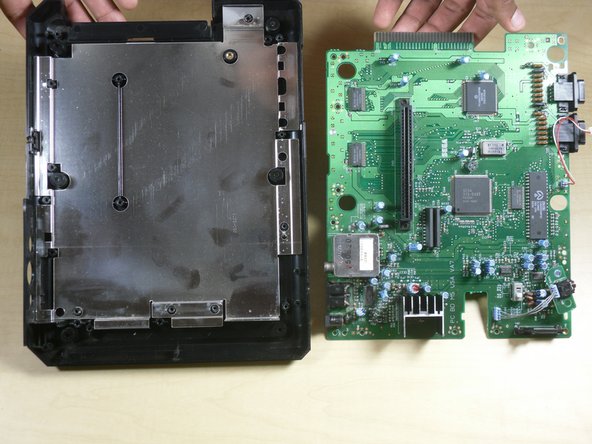

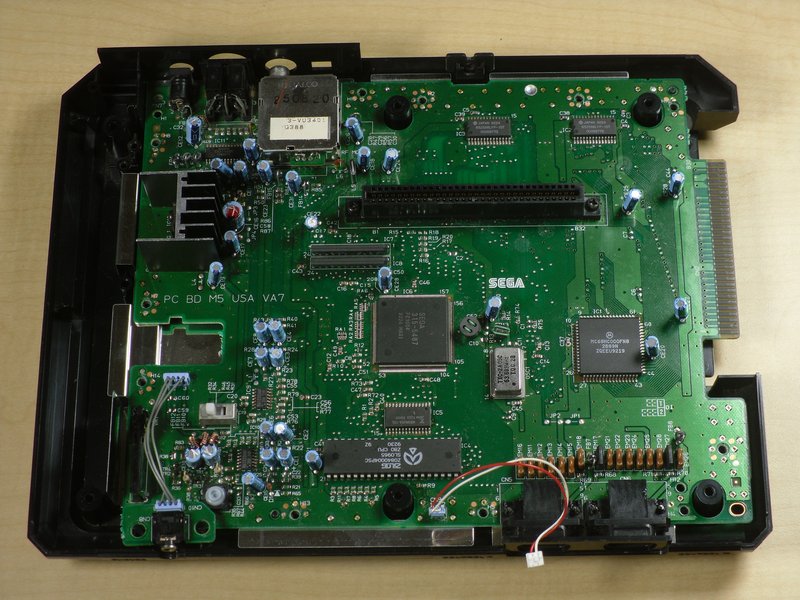

  13. Sega Genesis Motherboard Replacement: step 12, image 1 of 1

    • Remove motherboard.

  14. Sega Genesis Motherboard Replacement: step 13, image 1 of 1

    • Re-install new motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
