Sega Genesis Outer Case Replacement

Introduction

This repair guide will take you through all the steps for removing the outer case of the Sega Genesis.

What you need

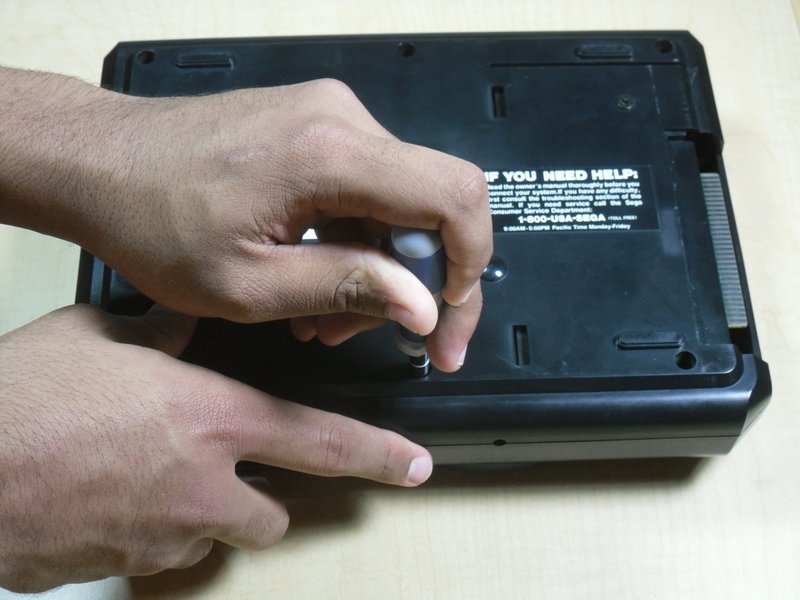

  1. Sega Genesis Outer Case Replacement, Sega Genesis Outer Case Replacement: step 1, image 1 of 1

    • Remove the six screws from the underside of the console with a Phillips #1 screwdriver.

  2. Sega Genesis Outer Case Replacement: step 2, image 1 of 1

    • Flip the Sega Genesis upright.

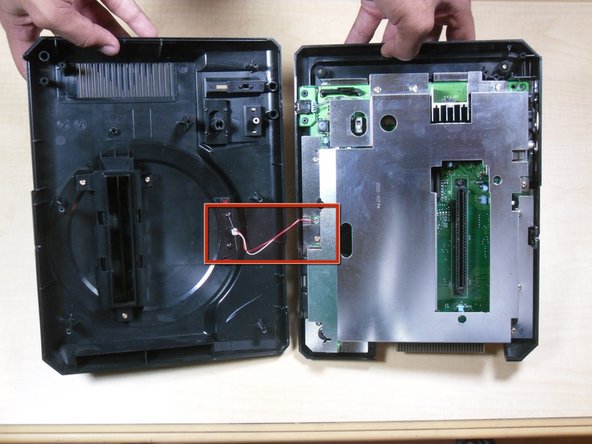

  4. Sega Genesis Outer Case Replacement: step 3, image 1 of 1

    • Gently lift the top casing.

    • Note: the case will be connected to the main board by LED wires.

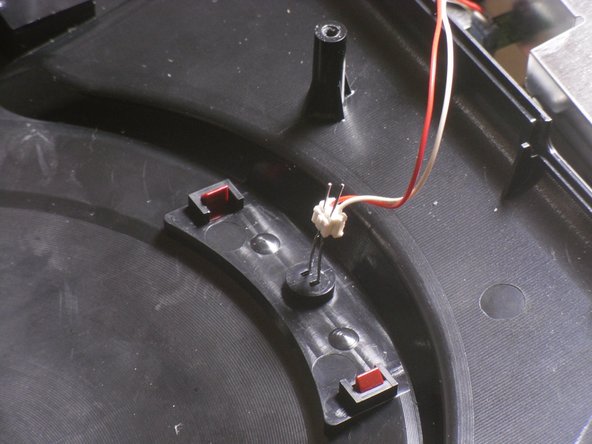

  5. Sega Genesis Outer Case Replacement: step 4, image 1 of 1

    • Bend out the LED leads into vertical positions.

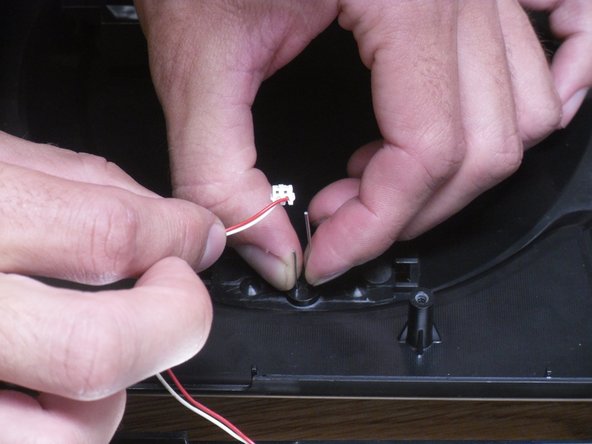

  6. Sega Genesis Outer Case Replacement: step 5, image 1 of 1

    • Slide the LED wire apparatus off the lead pins.

    • Note: observe which color wire corresponds with which length of pin.

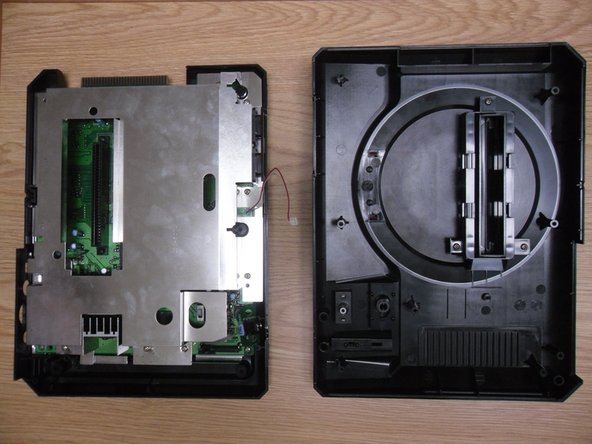

  7. Sega Genesis Outer Case Replacement: step 6, image 1 of 1

    • Separate the main board from the outer case.

Conclusion

To reassemble your device, follow these instructions in reverse order.
