Introduction

Go to step 1 ↓

Dismantling and Recycling Centre (DRZ)

Katharina Lenz, Vienna / Austria

Health & Safety

Dismantling doesn't include any harmful steps. Nonetheless workers should wear personal protection equipment like gloves, goggles, apron and robust shoes.

Note: This is a general guide for most servers. As the construction can differ, the dismantling steps mentioned below can vary in their order. However, the described steps show what parts the removal should focus on.

What you need

Tools

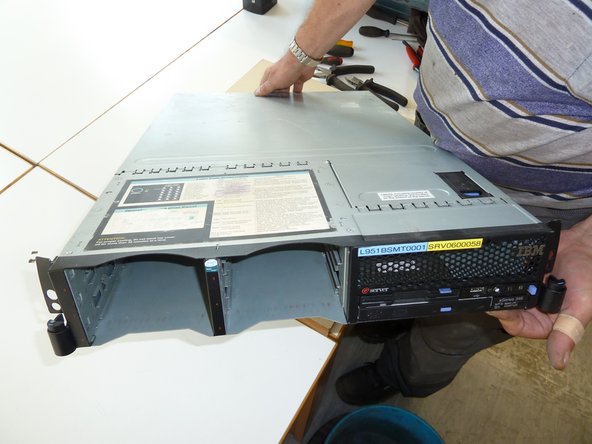

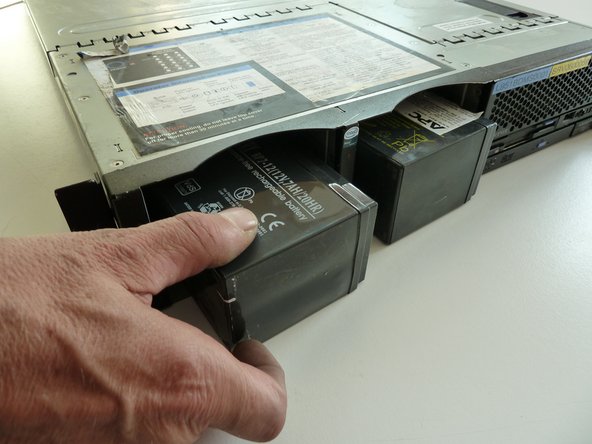

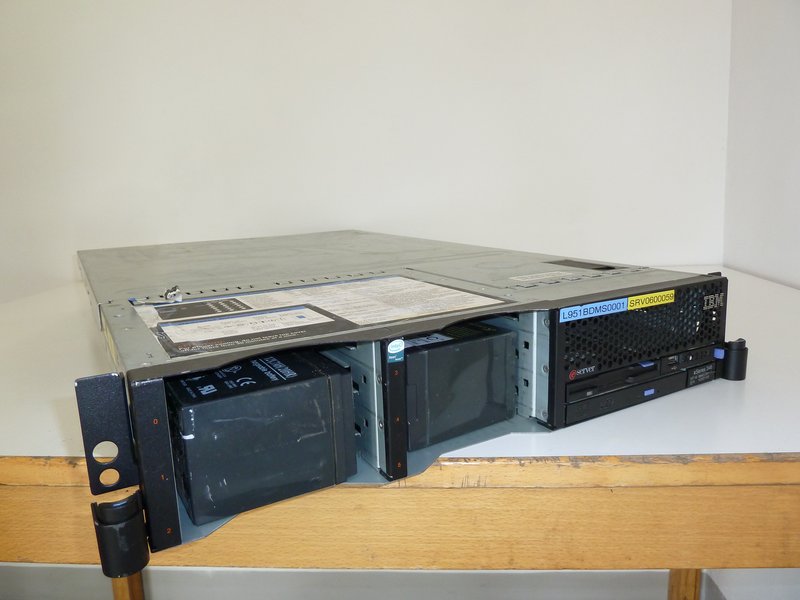

1. Step 1 Server
  Remove the batteries.
  Add Comment

  1024
2. Step 2
  Store the lead batteries safely.
  Add Comment

  1024

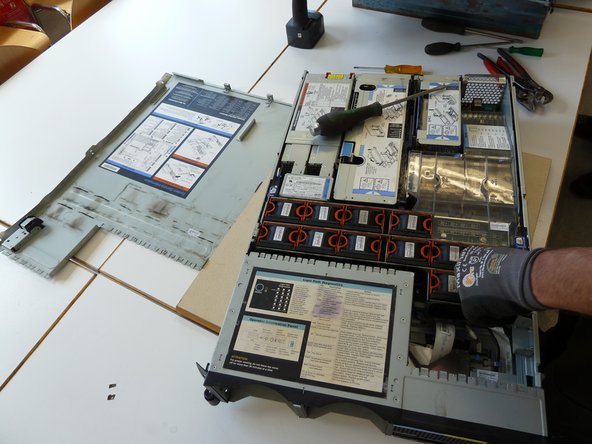

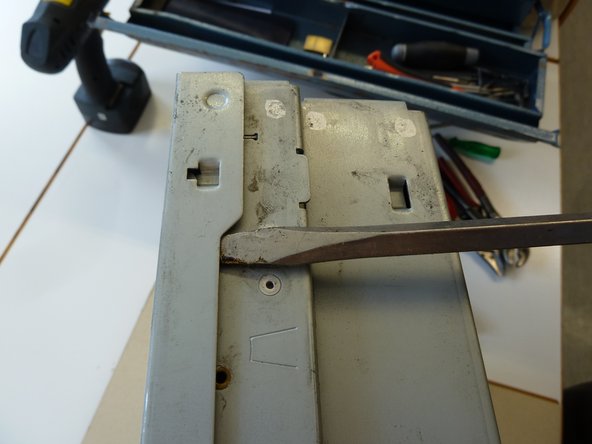

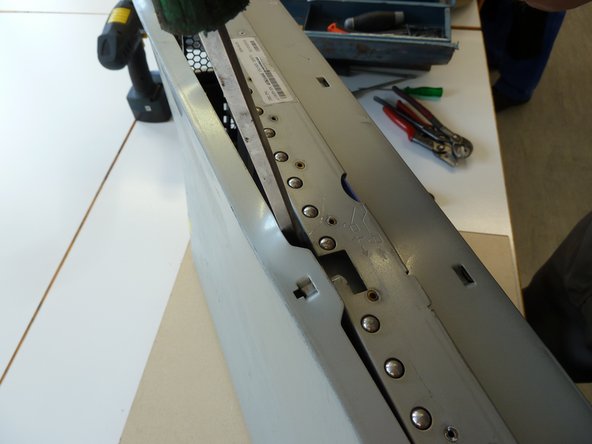

3. Step 3
  Open the case.
  Add Comment

  1024

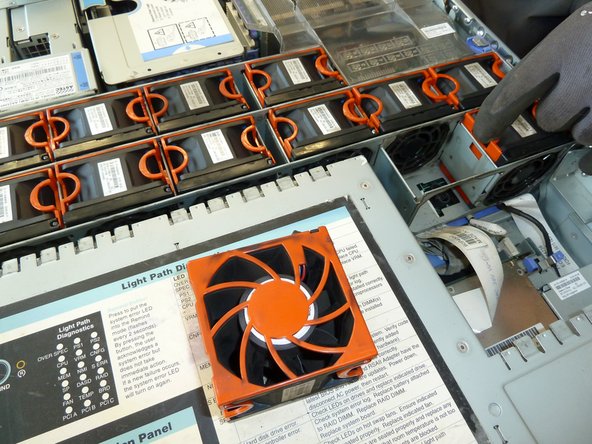

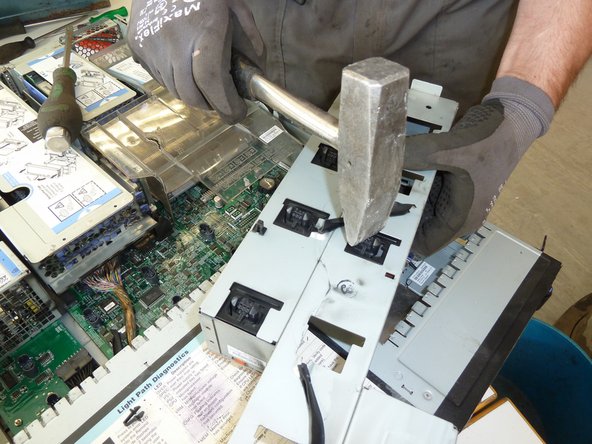

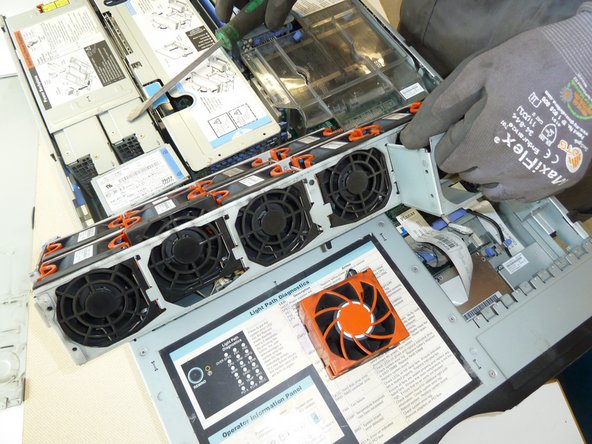

4. Step 4
  Remove the cooling fans.

  If the fans don't come out easily, hammer them out.
  Add Comment

  1024

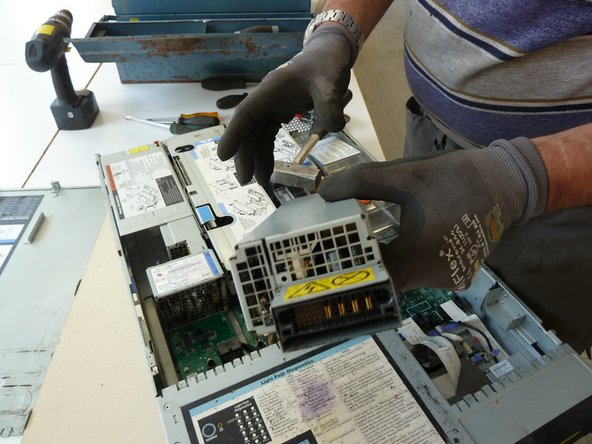

5. Step 5
  Remove the power supply element.
  Add Comment

  1024

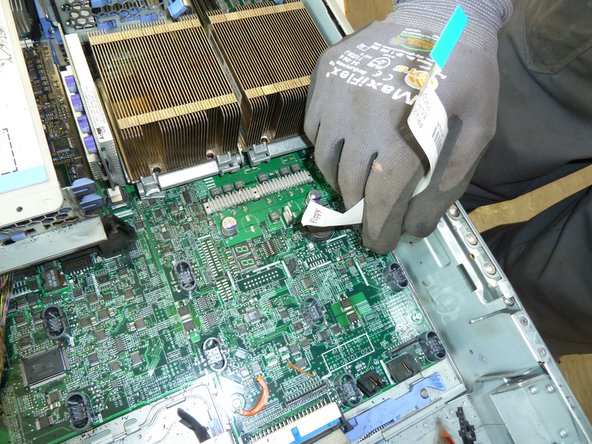

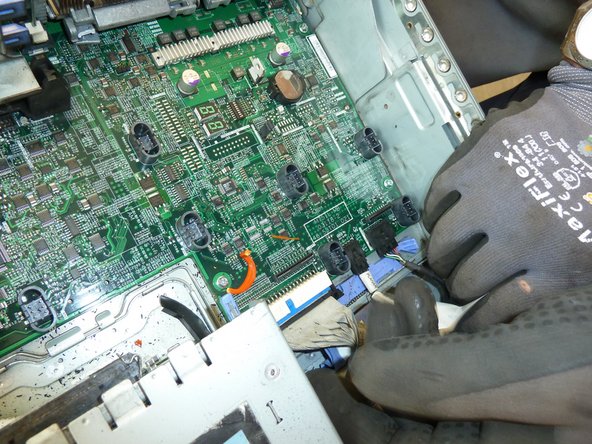

6. Step 6
  Unplug and remove the wires.
  Add Comment

  1024

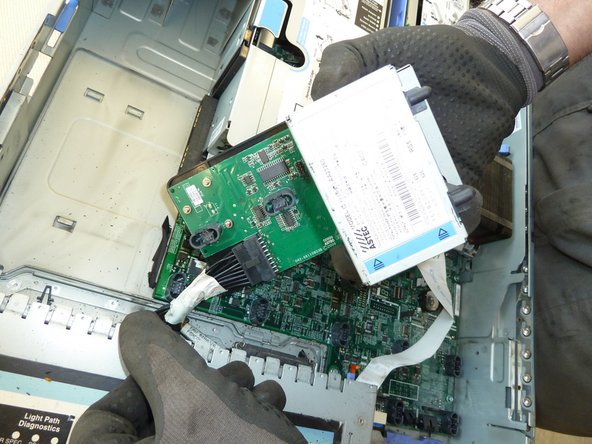

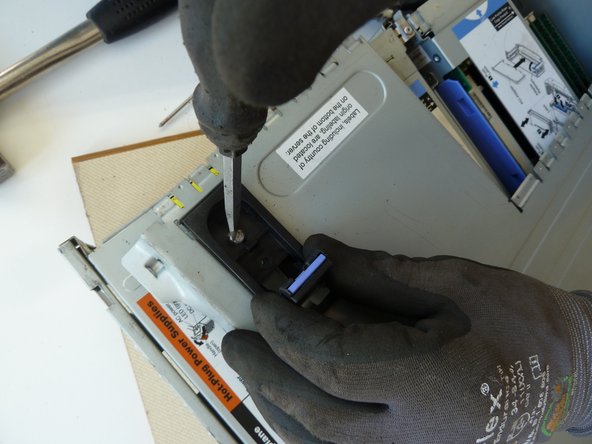

7. Step 7
  Unscrew and remove the electronic parts.
  Add Comment

  1024

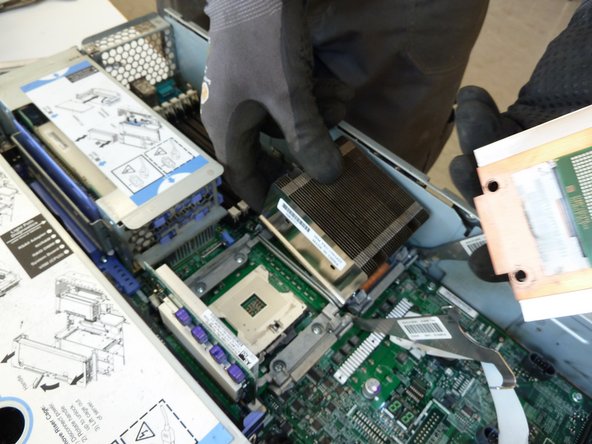

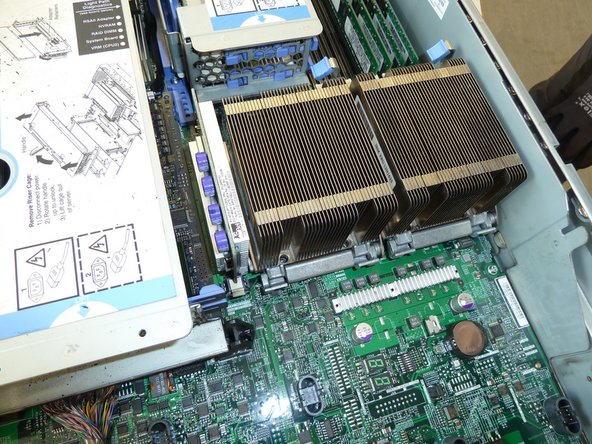

8. Step 8
  Remove the aluminium heat sinks.
  Add Comment

  1024

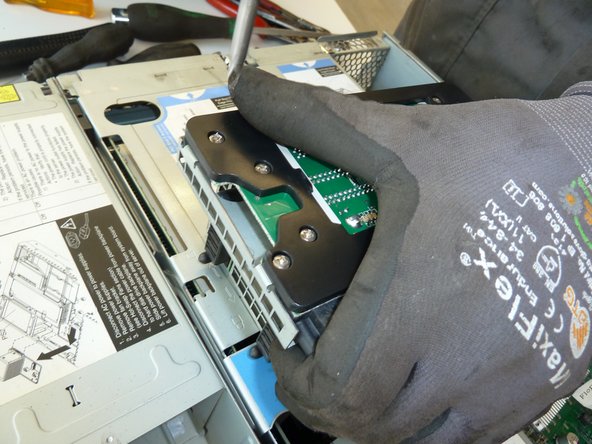

10. Step 9
  Unscrew the electronics.
  Add Comment

  1024

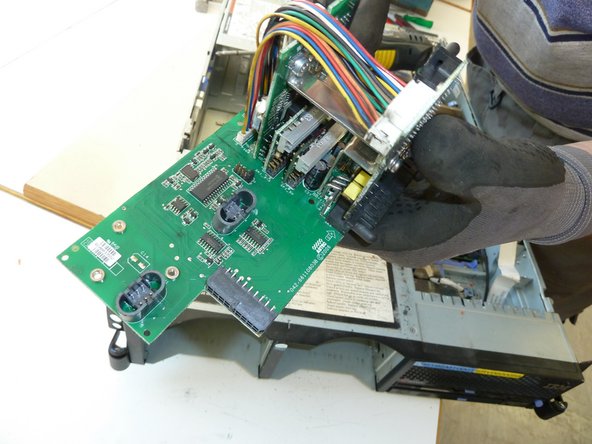

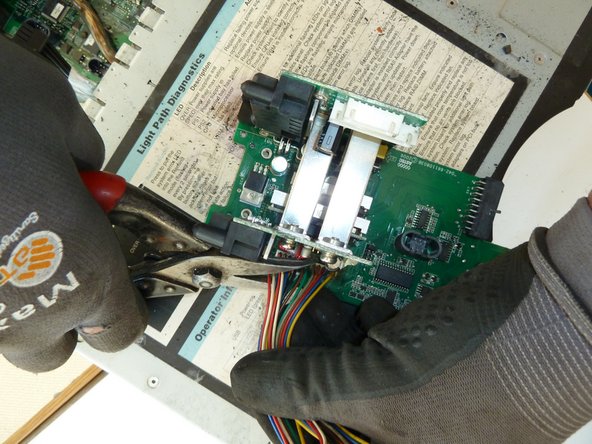

11. Step 10
  Cut the wires off the electronics.
  Add Comment

  1024

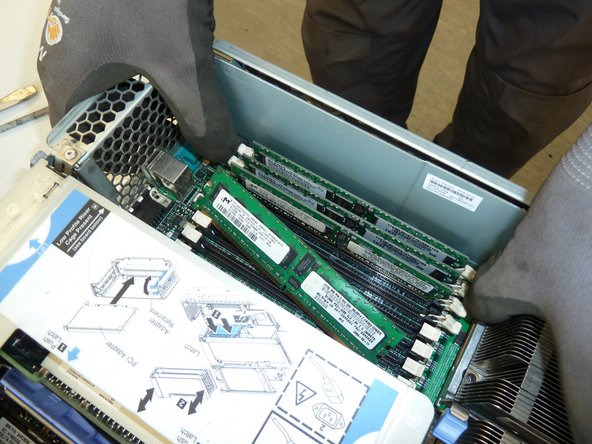

12. Step 11
  Remove the RAMs.
  Add Comment

  1024

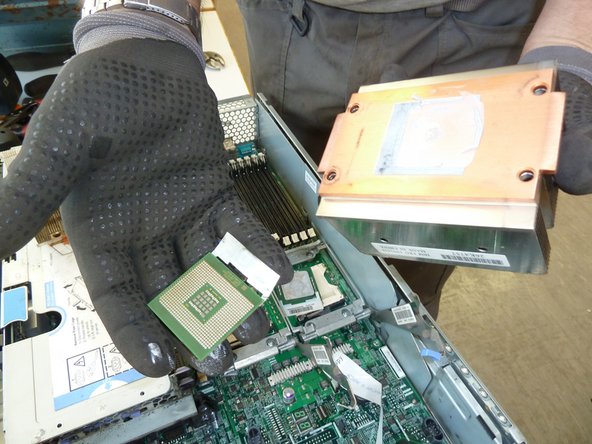

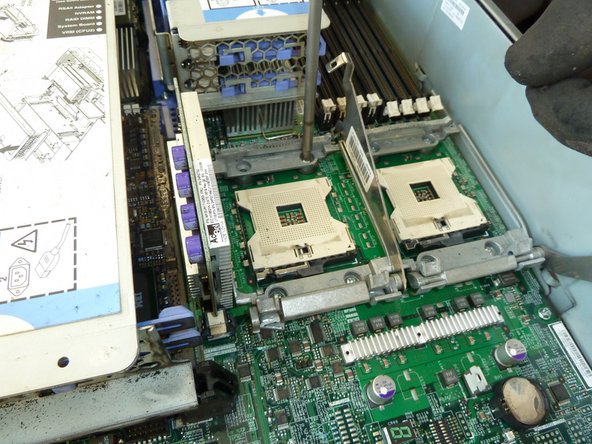

13. Step 12
  Remove the CPUs.
  Add Comment

  1024
14. Step 13
  Pry out the cmos battery.
  Add Comment

  1024

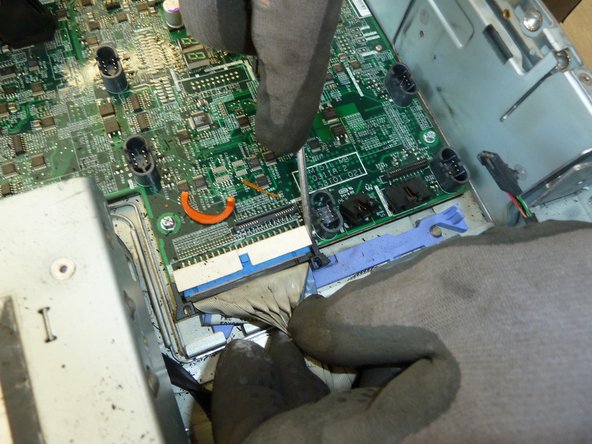

15. Step 14
  Unclip the wires.
  Add Comment

  1024

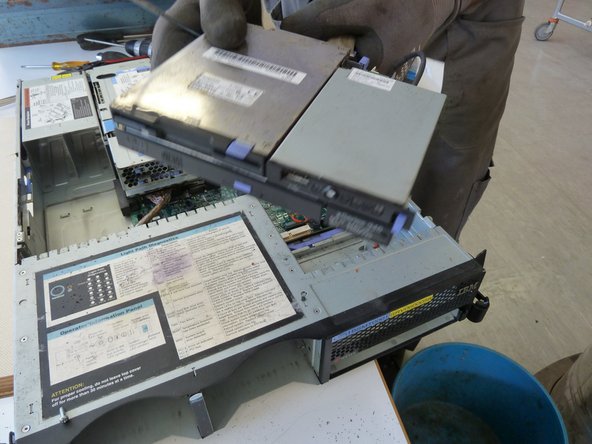

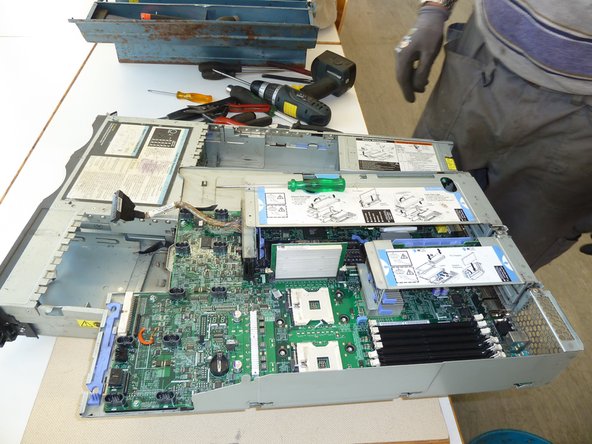

16. Step 15
  Remove the disk drives.
  Add Comment

  1024

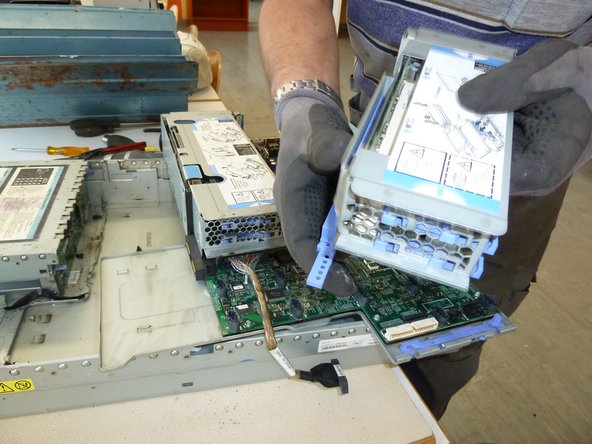

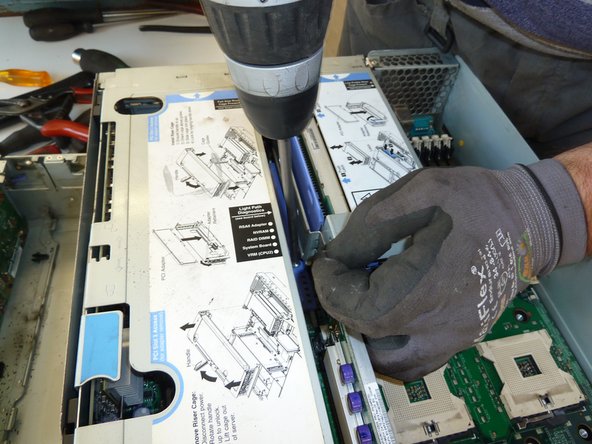

17. Step 16
  Unscrew the mount.

  Remove the battery cases.
  Add Comment

  1024

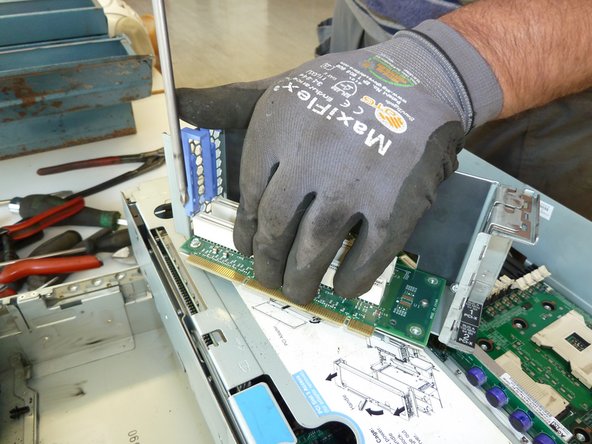

19. Step 17
  Remove the aluminium parts.
  Add Comment

  1024

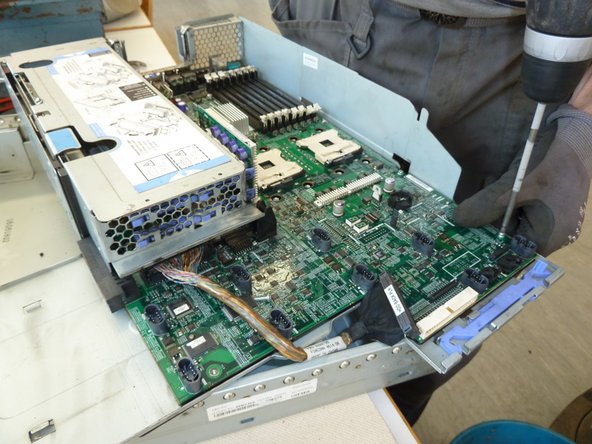

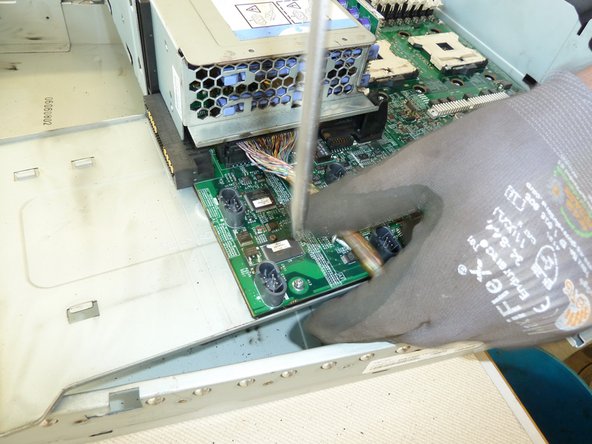

20. Step 18
  Unscrew the PWB.
  Add Comment

  1024

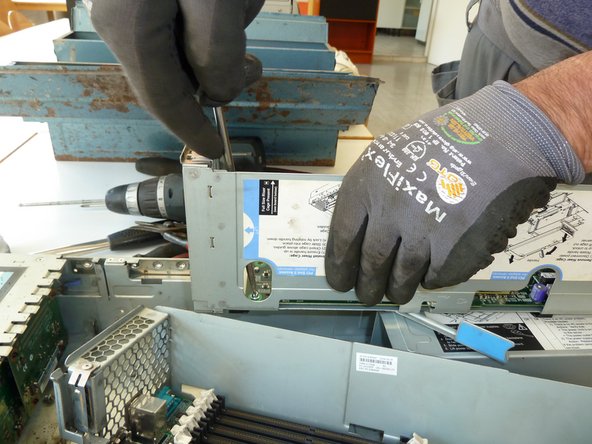

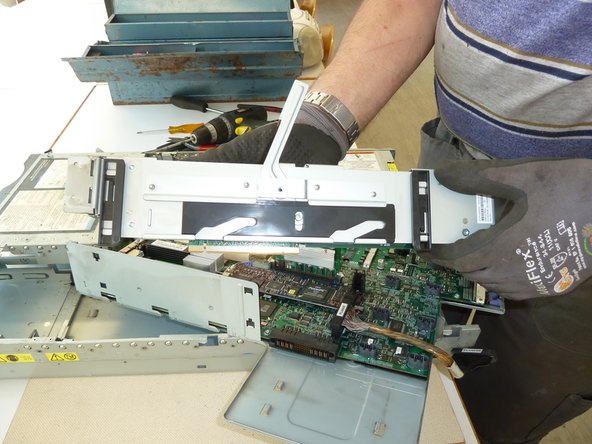

21. Step 19
  Remove the metal parts.
  Add Comment

  1024

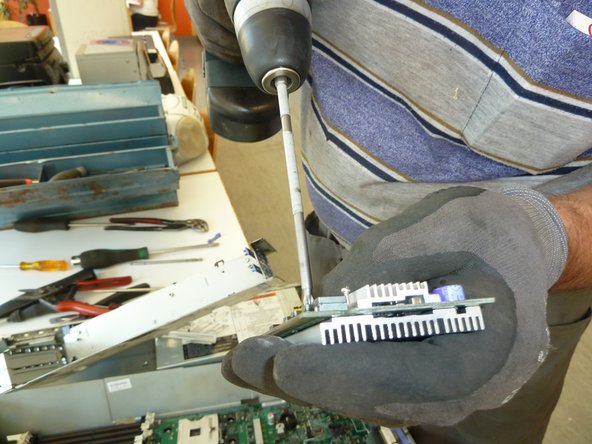

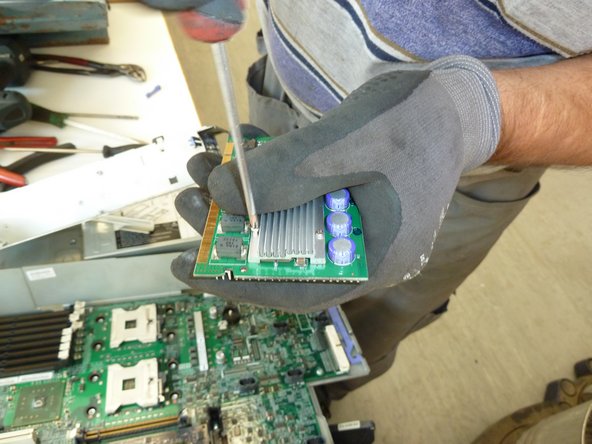

22. Step 20
  Unscrew the aluminium parts.
  Add Comment

  1024

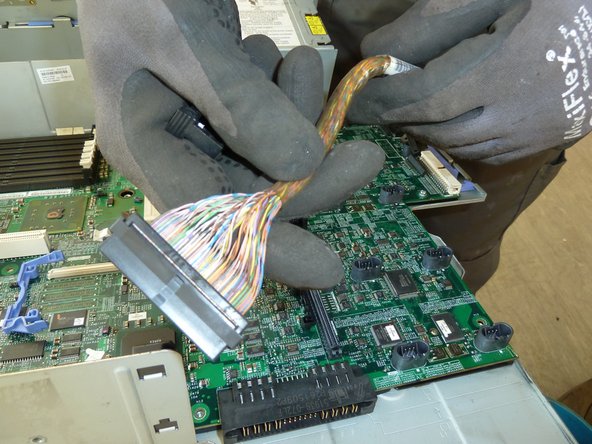

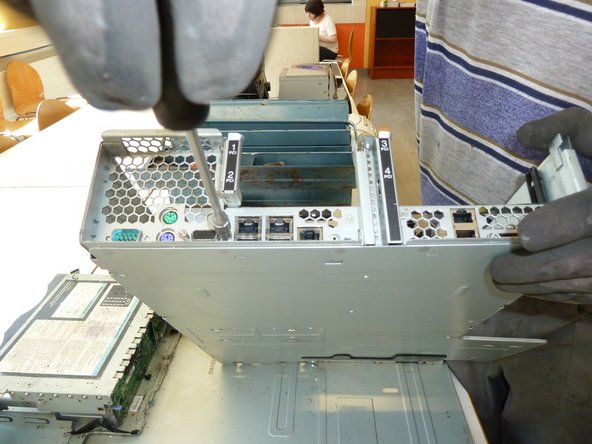

23. Step 21
  Remove the wires.

  Unscrew the plugs.
  Add Comment

  1024

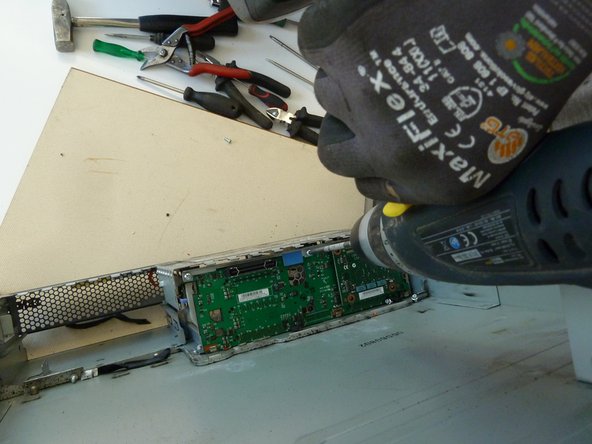

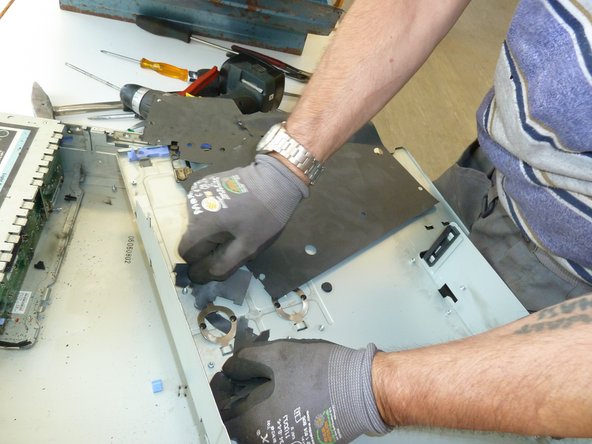

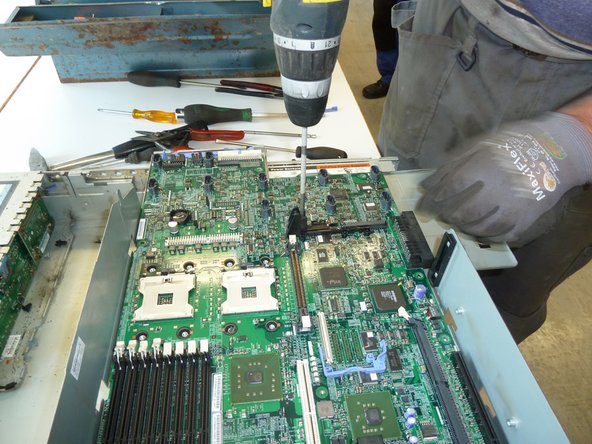

24. Step 22
  Remove all the plastic parts.

  Remove the PWB.
  Add Comment

  1024

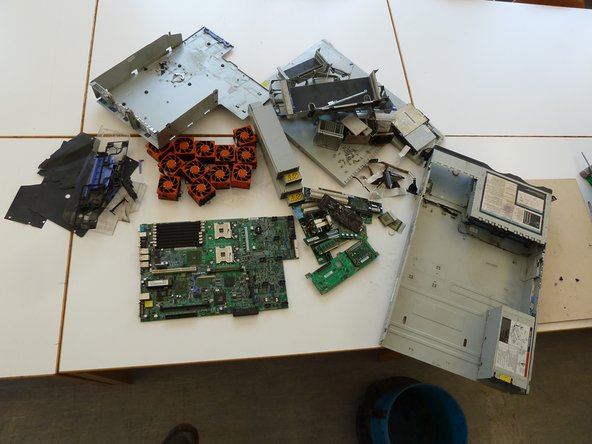

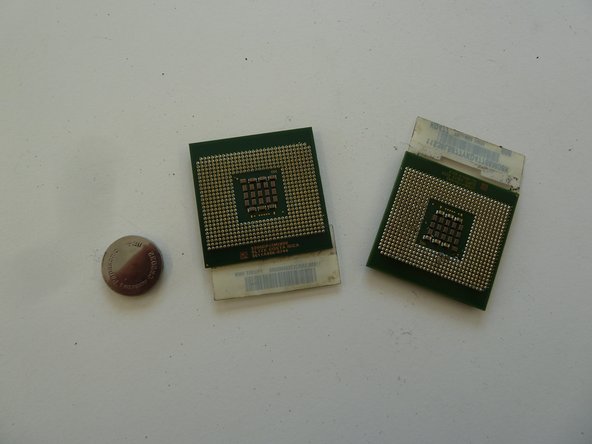

25. Step 23
  Separate the remaining materials according to their type and go on with the appropriate data sheet (e.g. aluminium, ferrous metals, plastic, further PWBs, etc.).

  Make sure the plastic parts are completely free of metal pieces.
