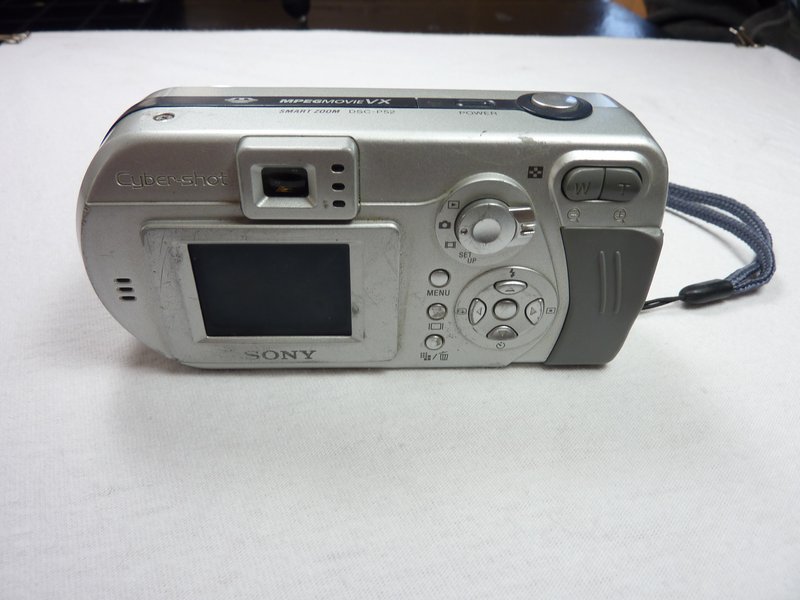

Sony Cyber-shot DSC-P52 LCD Replacement

Introduction

The LCD should be checked if the screen is blank or broken.

What you need

1. Step 1 Sony Cyber-shot DSC-P52 LCD Replacement
  Open battery compartment and remove batteries.

  Remove all visible screws on the outside of the case.

  There should be three of them that are all easily located.
  Add Comment

  1024
2. Step 2
  Open the memory card compartment.

  Remove the screw next to the memory card slot.
  Add Comment

  1024

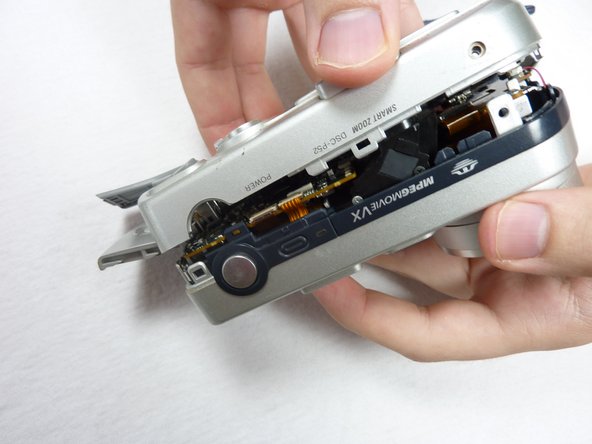

3. Step 3
  Pull apart front and back cover pieces carefully.

  The front cover should come completely free with little effort.

  The back cover will still be attached to the circuit board.
  Add Comment

  1024

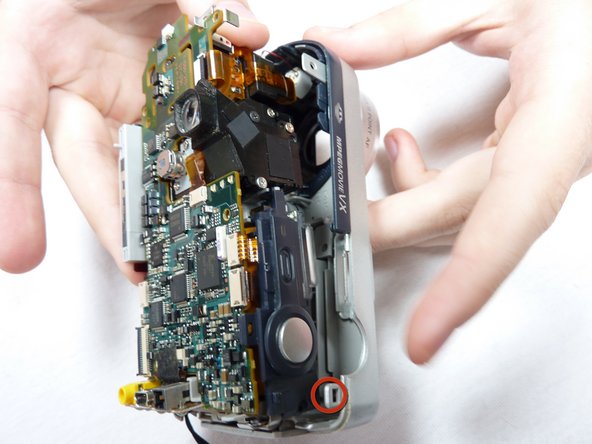

4. Step 4
  Unclip all of the clips holding in the circuitry simultaneously and remove the back case.

  The circuitry will still be connected to the back case by ribbon cables.
  Add Comment

  1024

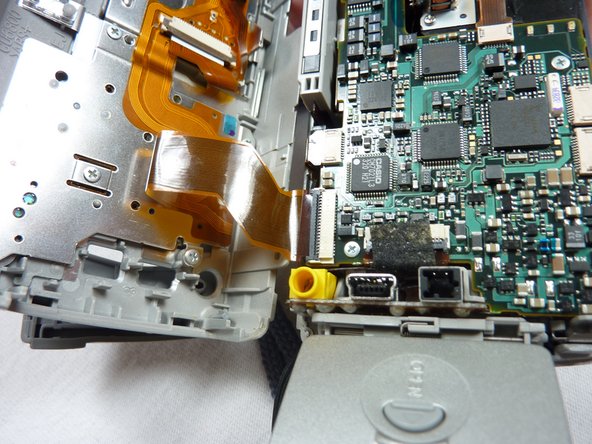

5. Step 5
  Open case as shown.
  Add Comment

  1024
7. Step 6
  Unclip the clip holding the ribbon cable in.

  Other ribbon cables might not have a clips.
  Add Comment

  1024

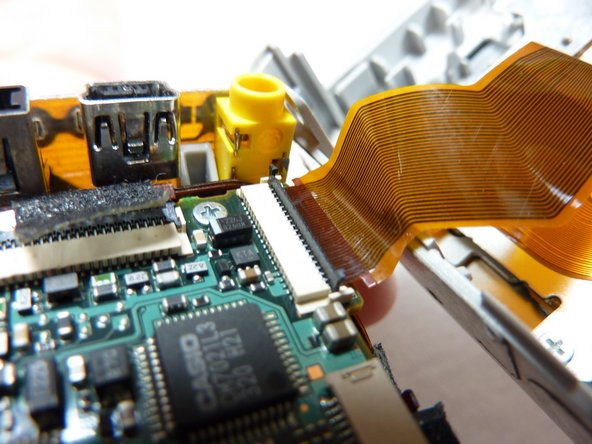

8. Step 7
  Pull the ribbon cable out.
  Add Comment

  1024

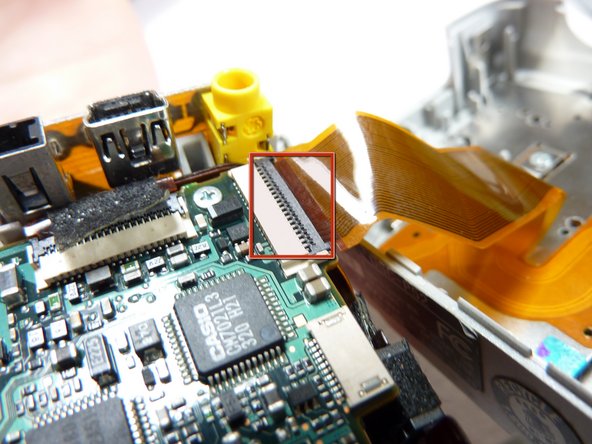

9. Step 8
  Unclip the ribbon cable shown the in picture.

  Some ribbon cables do not have a clip holding them in.
  Add Comment

  1024
10. Step 9
  Pull the ribbon cable out.
  Add Comment

  1024

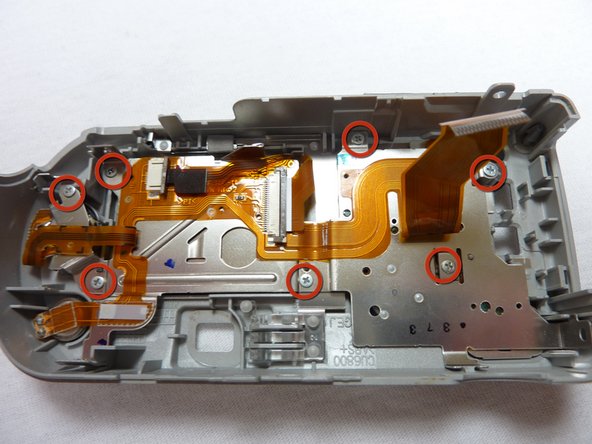

11. Step 10
  Remove 7 Screws to remove plate and expose LCD screen.
  Add Comment

  1024

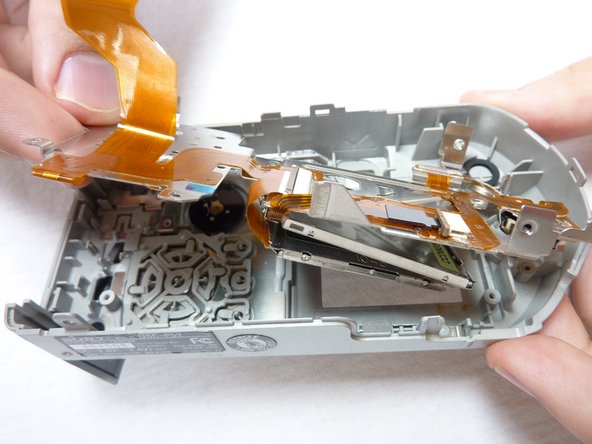

12. Step 11
  Remove LCD plate to expose LCD components and ribbon cables
  Add Comment

  1024

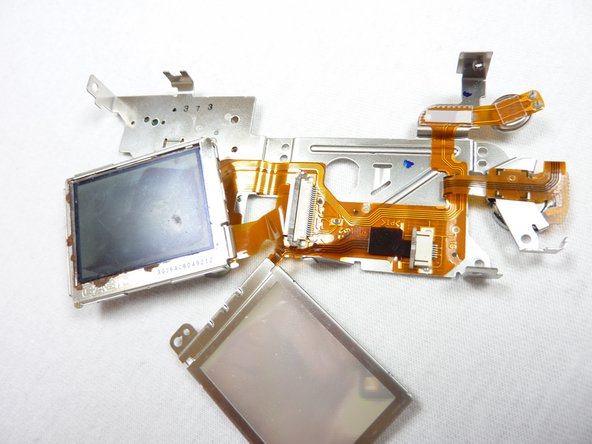

13. Step 12
  Check connection of LCD to cables

  If cables are intact, disconnect cables and replace LCD with new part
  Add Comment

  1024
14. Step 13
  Repeat steps in reverse order to reassemble the camera
