Step 1 Sony Vaio VGN-S260 Keyboard Replacement

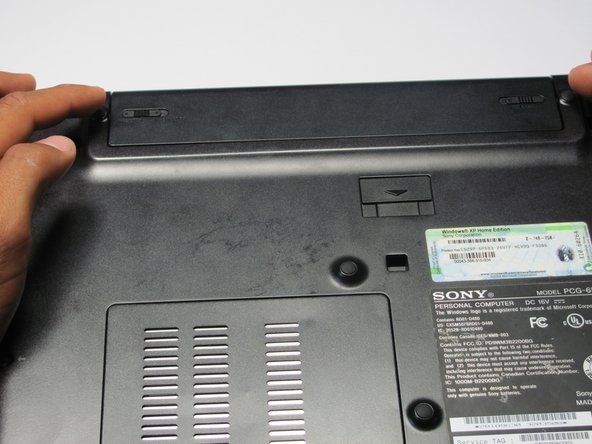

• Flip the laptop over so the Vaio logo is facing down
• Locate the battery at the top and Find the release and unlock slides on the battery
• Slide the unlock tab to the unlock position
• Slide the release tab in the direction of the arrow, i.e. towards the unlock tab
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 2



• With the tabs still in the unlock position, slide the battery away from the main case.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 3

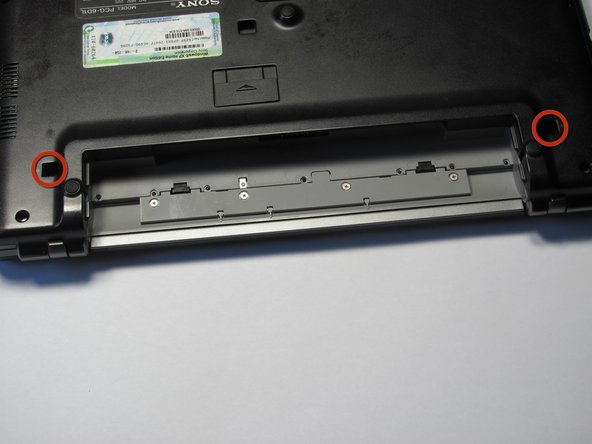

• Flip the computer over so the Vaio logo is facedown
• Unscrew the 2 screws next to the battery
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 4

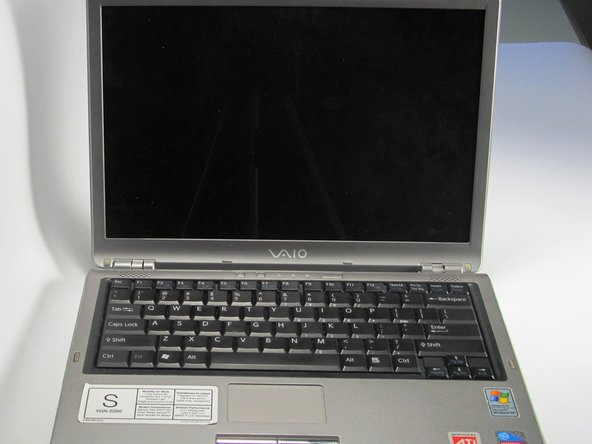

• Flip the computer over again so the Vaio logo is face up
• Open the lid
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 5

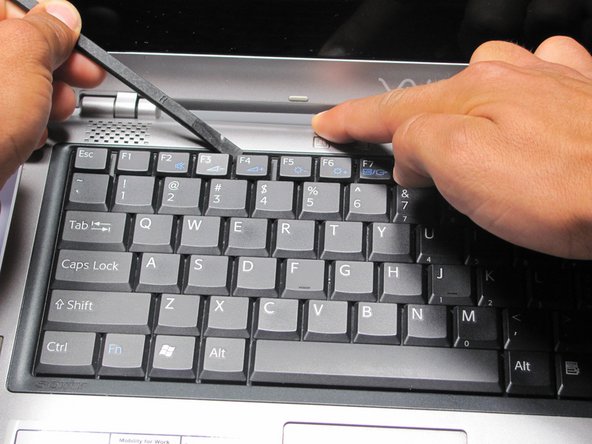

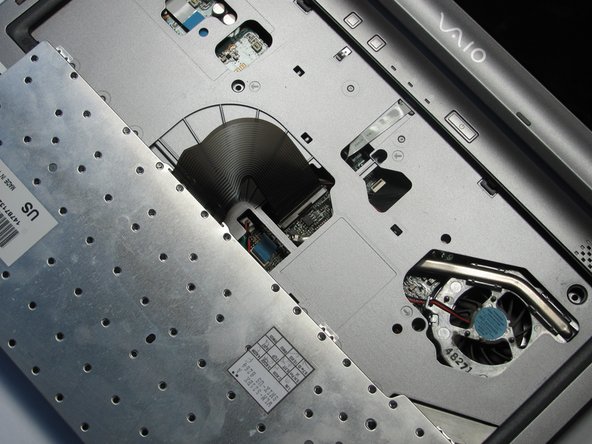

• Press down on the outer gray shell around the keyboard
• Use the spudger to gently lift keyboard
• Do not pull up the keyboard too far as it is attached to a ribbon underneath
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 6

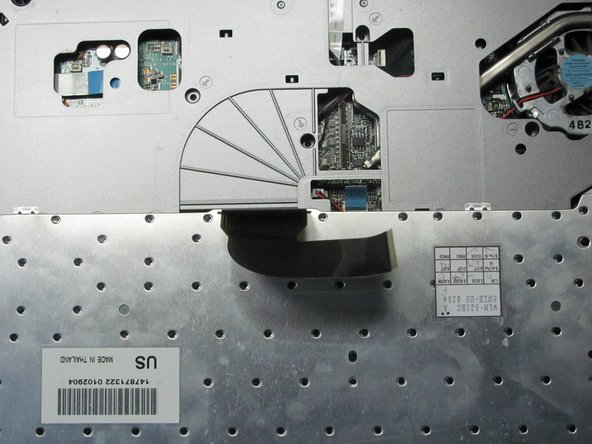

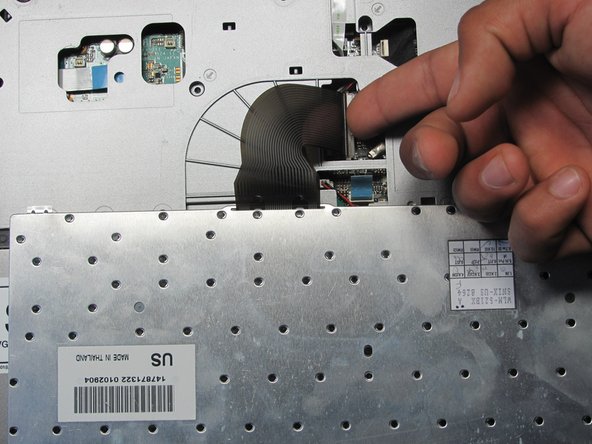

• Lift up lever underneath the ribbon to detach the keyboard.
