Sony Vaio VGN-S260 Optical Drive Replacement

What you need

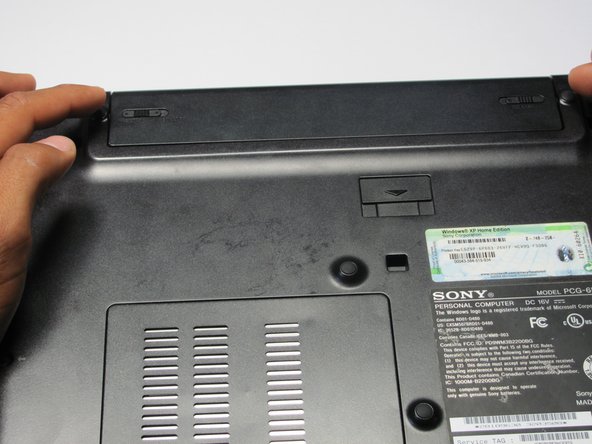

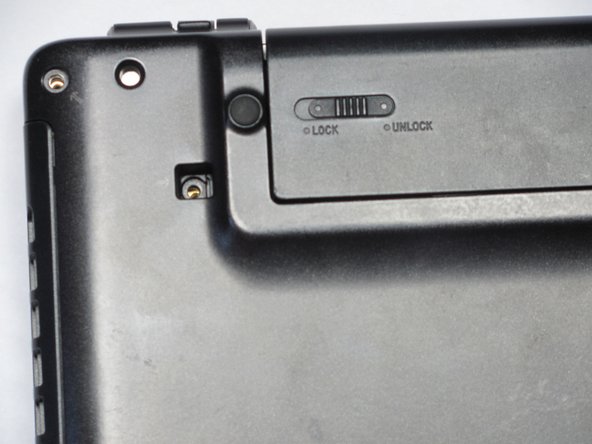

  1. Sony Vaio VGN-S260 Optical Drive Replacement, Sony Vaio VGN-S260 Optical Drive Replacement: step 1, image 1 of 3 Sony Vaio VGN-S260 Optical Drive Replacement, Sony Vaio VGN-S260 Optical Drive Replacement: step 1, image 2 of 3 Sony Vaio VGN-S260 Optical Drive Replacement, Sony Vaio VGN-S260 Optical Drive Replacement: step 1, image 3 of 3
    • Flip the laptop over so the Vaio logo is facing down

    • Locate the battery at the top and Find the release and unlock slides on the battery

    • Slide the unlock tab to the unlock position

    • Slide the release tab in the direction of the arrow, i.e. towards the unlock tab

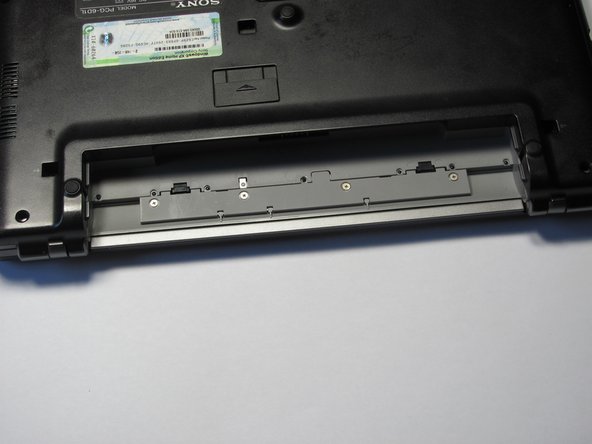

  2. Sony Vaio VGN-S260 Optical Drive Replacement: step 2, image 1 of 2 Sony Vaio VGN-S260 Optical Drive Replacement: step 2, image 2 of 2
    • With the tabs still in the unlock position, slide the battery away from the main case.

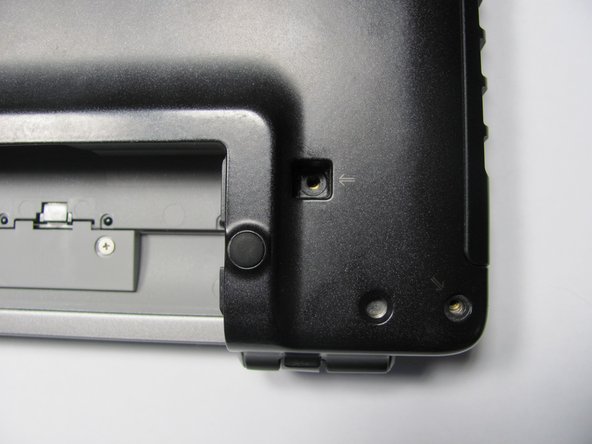

  3. Sony Vaio VGN-S260 Optical Drive Replacement: step 3, image 1 of 2 Sony Vaio VGN-S260 Optical Drive Replacement: step 3, image 2 of 2
    • Flip the computer over so the Vaio logo is facedown

    • Unscrew the 2 screws next to the battery

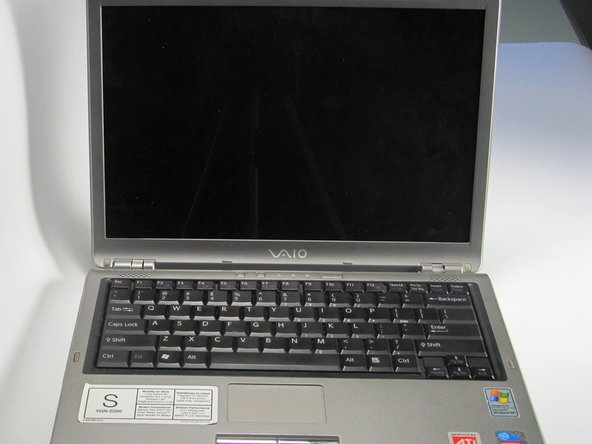

  4. Sony Vaio VGN-S260 Optical Drive Replacement: step 4, image 1 of 1
    • Flip the computer over again so the Vaio logo is face up

    • Open the lid

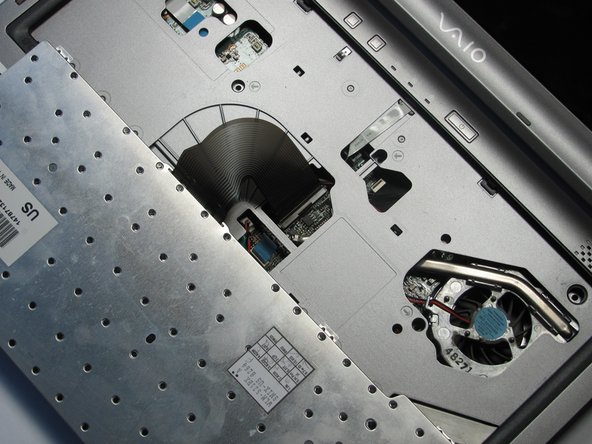

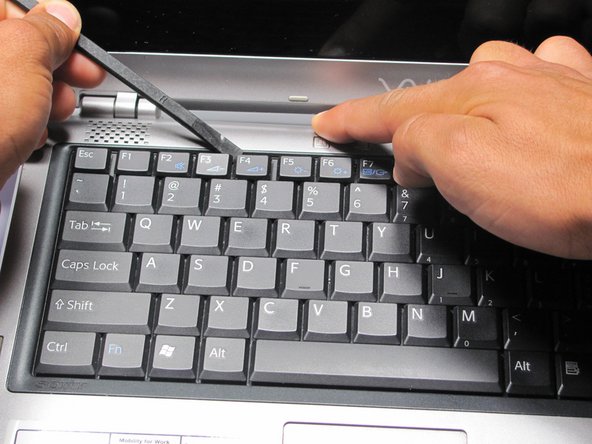

  5. Sony Vaio VGN-S260 Optical Drive Replacement: step 5, image 1 of 2 Sony Vaio VGN-S260 Optical Drive Replacement: step 5, image 2 of 2
    • Press down on the outer gray shell around the keyboard

    • Use the spudger to gently lift keyboard

    • Do not pull up the keyboard too far as it is attached to a ribbon underneath

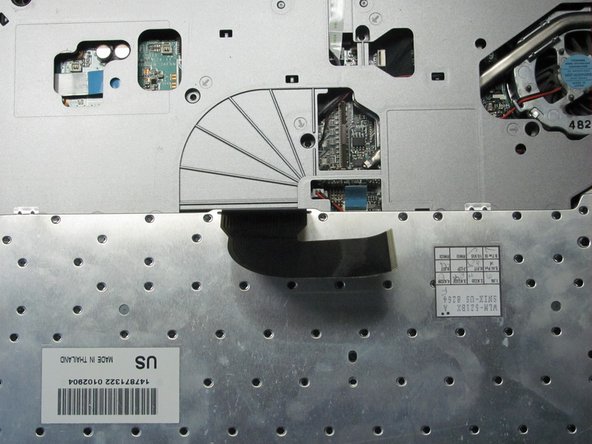

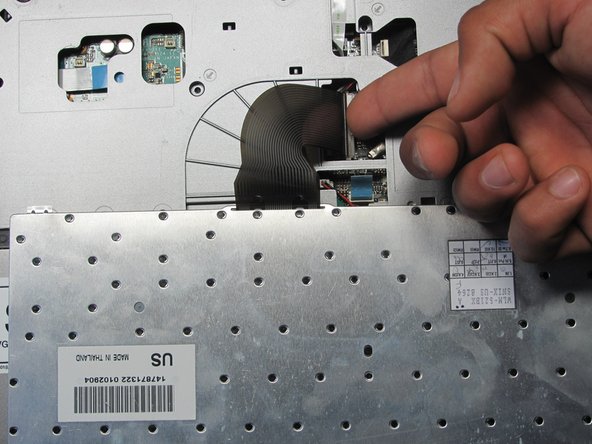

  6. Sony Vaio VGN-S260 Optical Drive Replacement: step 6, image 1 of 2 Sony Vaio VGN-S260 Optical Drive Replacement: step 6, image 2 of 2
    • Lift up lever underneath the ribbon to detach the keyboard.

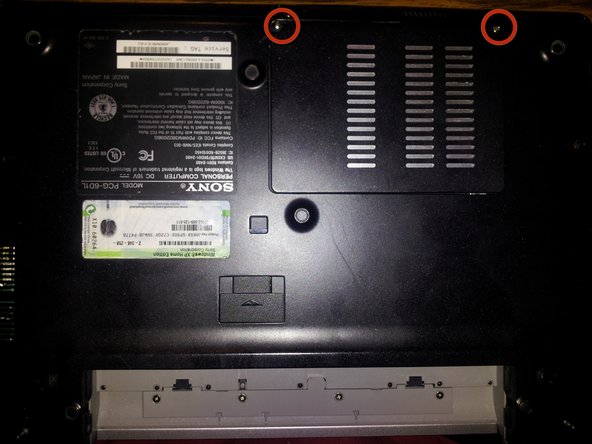

  7. Sony Vaio VGN-S260 Optical Drive Replacement: step 7, image 1 of 1
    • Remove memory/wireless compartment cover

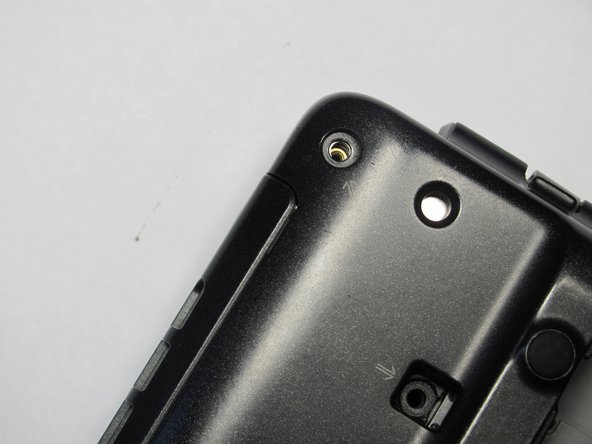

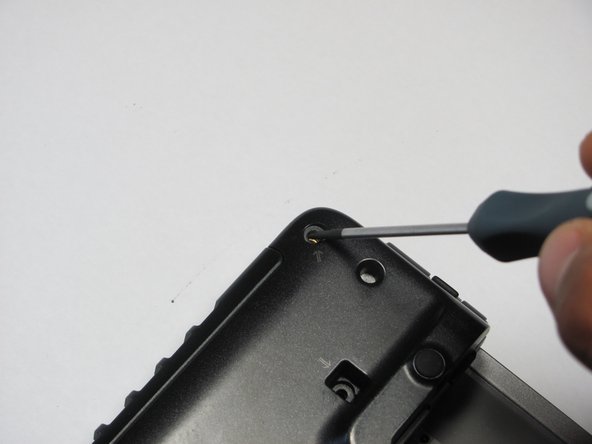

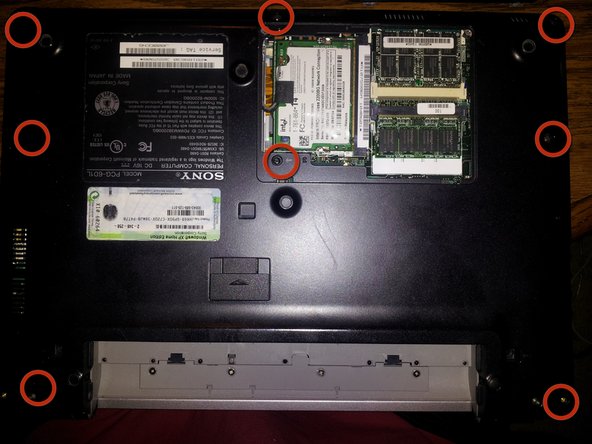

  8. Sony Vaio VGN-S260 Optical Drive Replacement: step 8, image 1 of 3 Sony Vaio VGN-S260 Optical Drive Replacement: step 8, image 2 of 3 Sony Vaio VGN-S260 Optical Drive Replacement: step 8, image 3 of 3
    • Flip so the Vaio Logo is face down

    • Locate and remove a total of 8 screws on the bottom.

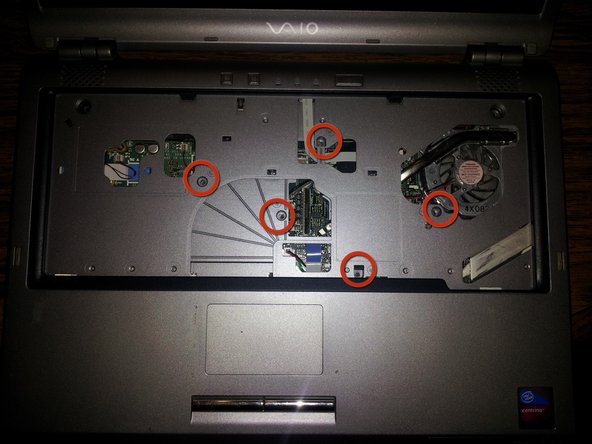

  9. Sony Vaio VGN-S260 Optical Drive Replacement: step 9, image 1 of 1
    • Find and remove 5 screws (they all have arrows next to them) from cover

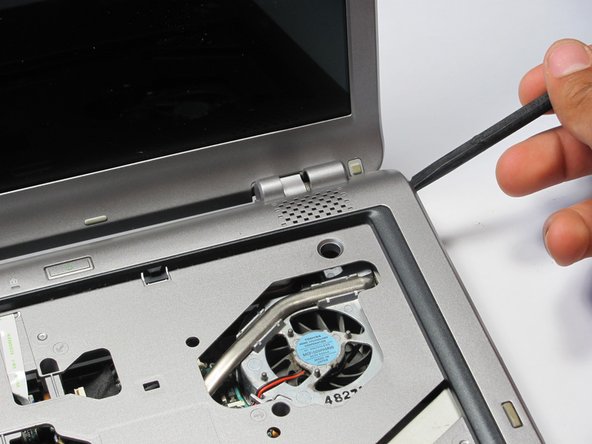

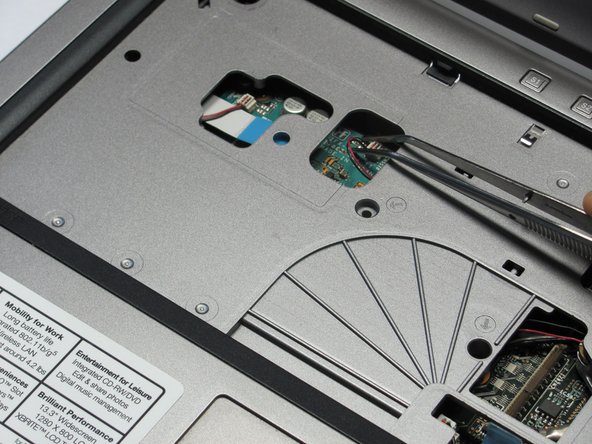

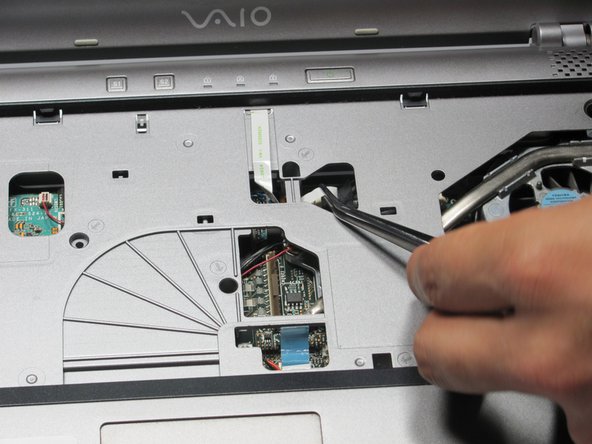

  10. Sony Vaio VGN-S260 Optical Drive Replacement: step 10, image 1 of 3 Sony Vaio VGN-S260 Optical Drive Replacement: step 10, image 2 of 3 Sony Vaio VGN-S260 Optical Drive Replacement: step 10, image 3 of 3
    • Flip the laptop over so the Vaio logo is face up

    • Use the spudger to pop up the upper casing

    • Do not lift too much as the Uppercasing is attached to wires underneath

    • Remove the wires that are attaching the uppercasing to the motherboard

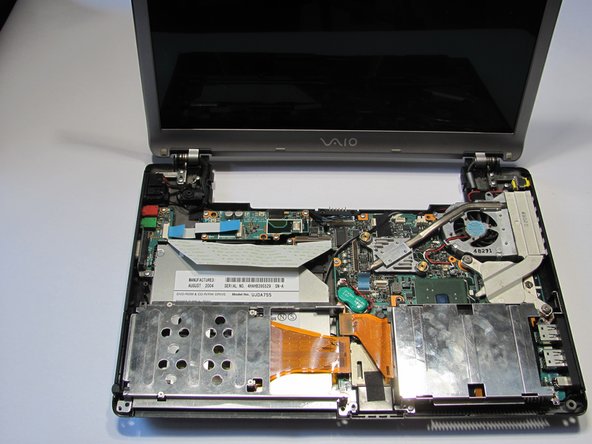

  11. Sony Vaio VGN-S260 Optical Drive Replacement: step 11, image 1 of 1
    • Remove the uppercasing

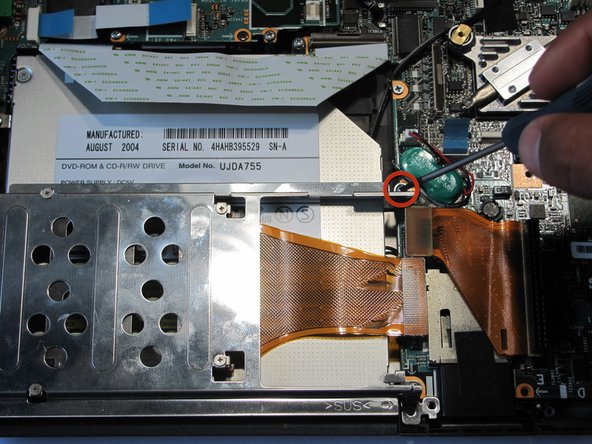

  12. Sony Vaio VGN-S260 Optical Drive Replacement: step 12, image 1 of 1
    • Locate the screw holding the optical drive casing to the logic board

    • Remove this screw

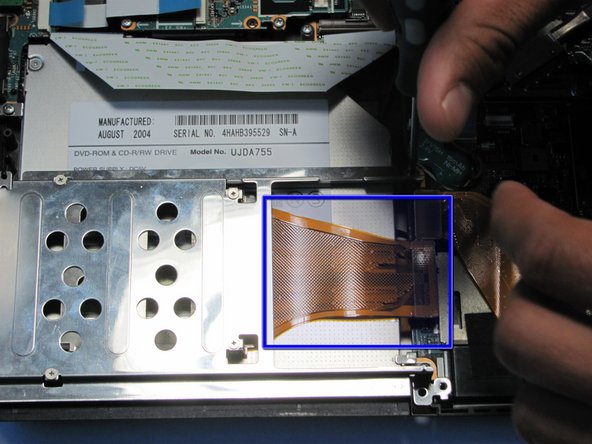

  13. Sony Vaio VGN-S260 Optical Drive Replacement: step 13, image 1 of 1
    • Locate ribbon connecting optical drive case to logic board.

    • Pop off the ribbon

    • Remove the metal PC-Card cage

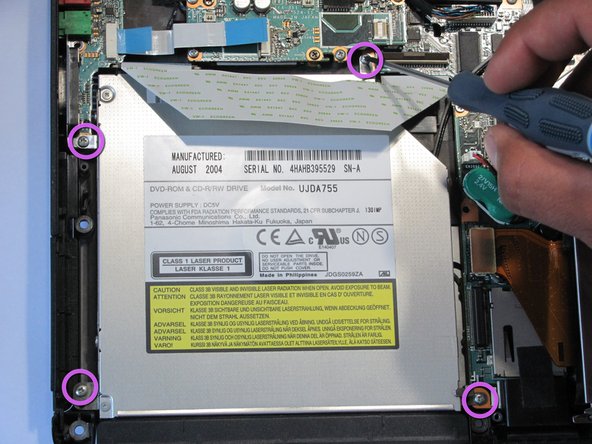

  14. Sony Vaio VGN-S260 Optical Drive Replacement: step 14, image 1 of 1
    • Locate the four screws holding the optical drive to the logic board

    • Remove the screws

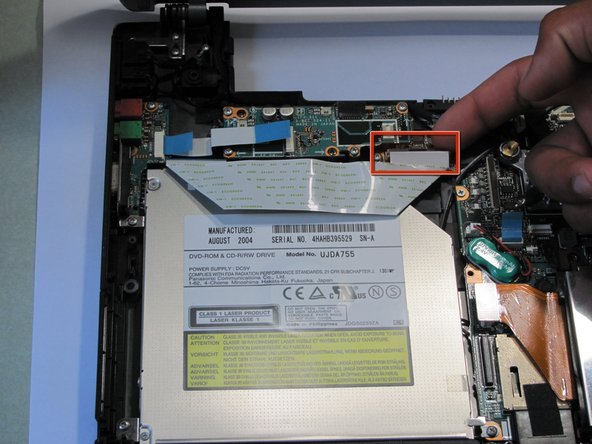

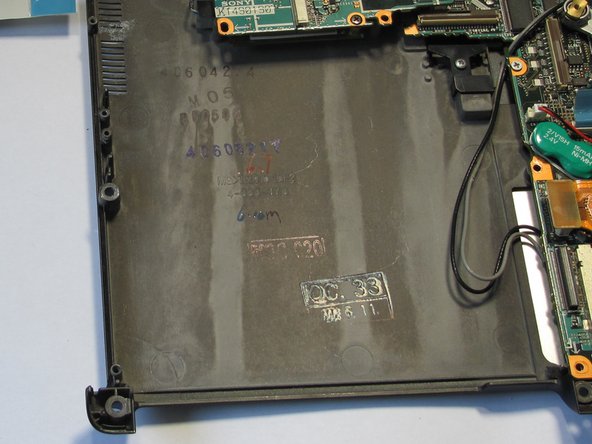

  15. Sony Vaio VGN-S260 Optical Drive Replacement: step 15, image 1 of 2 Sony Vaio VGN-S260 Optical Drive Replacement: step 15, image 2 of 2
    • Locate brown locking tab above optical drive.

    • Lift up on brown locking tab until ribbon is loose

    • Gently slide out and remove the optical drive from the computer

Conclusion

To reassemble your device, follow these instructions in reverse order.
