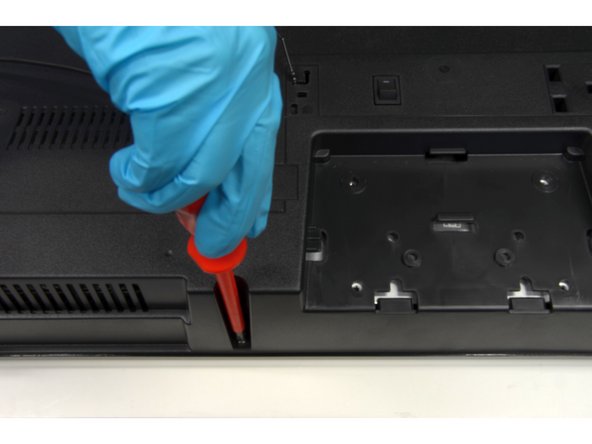

  1. Place the TV screen side-down. Using PH#2 screwdriver, begin to loose the screws of the back-casing (highlighted in green boxes).
    • Place the TV screen side-down.

    • Using PH#2 screwdriver, begin to loose the screws of the back-casing (highlighted in green boxes).

    • Using PH#1 screwdriver, finish loosening the last two screws which are located in the connectors' square.

    • Manually pry open the back-casing from the front-frame.

    • Disconnect connectors from cables and switchers.

    • Remove the plastic back-casing.

  2. Remove cables: Disconnect four connectors (highlighted in red boxes) and two clips, and trip off the tapes used to fix cables to the metal casing. Remove Printed Circuit Boards (PCB): Using PH#1 screwdriver, begin to loose the ten screws (highlighted in green boxes). Remove Printed Circuit Boards (PCB): Using PH#1 screwdriver, begin to loose the ten screws (highlighted in green boxes).
    • Remove cables: Disconnect four connectors (highlighted in red boxes) and two clips, and trip off the tapes used to fix cables to the metal casing.

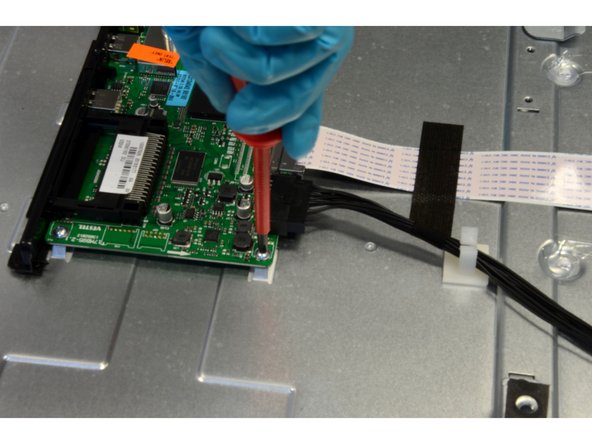

    • Remove Printed Circuit Boards (PCB): Using PH#1 screwdriver, begin to loose the ten screws (highlighted in green boxes).

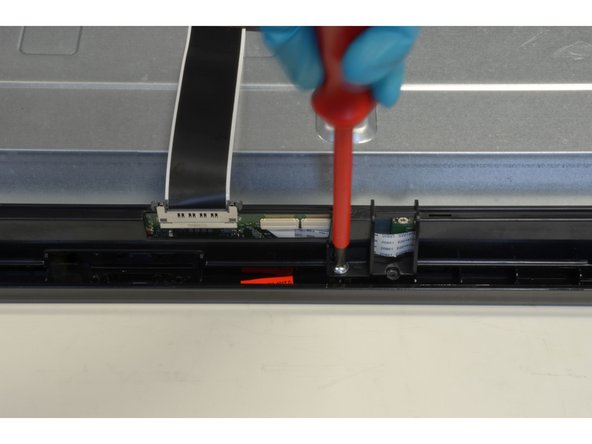

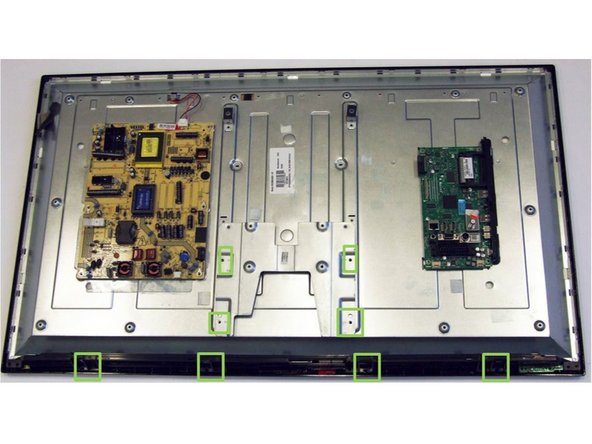

  3. Using PH#2 screwdriver, loose eight screws of plastic and metal mountings used to protect different PCBs. Using PH#2 screwdriver, loose eight screws of plastic and metal mountings used to protect different PCBs.
    • Using PH#2 screwdriver, loose eight screws of plastic and metal mountings used to protect different PCBs.

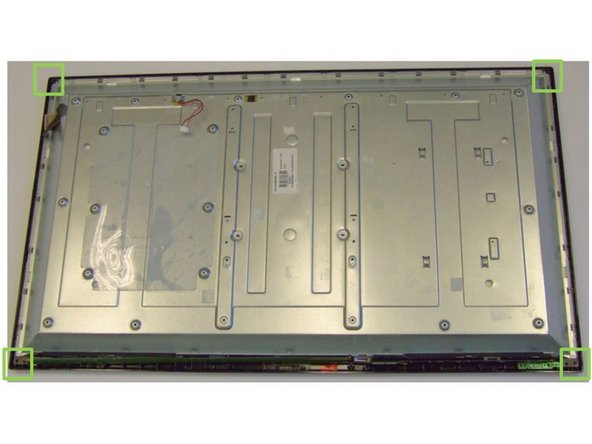

  4. Using PH#1 screwdriver, loose the four screws of each corner (highlighted in green boxes). Manually pull the front-frame out levering the fiftteen clips.
    • Using PH#1 screwdriver, loose the four screws of each corner (highlighted in green boxes).

    • Manually pull the front-frame out levering the fiftteen clips.

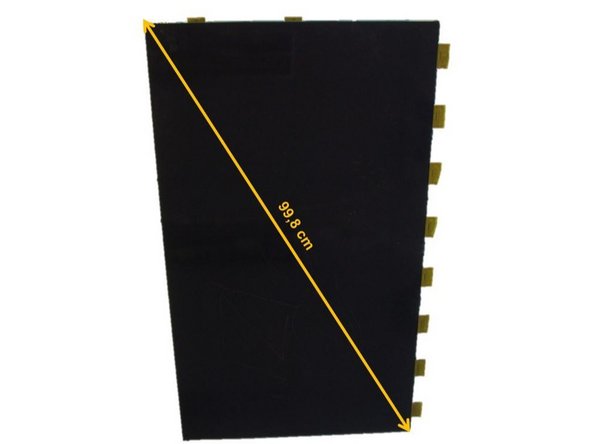

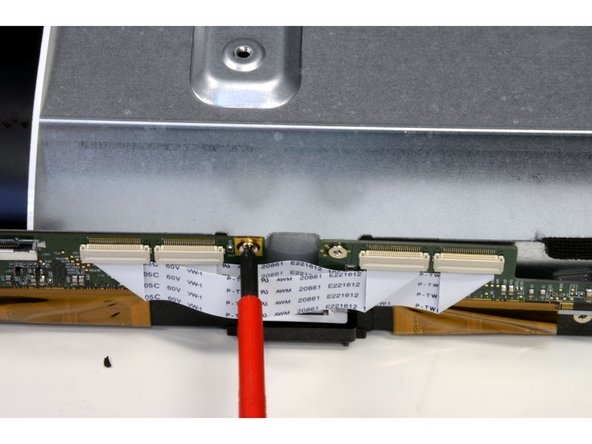

  5. Using PH#2 screwdriver, loose six screws that fix the LCD PCBs to the back metal-casing. Carefully turn the screen up and remove the freed LCD panel.
    • Using PH#2 screwdriver, loose six screws that fix the LCD PCBs to the back metal-casing.

    • Carefully turn the screen up and remove the freed LCD panel.

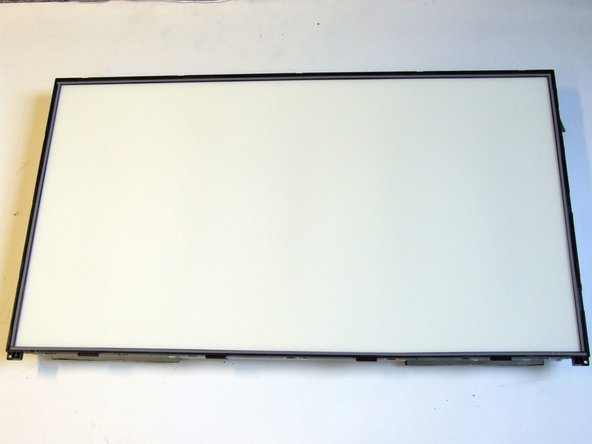

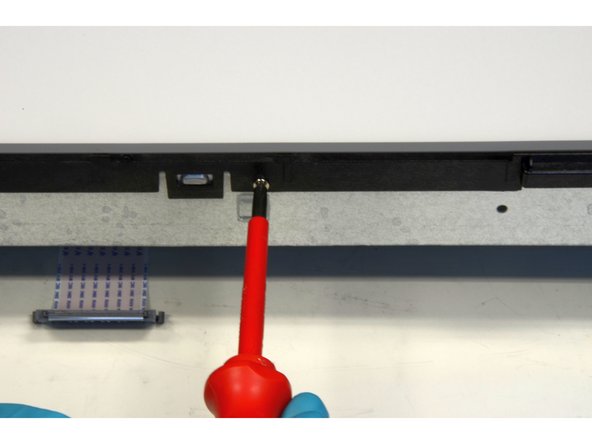

  6. Using PH#1 screwdriver, begin to loose the eighteen screws located in the exterior of the inner frame. Starting from the right corner, continue to work your way counterclockwise. Manually pull the frame off by levering the twenty-five clips.
    • Using PH#1 screwdriver, begin to loose the eighteen screws located in the exterior of the inner frame.

    • Starting from the right corner, continue to work your way counterclockwise.

    • Manually pull the frame off by levering the twenty-five clips.

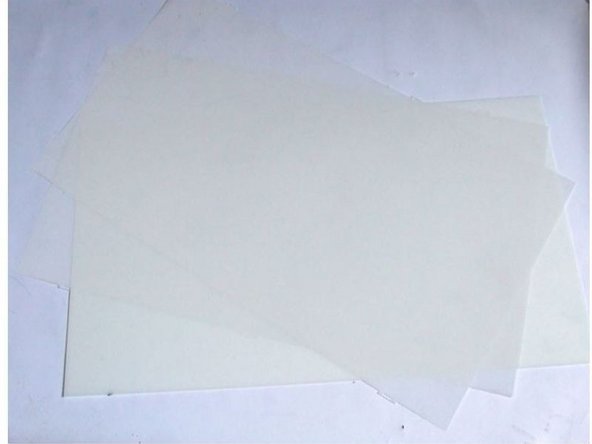

    • Remove the already exposed polarized foils.

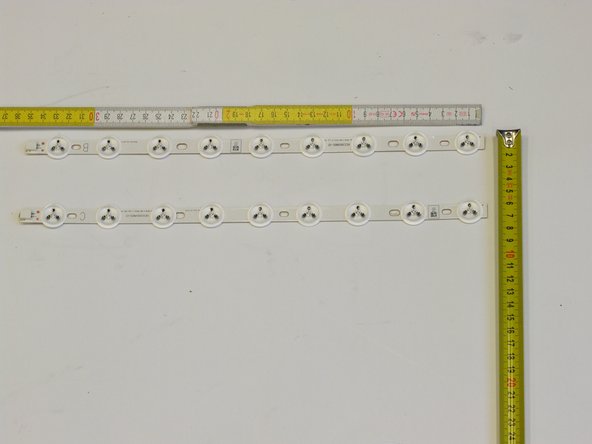

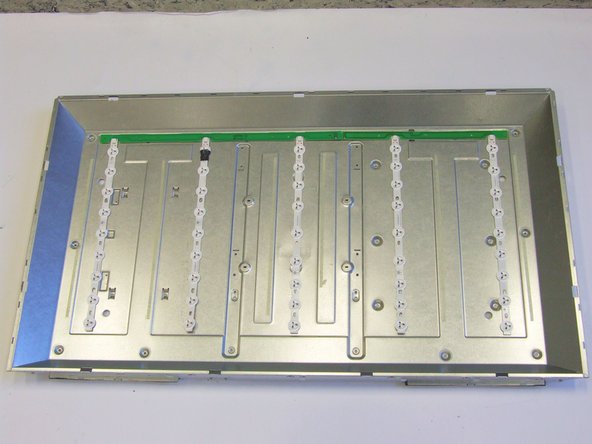

  7. Using PH#1 screwdriver, loose the five screws of the two connection PCBs. Using slotted screwdriver, lever the LED PCBs one by one. Using slotted screwdriver, lever the LED PCBs one by one.
    • Using PH#1 screwdriver, loose the five screws of the two connection PCBs.

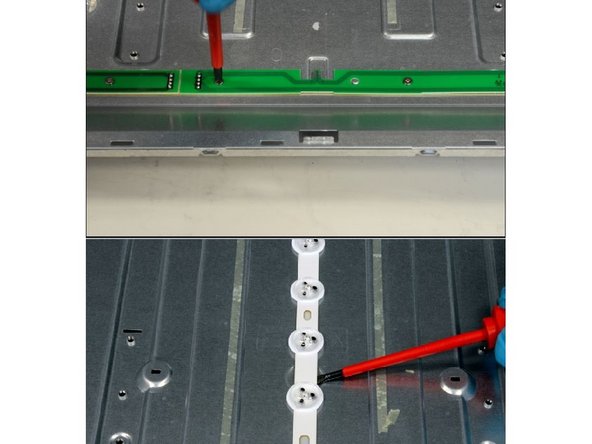

    • Using slotted screwdriver, lever the LED PCBs one by one.

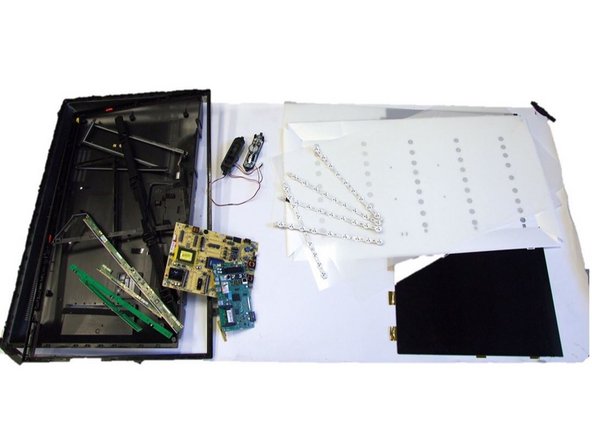

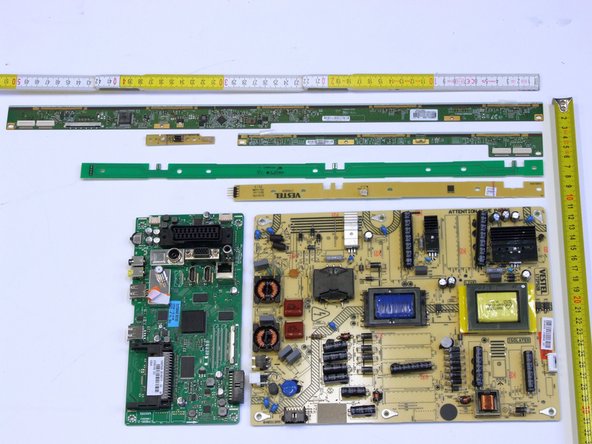

  8. All fractions obtained after TV dismantling.
    • All fractions obtained after TV dismantling.
