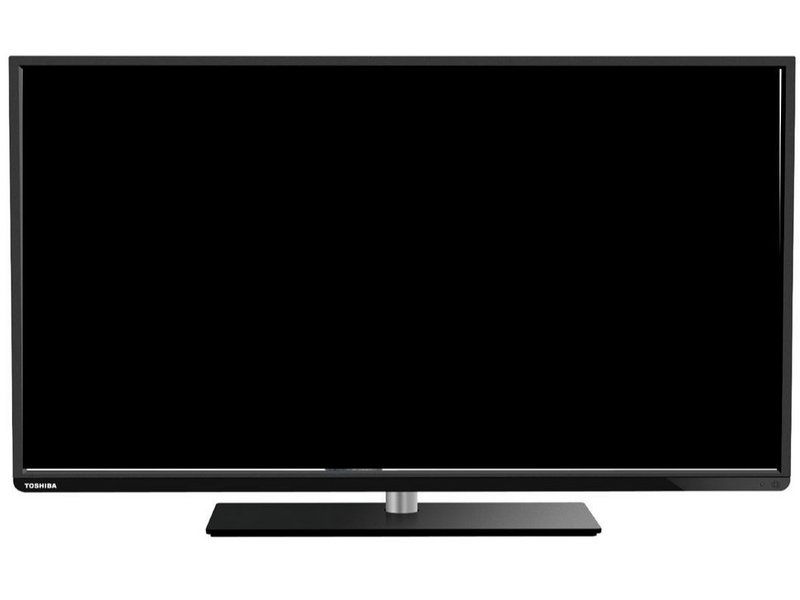

Toshiba 48L1443DG TV set

What you need

  1. Toshiba 48L1443DG TV set, Opening: step 1, image 1 of 2 Toshiba 48L1443DG TV set, Opening: step 1, image 2 of 2
    • Place the TV Screen side-down.

    • Using PH#2 screwdriver, begin to loose the screws of the back-casing (highlighted in green boxes).

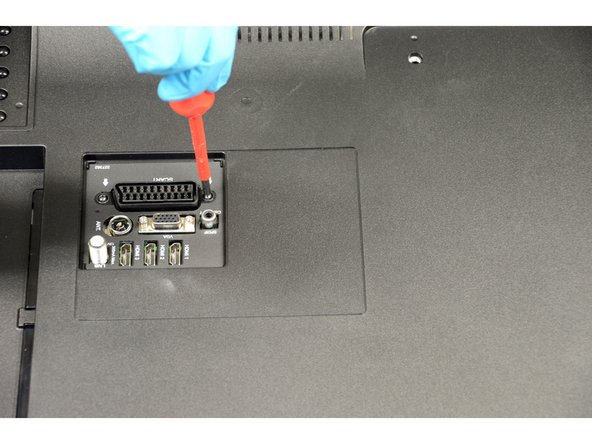

    • Using PH#1 screwdriver, finish loosening the last two screws which are located in the connectors' square.

    • Manually pry twelve clips that fix the back-housing attached to the front frame.

    • Disconnect connectors from cables and switchers (red box).

    • Remove the plastic back-casing.

  2. Toshiba 48L1443DG TV set, Removal of Printed Circuit Boards (PCB): step 2, image 1 of 3 Toshiba 48L1443DG TV set, Removal of Printed Circuit Boards (PCB): step 2, image 2 of 3 Toshiba 48L1443DG TV set, Removal of Printed Circuit Boards (PCB): step 2, image 3 of 3

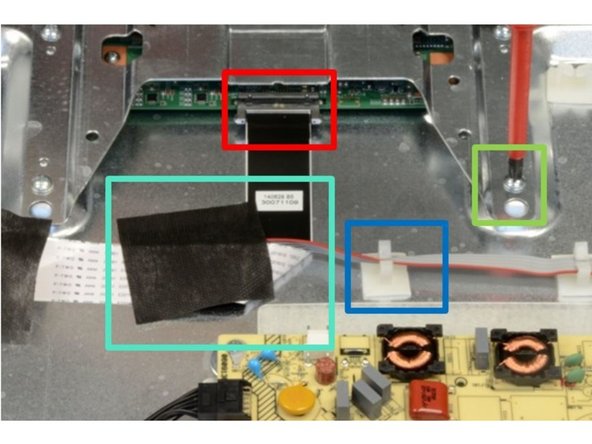

    • Remove cables: Disconnect nine connectors (highlighted in red boxes) and twelve clips, and trip off the tapes used to fix cables to the metal casing.

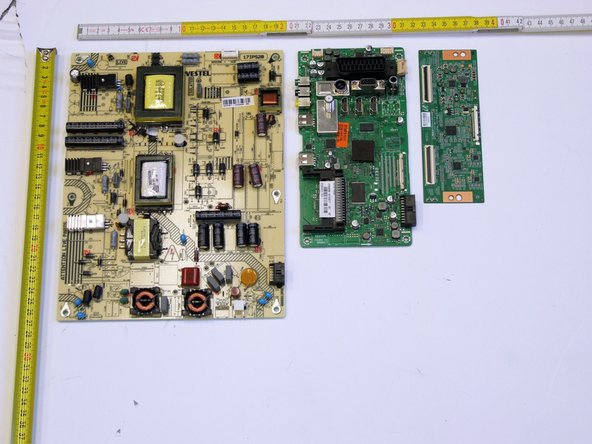

    • Remove Printed Circuit Boards (PCB): Using PH#2 screwdriver, loose the four screws of the protective metal part.

    • Then, using PH#1 screwdriver, loose the sixteen screws (highlighted in green boxes) of the PCBs.

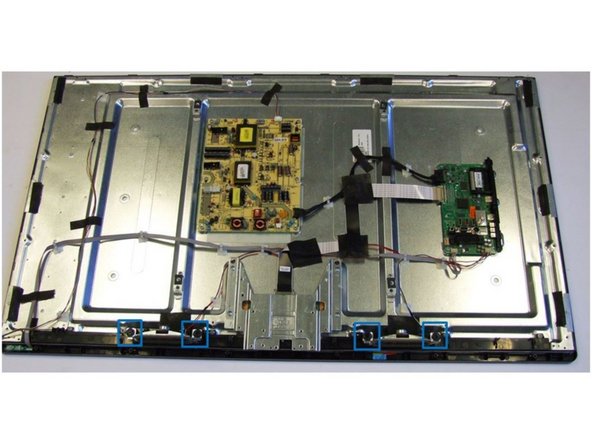

  3. Toshiba 48L1443DG TV set, Removal of Speakers: step 3, image 1 of 1
    • Remove the speakers by extracting them manually from their mountings (blue boxes).

  4. Toshiba 48L1443DG TV set, Removal of Liquid Crystal Display (LCD) 1/2: step 4, image 1 of 3 Toshiba 48L1443DG TV set, Removal of Liquid Crystal Display (LCD) 1/2: step 4, image 2 of 3 Toshiba 48L1443DG TV set, Removal of Liquid Crystal Display (LCD) 1/2: step 4, image 3 of 3

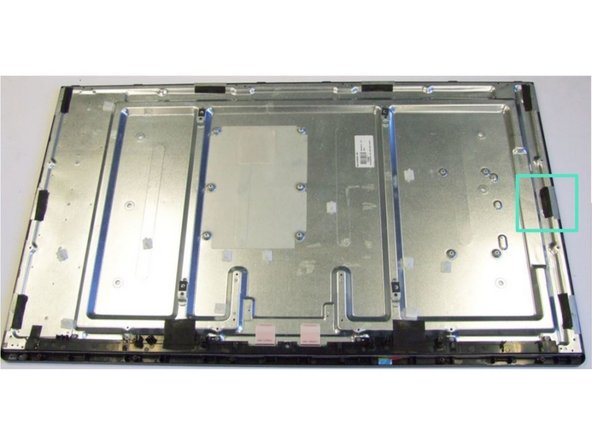

    • Trip off adhesives in the sides of the metal back-casing (turquoise box).

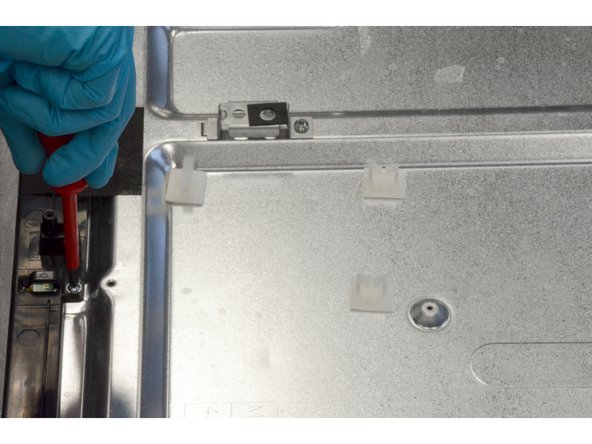

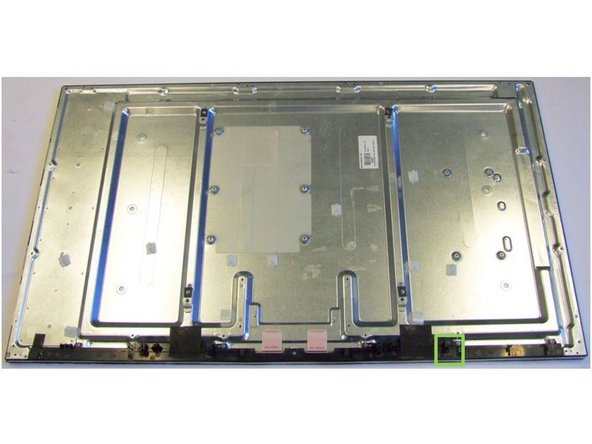

    • Using PH#1 screwdriver, begin to loose the thirty-three screws of the back-side (green box).

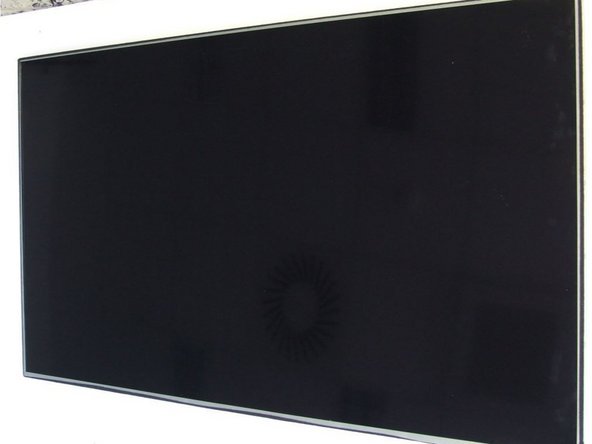

  5. Toshiba 48L1443DG TV set, Removal of Liquid Crystal Display (LCD) 2/2: step 5, image 1 of 3 Toshiba 48L1443DG TV set, Removal of Liquid Crystal Display (LCD) 2/2: step 5, image 2 of 3 Toshiba 48L1443DG TV set, Removal of Liquid Crystal Display (LCD) 2/2: step 5, image 3 of 3

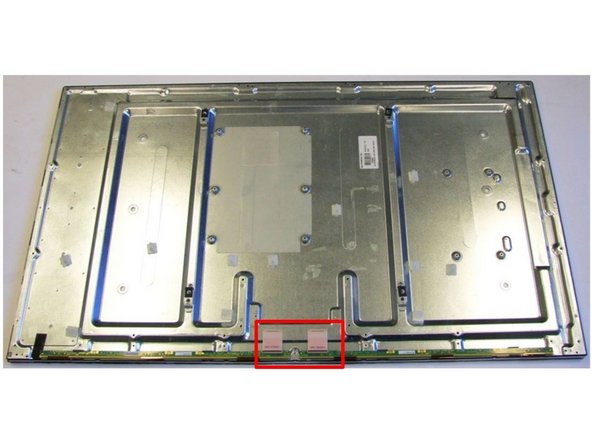

    • Continue to work your way around the sides until you can pull off the LCD PCB protective plastic part.

    • Then, loose the two connectors of PCBs (red box).

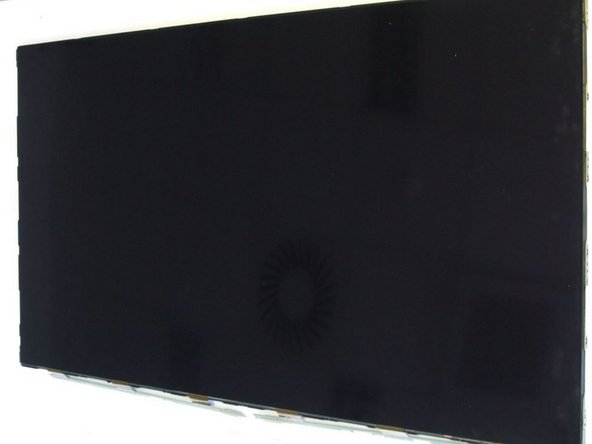

    • Carefully place the TV screen upwards and remove the front frame and LCD panel.

  6. Toshiba 48L1443DG TV set, Removal of Polarized Foils: step 6, image 1 of 2 Toshiba 48L1443DG TV set, Removal of Polarized Foils: step 6, image 2 of 2

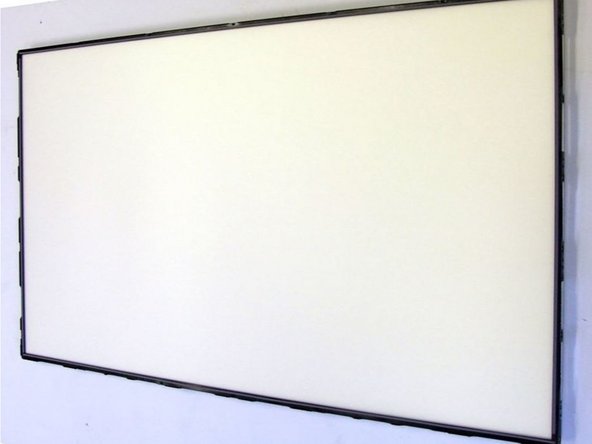

    • Manually pull the inner frame off by levering the twenty-four clips.

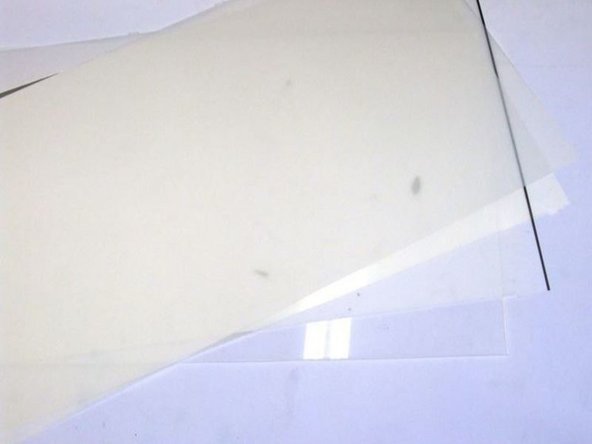

    • Remove the already exposed polarized foils.

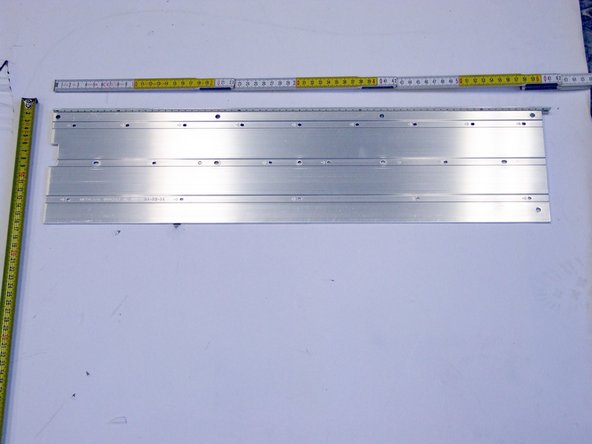

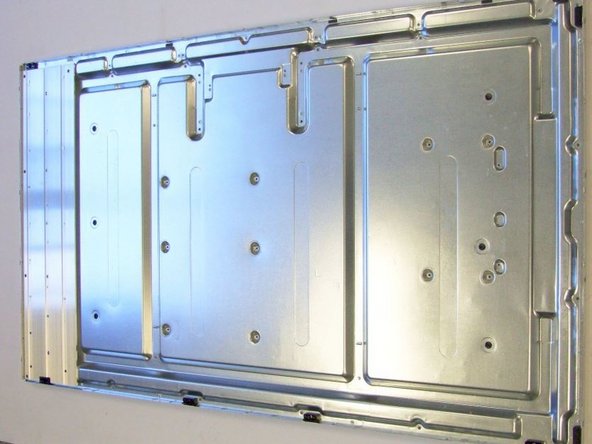

  7. Toshiba 48L1443DG TV set, Removal of Backlights (LED): step 7, image 1 of 3 Toshiba 48L1443DG TV set, Removal of Backlights (LED): step 7, image 2 of 3 Toshiba 48L1443DG TV set, Removal of Backlights (LED): step 7, image 3 of 3

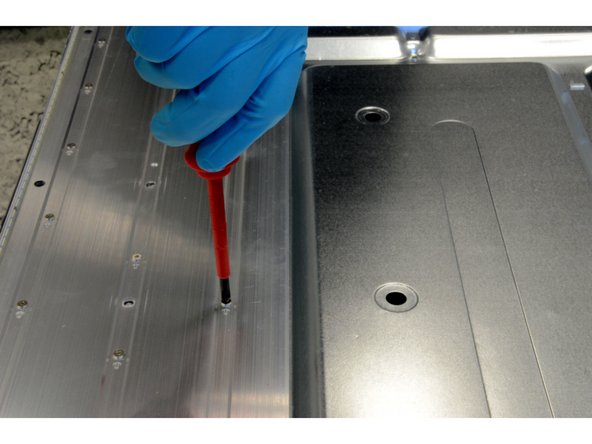

    • Using PH#1 screwdriver, loose eighteen screws and remove the metal mounting with the LED PCBs.

    • Using slotted screwdriver, separate the PCB from the metal part. Note that this step is destructive.

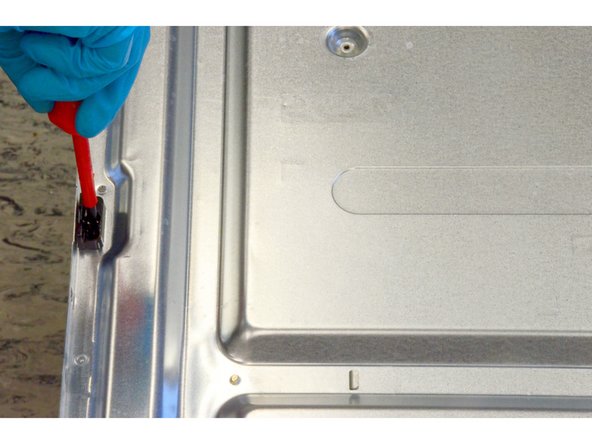

  8. Toshiba 48L1443DG TV set, Removal of Small Plastic Parts: step 8, image 1 of 2 Toshiba 48L1443DG TV set, Removal of Small Plastic Parts: step 8, image 2 of 2

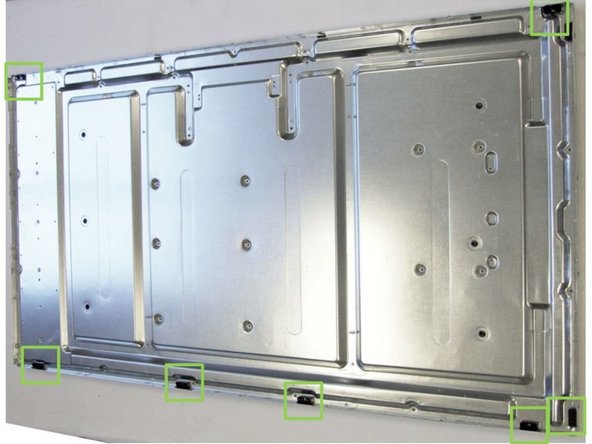

    • Remove plastic parts with PH#1 screwdriver and unscrew seven screws used to attach them to the metal-casing.

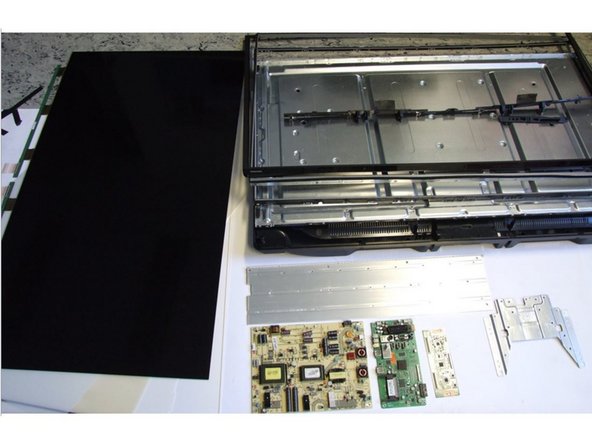

  9. Toshiba 48L1443DG TV set, TV Dismantling Fractions: step 9, image 1 of 1
    • All fractions obtained after TV dismantling.
