Toshiba Satellite M305D-S4829 Motherboard Removal

What you need

  1. Toshiba Satellite M305D-S4829 Motherboard Removal, Toshiba Satellite M305D-S4829 Motherboard Removal: step 1, image 1 of 1
    • Unlatch the battery by pushing outward on both latches.

  2. Toshiba Satellite M305D-S4829 Motherboard Removal: step 2, image 1 of 1
    • Slide battery out.

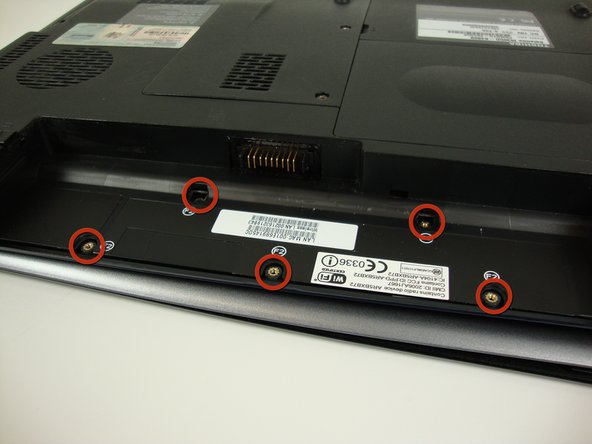

  3. Toshiba Satellite M305D-S4829 Motherboard Removal: step 3, image 1 of 1
    • Remove the five "F2" screws with a Phillips #0 screwdriver.

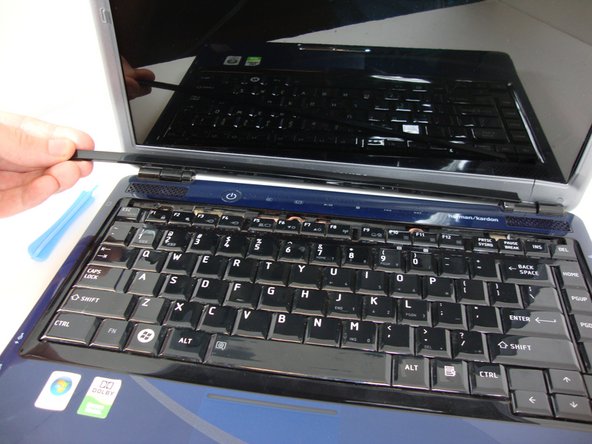

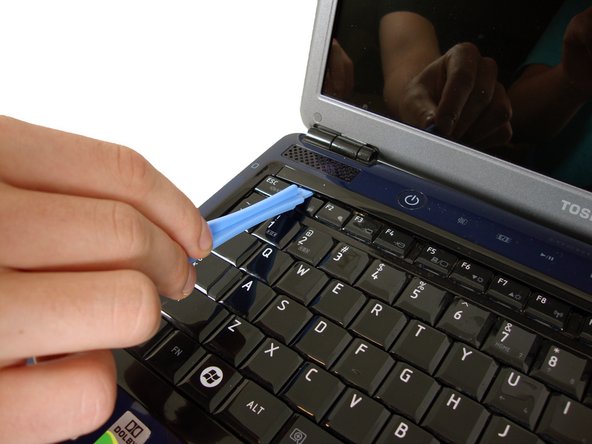

  4. Toshiba Satellite M305D-S4829 Motherboard Removal: step 4, image 1 of 2 Toshiba Satellite M305D-S4829 Motherboard Removal: step 4, image 2 of 2
    • Insert the plastic opening tool above the F1 key.

    • Apply upward pressure until the black plastic strip snaps off. The entire strip will easily come off from left to right.

  5. Toshiba Satellite M305D-S4829 Motherboard Removal: step 5, image 1 of 2 Toshiba Satellite M305D-S4829 Motherboard Removal: step 5, image 2 of 2

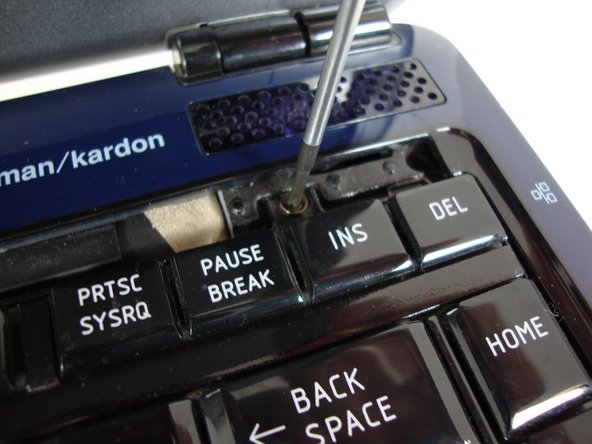

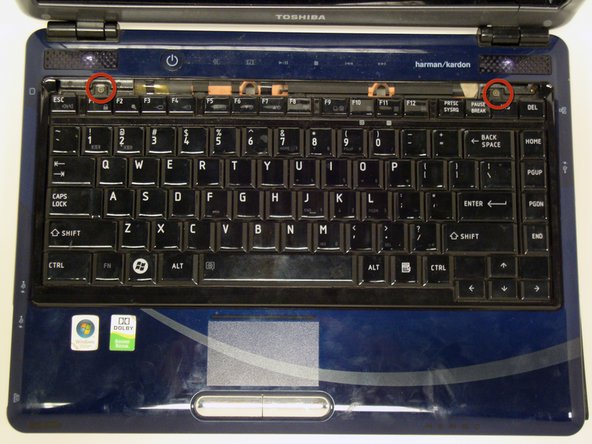

    • Find the screws above the F1 and INS keys.

    • Unscrew both screws with a Phillips #0 screwdriver.

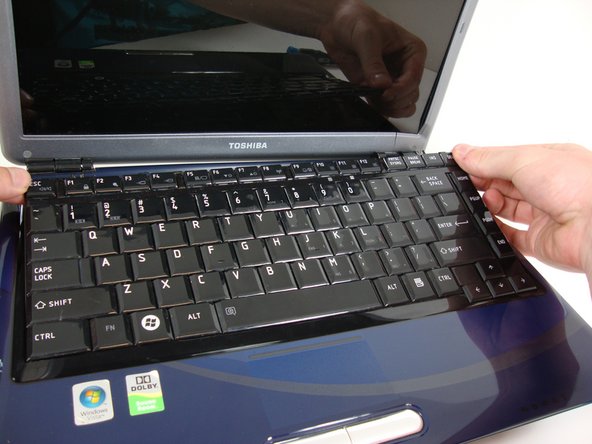

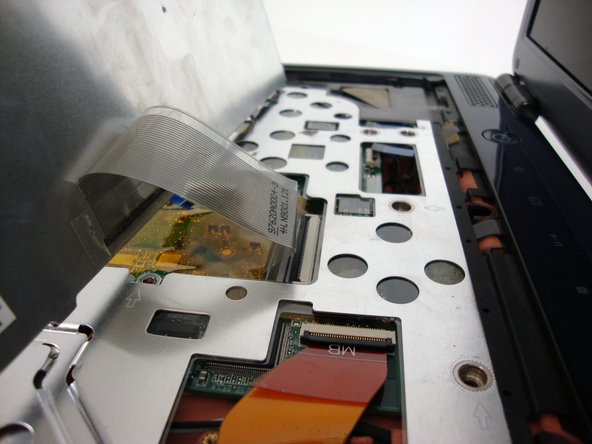

  6. Toshiba Satellite M305D-S4829 Motherboard Removal: step 6, image 1 of 2 Toshiba Satellite M305D-S4829 Motherboard Removal: step 6, image 2 of 2
    • Slowly lift the top edge of the keyboard out with your fingers.

    • The ribbon cable located on the back of the keyboard will become accessible.

  7. Toshiba Satellite M305D-S4829 Motherboard Removal: step 7, image 1 of 2 Toshiba Satellite M305D-S4829 Motherboard Removal: step 7, image 2 of 2

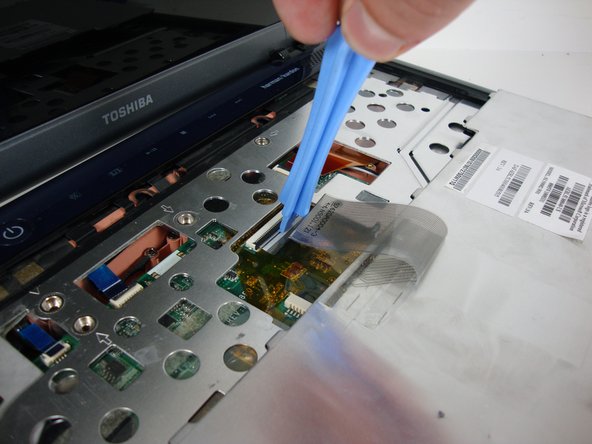

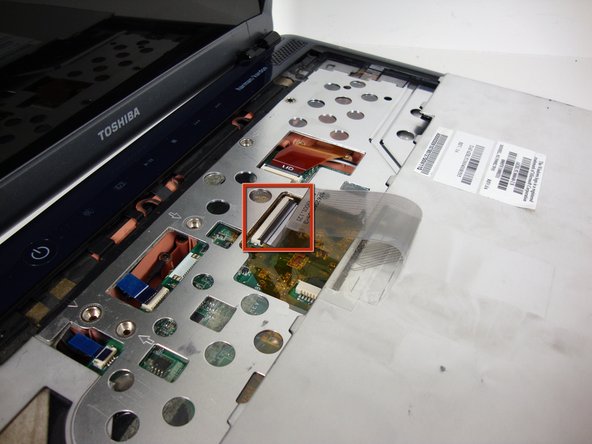

    • Locate the black ribbon cable flap.

    • Detach flap with plastic opening tool. The ribbon cable will become free.

  8. Toshiba Satellite M305D-S4829 Motherboard Removal: step 8, image 1 of 1
    • Your keyboard has now been successfully removed.

  9. Toshiba Satellite M305D-S4829 Motherboard Removal: step 9, image 1 of 1

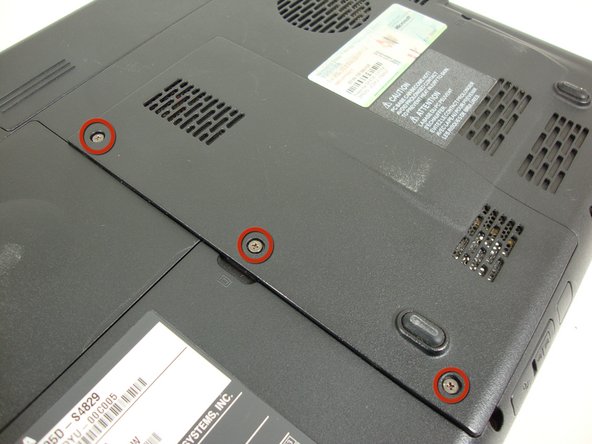

    • Remove the back panel by removing the three labeled screws with a Phillips #0 screwdriver.

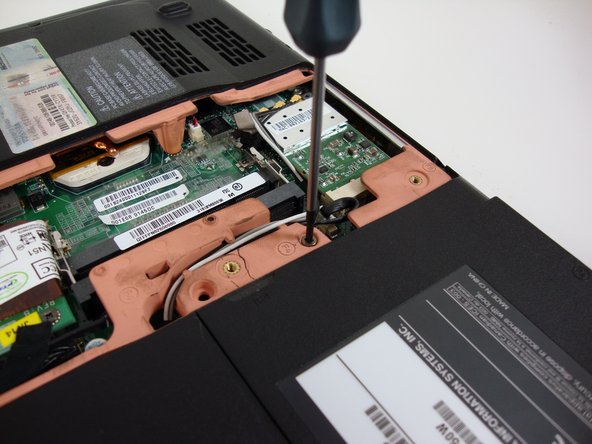

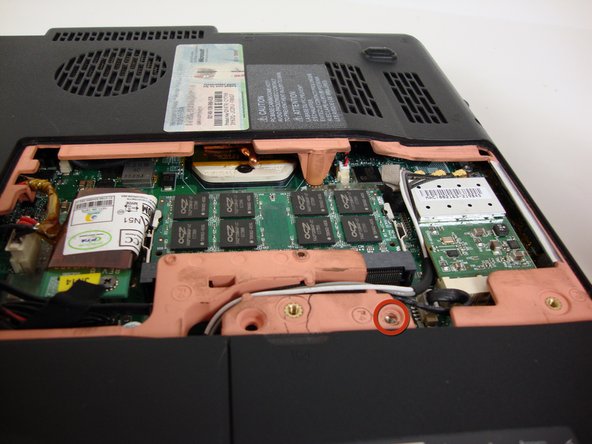

  10. Toshiba Satellite M305D-S4829 Motherboard Removal: step 10, image 1 of 2 Toshiba Satellite M305D-S4829 Motherboard Removal: step 10, image 2 of 2
    • Locate and remove the circled screw with a Phillips #0 screwdriver.

  11. Toshiba Satellite M305D-S4829 Motherboard Removal: step 11, image 1 of 1

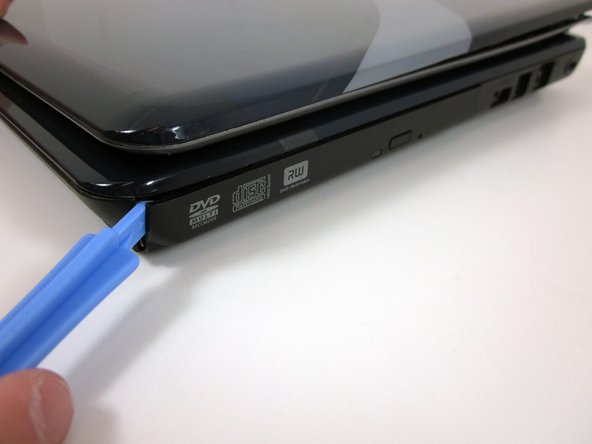

    • Use the plastic opening tool to pry the CD/DVD drive out of the frame.

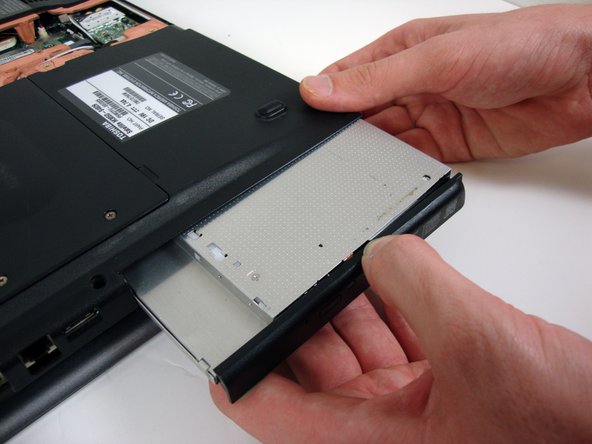

  12. Toshiba Satellite M305D-S4829 Motherboard Removal: step 12, image 1 of 1
    • Gently remove the CD/DVD drive from the laptop body.

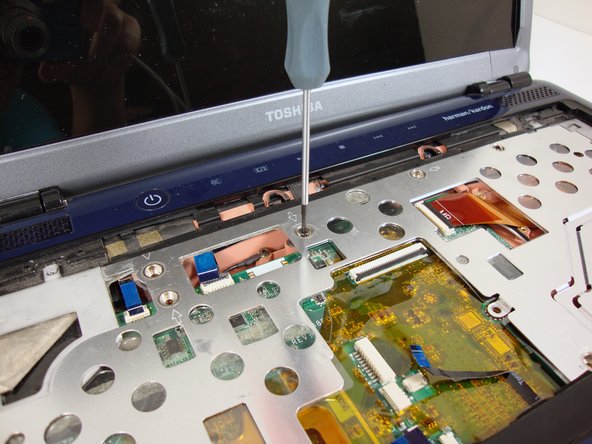

  13. Toshiba Satellite M305D-S4829 Motherboard Removal: step 13, image 1 of 2 Toshiba Satellite M305D-S4829 Motherboard Removal: step 13, image 2 of 2

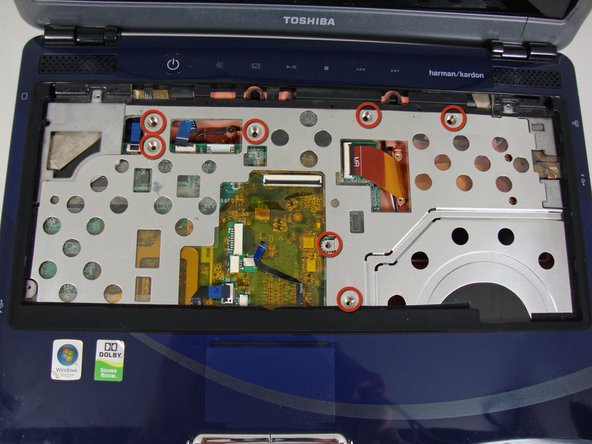

    • Remove the circled screws with Phillips #0 screwdriver.

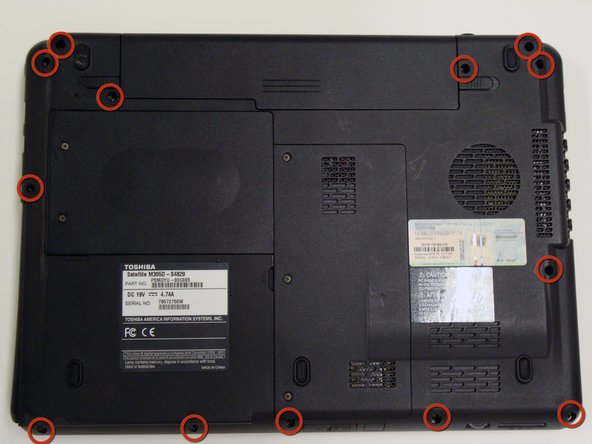

  14. Toshiba Satellite M305D-S4829 Motherboard Removal: step 14, image 1 of 1
    • Remove these screws from the underside of the laptop with Phillips #0 screwdriver.

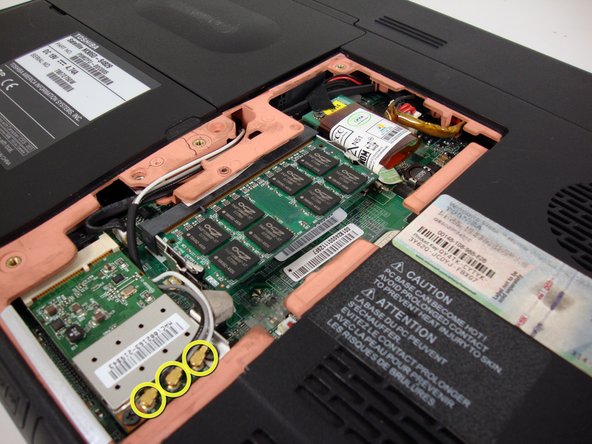

  15. Toshiba Satellite M305D-S4829 Motherboard Removal: step 15, image 1 of 1
    • Disconnect the three circled antennas by lightly pulling upward with your fingers. They should detach easily.

    • Note: Yours may only have two (2) antennas. Pay attention to the Orientation of the Aluminum bracket with the pads for reinstallation.

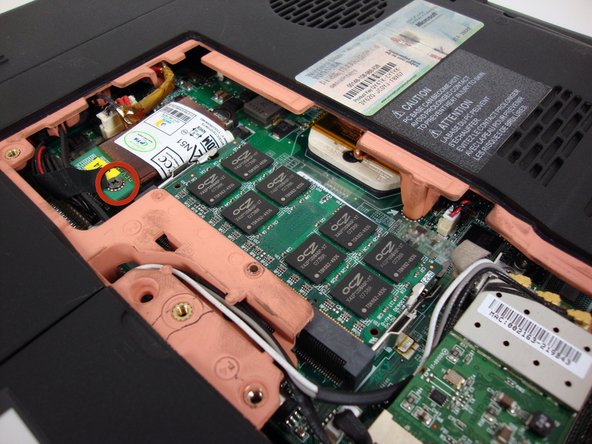

  16. Toshiba Satellite M305D-S4829 Motherboard Removal: step 16, image 1 of 1
    • Remove the circled screw with a Phillips #0 screwdriver.

  17. Toshiba Satellite M305D-S4829 Motherboard Removal: step 17, image 1 of 1

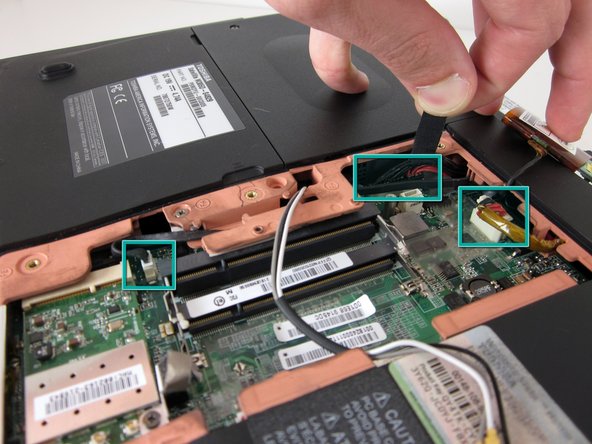

    • Detach the 3 marked cables by pulling them out with you fingers as shown.

    • This may require some force. They do not come out easily.

  18. Toshiba Satellite M305D-S4829 Motherboard Removal: step 18, image 1 of 1

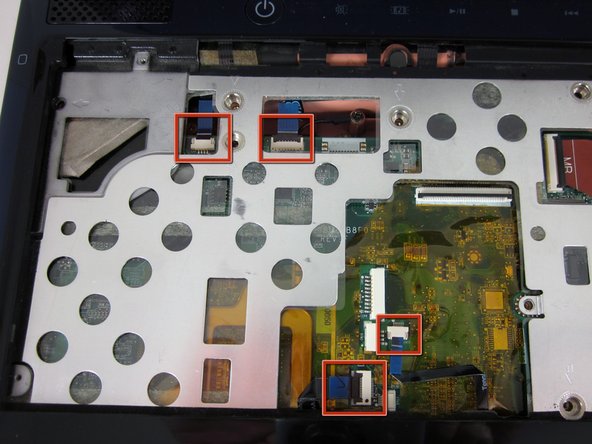

    • Detach the four blue ribbon cables carefully with tweezers. Some of the ribbons may require a flap to be raised because it secures the ribbon in.

  19. Toshiba Satellite M305D-S4829 Motherboard Removal: step 19, image 1 of 1

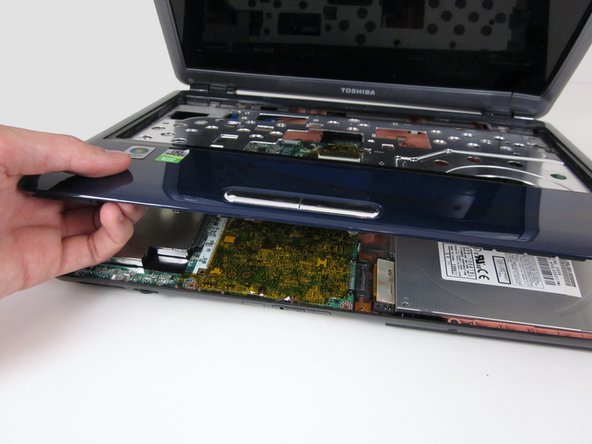

    • Remove the top plastic cover by lifting upward from the bottom left-hand corner as shown. The cover will come off easily.

  20. Toshiba Satellite M305D-S4829 Motherboard Removal: step 20, image 1 of 1

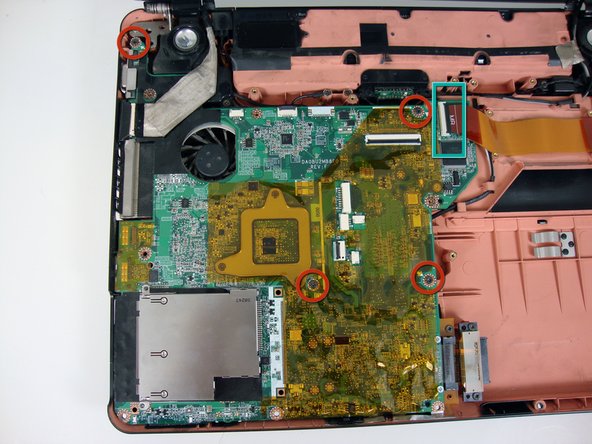

    • Remove the circled motherboard screws with a Phillips #0 Scewdriver.

    • Disconnect this ribbon cable.

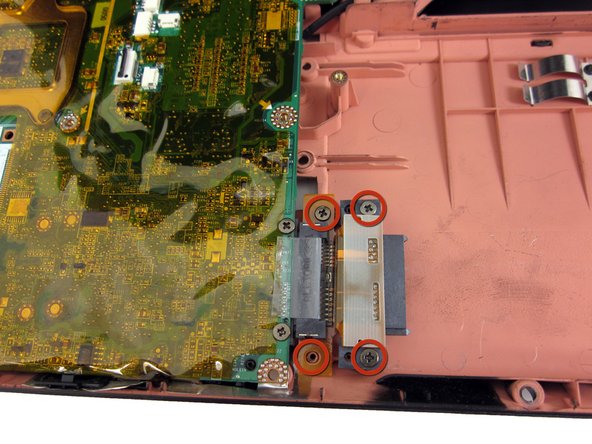

  21. Toshiba Satellite M305D-S4829 Motherboard Removal: step 21, image 1 of 1
    • Remove these screws with a Phillips #0 screwdriver.

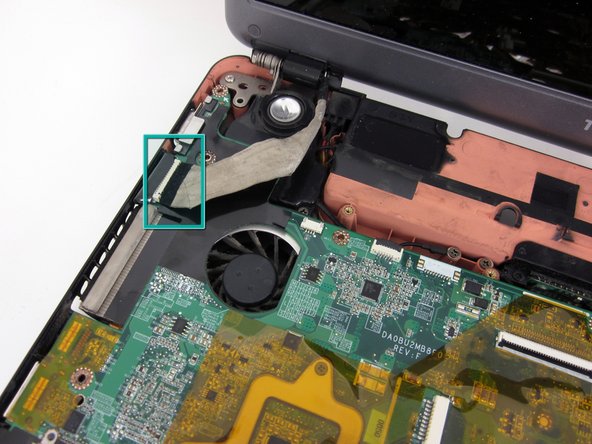

  22. Toshiba Satellite M305D-S4829 Motherboard Removal: step 22, image 1 of 1
    • Detach the display cable by gently pulling it out with your fingers.

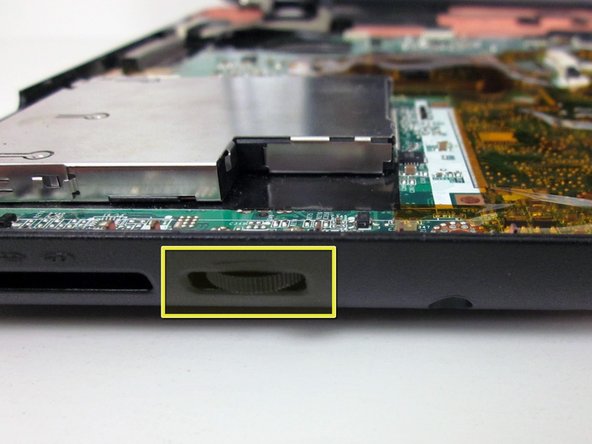

  23. Toshiba Satellite M305D-S4829 Motherboard Removal: step 23, image 1 of 2 Toshiba Satellite M305D-S4829 Motherboard Removal: step 23, image 2 of 2

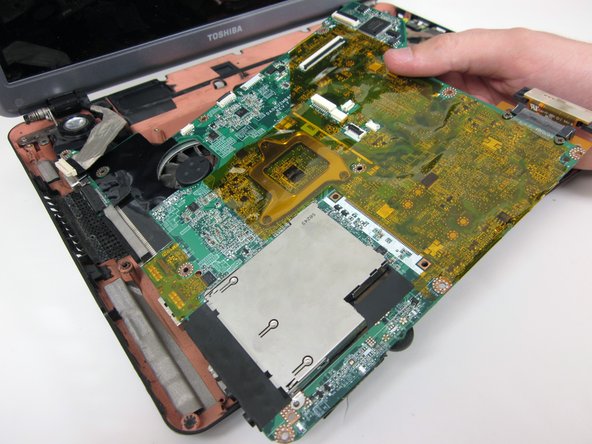

    • Remove the motherboard from the left side by gently lifting the left side upward.

    • The boxed volume control may snag on the laptop frame when pulling the motherboard out.

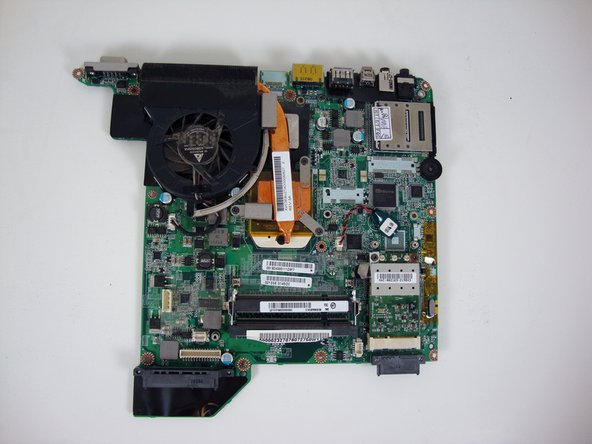

  24. Toshiba Satellite M305D-S4829 Motherboard Removal: step 24, image 1 of 1
    • The motherboard has now been removed from laptop.

Conclusion

To reassemble your device, follow these instructions in reverse order.
