Introduction
Go to step 1 ↓Learn to replace your wifi card.
What you need
-
-
-

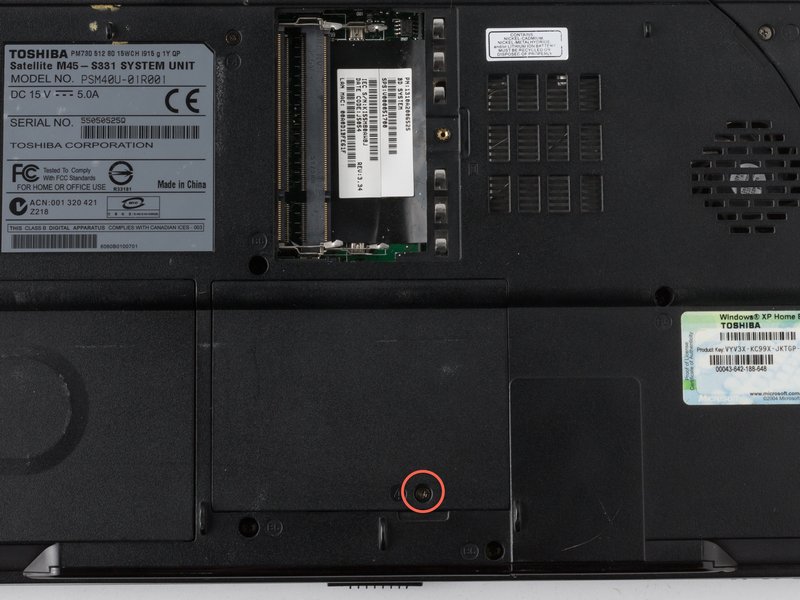

Remove the panel screw labeled with a #1 Phillips head screwdriver as indicated in the picture, then use a flat edge tool to pry the cover off.
-
The hardware to the left (labeled) can be easily removed by disconnecting the black and white wires and pushing the tabs that secure it (located on the side) outwards.
-
Pull the Wi-Fi card out from the device at a slight angle (horizontal with the casing).
-
-
To reassemble your device, follow these instructions in reverse order.
