What you need

  1. Toshiba Satellite M45 Wi-Fi Card Replacement, Toshiba Satellite M45 Wi-Fi Card Replacement: step 1, image 1 of 3 Toshiba Satellite M45 Wi-Fi Card Replacement, Toshiba Satellite M45 Wi-Fi Card Replacement: step 1, image 2 of 3 Toshiba Satellite M45 Wi-Fi Card Replacement, Toshiba Satellite M45 Wi-Fi Card Replacement: step 1, image 3 of 3
    • Remove the panel screw labeled with a #1 Phillips head screwdriver as indicated in the picture, then use a flat edge tool to pry the cover off.

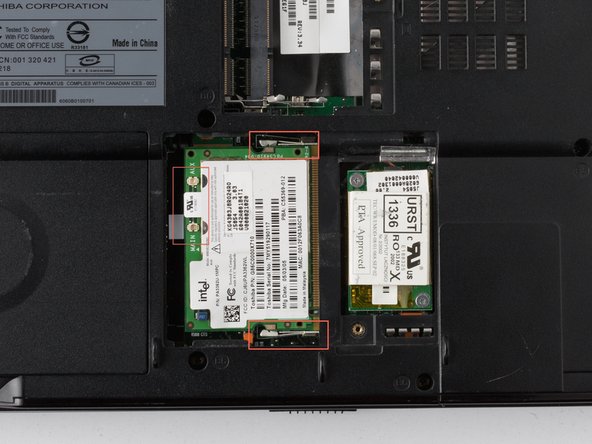

    • The hardware to the left (labeled) can be easily removed by disconnecting the black and white wires and pushing the tabs that secure it (located on the side) outwards.

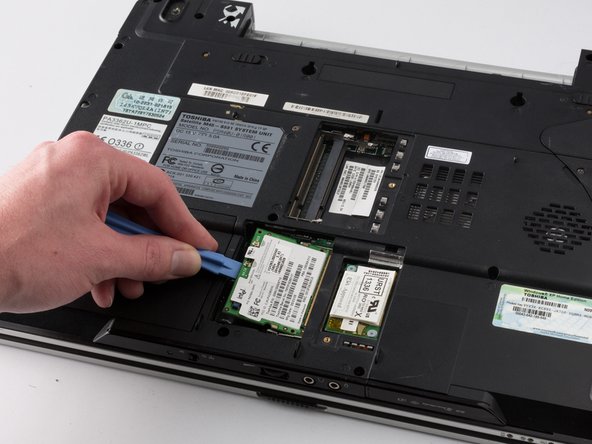

    • Pull the Wi-Fi card out from the device at a slight angle (horizontal with the casing).

Conclusion

To reassemble your device, follow these instructions in reverse order.
