UPS (Uninterrupted Power Supply)

Introduction

Dismantling and Recycling Centre (DRZ)

Katharina Lenz, Vienna / Austria

Health & Safety

Dismantling doesn't include any harmful steps. Nonetheless workers should wear personal protection equipment like gloves, goggles, apron and robust shoes.

Note: This is a general guide for most UPS. As the construction can differ, the dismantling steps mentioned below can vary in their order. However, the described steps show what parts the removal should focus on.

What you need

Step 1 UPS (Uninterrupted Power Supply)



• Unscrew and open the case.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 2



• Remove the lead batteries.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 3

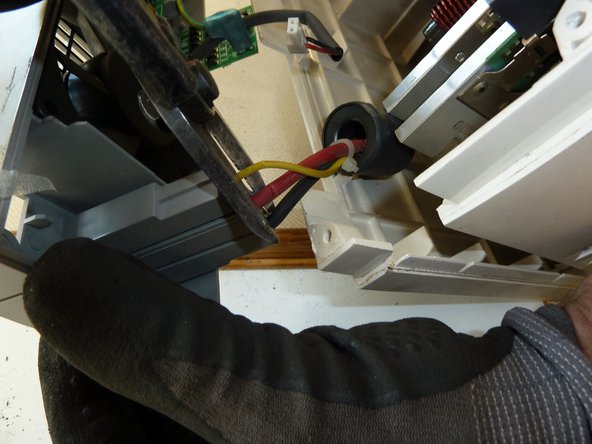

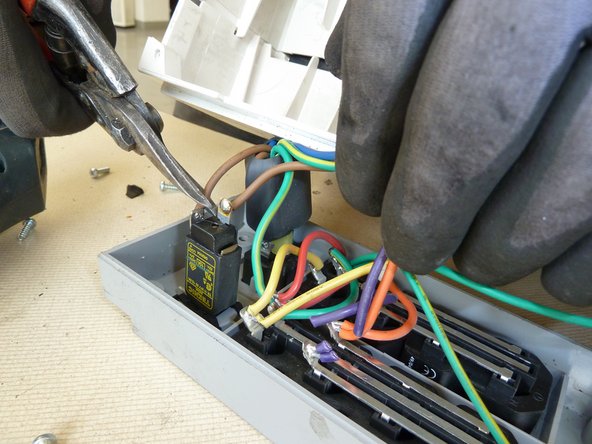

• Cut the wires.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

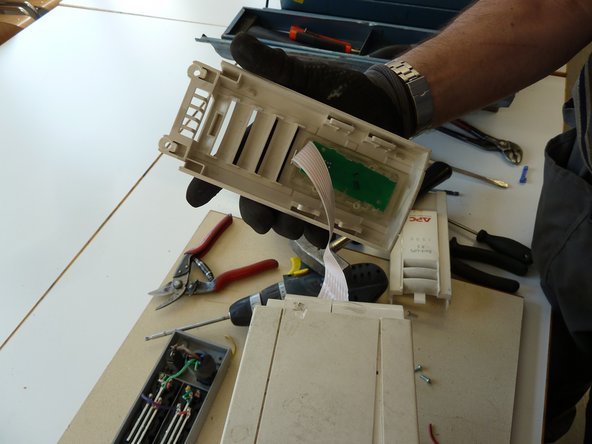

Step 4
• Remove the back cover
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 5

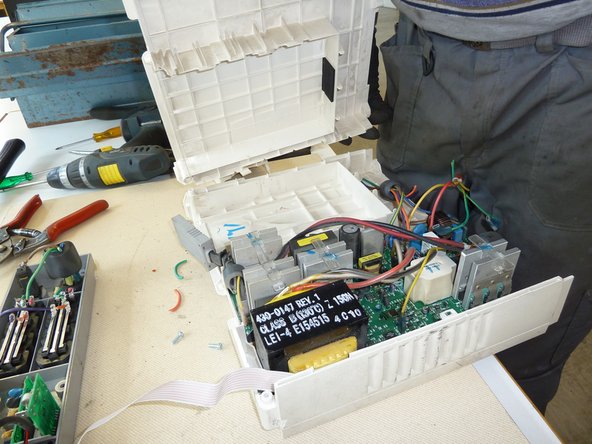

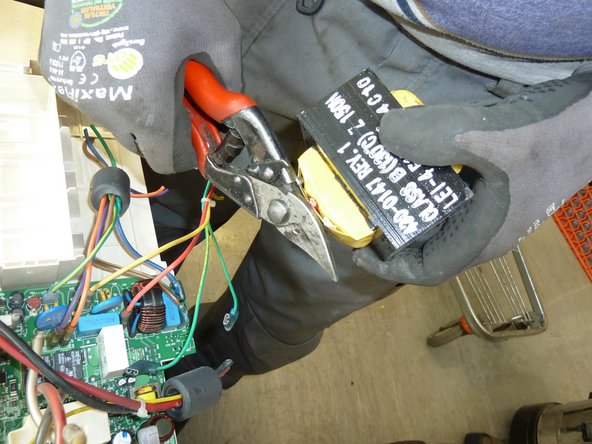

• Remove the coil.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

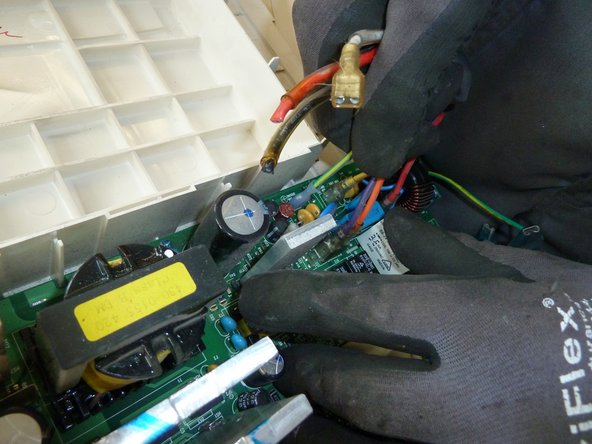

Step 6
• Remove the wires.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

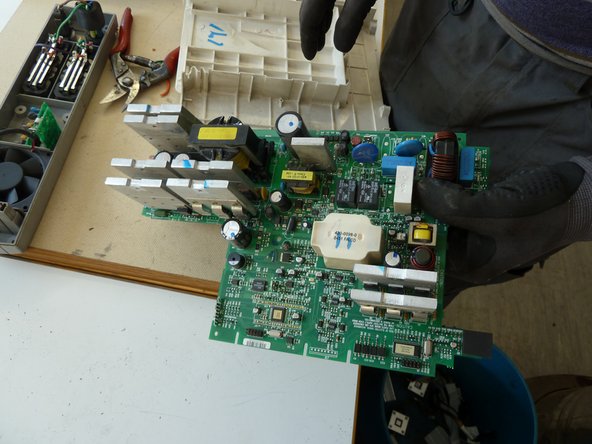

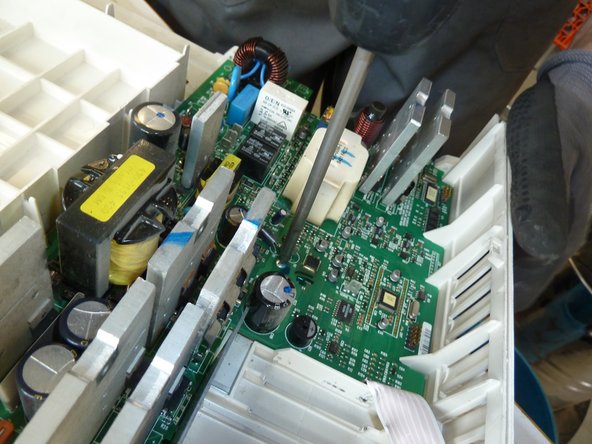

Step 7
• Unscrew and remove the PWB.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 8

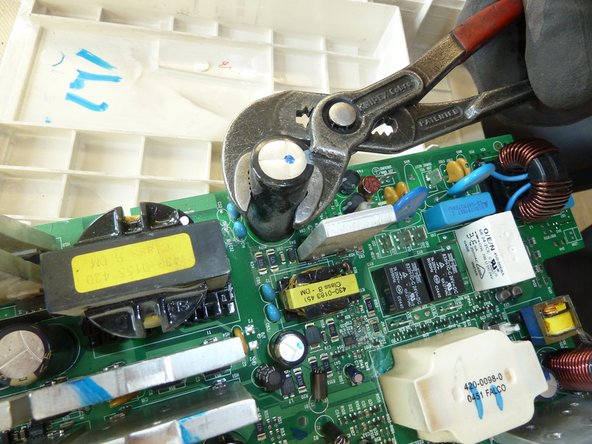

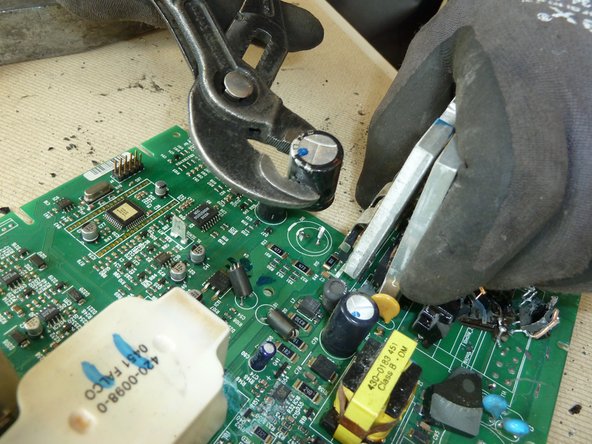

• Remove the capacitor.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

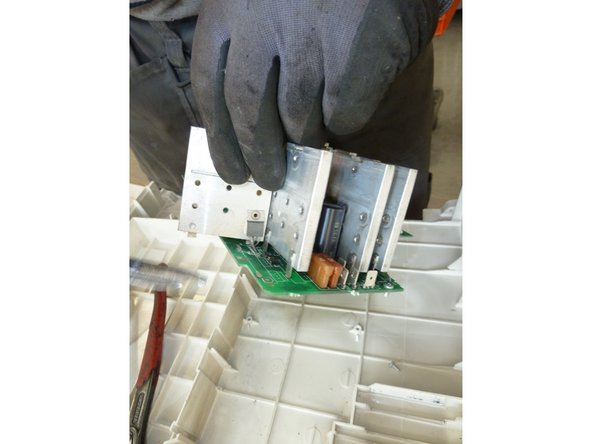

Step 9

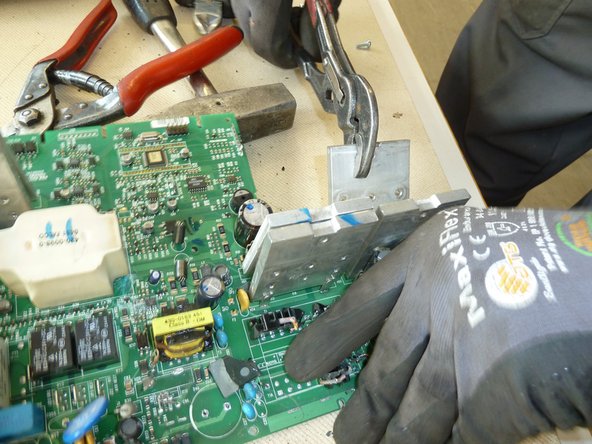

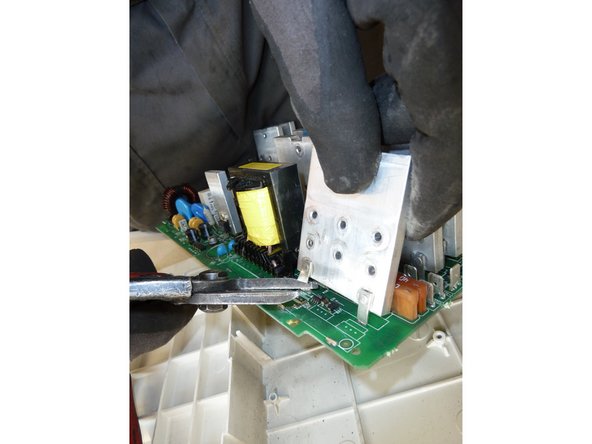

• Remove the heat sinks.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 10

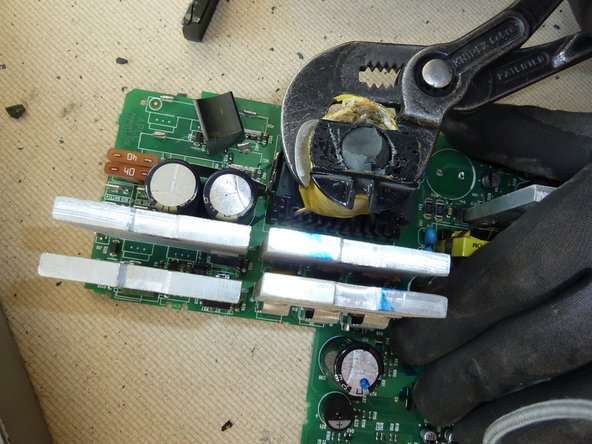

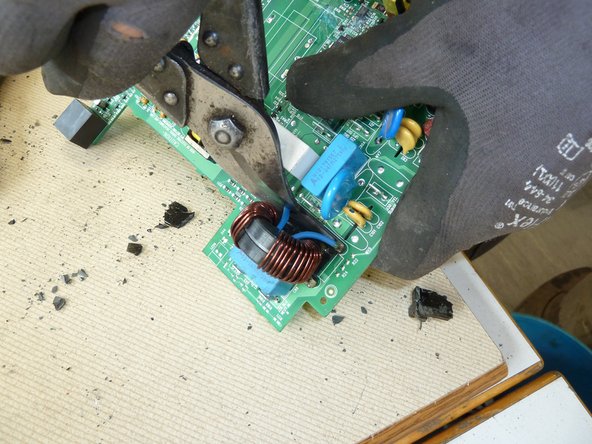

• Remove the coils.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 11
• Pry off the PWB.

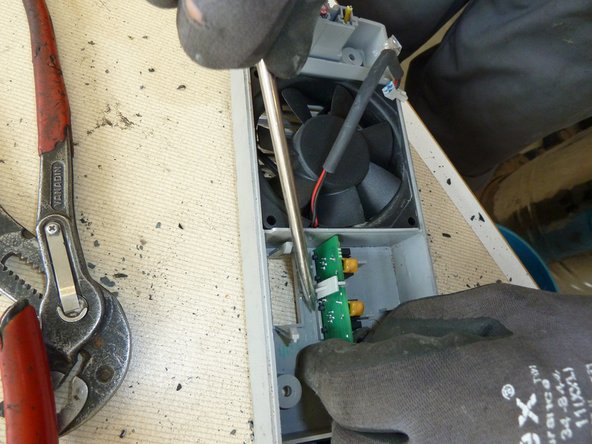

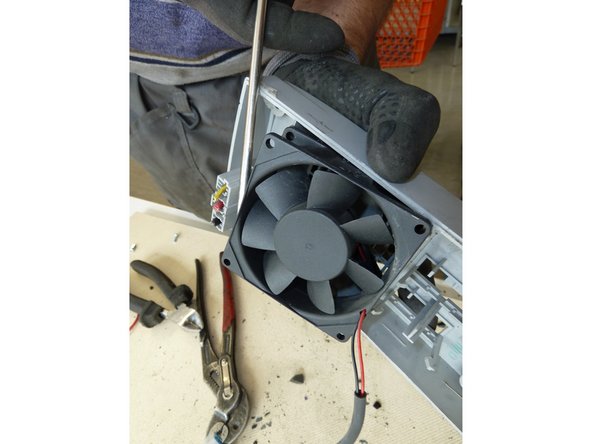

• Pry off the fan.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

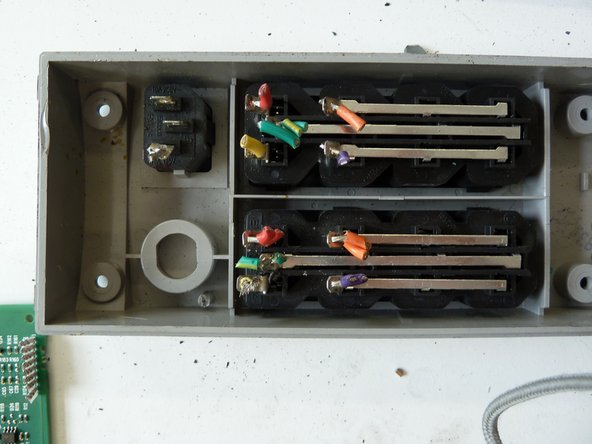

Step 12

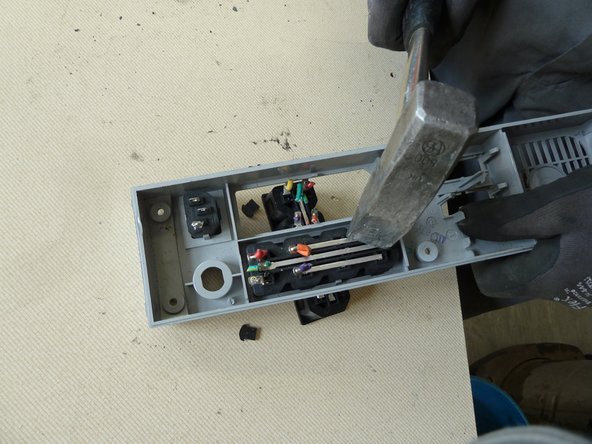

• Remove the power supply sockets.
• If necessary, hammer them out.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

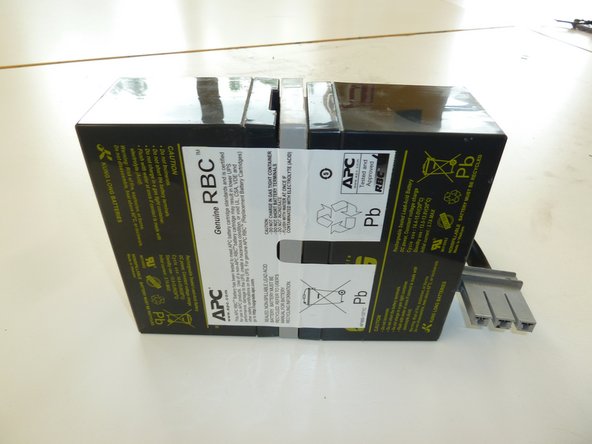

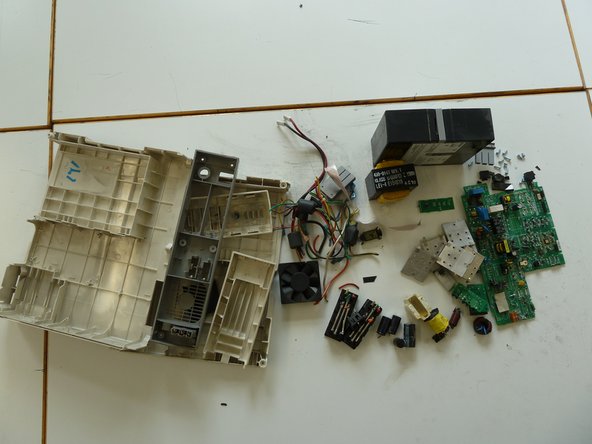

Step 13
• Separate the remaining materials according to their type and go on with the appropriate data sheet (e.g. aluminium, ferrous metals, plastic, further PWBs, etc.).
• Make sure the plastic parts are completely free of metal pieces.

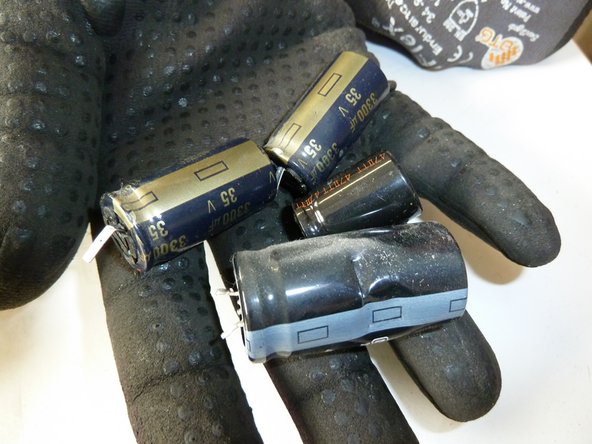

• Store capacitors and batteries seperately.
